Manual d'instruccions de la ràdio bidireccional BAOFENG BF-888S

Introducció

The BAOFENG BF-888S Two Way Radio is a portable handheld transceiver designed for convenient communication over a range of approximately 3 kilometers. This manual provides essential information for the proper setup, operation, and maintenance of your device.

Què hi ha a la caixa

Each package of the BAOFENG BF-888S Two Way Radio includes the following components:

• Portable 2 Way Radio (BF-888S)
• Antena
• Auricular
• 1500mAh Li-Ion Battery Pack
• Li-Ion Charger (Charging Base and Power Adapter)
• Clip de cinturó
• Sling/Strap
• Manual d'usuari

Imatge: A view of the BAOFENG BF-888S Two Way Radio package contents, showing the radio unit, antenna, battery, charging base, power adapter, earpiece, belt clip, and wrist strap.

Configuració

1. Instal·lació de la bateria: Ensure the radio is turned off. Align the 1500mAh Li-Ion battery pack with the battery compartment on the back of the radio. Gently push the battery into place until it clicks securely.
2. Fixació de l'antena: Enrosqueu l'antena en sentit horari al connector de la part superior de la ràdio fins que quedi ben ajustada amb els dits. No l'estrengueu massa.
3. Càrrega inicial: Before first use, fully charge the battery. Place the radio (with battery installed) into the charging base. Connect the power adapter to the charging base and plug it into a standard 110-240V US outlet. The indicator light on the charger will typically show red while charging and turn green when fully charged.
4. Belt Clip/Strap Attachment: Attach the belt clip to the back of the radio using the provided screws, if desired. The wrist strap can be looped through the designated attachment point for added security.
5. Earpiece Connection: If using the earpiece, open the rubber flap on the side of the radio and plug the earpiece connector into the appropriate port.

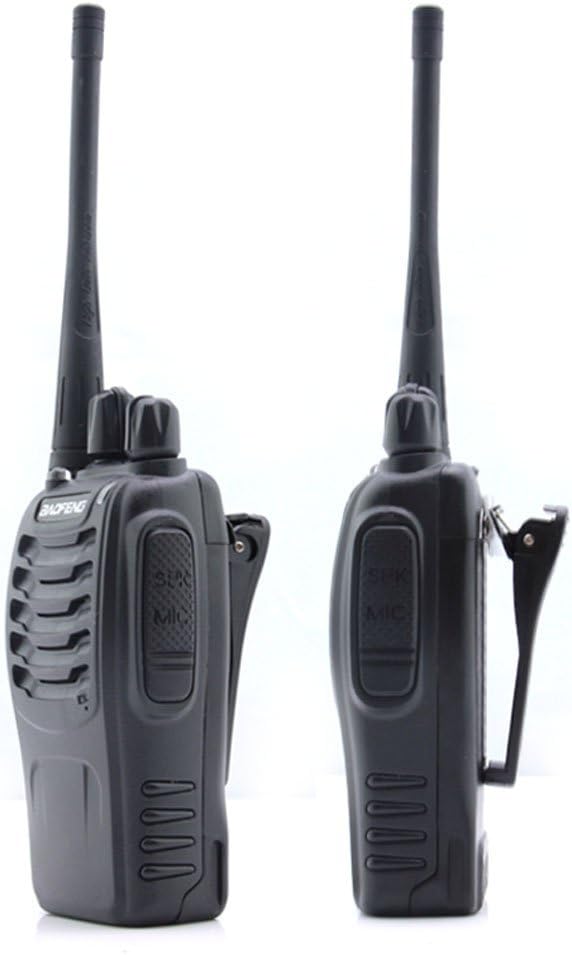

Image: Two BAOFENG BF-888S radios, one showing the front with the antenna and the other showing the side with the belt clip attached, illustrating the compact design.

Image: A BAOFENG BF-888S radio in its charging cradle, demonstrating the charging process.

Instruccions de funcionament

1. Engegada/Apagada i Volum: Rotate the top-right knob clockwise to turn the radio on and increase volume. Rotate counter-clockwise to decrease volume and turn off. The radio will audibly announce the current channel when turned on or when the channel is changed.
2. Selecció de canals: Rotate the top-left knob to select one of the 16 available channels. The radio will announce the selected channel number. Ensure all radios intended for communication are set to the same channel.
3. Premeu per parlar (PTT): To transmit, press and hold the large button on the left side of the radio. Speak clearly into the microphone. The LED indicator will light red during transmission. Release the PTT button to listen. The LED indicator will light green when receiving a signal.
4. Funció de llanterna: The radio includes a simple LED flashlight. Press the top orange button on the side to activate the flashlight. Press again to turn it off.
5. Alarma d'emergència: The BF-888S features an emergency alarm function. Refer to the included user manual for specific instructions on activating and deactivating this feature.

Manteniment

• Neteja: Utilitzeu un suau, damp drap per netejar l'exterior de la ràdio. Eviteu utilitzar productes químics agressius o netejadors abrasius.
• Cura de la bateria: Fully charge the battery before initial use. Avoid overcharging or completely draining the battery to prolong its lifespan. Store the radio and battery in a cool, dry place when not in use for extended periods.
• Cura de l'antena: Ensure the antenna is securely attached. Avoid bending or forcing the antenna, as this can damage the radio's performance.
• Emmagatzematge: Store the radio in a dry environment away from extreme temperatures and direct sunlight.

Resolució de problemes

• Sense energia: Ensure the battery is correctly installed and fully charged. Check if the power/volume knob is turned on.
• No es pot transmetre ni rebre: Verify that all radios are on the same channel. Check antenna connection. Ensure the battery has sufficient charge.
• Mala qualitat d'àudio: Check the volume level. Ensure the antenna is properly attached. Move to an area with fewer obstructions.
• Interval curt: Ensure the antenna is correctly installed. Obstructions like buildings, hills, and dense foliage can significantly reduce range.

Especificacions

Garantia i Suport

For warranty information or technical support, please refer to the official BAOFENG website or contact the retailer where the product was purchased. The included user manual may also contain specific warranty details.
