1. Introducció
This manual provides essential information for the proper installation, operation, and maintenance of your SRAM Force 22 Crankset. Please read this manual thoroughly before use to ensure optimal performance and safety.
The SRAM Force 22 Crankset is engineered with unidirectional carbon fiber arms and an aluminum chainring spider, designed for excellent strength-to-weight ratio. It features X-Glide tooth profiles and shift assist pins for quick and reliable front shifting, optimized for Yaw front derailleurs.
2. Característiques clau
- Unidirectional Carbon Fiber Arms: Provides high strength and low weight.
- Aluminum Chainring Spider: Enhances durability and power transfer.
- X-Glide Tooth Profiles: Designed for smooth and precise shifting.
- Shift Assist Pins: Aids in quick and reliable front shifting.
- Yaw Front Derailleur Optimization: Chainrings are specifically designed to work with Yaw front derailleurs for superior performance.
- Factor Q: 145mm for efficient pedaling.
- Hidden Chainring Bolt: Integrates into the crank arm for enhanced chainring stiffness and a clean aesthetic.
3. Guia d'instal·lació
Proper installation is crucial for the performance and longevity of your SRAM Force 22 Crankset. It is recommended that installation be performed by a qualified bicycle mechanic.
3.1 Eines necessàries
- Clau dinamométrica
- Appropriate bottom bracket tool (if installing a new bottom bracket)
- Claus hexagonals (diverses mides)
- Greix
3.2 Passos d'instal·lació
- Prepare Bottom Bracket: Ensure your bicycle's bottom bracket shell is clean and faced correctly. Apply a thin layer of grease to the bottom bracket threads or cups as per bottom bracket manufacturer's instructions.
- Install Bottom Bracket (if applicable): Install the compatible GXP bottom bracket according to its specific instructions.
- Install Drive-Side Crank Arm: Apply a thin layer of grease to the GXP spindle. Carefully slide the drive-side crank arm (with chainrings attached) through the bottom bracket.
- Install Non-Drive-Side Crank Arm: Align the splines of the non-drive-side crank arm with the spindle. Push the arm onto the spindle until it seats firmly.
- Tighten Crank Bolt: Use a hex key to tighten the main crank bolt on the non-drive-side. Refer to the specifications section for the correct torque value. Overtightening can damage components, while undertightening can lead to play and premature wear.
- Instal·lar pedals: Apply a small amount of grease to the pedal threads and install your pedals, ensuring they are tightened to the manufacturer's recommended torque. Note: Pedal Spindle is 9/16".
- Adjust Front Derailleur: After crankset installation, it is essential to adjust your front derailleur, especially if using a Yaw derailleur, to ensure optimal shifting performance with the new chainrings.

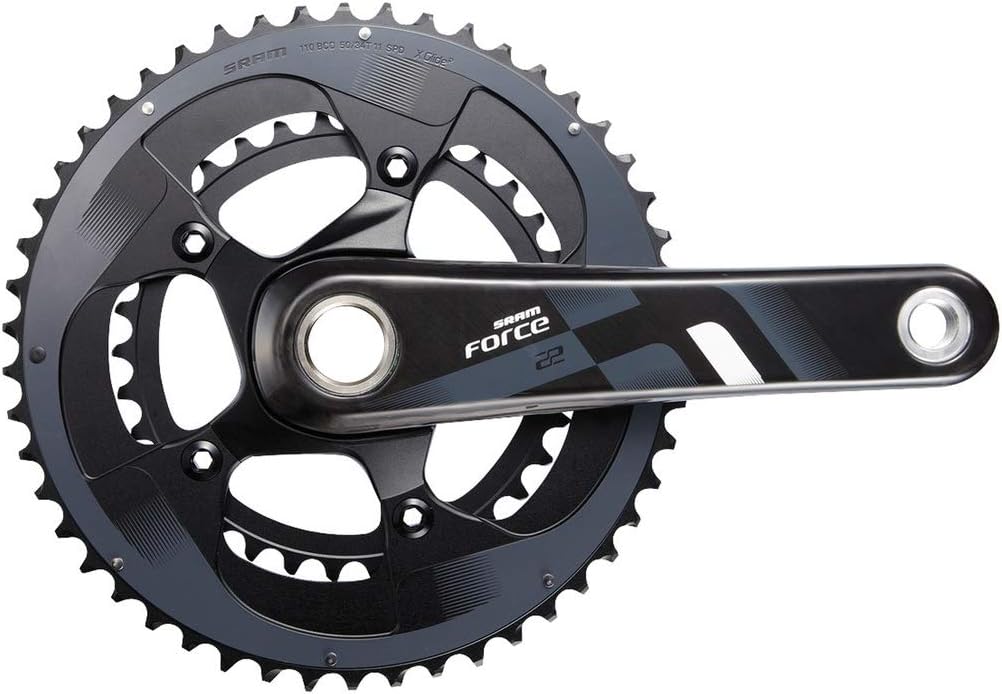

Figure 1: SRAM Force 22 Crankset showing the drive-side crank arm and chainrings.
Figura 2: Angle view of the SRAM Force 22 Crankset, highlighting the carbon fiber crank arm and chainring design.
4. Funcionament
The SRAM Force 22 Crankset is designed for smooth and efficient power transfer. Proper shifting technique will maximize its performance and lifespan.
4.1 Canviant de marxa
- Front Shifting: Use your left shifter to move the chain between the 50-tooth and 34-tooth chainrings. Shift smoothly and avoid excessive force.
- Anticipar els canvis: Shift into an appropriate gear before encountering a significant change in terrain (e.g., a steep climb) to maintain momentum and reduce stress on the drivetrain.
- Evitar el encadenament creuat: While the Force 22 system is highly tolerant, try to avoid extreme gear combinations (e.g., large chainring with largest cog, or small chainring with smallest cog) to minimize chain wear and noise.
5. Manteniment
Regular maintenance will extend the life of your crankset and ensure consistent performance.
- Neteja: Regularly clean your crankset and chainrings with a bicycle-specific degreaser and brush. Rinse thoroughly and dry.
- Lubricació: Keep your chain properly lubricated. A well-lubricated chain reduces wear on chainrings and cogs.
- Comprovació de cargols: Periodically check all crankset bolts, including chainring bolts and the main crank bolt, for proper torque. Refer to the specifications section for torque values.
- Inspecció: Inspect chainrings for excessive wear (e.g., "shark fin" teeth). Worn chainrings can lead to poor shifting and chain skipping.
- Suport inferior: If your bottom bracket is making noise or feels rough, it may need servicing or replacement. Consult a qualified mechanic.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Crankset feels loose or has play | Loose crank bolt; worn bottom bracket; incorrect installation. | Check and re-torque crank bolt. Inspect bottom bracket for wear and replace if necessary. Re-install crankset following instructions. |
| Poor front shifting | Misaligned front derailleur; worn chainrings; worn chain; incorrect cable tension. | Adjust front derailleur alignment and limits. Inspect chainrings and chain for wear and replace if needed. Adjust shifter cable tension. |
| Creaking noise from crankset area | Dry or loose bottom bracket; loose chainring bolts; dirty interfaces. | Remove, clean, grease, and re-install bottom bracket. Check and re-torque chainring bolts. Ensure all interfaces are clean. |
If you are unable to resolve an issue, please consult a qualified bicycle mechanic or contact SRAM customer support.
7. Especificacions
| Atribut | Valor |
|---|---|
| Nom del model | SRAM Force 22 Crankset |
| Número de model | 00.6118.108.007 |
| Longitud de la manivela | 172.5 mm |
| Drivetrain Speeds | 11-Velocitat |
| Chainring Configuration | 50/34t (Double) |
| Chainring BCD | 110 aC |
| Spindle Interface Type | SRAM/Truvativ GXP |
| Pedal Spindle | 9/16" |
| Factor Q | 145 mm |
| Material | Unidirectional Carbon Fiber (arms), Aluminum (spider) |
| Color | Negre |
| Pes aproximat | 688 g |
| UPC | 710845728570 |
8. Garantia i Suport
This SRAM Force 22 Crankset comes with a Garantia limitada provided by SRAM. For specific warranty terms and conditions, please refer to the official SRAM warranty policy documentation or contact SRAM directly.
Política de devolució: Products purchased may be subject to a 30-day return policy from the date of purchase, depending on the retailer's terms.
For technical support, service, or warranty claims, please visit the official SRAM weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. També podeu visitar el SRAM Store on Amazon per a més informació i opcions de contacte.
