Introducció
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Homelite 16-inch 12 Amp Electric Chainsaw, Model UT43122B. Please read all instructions carefully before using the chainsaw to ensure proper function and to prevent injury.
Informació de seguretat
Operating any power tool can be dangerous. Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.
- Llegeix el manual: Enteneu totes les instruccions i advertències abans d'utilitzar-lo.
- Equips de protecció individual (EPI): Utilitzeu sempre ulleres de seguretat, protecció auditiva, guants i calçat resistent. També es recomana un casc i una protecció per a les cames.
- Àrea de treball: Keep the work area clear of bystanders, children, and pets. Ensure good lighting.
- Seguretat elèctrica: Use only extension cords rated for outdoor use and appropriate for the chainsaw's amperage. Ensure connections are secure and dry. Do not operate in wet conditions.
- Tornar-s'hi: Be aware of kickback, which can occur when the moving chain contacts an object at the upper tip of the guide bar or when the wood closes in and pinches the saw chain in the cut.
- Manteniment: Inspeccioneu regularment la motoserra per detectar danys, peces soltes o desgast. Assegureu-vos que la cadena estigui afilada i correctament tensada.
- Emmagatzematge: Guardeu la motoserra en un lloc sec i segur fora de l'abast dels nens.
Configuració
Before operating your electric chainsaw, proper assembly and preparation are crucial.
- Desembalatge: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha danys durant l'enviament.
- Bar and Chain Installation: Refer to the detailed diagrams in your product packaging for specific instructions on installing the guide bar and saw chain. Ensure the chain is oriented correctly and seated properly in the guide bar groove.
- Ajust de la tensió de la cadena: After installation, adjust the chain tension. The chain should be snug against the guide bar but still able to be pulled around by hand. It should not sag from the bottom of the guide bar. Over-tightening can cause premature wear; too loose can cause the chain to derail.
- Add Bar and Chain Oil: Fill the oil reservoir with appropriate bar and chain lubricant. Do not use motor oil. The oiler system automatically lubricates the chain during operation. Check the oil level frequently.
- Connexió d'alimentació: Connect the chainsaw to a suitable outdoor-rated extension cord. Ensure the extension cord is of adequate gauge for the distance and amperage.
Figura 1: Frontal view of the Homelite 16-inch 12 Amp Electric Chainsaw. This image shows the overall design, including the handle, motor housing, and the 16-inch guide bar and chain.
Instruccions de funcionament
Follow these steps for safe and effective operation of your electric chainsaw.
- Comprovació prèvia al funcionament: Before each use, check the chain tension, oil level, and ensure all fasteners are tight. Inspect the power cord and extension cord for damage.
- Engegar la motoserra: Hold the chainsaw firmly with both hands. Depress the safety switch and then squeeze the trigger switch to start the motor. Allow the chain to reach full speed before beginning a cut.
- Tècnica de tall: Always maintain a firm grip with both hands. Position yourself to the side of the cutting path, not directly behind the saw. Use the bottom of the guide bar for cutting, as this pulls the saw into the wood. Avoid using the top of the guide bar, which can cause kickback.
- Tala d'arbres petits: For small trees, make an undercut on the side of the desired fall, then make a felling cut from the opposite side, slightly above the undercut. Ensure a clear escape path.
- Limbing and Bucking: When limbing, work from the bottom up, removing smaller branches first. When bucking (cutting a fallen log into sections), support the log to prevent pinching the chain.
- Aturar la motoserra: Release the trigger switch to stop the motor. Disconnect the power cord from the extension cord and the wall outlet when not in use or when performing maintenance.

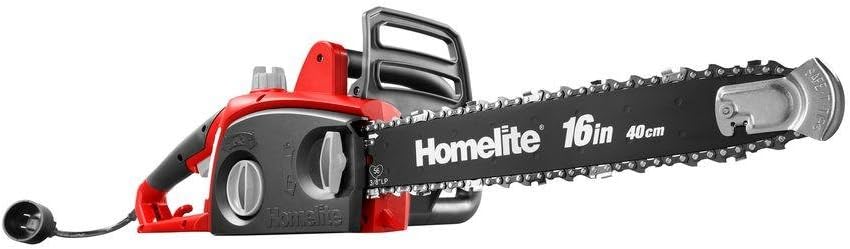

Figura 2: lateral view of the Homelite 16-inch 12 Amp Electric Chainsaw, highlighting the guide bar and chain assembly. Proper chain tension is critical for safe operation.
Manteniment
Un manteniment regular garanteix la longevitat i el funcionament segur de la motoserra.
- Afilat de cadena: A dull chain requires more effort and can cause kickback. Sharpen the chain regularly or replace it when necessary. Refer to the chain manufacturer's specifications for proper sharpening angles.
- Manteniment de la barra guia: Clean the guide bar groove and oil holes regularly. Flip the guide bar periodically to ensure even wear. Check for burrs on the guide bar rails and file llises si n'hi ha.
- Tensió de la cadena: Check chain tension frequently, especially during initial use and after extended periods of operation. Adjust as needed.
- Neteja: Keep the chainsaw clean from sawdust, debris, and oil residue. Use a brush or compressed air. Ensure ventilation openings are clear.
- Dipòsit d'oli: Empty and clean the oil reservoir periodically to prevent sludge buildup. Use only recommended bar and chain oil.
- Emmagatzematge: Before storing, clean the chainsaw thoroughly, drain the oil reservoir, and apply a light coat of oil to the chain and guide bar to prevent rust. Store in a dry, secure place.
Figura 3: superior view of the Homelite 16-inch 12 Amp Electric Chainsaw. This view shows the motor housing and the top handle, which is important for maintaining control during operation.
Resolució de problemes
Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra motoserra.
| Problema | Causa possible | Solució |
|---|---|---|
| La motoserra no arrenca | No power, faulty cord, safety switch not engaged | Check power outlet and extension cord. Ensure safety switch is fully depressed before pulling trigger. Inspect cords for damage. |
| La cadena no talla de manera eficient | Cadena desafilada, tensió incorrecta de la cadena, oli insuficient | Sharpen or replace chain. Adjust chain tension. Fill oil reservoir. |
| La cadena surt de la barra guia | Loose chain tension, worn guide bar, incorrect chain installation | Adjust chain tension. Inspect guide bar for wear. Reinstall chain correctly. |
| Excessive oil leakage | Overfilled reservoir, damaged oil cap/seal, normal seepage | Do not overfill. Ensure oil cap is secure. Some seepage is normal when stored; store on a non-porous surface. If excessive, contact service. |
| El motor es sobreescalfa | Blocked ventilation, continuous heavy use, dull chain | Clean ventilation openings. Allow motor to cool. Sharpen chain. Avoid prolonged heavy cutting. |
Especificacions
Technical details for the Homelite 16-inch 12 Amp Electric Chainsaw, Model UT43122B.
- Número de model: UT43122B
- Longitud de la barra: 16 polzades
- Ampera: 12 Amps
- Font d'alimentació: Elèctric amb cable
- Dimensions del producte: 34 x 9 x 10.5 polzades
- Pes de l'article: 11.3 lliures
- Fabricant: Homelite
- UPC: 046396005588
Garantia i Suport
This product is tested and certified to look and work like new. The refurbishing process includes functionality testing, basic cleaning, inspection, and repackaging. The product ships with all relevant accessories, and may arrive in a generic box. For specific warranty details or technical support, please refer to the documentation included with your purchase or contact Homelite customer service directly.
For further assistance, please visit the official Homelite website or contact their customer support line. Keep your model number (UT43122B) and purchase information readily available when seeking support.
