Juniper Networks EX4300-48P Ethernet PoE Switch User Manual

1. Introducció

The Juniper Networks EX4300-48P Ethernet PoE Switch is designed to provide a high-performance, scalable solution for data center, campus, and branch office environments. This switch combines carrier-class reliability with the flexibility of stackable platforms, offering a full suite of Layer 2 and Layer 3 switching capabilities. It supports Power over Ethernet (PoE) for connecting and powering compatible devices, and features Virtual Chassis technology for interconnecting multiple switches into a single logical device.

Figura 1: Angle view of the Juniper Networks EX4300-48P Ethernet PoE Switch, showcasing its robust metal casing and port layout.

2. Informació de seguretat

Observeu les següents precaucions de seguretat per evitar lesions i danys a l'equip:

• Ensure proper grounding of the switch before connecting power.
• Do not operate the switch in environments exceeding the specified temperature and humidity ranges.
• Eviteu bloquejar les obertures de ventilació per evitar el sobreescalfament.
• Use only the power supply provided or approved by Juniper Networks.
• Do not attempt to service the switch yourself. Refer all servicing to qualified personnel.
• Keep liquids away from the switch to prevent electrical shock or damage.

3. Contingut del paquet

Verify that your package contains the following items. If any item is missing or damaged, contact your vendor.

• Juniper Networks EX4300-48P Ethernet PoE Switch
• Cable d'alimentació
• Rack-mount kit (if applicable)
• Cable de la consola
• Documentació (Guia d'inici ràpid, Informació de seguretat)

4. Configuració

4.1 Instal·lació física

The EX4300-48P switch can be installed in a standard 19-inch equipment rack or placed on a desktop. Ensure adequate airflow around the unit.

• Muntatge en bastidor: Attach the provided rack-mount brackets to the sides of the switch and secure it into the rack using appropriate screws.
• Ubicació d'escriptori: Ensure the surface is flat, stable, and allows for proper ventilation.

4.2 Tauler frontal sobreview

Figure 2: Front panel of the EX4300-48P switch, showing 48 PoE+ Ethernet ports and uplink module slots.

The front panel features 48 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+), allowing connection and power delivery to devices such as IP phones, wireless access points, and surveillance cameras. It also includes slots for optional uplink modules, providing flexible high-speed connectivity options.

4.3 Panell posterior per sobreview

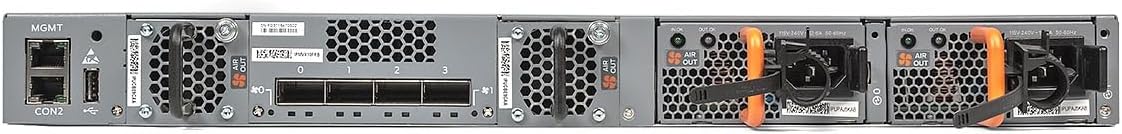

Figure 3: Rear panel of the EX4300-48P switch, displaying power supply bays, fan modules, and management ports.

The rear panel houses the power supply bays, fan modules for cooling, and various management interfaces including a console port and an out-of-band management Ethernet port (MGMT). It also contains the Virtual Chassis ports (QSFP+) for interconnecting multiple EX4300 switches.

4.4 Connexió de potència

1. Ensure the power switch (if present) is in the OFF position.
2. Connecteu el cable d'alimentació a l'entrada d'alimentació de CA del panell posterior de l'interruptor.
3. Connecteu l'altre extrem del cable d'alimentació a una presa de corrent amb connexió a terra.
4. Turn the power switch to the ON position. The system status LEDs should illuminate.

4.5 Accés a la configuració inicial

Initial configuration can be performed via the console port or the dedicated management Ethernet port.

• Port de la consola: Connect a console cable from your management workstation to the console port on the switch. Use a terminal emulation program (e.g., PuTTY, Tera Term) with settings: 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control.
• Management Port (MGMT): Connect an Ethernet cable from your management workstation to the MGMT port. Configure your workstation's IP address to be on the same subnet as the switch's default management IP (refer to the Quick Start Guide for default IP).

5. Funcionament de l'interruptor

5.1 Funcionament bàsic

Once powered on and initially configured, the EX4300-48P switch begins forwarding traffic according to its default or configured settings. The switch operates as a Layer 2 device by default, performing MAC address learning and forwarding frames based on destination MAC addresses. Layer 3 routing capabilities can be enabled and configured for inter-VLAN routing and other advanced network functions.

5.2 Power over Ethernet (PoE)

The EX4300-48P provides Power over Ethernet (PoE) on its 48 access ports. This feature allows the switch to deliver electrical power along with data to connected devices over standard Ethernet cabling. Ensure that connected devices are PoE-compatible and do not exceed the switch's total power budget. PoE status can be monitored via the command-line interface (CLI) or network management system.

5.3 Virtual Chassis Technology

Juniper Networks Virtual Chassis technology allows up to 10 EX4300 switches to be interconnected and managed as a single logical device. This provides a scalable, pay-as-you-grow solution for expanding network environments. Switches are interconnected using the 40GbE QSFP+ transceiver ports on the rear panel. Configuration and management of the Virtual Chassis are performed from the master switch.

6. Manteniment

6.1 Neteja

• Periodically clean the exterior of the switch with a soft, dry, lint-free cloth.
• Ensure ventilation openings are free from dust and debris to maintain proper cooling.
• No utilitzeu netejadors líquids o en aerosol directament sobre l'interruptor.

6.2 actualitzacions de microprogramari

Consulteu regularment el suport de Juniper Networks website for the latest firmware updates. Keeping the switch firmware up-to-date ensures optimal performance, security, and access to new features. Follow the instructions provided with the firmware release for the update procedure.

6.3 Consideracions ambientals

Maintain the operating environment within the specified temperature and humidity ranges to ensure the longevity and reliable operation of the switch. Avoid exposing the switch to direct sunlight, excessive heat, or moisture.

7. Solució De Problemes

7.1 Sense poder

• Verifiqueu que el cable d'alimentació estigui connectat correctament tant a l'interruptor com a la presa de corrent.
• Comproveu si la presa de corrent funciona connectant-hi un altre dispositiu.
• Ensure the power switch on the rear panel is in the ON position.
• Inspect the power supply unit for any visible damage or fault indicators.

7.2 Sense connectivitat de xarxa

• Check the link/activity LEDs on the connected ports. If off, verify the cable connection and the status of the connected device.
• Ensure the correct VLANs and IP configurations are applied to the switch interfaces and connected devices.
• Verify that the switch ports are not administratively shut down.
• Test with a different Ethernet cable or port.

7.3 El PoE no funciona

• Confirm that the connected device is PoE-compatible.
• Check the PoE status LEDs on the front panel for the specific port.
• Verify the switch's total PoE power budget and ensure it is not exceeded.
• Use the CLI to check PoE port status and power allocation.

7.4 System Status LEDs

Refer to the product documentation for a detailed explanation of the system status LEDs (e.g., SYS, ALM, RPS, PoE) and their indications. These LEDs provide quick visual diagnostics of the switch's operational state and any potential issues.

8. Especificacions
