Optoma EH500 High Brightness Projector User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation of your Optoma EH500 High Brightness Projector. The Optoma EH500 is designed for business and educational environments, offering 1080p resolution, 4,700 lumens brightness, and extensive connectivity options. Please read this manual thoroughly before using the projector and retain it for future reference.

2. Què hi ha a la caixa

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• Optoma Technology EH500 Data Series DLP 3D Projector
• IR Remote Mouse Control
• 2 x AAA Batteries (for Remote)
• Cable d'alimentació CA
• Cable VGA a VGA
• Lent Cap
• Maleta de transport
• Multilingual CD-ROM User's Manual
• 3-Year Limited Optoma Express Service Warranty
• 1-Year Limited Lamp Garantia

3. Producte acabatview

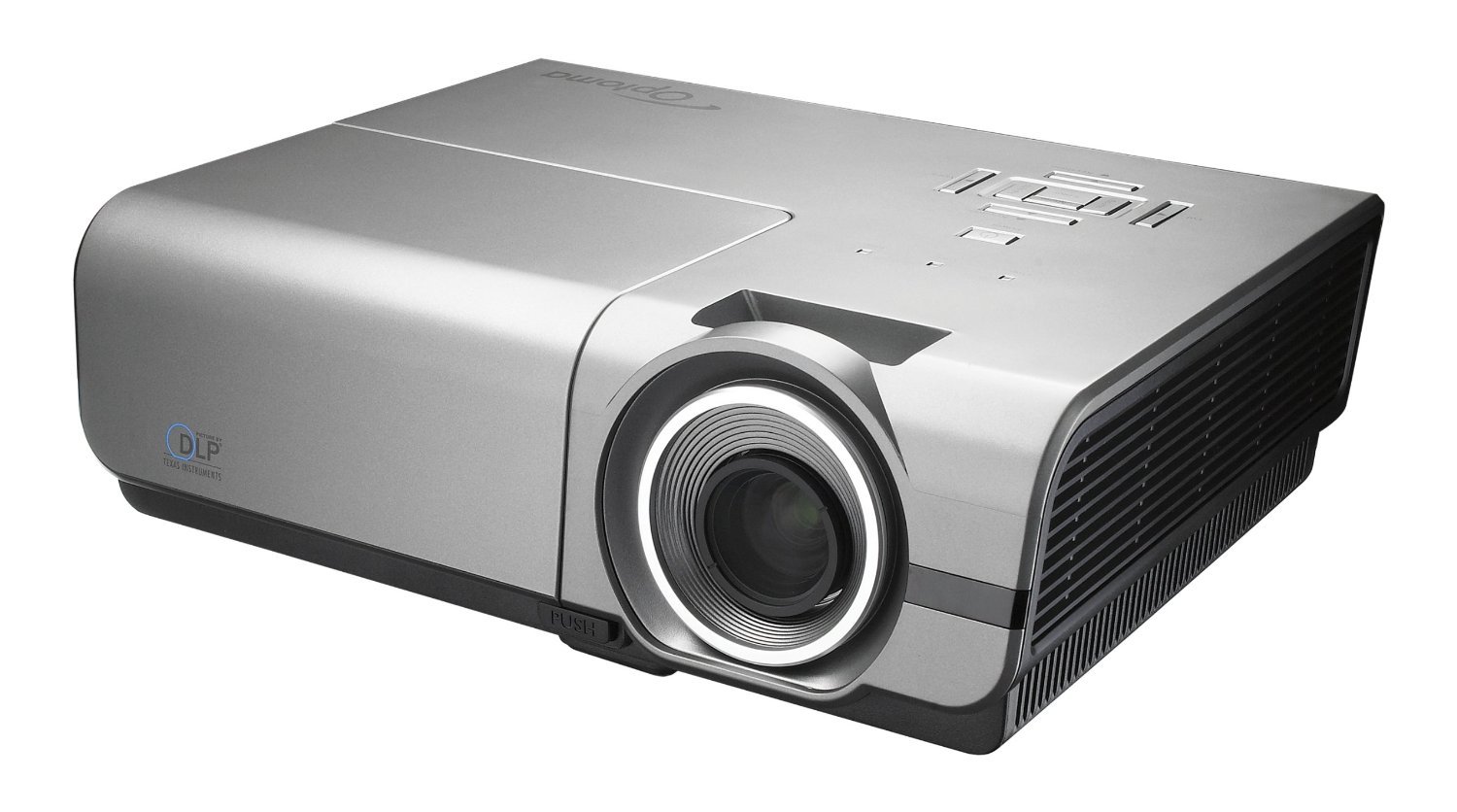

Figura 3.1: Davant view of the Optoma EH500 projector, showcasing the lens and sleek design.

Figura 3.2: Rear panel of the Optoma EH500, displaying the comprehensive array of connectivity ports including HDMI, VGA, DisplayPort, USB, and network connections.

Figura 3.3: Top panel of the Optoma EH500, showing the power button, menu navigation, keystone correction, and source selection controls.

Figura 3.4: The remote control for the Optoma EH500, featuring dedicated buttons for power, menu, source selection, volume, and keystone adjustment.

4. Configuració

4.1 Col·locació

Position the projector on a stable, flat surface or mount it securely to a ceiling. Ensure adequate ventilation around the unit. The distance from the screen will determine the image size. For optimal image quality, ensure the projector is centered with the screen.

4.2 Connexió d'alimentació

1. Connect the AC power cord to the projector's power inlet.
2. Connecteu l'altre extrem del cable d'alimentació a una presa de corrent amb connexió a terra.
3. The power LED on the projector will illuminate, indicating standby mode.

4.3 Connexió inicial

Connect your video source (e.g., laptop, Blu-ray player) to the projector using an appropriate cable (HDMI, VGA, DisplayPort, S-Video, or Composite Video). Refer to the 'Connectivity' section for port details.

5. Instruccions de funcionament

5.1 Engegada/apagada

• Per encendre: Press the Power button on the projector's top panel or the remote control. The projector will initiate its startup sequence.
• Per apagar: Press the Power button twice. The first press will display a confirmation message; the second press will shut down the projector.

5.2 Selecció de la font d'entrada

Press the 'Source' button on the projector or remote control to cycle through available input sources (HDMI 1, HDMI 2, VGA 1, VGA 2, DisplayPort, S-Video, Composite Video). Select the input corresponding to your connected device.

5.3 Ajust de la imatge

• Focus: Gireu l'anell d'enfocament de la lent del projector fins que la imatge sigui nítida i clara.
• Zoom: Adjust the zoom ring on the projector lens to achieve the desired image size.
• Correcció Keystone: Use the 'Keystone' buttons (up/down arrows) on the projector or remote to correct trapezoidal image distortion. Note that the EH500 primarily offers vertical keystone correction.
• Navegació del menú: Press the 'Menu' button to access settings for picture, audio, display, and system. Use the arrow buttons to navigate and 'Enter' to confirm selections.

6. Connectivitat

The Optoma EH500 offers a wide range of connectivity options:

• HDMI (x2): For high-definition digital video and audio input.
• VGA In (x2): For analog video input from computers.
• VGA Out: For connecting to an external monitor or display.
• DisplayPort: For high-resolution digital video input.
• Vídeo S: For standard definition video input.
• Vídeo compost: For standard definition video input.
• Audio In (x2) / Audio Out: Per a connexions d'àudio analògiques.
• USB: Per a actualitzacions de servei o firmware.
• RJ45 (LAN): For network control and management via Crestron RoomView.
• RS-232C: For serial control using HEX or ASCII commands.
• Disparador de 12 V: For automated screen control.

7. Característiques clau

• Incredible Picture Quality: Experience presentations with vibrant colors and sharp, clear text and graphics, enabled by 1080p full high definition and a 10,000:1 contrast ratio.
• Alt Brillantor: Enjoy 4,700 lumens of brightness, suitable for well-lit meeting rooms, conference rooms, training rooms, and classrooms.
• Network Control with Crestron RoomView: Set up complete network control and management of up to 250 projectors, ideal for large installations in business and educational environments.
• Control RS-232: Take control of the projector using HEX or ASCII commands via an RS-232 cable for integrated system management.
• Green by Design: The EH500 consumes less than 1 watt in standby mode, significantly reducing energy consumption. It features automatic shut down and remote management for energy conservation.
• Full 3D Compatibility: Display true 3D content from various 3D sources, including 3D Blu-ray Disc players and 3D broadcasting. Supports 144Hz rapid-refresh rate for ultra-smooth, flicker-free images (Optoma 3D glasses required).

8. Manteniment

8.1 Neteja de la lent

Use a soft, lint-free cloth specifically designed for optical lenses. Avoid abrasive cleaners or cloths that could scratch the lens surface.

8.2 Cleaning the Projector Casing

Netegeu el projector casing amb un suau, damp tela. No utilitzeu productes químics o dissolvents aggressivs.

8.3 Lamp Substitució

El projector lamp té una vida útil limitada. Quan el lamp life is nearing its end, a warning message will appear on the screen. Refer to the detailed instructions in the full user manual (on CD-ROM) for safe lamp replacement procedures. Always use genuine Optoma replacement lamps.

8.4 Manteniment del filtre d'aire

Regularly clean or replace the air filter to ensure proper ventilation and prevent overheating. Consult the full user manual for specific instructions on accessing and maintaining the air filter.

9. Solució De Problemes

• Sense imatge: Ensure the power cord is securely connected and the projector is powered on. Verify that the correct input source is selected and the video cable is properly connected to both the projector and the source device.
• La imatge està borrosa: Adjust the focus ring on the projector lens. Ensure the projector is placed at an appropriate distance from the screen.
• La imatge és trapezoïdal: Use the keystone correction buttons to adjust the image shape.
• Sobreescalfament del projector: Ensure adequate ventilation around the projector. Clean or replace the air filter if it is clogged.
• El control remot no funciona: Check and replace the batteries. Ensure there are no obstructions between the remote and the projector's IR receiver.

For more detailed troubleshooting steps, please refer to the comprehensive user manual provided on the CD-ROM.

10. Especificacions

11. Garantia i Suport

Your Optoma EH500 projector comes with a 3-Year Limited Optoma Express Service Warranty and a 1-Year Limited Lamp Warranty. For warranty claims, technical support, or service inquiries, please contact Optoma customer support through their official website or the contact information provided in the full user manual.

For the most up-to-date support resources, including FAQs and driver downloads, visit the official Optoma weblloc: www.optoma.com
