Duravit DuraStyle 2157010005 One-Piece Elongated Toilet Instruction Manual

1. Producte acabatview

This manual provides detailed instructions for the installation, operation, and maintenance of your Duravit DuraStyle 2157010005 One-Piece Elongated Toilet. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product.

1.1 Descripció del producte

The Duravit DuraStyle 2157010005 is a one-piece elongated toilet designed for modern bathrooms. It features a sleek Alpine White finish and is compatible with a 12-inch rough-in. This model includes a dual flush function for water conservation. Please note that the toilet seat is not included and must be purchased separately.

Figura 1.1: Frontal view of the Duravit DuraStyle One-Piece Elongated Toilet.

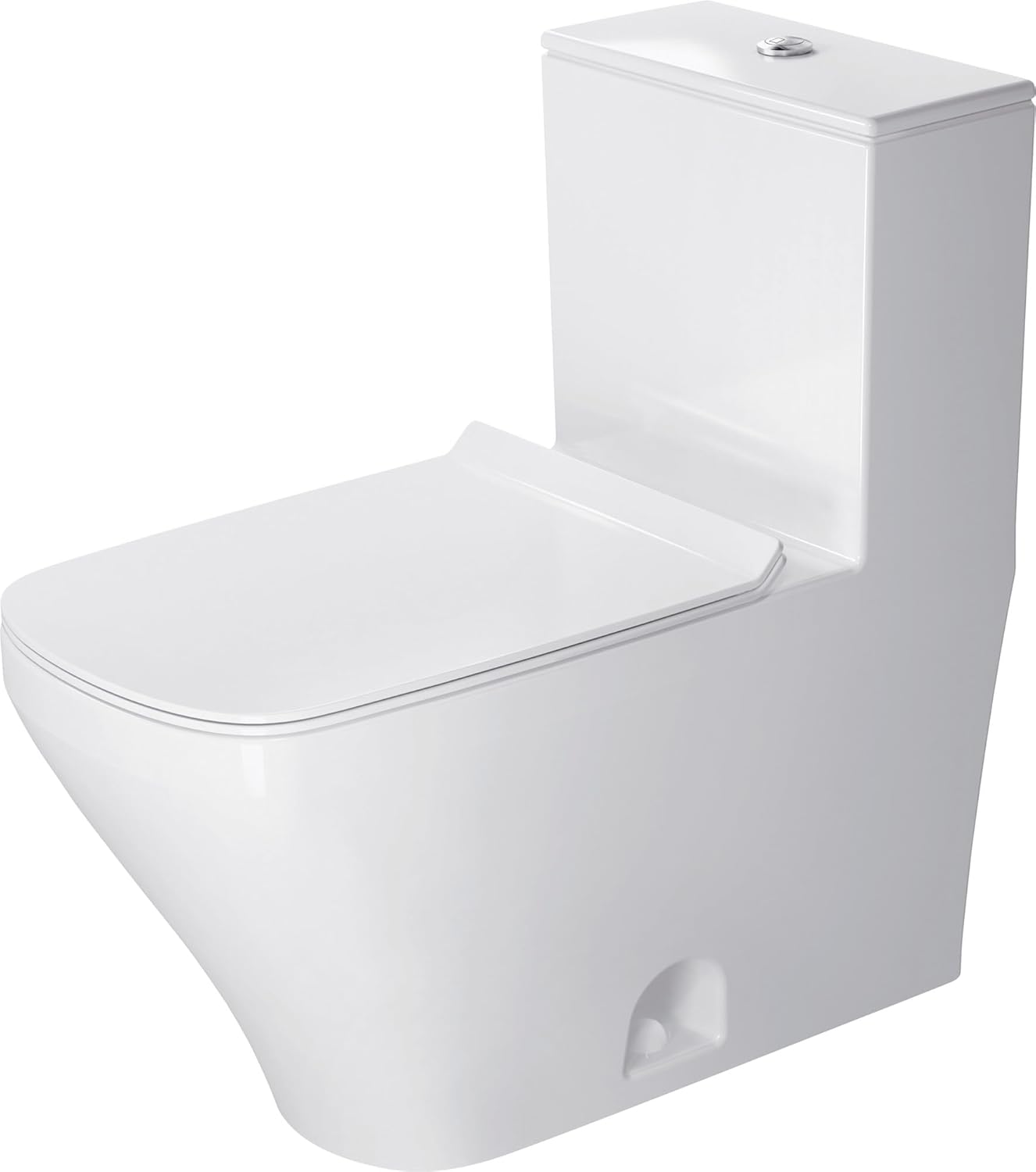

Figura 1.2: lateral view of the Duravit DuraStyle One-Piece Elongated Toilet, shown with a compatible seat (not included).

1.2 Característiques clau

• One-piece ceramic construction for easy cleaning and a seamless look.
• Elongated bowl for added comfort.
• Dual flush capability for water conservation (1.6/0.8 gallons per flush).
• Designed for 12-inch rough-in installations.
• Alpine White finish.

2. Guia d'instal·lació

Installation of this toilet requires basic plumbing knowledge. It is recommended that installation be performed by a qualified professional to ensure proper function and compliance with local plumbing codes.

2.1 Abans de començar

• Verifiqueu que tots els components siguin presents i no estiguin danyats.
• Ensure the rough-in measurement is 12 inches from the finished wall to the center of the flange bolts.
• Turn off the water supply to the toilet area.
• Remove any existing toilet and clean the flange area thoroughly.

2.2 Required Tools and Materials (Not Included)

• Clau ajustable
• Tornavís (Phillips i cap pla)
• Wax ring with flange or rubber seal
• Seient del vàter
• Flexible water supply line
• Cinta mètrica
• Nivell

2.3 Passos d'instal·lació

1. Prepare the Flange: Install new flange bolts into the floor flange.
2. Instal·leu l'anell de cera: Place the wax ring (or rubber seal) onto the toilet's waste outlet or directly onto the floor flange.
3. Col·locació del vàter: Carefully lower the toilet onto the flange bolts, ensuring the wax ring creates a seal. Press down firmly and evenly.
4. Assegurar el vàter: Hand-tighten the nuts onto the flange bolts. Alternate tightening each nut a quarter turn at a time to prevent cracking the ceramic. Do not overtighten. Install bolt caps.
5. Connectar el subministrament d'aigua: Connect the flexible water supply line from the shut-off valve to the toilet's fill valve. Hand-tighten, then use a wrench for a final quarter turn.
6. Engegar l'aigua: Slowly turn on the water supply and check for leaks. Allow the tank to fill.
7. Instal·lar el seient del vàter: Follow the manufacturer's instructions for installing your chosen toilet seat (not included with this toilet).
8. Prova de rentat: Perform several test flushes to ensure proper operation and check for any leaks.

2.4 Dimensions del producte

Refer to the following diagrams for detailed product dimensions, crucial for proper installation planning.

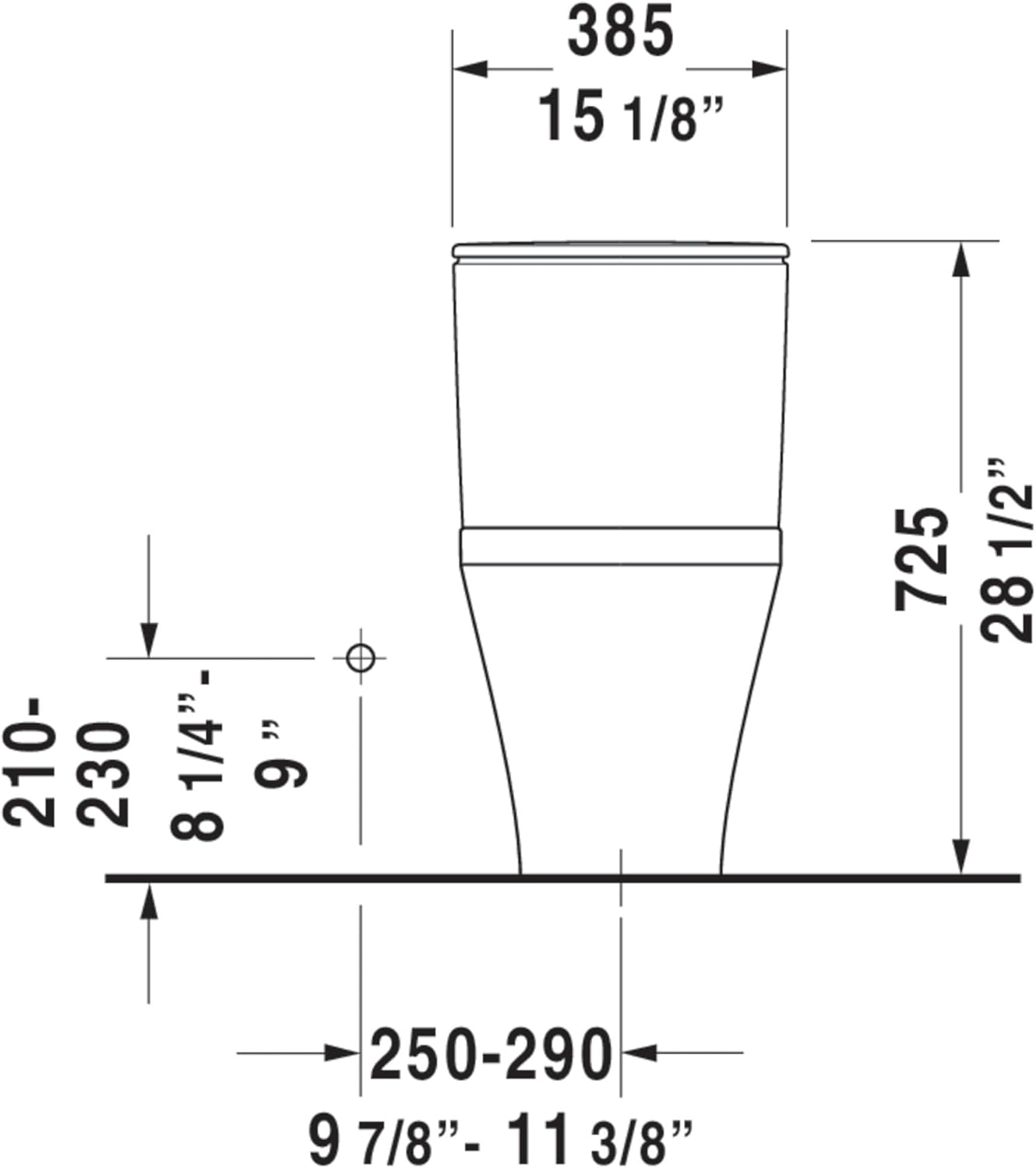

Figura 2.1: Frontal view dimensions, showing width and height measurements.

Figura 2.2: superior view dimensions, indicating overall depth and width from above.

Figura 2.3: lateral view dimensions, including height, depth, and rough-in measurement (12 inches).

Figura 2.4: posterior view dimensions, showing specific measurements for wall clearance and connections.

3. Instruccions de funcionament

3.1 Dual Flush Mechanism

The Duravit DuraStyle toilet is equipped with a dual flush system designed to conserve water. The flush button on top of the tank typically features two distinct sections or buttons:

• Small Button/Section: Activates a partial flush (0.8 gallons) for liquid waste, using less water.
• Large Button/Section: Activates a full flush (1.6 gallons) for solid waste, providing maximum clearing power.

Press the appropriate button firmly and release. The tank will refill automatically after each flush.

4. Cura i Manteniment

Regular cleaning and proper maintenance will ensure the longevity and hygienic performance of your Duravit toilet.

4.1 Instruccions de neteja

• Use mild, non-abrasive cleaners and a soft cloth or sponge for daily cleaning.
• Avoid harsh chemicals, abrasive powders, or scouring pads, as these can damage the ceramic surface and finish.
• For stubborn stains, use a toilet bowl cleaner specifically designed for ceramic fixtures, following the product's instructions carefully.
• Rinse thoroughly with clean water after cleaning to remove all cleaner residue.
• Clean the exterior, including the base and tank, regularly to maintain appearance.

4.2 Hygiene Glaze Technology

Some Duravit toilets feature Hygiene Glaze, an antibacterial ceramic glaze that inhibits the growth of bacteria and germs. If your model includes this feature, it contributes to a more hygienic surface, making cleaning easier. However, regular cleaning as described above is still necessary to maintain optimal hygiene.

Figure 4.1: Illustration depicting the antibacterial properties of Hygiene Glaze within the toilet bowl.

5. Solució De Problemes

This section addresses common issues you might encounter. For problems not listed here or if solutions do not resolve the issue, please contact customer support.

• Fluix feble:
  • Assegureu-vos que la vàlvula de subministrament d'aigua estigui completament oberta.
  • Check the water level in the tank; it should be at the marked waterline.
  • Inspect the flush valve and flapper for obstructions or damage.
• Aigua corrent contínua:
  • Check the flapper or flush valve for proper seating and seal.
  • Ensure the fill valve is not overfilling the tank, causing water to spill into the overflow tube. Adjust the fill valve if necessary.
• Fuites:
  • Inspect all connections (supply line, tank-to-bowl bolts, wax ring) for tightness. Do not overtighten ceramic connections.
  • If leaking from the base, the wax ring may need replacement.

6. Especificacions tècniques

7. Garantia i atenció al client

For specific warranty information regarding your Duravit DuraStyle 2157010005 toilet, please refer to the documentation provided at the time of purchase or visit the official Duravit weblloc. Els termes de la garantia solen cobrir els defectes de fabricació.

If you require assistance with installation, troubleshooting, or have questions about your product, please contact Duravit customer support. Contact information can usually be found on the official Duravit weblloc web o al rebut de compra.

Recursos en línia: For additional support, product registration, or to find authorized service providers, please visit the official Duravit weblloc.
