Duravit Starck 2 Wall-Mounted Toilet (Model 2533090092) Instruction Manual

Introducció

This manual provides essential information for the installation, operation, and maintenance of your Duravit Starck 2 Wall-Mounted Toilet, Model 2533090092. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Informació de seguretat

• Instal·lació professional recomanada: Due to the specialized nature of wall-mounted toilet systems, professional installation by a qualified plumber is strongly recommended to ensure correct and secure mounting, proper water connections, and compliance with local plumbing codes.
• Objecte pesat: The toilet bowl weighs approximately 63.8 pounds (28.9 kg). Exercise caution and use appropriate lifting techniques or assistance during handling and installation to prevent injury.
• Subministrament d'aigua: Ensure the main water supply is turned off before beginning any installation or maintenance work to prevent water damage.
• Material fràgil: The toilet is made of ceramic. Handle with care to avoid chipping or breaking.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Duravit Starck 2 Wall-Mounted Toilet Bowl (Model 2533090092)
• Hardware for installation (specific components may vary, refer to packaging)
• Note: Toilet seat, concealed tank, and carrier system are typically sold separately and are not included with the toilet bowl.

Configuració i instal·lació

This section provides general guidance. Always refer to the specific instructions provided with your concealed tank and carrier system, as well as local plumbing codes.

1. Preparació: Ensure the wall-mounted carrier system is securely installed according to its manufacturer's instructions and is compatible with the Duravit Starck 2 toilet. The water supply and waste pipe connections should be in place.
2. Muntatge: Carefully align the toilet bowl with the mounting bolts extending from the carrier system. Gently push the toilet onto the bolts.
3. Assegurament: Attach the washers and nuts to the mounting bolts. Tighten evenly until the toilet is secure against the wall, but do not overtighten, as this can crack the ceramic.
4. Connexions: Connect the water supply line to the toilet's inlet and ensure the waste outlet is properly sealed to the drain pipe.
5. Prova: Turn on the main water supply and check for leaks. Flush the toilet several times to ensure proper operation and drainage.

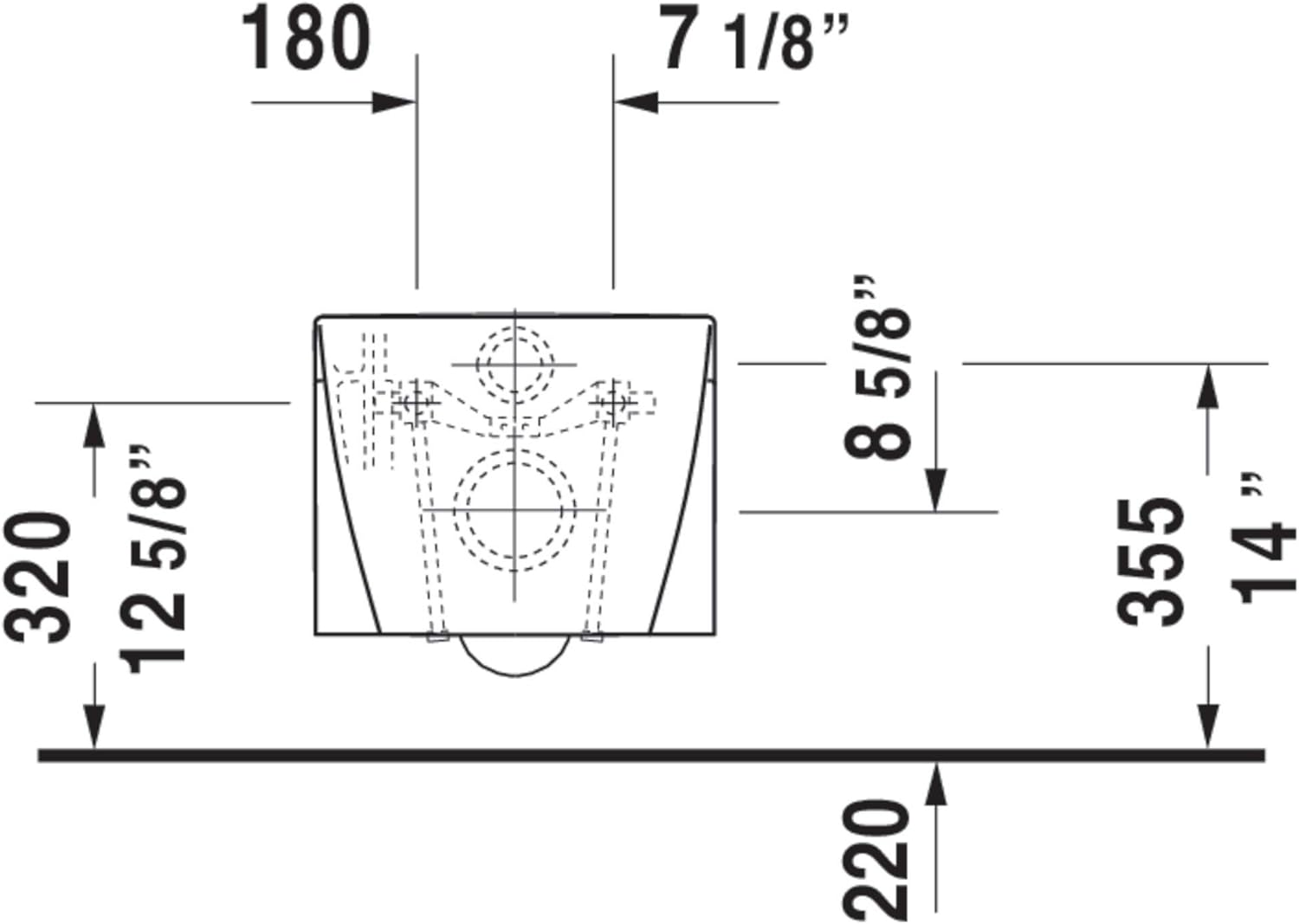

Descripció de la imatge: Detailed technical diagram illustrating the dimensions and mounting points for the Duravit Starck 2 wall-mounted toilet, including measurements in centimeters and inches. Key dimensions shown are 180mm (7 1/8") for bolt spacing, 320mm (12 5/8") from floor to top of bowl, and 355mm (14") from floor to center of drain.

Instruccions de funcionament

The Duravit Starck 2 toilet features a washdown flushing system, designed for efficient waste removal. This model is also equipped for dual flush functionality, which is typically controlled by the flush plate of your concealed tank system.

• Rentat: Press the appropriate button on your flush plate for either a full flush (for solid waste) or a reduced flush (for liquid waste), depending on the design of your concealed tank system.
• Eficiència de l'aigua: Utilize the dual flush feature to conserve water.

Descripció de la imatge: Frontal view of the Duravit Starck 2 wall-mounted toilet, showcasing its compact design and white ceramic finish. The toilet seat is closed, highlighting the sleek, minimalist aesthetic.

Manteniment i Neteja

Regular cleaning will help maintain the appearance and hygiene of your Duravit Starck 2 toilet.

• Neteja diària: Use a soft cloth or sponge with mild soap and water to clean the exterior and interior surfaces.
• Eliminació de taques: For tougher stains, use a non-abrasive ceramic cleaner. Apply, let sit for a few minutes, then scrub gently and rinse thoroughly.
• Eviteu productes químics durs: Do not use abrasive cleaners, scouring pads, strong acids, or bleach-based products, as these can damage the ceramic finish and internal components.
• Seient del vàter: Clean the toilet seat according to its manufacturer's instructions, typically with mild soap and water.

Resolució de problemes

If you encounter issues with your toilet, consider the following common solutions. For complex problems, contact a qualified plumber.

• Fluix feble:
  • Check if the water supply valve to the concealed tank is fully open.
  • Ensure the flush plate mechanism is correctly adjusted and activating the flush valve fully.
  • Inspect the rim jets and siphon jet for any blockages.
• Fuga:
  • Check all water connections for tightness. Do not overtighten.
  • Inspect the wax ring or sealing gasket between the toilet and the waste pipe for proper seal.
  • If the leak is from the concealed tank, refer to the tank manufacturer's manual.
• Slow Filling:
  • Assegureu-vos que la vàlvula de subministrament d'aigua estigui completament oberta.
  • Check the fill valve inside the concealed tank for obstructions or malfunction.

Especificacions

Garantia i Suport

For specific warranty information regarding your Duravit Starck 2 Wall-Mounted Toilet, please refer to the documentation provided at the time of purchase or visit the official Duravit weblloc web. Els termes i condicions de la garantia poden variar segons la regió i el distribuïdor.

For technical support, replacement parts, or further assistance, please contact Duravit customer service directly or consult with your authorized Duravit dealer.

Duravit Contact Information: Si us plau, visiteu www.duravit.us per obtenir dades de contacte i recursos de suport.
