Genuine Honda 91214-RCA-A01 Crankshaft Oil Seal

1. Introducció

This manual provides detailed instructions for the proper installation, maintenance, and general information regarding the Genuine Honda 91214-RCA-A01 Crankshaft Oil Seal. Adhering to these guidelines will help ensure the correct function and longevity of the part. Always refer to your vehicle's specific service manual for additional details and torque specifications.

2. Producte acabatview

The Genuine Honda 91214-RCA-A01 Crankshaft Oil Seal is an essential automotive component designed to prevent engine oil from leaking past the crankshaft. Manufactured to OEM specifications, this seal ensures a precise fit and reliable performance, maintaining the integrity of your engine's lubrication system.

• Tipus de producte: Peça d'automòbil
• Quantitat del paquet: 1
• Origen: Fabricat a la Xina
• Dimensions aproximades del paquet: 12.19 cm (L) x 10.16 cm (A) x 2.03 cm (Al)

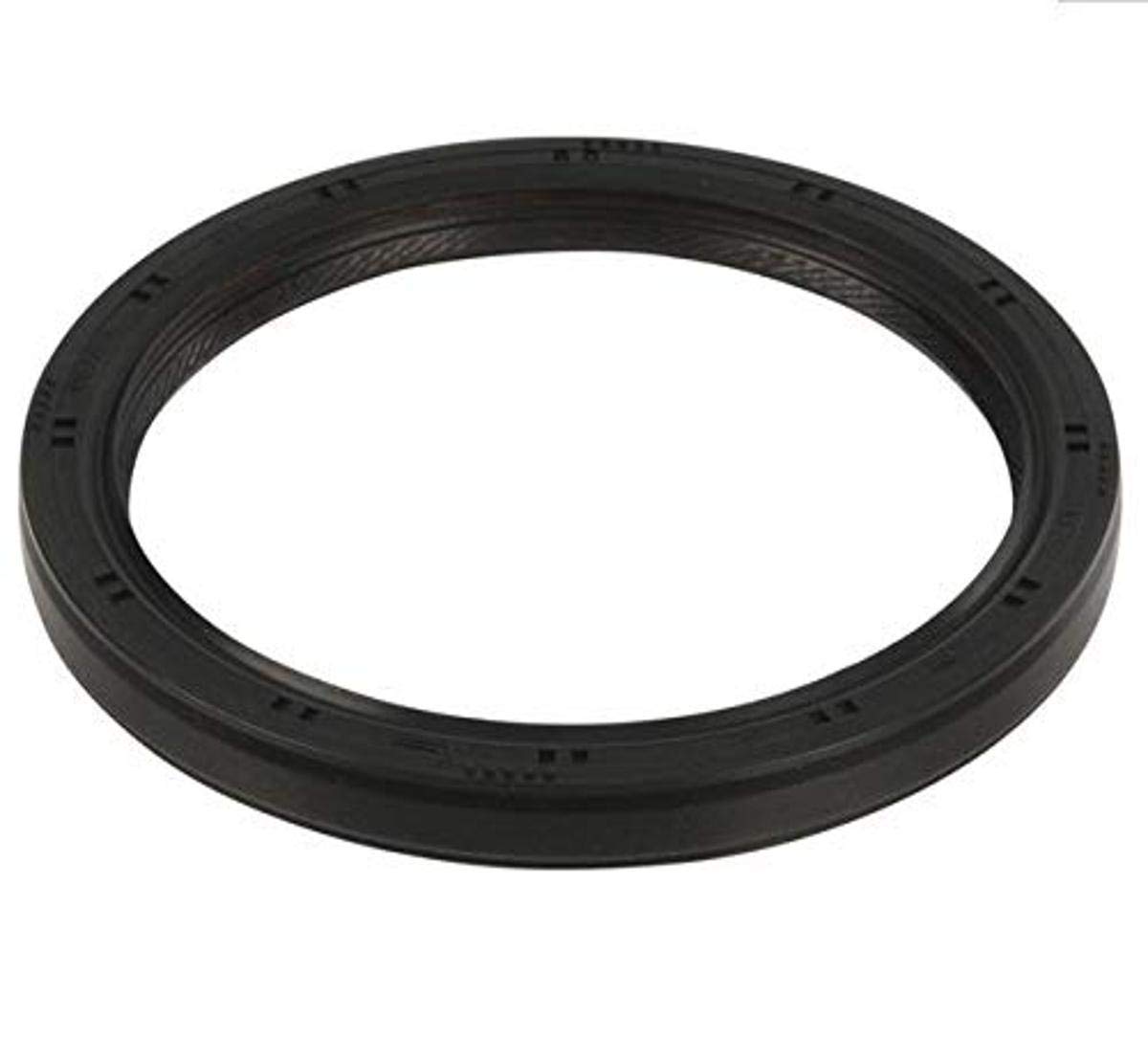

Image showing the Genuine Honda 91214-RCA-A01 Crankshaft Oil Seal, typically a circular component designed to prevent oil leakage from the crankshaft.

3. Informació de seguretat

Prioritzeu sempre la seguretat quan treballeu al vostre vehicle. Si no seguiu les precaucions de seguretat, podeu patir lesions greus o danys al vehicle.

• Utilitzeu sempre equips de protecció personal (EPI) adequats, com ara ulleres de seguretat i guants.
• Ensure the vehicle is securely supported on jack stands on a level surface. Never rely solely on a jack.
• Disconnect the negative battery terminal before starting any work to prevent accidental electrical discharge.
• Allow the engine to cool completely before beginning work to avoid burns.
• Mantenir un extintor a prop.
• Dispose of old oil and parts responsibly according to local regulations.

4. Eines necessàries

The following tools are typically required for crankshaft oil seal replacement:

• Joc de preses i carraca
• Clau dinamométrica
• Pry tool or seal puller (for old seal removal)
• Seal installation tool or a socket of appropriate size (to press in the new seal)
• Draps nets o tovalloles de taller
• Engine oil (for lubricating the new seal)
• Jack i Jack es paran

5. Instruccions d'instal·lació

Follow these steps carefully for the proper installation of the crankshaft oil seal. Refer to your vehicle's service manual for specific component removal and torque specifications.

5.1. Preparació

1. Aparqueu el vehicle en una superfície plana i activeu el fre d'estacionament.
2. Safely lift the vehicle and support it with jack stands.
3. Desconnecteu el terminal negatiu de la bateria.
4. Deixeu que el motor es refredi completament.
5. Remove any components obstructing access to the crankshaft oil seal, such as accessory belts, pulleys, and the timing cover, as per your vehicle's service manual.
6. Drain engine oil if the seal replacement requires it.

5.2. Removal of Old Seal

7. Carefully pry out the old crankshaft oil seal using a suitable pry tool or a specialized seal puller.
8. Exercise extreme caution to avoid scratching or damaging the crankshaft or the engine block's sealing surface. Damage to these surfaces can lead to future leaks.
9. Thoroughly clean the sealing surface, removing any old oil, dirt, or debris. Ensure the surface is smooth and free of imperfections.

5.3. Installation of New Seal

10. Apply a thin, even coat of clean engine oil to the inner and outer edges of the new Genuine Honda 91214-RCA-A01 Crankshaft Oil Seal. This lubrication aids in installation and initial sealing.
11. Position the new seal squarely into the opening.
12. Using a specialized seal installation tool or a socket of appropriate size that matches the outer diameter of the seal, gently and evenly tap the seal into place.
13. Continue tapping until the seal is flush with the engine block or seated to the specified depth. Ensure the seal is not cocked, bent, or otherwise damaged during installation.

5.4. Remuntatge

14. Reinstall all removed components in the reverse order of removal.
15. Ensure all bolts are tightened to the manufacturer's specified torque settings using a torque wrench.
16. Torneu a connectar el terminal negatiu de la bateria.
17. Refill engine oil to the appropriate level if it was drained.
18. Start the engine and allow it to reach operating temperature. Carefully check for any signs of oil leaks around the newly installed seal.

6. Manteniment

Proper maintenance helps extend the life of your engine and its components.

• Regularly inspect the area around the crankshaft for any signs of oil leakage.
• Address any leaks promptly to prevent further engine damage and maintain proper oil levels.
• Follow your vehicle's recommended service intervals for oil changes and general engine inspections.

7. Solució De Problemes

Si teniu problemes després de la instal·lació, tingueu en compte el següent:

7.1. Oil Leakage After Installation

• Instal·lació incorrecta: Verify the seal was installed correctly, squarely, and to the proper depth.
• Damaged Seal: Inspect the seal for any nicks, tears, or deformities that may have occurred during installation.
• Damaged Sealing Surface: Check the crankshaft and engine block sealing surfaces for any scratches, burrs, or corrosion that could compromise the seal.
• Improper Torque: Ensure all surrounding components (e.g., timing cover) are torqued to the manufacturer's specifications.

8. Especificacions

9. Garantia i Suport

This Genuine Honda part is typically subject to the seller's return policy, which may allow returns within 30 days of purchase. For specific warranty details, technical assistance, or further support regarding this product, please contact your authorized Honda service center or the original point of purchase. Always retain your proof of purchase for any warranty claims.
