1. Introducció
This manual provides essential information for the safe and efficient use of your Zanussi ZCV65201WA freestanding electric cooker. It features a 4-zone ceramic hob, a 54-liter electric multifunction oven, and an electric grill. Please read these instructions carefully before installation and use, and keep them for future reference.
2. Informació de seguretat
Always prioritize safety when operating electrical appliances. This appliance is designed for domestic use only. Ensure proper installation by a qualified professional. Keep children away from the appliance during operation and cooling. The appliance becomes hot during use. Avoid touching heating elements inside the oven. Do not store flammable materials in or near the cooker. Disconnect the appliance from the power supply before cleaning or maintenance.
3. Producte acabatview
3.1 Extern View
The Zanussi ZCV65201WA is a white freestanding cooker with a ceramic hob and an integrated electric oven and grill.
Imatge 3.1: Frontal view of the Zanussi ZCV65201WA freestanding cooker, showing the ceramic hob, control panel, and oven door.
3.2 Tauler de control
The control panel features rotary knobs for operating the ceramic hob zones, oven functions, and temperature settings. An indicator light for residual heat is also present for the hob zones.
Image 3.2: Close-up of the control panel with rotary knobs for hob, oven temperature, and oven functions.
3.3 Interior del forn
The oven interior includes a fan for even heat distribution, a light for visibility, and multiple shelf positions. The oven door is designed for easy cleaning.
Imatge 3.3: Interior view of the oven, showing the fan and internal light.
4. Configuració i instal·lació
4.1 Desembalatge
Carefully remove all packaging materials. Check the appliance for any damage. Keep packaging materials out of reach of children.
4.2 Posicionament
Place the cooker on a flat, stable surface. Ensure adequate ventilation around the appliance. Refer to the technical drawing for precise dimensions and clearance requirements.

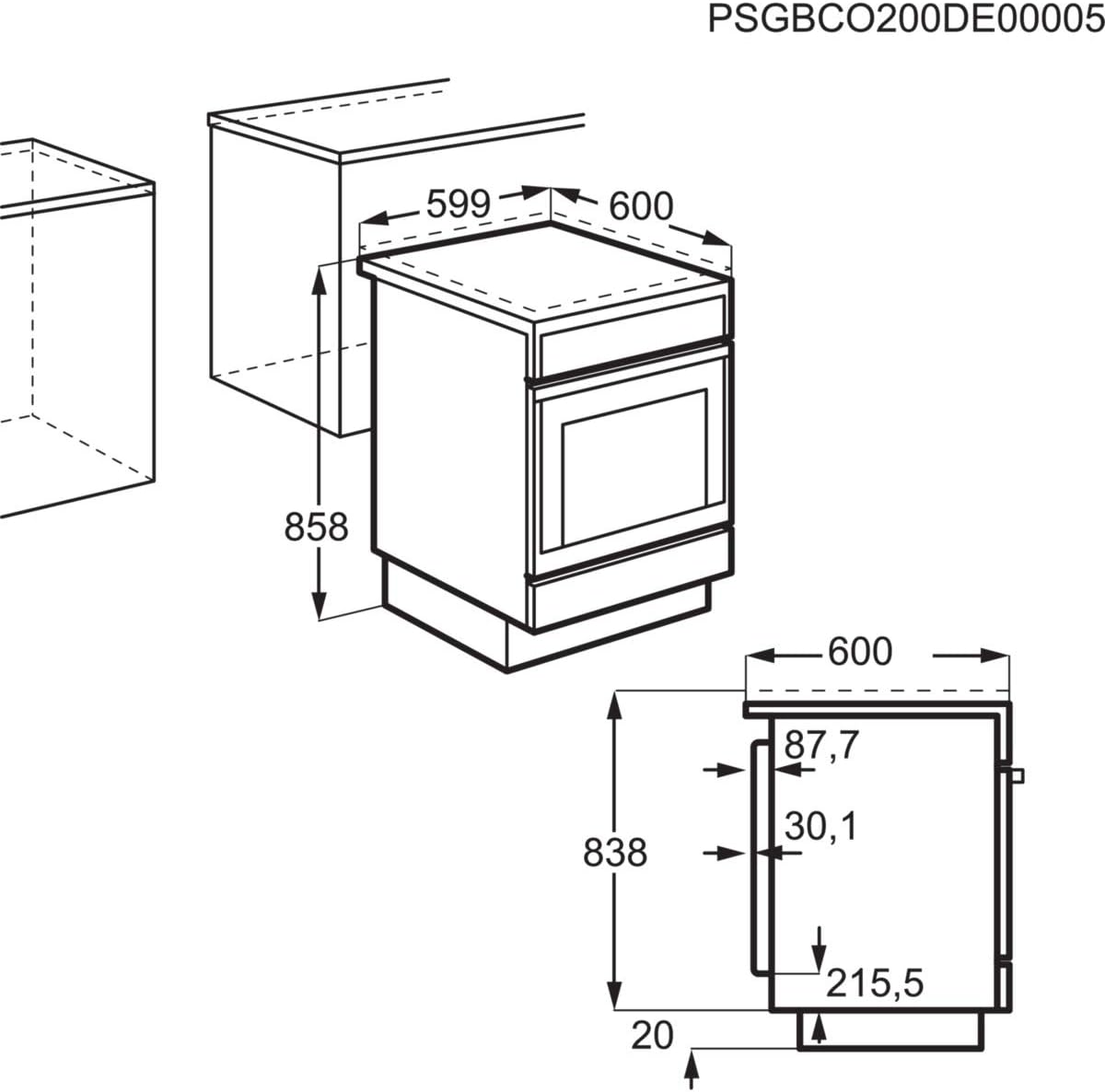

Image 4.1: Technical drawing showing the dimensions (60 x 60 x 85 cm) and installation clearances for the cooker.
4.3 Connexió elèctrica
The electrical connection of this appliance must be carried out by a qualified electrician in accordance with local regulations. The cooker requires a dedicated electrical supply. A wiring diagram is typically located on a sticker on the rear panel of the appliance. Ensure the correct connection for your household's electrical system (e.g., single-phase). The terminal block is robust and designed for secure connections. Connecting bridges for single-phase setup are usually included.
4.4 Primer ús
Before using the appliance for the first time, clean the hob and oven interior with a damp cloth. Heat the empty oven at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. Ensure the room is well-ventilated during this process.
5. Operating the Ceramic Hob
The ceramic hob features four cooking zones with rapid heating. Each zone is controlled by a dedicated rotary knob on the control panel.
- Activació/desactivació: Turn the respective knob clockwise to select a heat setting from 1 (low) to 9 (high). Turn counter-clockwise to the '0' position to switch off.
- Configuració de calor: Adjust the knob to achieve the desired cooking intensity. Lower settings are suitable for simmering, while higher settings are for boiling and frying.
- Indicador de calor residual: After use, the hob surface will remain hot. An indicator light will illuminate to warn you that a cooking zone is still hot, even after it has been switched off. Do not touch the hot surface.
6. Operating the Electric Oven and Grill
The 54-liter electric oven offers multiple cooking functions, including conventional heating, fan-assisted cooking, grilling, and a dedicated pizza function.
- Selecting Oven Function: Use the left-most rotary knob to select the desired cooking function (e.g., conventional heat, fan, grill, pizza).
- Configuració de la temperatura: Use the central rotary knob to set the desired oven temperature. The temperature range is typically from 50°C to 250°C.
- Funció de graella: For grilling, select the grill function and set the temperature. Position food on the appropriate shelf under the grill element. Always keep the oven door slightly ajar when using the grill, unless specified otherwise in the full manual.
- Forn multifunció: The oven combines various heating elements (top, bottom, fan) to provide versatile cooking options. The fan ensures even heat distribution, ideal for baking multiple dishes simultaneously.
Imatge 6.1: Primer pla view of the electric grill element inside the oven.
7. Manteniment i Neteja
Regular cleaning and maintenance ensure the longevity and optimal performance of your cooker.
7.1 Neteja general
- Ceramic Hob: Clean the ceramic hob surface after each use once it has cooled down. Use a ceramic hob scraper for stubborn residues and a specialized ceramic hob cleaner for daily cleaning.
- Exterior: Wipe the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners.
7.2 Neteja del forn
The oven features an easy-clean door and a self-cleaning function to simplify maintenance.
Image 7.1: Oven interior designed for easy cleaning.
The oven is equipped with a self-cleaning feature (pyrolytic cleaning). This function heats the oven to a very high temperature, turning food residues into ash, which can then be easily wiped away with a damp cloth once the oven has cooled. The oven door locks during this process for safety.
Video 7.1: Animation demonstrating the self-cleaning (pyrolytic) function of the oven, showing how high temperatures reduce food residue to ash for easy wiping with just a damp tela.
8. Solució De Problemes
Before contacting customer service, check the following common issues:
| Problema | Causa possible | Solució |
|---|---|---|
| L'aparell no s'encén | No power supply; incorrect electrical connection. | Check the circuit breaker. Ensure the appliance is correctly wired and connected to the mains. |
| Hob not heating | Incorrect heat setting; power issue. | Ensure the knob is set to a heat level. Check power supply. |
| El forn no s'escalfa | Funció/ajust de temperatura incorrecte; la porta del forn no està ben tancada. | Verify function and temperature settings. Close the oven door completely. |
| Excessive smoke during first use | Burning off manufacturing residues. | This is normal. Ensure good ventilation. It should subside after initial use. |
9. Especificacions
- Model: ZCV65201WA
- Tipus: Cuina elèctrica independent
- Dimensions (L x P x A): 60 cm x 60 cm x 85 cm
- Pes: 41 kg
- Tipus de placa: Ceramic, 4 zones
- Capacitat del forn: 54 litres
- Funcions del forn: Multifunction (Grill, Fan, Pizza, Top/Bottom heating)
- Classe d'eficiència energètica: A
- Controls: Manetes rotatives
- Material: Stainless steel (internal components/trim), White exterior
- Fabricant: ES MDA Electrolux
10. Garantia i Suport
For warranty information, please refer to the documentation provided with your purchase or contact Zanussi customer support. Keep your proof of purchase for any warranty claims. For technical assistance or spare parts, please visit the official Zanussi weblloc web o poseu-vos en contacte amb els seus centres de servei autoritzats.
You can visit the official Zanussi store for more products and support: Zanussi Store
