Manual d'instruccions del fusible limitador de corrent de classe J Littelfuse JLS-30

1. Introducció

This manual provides essential information for the safe and effective use of the Littelfuse JLS-30 Class J Current Limiting Fuse. The JLS series fuses are designed to provide superior protection for electrical systems against overcurrents, offering fast-acting, current-limiting capabilities. Please read this manual thoroughly before installation or operation.

2. Informació de seguretat

WARNING: Electrical shock hazard. Installation and maintenance should only be performed by qualified personnel. Always disconnect power before working on electrical circuits.

• Ensure the fuse rating (voltage and current) matches the circuit requirements.
• Do not use damaged fuses.
• Never bypass a fuse or replace it with a fuse of a higher rating.
• Utilitzeu l'equip de protecció individual (EPI) adequat quan treballeu amb sistemes elèctrics.

3. Producte acabatview

The Littelfuse JLS-30 is a 30 Amp, 600 VAC, Class J, current-limiting, fast-acting fuse. It is designed for use in various industrial and commercial applications to protect motors, transformers, and other electrical equipment from short circuits and overloads.

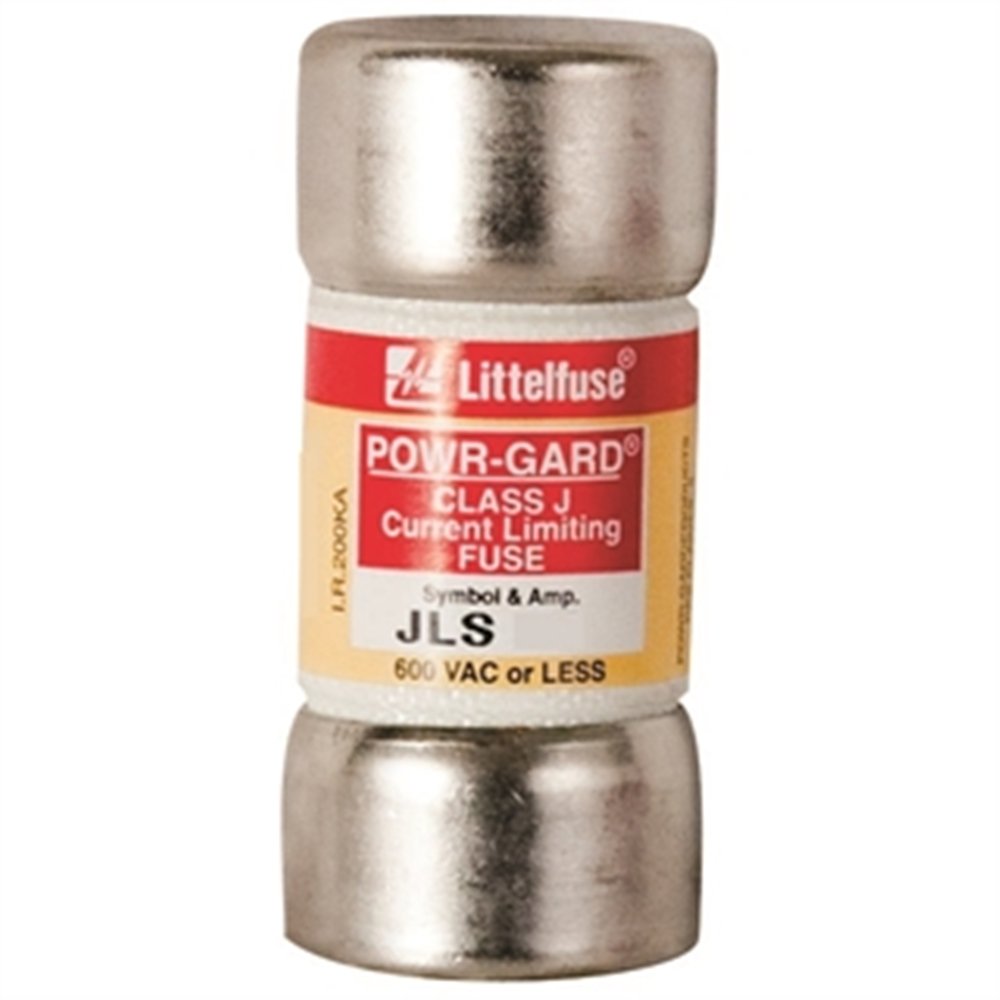

Figure 1: Littelfuse JLS-30 Class J Current Limiting Fuse. This image shows the cylindrical body of the fuse with its end caps, indicating its compact design.

Característiques principals:

• Limitació de corrent: Reduces fault current magnitude and duration, minimizing damage to protected components.
• Fast Acting: Provides rapid response to overcurrent conditions.
• Class J Rating: Ensures high interrupting capacity and standardized dimensions.
• Vol. Alttage Valoració: Suitable for 600 VAC applications.

4. Instal·lació

Proper installation is critical for the safe and effective operation of the fuse.

1. Desconnecteu l'alimentació: Before beginning any installation, ensure that all power to the circuit is completely disconnected and locked out according to safety procedures. Verify with a voltage provador.
2. Select Appropriate Fuse Holder: Use a fuse holder specifically designed for Class J fuses and rated for the appropriate voltage i corrent.
3. Inseriu el fusible: Carefully insert the JLS-30 fuse into the fuse holder. Ensure it is seated firmly and correctly.
4. Verifica les connexions: Double-check all electrical connections to ensure they are secure and properly torqued.
5. Restaura l'alimentació: Un cop finalitzada i verificada la instal·lació, restableix l'alimentació del circuit.

5. Funcionament

The Littelfuse JLS-30 fuse operates passively as a protective device. When an overcurrent condition (short circuit or overload) exceeds the fuse's rating for a specified duration, the internal element melts, opening the circuit and preventing damage to downstream equipment. As a current-limiting fuse, it also acts to reduce the peak current that can flow during a short circuit event.

Once a fuse has operated (blown), it must be replaced. It is not resettable.

6. Manteniment

Fuses are generally maintenance-free devices. Regular inspection of the fuse and its holder is recommended as part of routine electrical system maintenance.

• Inspecció visual: Periodically check the fuse and fuse holder for any signs of physical damage, discoloration, or loose connections.
• Substitució: If a fuse has blown, it must be replaced with an identical Littelfuse JLS-30 fuse to maintain the intended circuit protection. Never replace with a fuse of a different rating or type.
• Neteja: Ensure the fuse holder contacts are clean and free from corrosion to ensure good electrical contact.

7. Solució De Problemes

The primary troubleshooting scenario for a fuse is when it blows.

Symptom: Circuit is dead, no power.

• Possible causa: The JLS-30 fuse has blown due to an overcurrent condition (short circuit or overload).
• Acció:
  1. Desconnecteu l'alimentació: Always disconnect and lock out power to the circuit before inspecting or replacing the fuse.
  2. Identify Cause: Investigate the circuit to determine the cause of the overcurrent. This could be a faulty appliance, wiring issue, or motor overload. Rectify the underlying problem before replacing the fuse.
  3. Substituïu el fusible: Replace the blown fuse with a new Littelfuse JLS-30 fuse. Ensure the replacement fuse has the exact same voltage i qualificacions actuals.
  4. Restaura l'alimentació: Carefully restore power and monitor the circuit. If the new fuse blows immediately, there is still an unresolved issue in the circuit.

If you are unable to identify or resolve the cause of a blown fuse, consult a qualified electrician.

8. Especificacions

Technical specifications for the Littelfuse JLS-30 Class J Current Limiting Fuse:

9. Garantia i Suport

For information regarding product warranty, technical support, or to locate authorized distributors, please visit the official Littelfuse weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.

Oficial Weblloc: www.littelfuse.com
