1. Introducció
Thank you for choosing the Philips AE1500 Pocket Size Portable Radio. This compact and lightweight radio allows you to enjoy your favorite AM and FM radio stations wherever you go. Its simple design and easy-to-use controls make it ideal for personal listening. This manual provides essential information for setting up, operating, and maintaining your radio.
2. Informació de seguretat
- Seguretat de la bateria: Use only the specified battery type. Ensure correct polarity when inserting batteries. Do not mix old and new batteries, or different types of batteries. Remove batteries if the unit will not be used for an extended period.
- Aigua i humitat: Do not expose the radio to rain, moisture, or extreme temperatures. Avoid placing the unit near water sources.
- Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau i sec. No utilitzeu netejadors líquids ni en aerosol.
- Manteniment: No intenteu atendre aquest producte vosaltres mateixos. Consulteu tots els serveis a personal de servei qualificat.
- Protecció auditiva: Eviteu escoltar a nivells de volum elevats durant períodes prolongats per evitar danys auditius.
3. Contingut del paquet
Si us plau, comproveu que el vostre paquet contingui els elements següents:
- Philips AE1500 Portable Radio
Nota: Les piles no estan incloses i s'han de comprar per separat.
4. Producte acabatview
The Philips AE1500 is designed for portability and ease of use. Below is an image illustrating the key components of your radio.

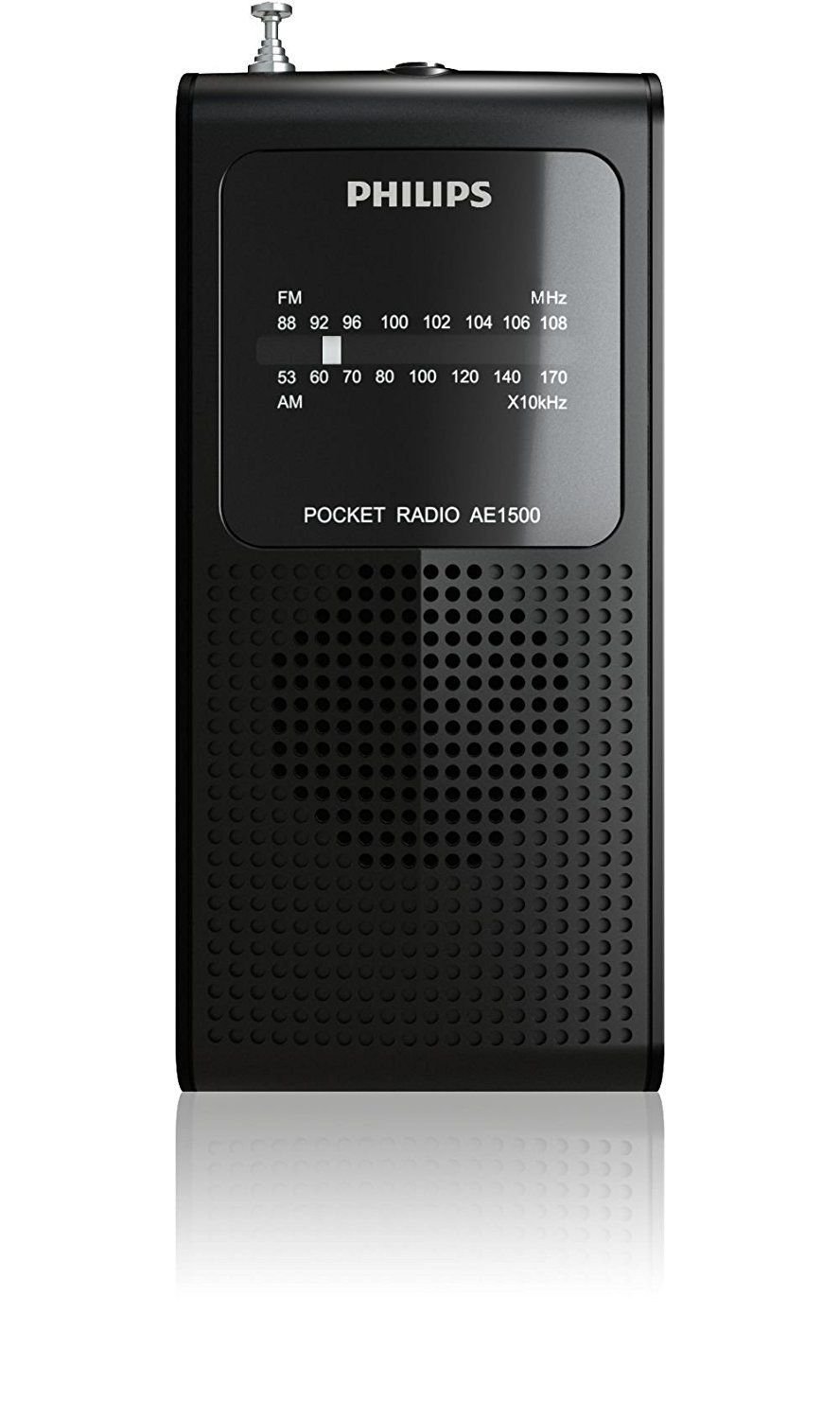

Figura 1: Davant view of the Philips AE1500 Pocket Size Portable Radio. This image shows the speaker grille, tuning dial, and control buttons.
Controls i característiques:
- AM/FM Selector: A switch located on the side to select between Amplitude Modulation (AM) and Frequency Modulation (FM) radio bands.
- Volume/On/Off Dial: A rotary dial that controls the power to the unit and adjusts the audio output level.
- Dial d'ajust: A rotary dial used to scan and select radio frequencies.
- Auriculars Jack: A 3.5mm stereo jack located on the top for connecting personal headphones.
- Antena telescòpica: An extendable antenna for improving FM reception.
- Altaveu integrat: Per a la reproducció d'àudio sense auriculars.
5. Configuració
5.1 Instal·lació de la bateria
The Philips AE1500 radio operates on batteries (typically 2 x AAA batteries, not included).
- Localitzeu la tapa del compartiment de la bateria a la part posterior de la ràdio.
- Feu lliscar o aixequeu la tapa per obrir el compartiment.
- Introduïu les piles, assegurant-vos de la polaritat correcta (+ i -) tal com s'indica a l'interior del compartiment.
- Tanqueu bé la tapa del compartiment de la bateria.
5.2 Ajust de l'antena
For optimal FM reception, extend the telescopic antenna fully. For AM reception, the radio has a built-in antenna, and you may need to rotate the entire unit for the best signal.
6. Instruccions de funcionament
6.1 Engegada/Apagada i Control de Volum
- Per encendre la ràdio ON, rotate the Volume/On/Off dial clockwise until you hear a click and the radio powers on.
- Continue rotating the dial clockwise to increase the volume.
- To decrease the volume, rotate the dial counter-clockwise.
- Per encendre la ràdio OFF, rotate the Volume/On/Off dial counter-clockwise until you hear a click and the radio powers off.
6.2 Selecting a Radio Band (AM/FM)
Use the AM/FM selector switch on the side of the radio to choose your desired band.
- Slide the switch to 'FM' for Frequency Modulation stations.
- Slide the switch to 'AM' for AmpEstacions de modulació d'altitud.
6.3 Sintonització d'una emissora
- Once the radio is on and the desired band is selected, slowly rotate the Tuning dial.
- Listen for your desired station. The tuning dial is sensitive, so make small adjustments for precise tuning.
- Adjust the antenna (FM) or the radio's orientation (AM) for the best reception.
6.4 Ús d'auriculars
For private listening, you can connect standard 3.5mm headphones to the headphone jack located on the top of the radio. Once headphones are connected, the built-in speaker will automatically mute.
7. Manteniment
7.1 Neteja
Wipe the exterior of the radio with a soft, dry cloth. Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the finish.
7.2 Substitució de la bateria
When the sound becomes distorted or the volume decreases significantly, it is time to replace the batteries. Follow the battery installation steps in Section 5.1.
7.3 Emmagatzematge
If you do not plan to use the radio for an extended period, remove the batteries to prevent leakage and damage to the unit. Store the radio in a cool, dry place away from direct sunlight and extreme temperatures.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense so o volum molt baix |
|
|
| Mala recepció / Estàtica |
|
|
| La ràdio no s'encén |
|
|
9. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | AE1500/37 |
| Dimensions del producte | 1.4 x 3.5 x 7 polzades (3.56 x 8.89 x 17.78 cm) |
| Pes de l'article | 2.22 unces (0.06 quilograms) |
| Freqüència | Fins a 108 MHz (FM) |
| Tecnologia de connectivitat | Auxiliar (connector d'auriculars) |
| Característiques especials | Conector d'auriculars |
| Color | Negre |
| Font d'alimentació | Battery Powered (e.g., 2 x AAA, not included) |
| Tecnologia del sintonitzador | AM, FM |
| Bandes de ràdio compatibles | AM, FM |
| Fabricant | Philips |
10. Garantia i Suport
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Philips support weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
Online support and FAQs may be available on the Philips website. Please have your model number (AE1500) ready when contacting support.
