RHOX Red Hawk VOLT-2000 Voltage Reducer Instruction Manual

1. Introducció

The RHOX Red Hawk VOLT-2000 is a robust voltage reducer designed for golf cart applications. It efficiently converts an input voltage range of 26V-60V to a stable 12V output. This device is key switch activated and includes thermal overload protection, ensuring reliable performance for various accessories such as basic light kits, deluxe light kits, off-road LED lights, off-road halogen lights, audio equipment, and other low-draw applications (less than 5 Amps). It is recommended for E-Z-Go RXV and TXT, Club Car Precedent and DS, and Yamaha G14-Drive (G29) vehicles.

2. Informació de seguretat

• Always disconnect the main battery pack before installation or maintenance to prevent electrical shock or damage.
• Ensure proper ventilation around the voltage reducer to prevent overheating.
• No supereu el màxim amppuntuació d'edat de 20 Amps.
• Verify all connections are secure and properly insulated to avoid short circuits.
• Consulteu un tècnic qualificat si no teniu cap dubte sobre algun dels passos d'instal·lació.
• Utilitzeu l'equip de protecció individual (EPI) adequat, com ara ulleres i guants de seguretat, durant la instal·lació.

3. Especificacions

4. Contingut del paquet

The RHOX Red Hawk VOLT-2000 Voltage Reducer package typically includes the following components:

• RHOX Red Hawk VOLT-2000 Voltage Reducer Unit
• Arnès de cablejat
• Interruptor de tecles
• Maquinari de muntatge (cargols, femelles, volanderes)

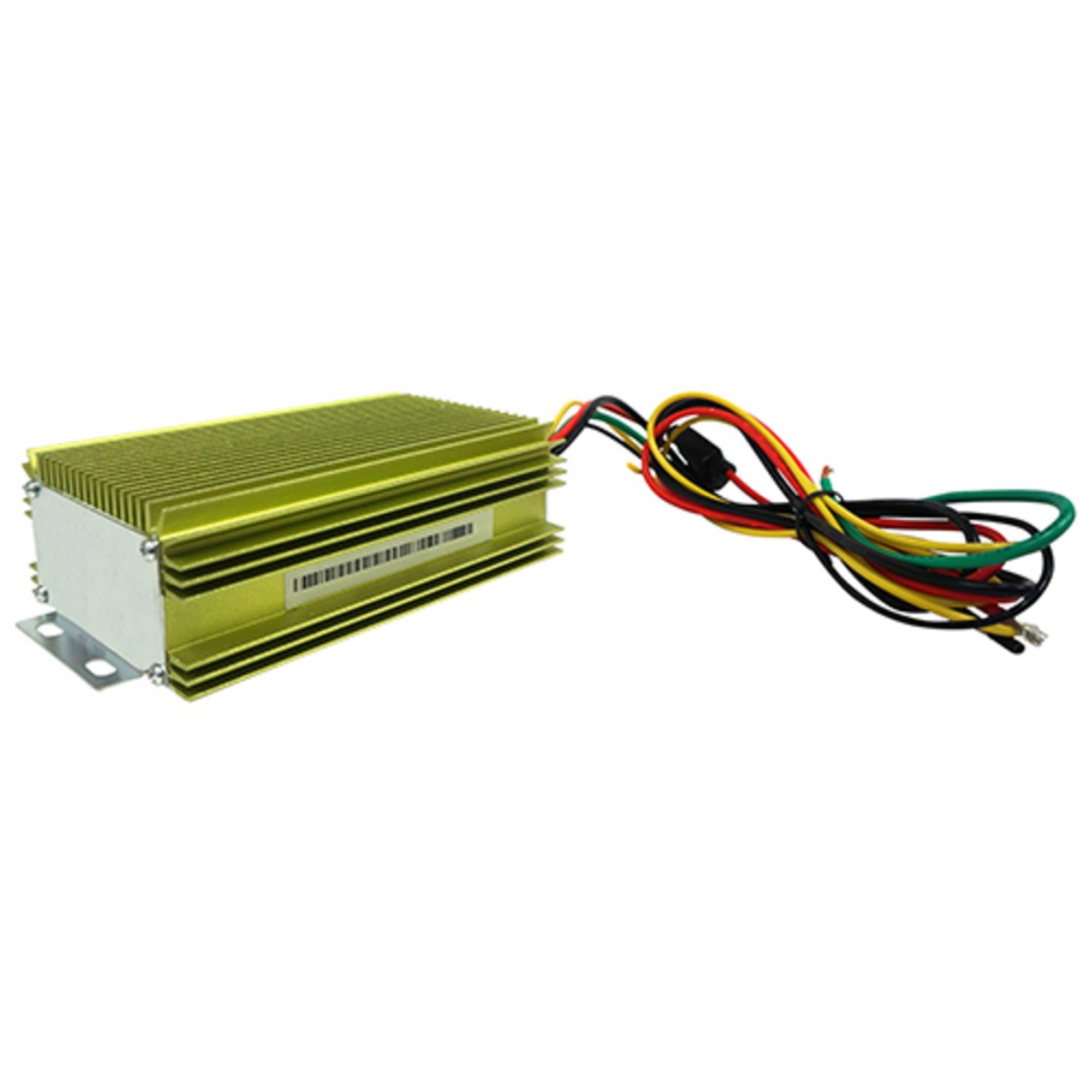

Figura 1: RHOX Red Hawk VOLT-2000 Voltage Reducer with included wiring harness and key switch components.

5. Configuració i instal·lació

Follow these steps for proper installation of your RHOX Red Hawk VOLT-2000 Voltage Reducer. Ensure the golf cart's main power is disconnected before beginning.

5.1. Mounting the Voltage Reductor

1. Choose a suitable, dry location for mounting the voltage reducer, away from direct heat or excessive moisture.
2. Use the provided mounting hardware to securely attach the reducer to a stable surface.

Figura 2: The RHOX Red Hawk VOLT-2000 Voltage Reducer unit. Ensure it is mounted securely.

5.2. Connexions de cablejat

The VOLT-2000 is designed for easy integration. Refer to the wiring harness and the following steps:

• Connect the input wires from the voltage reducer to your golf cart's main battery pack (26V-60V). Ensure correct polarity: positive to positive, negative to negative.
• Connect the output wires from the voltage reducer to your 12V accessories.
• Integrate the key switch into the wiring as per the provided diagram (if applicable) to enable key-activated operation.
• Secure all connections with appropriate terminals and ensure they are insulated to prevent accidental short circuits.

6. Instruccions de funcionament

The RHOX Red Hawk VOLT-2000 Voltage Reducer is designed for simple operation:

• Once properly installed, the voltage reducer will activate when the golf cart's key switch is turned to the 'ON' position.
• The reducer will then provide a stable 12V output to all connected accessories.
• When the key switch is turned 'OFF', the voltage reducer will power down, conserving battery life.

7. Manteniment

To ensure the longevity and optimal performance of your voltage reducer:

• Periodically inspect all wiring connections for tightness and corrosion. Clean any corroded terminals.
• Keep the unit free from dirt, dust, and debris. Use a dry cloth to wipe it clean.
• Ensure the mounting area remains secure and free from excessive vibration.
• Do not attempt to open or repair the unit yourself, as this may void the warranty and pose a safety risk.

8. Solució De Problemes

If you experience issues with your RHOX Red Hawk VOLT-2000, consider the following common troubleshooting steps:

• No Power to Accessories:
  • Check if the golf cart's key switch is in the 'ON' position.
  • Verify all input and output wiring connections are secure and have good contact.
  • Inspect the main battery pack for sufficient charge.
  • Check for any blown fuses in the accessory circuit (if applicable).
• Potència intermitent:
  • Assegureu-vos que totes les connexions estiguin estancades i lliures de corrosió.
  • Check for loose wires or damaged insulation.
• Sobreescalfament:
  • Ensure the unit has adequate ventilation and is not covered.
  • Verify that the total current draw of connected accessories does not exceed 20 Amps.

If problems persist after performing these checks, please contact customer support.

9. Garantia i Suport

The RHOX Red Hawk VOLT-2000 Voltage Reducer comes with a Política de devolució de 30 dies i a 1 any de garantia. If your order arrives and is not what you expected, you may return it within 30 days for a refund, provided the item is in its original packaging and in good, undamaged condition. Beyond 30 days, the product will be replaced anytime within one year of your order date for manufacturing defects.

For technical support or warranty claims, please contact RHOX customer service through their official weblloc web o el venedor on es va comprar el producte.
