Introducció
This user manual provides essential information for the safe and effective use of your Marcy Eclipse HG3000 compact multi-gym. The HG3000 is designed to offer a comprehensive full-body workout with a small footprint, featuring a robust steel frame and a 68 kg weight stack. It includes a cable pull system, chest press, butterfly unit, preacher curl, and leg extension. Please read this manual thoroughly before assembly and operation to ensure proper setup, safe usage, and optimal performance.
Figura 1: Acabatview of the Marcy Eclipse HG3000 Multi-Gym. This compact home gym system allows for a variety of strength training exercises.
Muntatge i muntatge
The Marcy Eclipse HG3000 multi-gym requires assembly. It is recommended that two people undertake the assembly process, which typically takes 3 to 4 hours. All necessary components and detailed instructions are included with your purchase.
Desembalatge i inspecció:
- Carefully unpack all components from the packaging. Due to the weight of individual parts, it is advisable to transport pieces to the desired assembly location one by one.
- Verify that all parts listed in the assembly manual are present and undamaged.
- Place all components on a clean, flat surface, organized for easy access during assembly.
Passos de muntatge:
- Begin by assembling the main frame structure, ensuring all bolts are securely tightened as per the instructions.
- Attach the independent pressing arms for the chest press and butterfly unit.
- Install the upper and lower cable pulley systems, carefully routing the aircraft-grade cables through the 100mm diameter pulleys with sealed ball bearings.
- Mount the 68 kg vinyl weight stack, ensuring the selector pin mechanism operates smoothly.
- Assemble the leg extension unit with comfortable foam rollers and the adjustable preacher curl coixinet.
- Attach the seat and backrest padding, which features 6cm box point upholstery for comfort and durability.
- Once assembled, double-check all connections and moving parts to ensure stability and proper function.

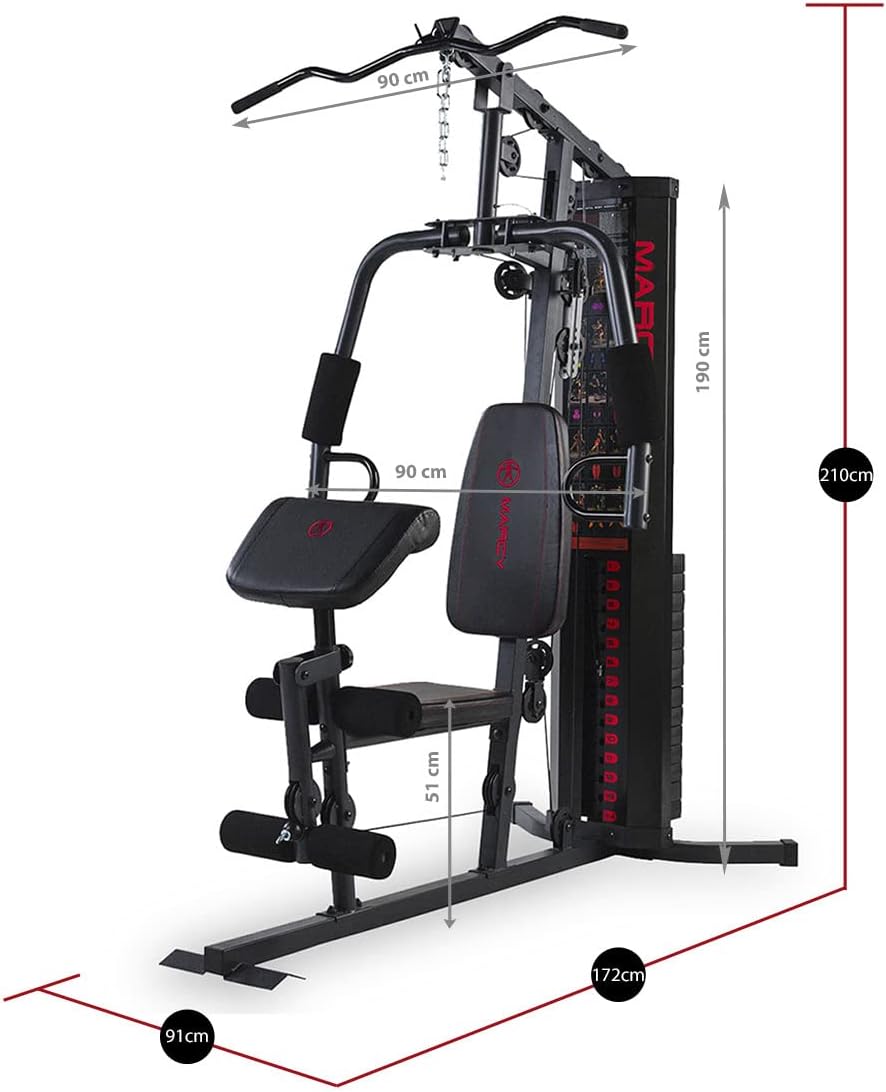

Figura 2: Dimensions of the assembled Marcy Eclipse HG3000 Multi-Gym (172 cm L x 91 cm W x 210 cm H). Ensure adequate space for installation and exercise.
Instruccions de funcionament
The Marcy Eclipse HG3000 offers a versatile range of exercises for a full-body workout. Always warm up before exercising and cool down afterwards.
Key Exercise Stations:
- Upper Cable System: Ideal for lat pulldowns, triceps press-downs, and abdominal crunches. Use the included lat bar.
- Lower Cable System: Perfect for seated rows, bicep curls, i files verticals.
- Chest Press / Butterfly Unit: Independent pressing arms provide uniform resistance for chest press and pec dec (butterfly) exercises.
- Extensió de cames: Target your quadriceps with the comfortable foam rollers.
- Predicador Curl: Isolate your biceps with the height-adjustable preacher curl coixinet.
Selecció de pes:
The multi-gym features a 68 kg weight stack with a secure selector pin. Insert the pin into the desired weight plate to adjust resistance. The weight stack is made of durable vinyl.
Figura 3: HG3000 Weight Resistance Chart. This chart indicates the approximate resistance for various exercises based on the selected weight plate. Each plate weighs 4.5 kg.
Figura 4: A user demonstrating proper form on the Marcy Eclipse HG3000. The multi-gym is designed for a maximum user weight of 135 kg.
Figura 5: Detail of the adjustable curl pad and leg extension unit. The curl pad adjustment knob allows for customized positioning.
Manteniment
Regular maintenance is crucial to ensure the longevity and safe operation of your Marcy Eclipse HG3000 multi-gym.
- Neteja: Netegeu el marc i la tapisseria amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Cable and Pulley Inspection: Periodically inspect all cables for fraying or wear. Check that all pulleys, especially the 100mm diameter pulleys with sealed ball bearings, rotate freely and are not obstructed.
- Lubricació: Apply a silicone-based lubricant to guide rods and pivot points as needed to ensure smooth operation and prevent squeaking.
- Estanquitat del cargol: Regularly check and tighten all nuts and bolts to ensure the stability and structural integrity of the unit.
- Pila de pes: Ensure the weight stack moves smoothly and the selector pin engages properly. Keep the weight stack area clear of debris.

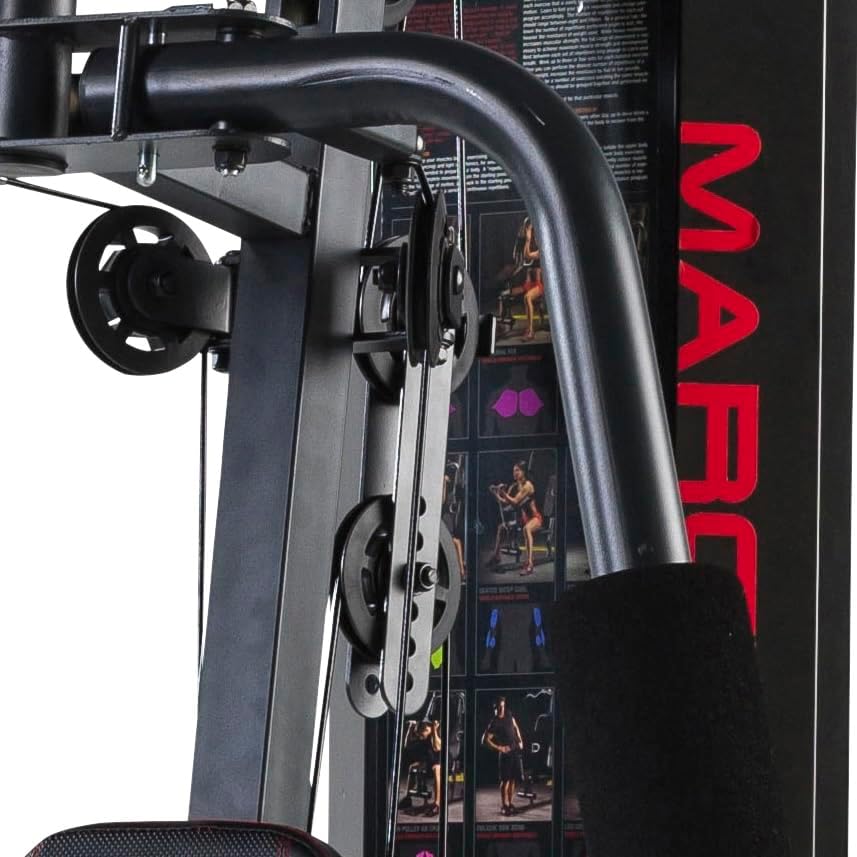

Figura 6: Detail of the cable and pulley system. Regular inspection of these components is vital for safe and smooth operation.
Resolució de problemes
This section addresses common issues you might encounter with your multi-gym.
| Problema | Causa possible | Solució |
|---|---|---|
| Squeaking or grinding noise during operation | Lack of lubrication on guide rods or pivot points; worn pulleys. | Apply silicone-based lubricant to guide rods and pivot points. Inspect pulleys for wear and replace if necessary. |
| La pila de pesos no es mou suaument | Debris in weight stack channel; misaligned guide rods; worn bushings. | Clean the weight stack channel. Check guide rod alignment. Contact support if issues persist. |
| Loose or wobbly frame | Cargols o connexions soltes. | Inspect all assembly bolts and tighten them securely. Refer to the assembly manual for torque specifications if available. |
| Cable esquinçat o danyat | Normal wear and tear; improper cable routing; sharp edges. | Immediately cease use. Inspect cable routing for any obstructions or sharp edges. Replace damaged cables with genuine Marcy replacement parts. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Marcy customer support.
Especificacions
- Model: HG3000
- Dimensions (L x A x A): 172 cm x 91 cm x 210 cm
- Pes del producte: 117 kg
- Pes màxim de l'usuari: 135 kg
- Pila de pes: 68 kg (vinyl, plug-in weights with safety pin)
- Material del marc: Heavy-duty 50mm diameter alloy steel construction
- Pulleys: 100mm diameter with sealed ball bearings
- cables: Aircraft cables with over 900 kg tensile strength
- Tapisseria: 6cm box point padding
- Compliment: Conforms to EN 957 standards
Informació de la garantia
The Marcy Eclipse HG3000 multi-gym comes with the following warranty:
- Construcció del marc: Garantia de per vida
- Components: 3 any de garantia
- Tapisseria: 1 any de garantia
This warranty covers manufacturing defects and material flaws under normal use and service. Please retain your proof of purchase for warranty claims.
Suport
For technical assistance, spare parts, or warranty claims, please contact Marcy customer service. Refer to the contact information provided with your product packaging or visit the official MARCY weblloc per obtenir detalls de suport.
