Tesa Assa Abloy 130 Mortise Lock Instruction Manual

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the Tesa Assa Abloy Model 130 Mortise Lock. Please read these instructions carefully before beginning installation to ensure proper function and security. Retain this manual for future reference.

Producte acabatview

The Tesa Assa Abloy 130 Mortise Lock is designed for secure installation on wooden doors. Its robust construction and specific dimensions, including a 70mm wheelbase, make it suitable for various door types, particularly those found in French-influenced markets.

Característiques principals:

• Designed for wooden doors.
• 70mm wheelbase for specific market compatibility.
• Nickel-plated cylinder for durability.
• Mortise lock mechanism for enhanced security.
• Constructed from Alloy Steel.

Components

Before installation, verify that all components are present and undamaged. The package should contain the following items:

• Mortise lock body
• Cylinder with keys
• Plat de vaga
• Escutcheons (trim plates)
• Cargols de muntatge
• Spindle (if applicable)

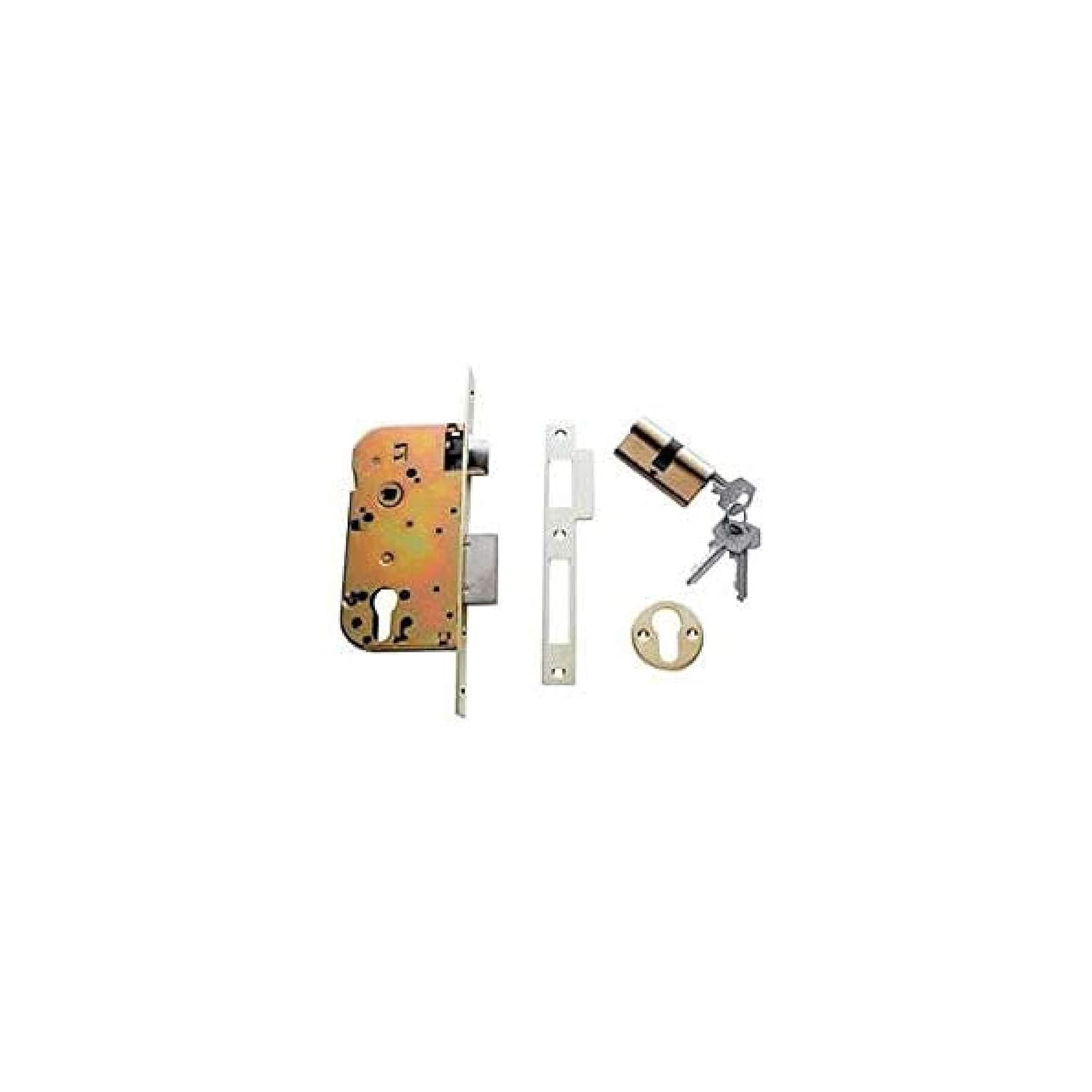

Figura 1: Acabatview of Tesa Assa Abloy 130 Mortise Lock components. This image displays the main lock body, the nickel-plated cylinder with accompanying keys, and the strike plate designed to be installed on the door frame.

Instruccions d'instal·lació

Proper installation is crucial for the security and functionality of the lock. If you are unsure about any step, consult a professional locksmith.

Eines necessàries:

• Trepant
• Wood chisels
• Joc de tornavís
• Cinta mètrica o regle
• Llapis
• Mallet

Passos d'instal·lació:

1. Prepara la porta: Mark the position for the mortise lock on the door edge and face according to the provided template (if included) or the dimensions shown in the technical diagram.
2. Mortise Pocket Creation: Using a drill and chisels, carefully create the mortise pocket in the door edge to accommodate the lock body. Ensure the pocket depth and width match the lock body dimensions.
3. Cylinder and Spindle Holes: Drill holes through the door face for the cylinder and spindle, aligning them with the lock body's openings.
4. Instal·leu el cos del pany: Insert the mortise lock body into the prepared pocket. Secure it with screws through the faceplate into the door edge.
5. Instal·lar el cilindre: Insert the cylinder through the door face and into the lock body. Secure it with the cylinder screw from the door edge.
6. Install Spindle and Handles (if applicable): Insert the spindle through the lock body. Attach door handles or knobs according to their specific instructions.
7. Install Escutcheons: Place the escutcheon plates over the cylinder and spindle, securing them with screws.
8. Instal·leu la placa de tancament: Close the door and mark the position of the latch and deadbolt on the door frame. Chisel out a recess for the strike plate and secure it with screws. Ensure the latch and deadbolt engage smoothly without binding.
9. Prova de funcionament: Test the lock with the key from both sides and ensure the latch and deadbolt operate freely.

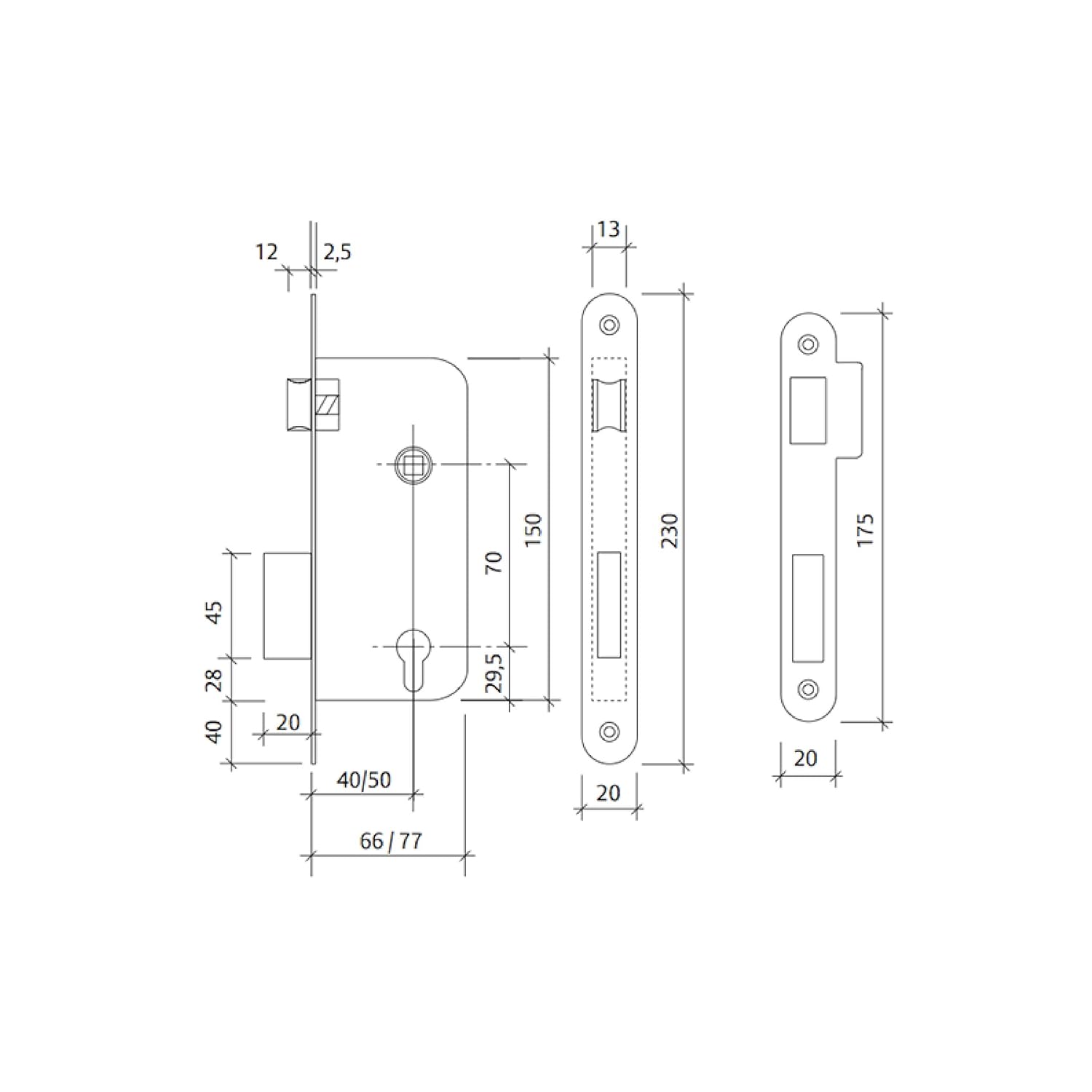

Figura 2: Technical diagram illustrating the dimensions and layout of the Tesa Assa Abloy 130 Mortise Lock. This diagram provides critical measurements for preparing the door and frame during installation, including the lock body, faceplate, and strike plate dimensions.

Instruccions de funcionament

The Tesa Assa Abloy 130 Mortise Lock operates as a standard key-operated lock.

• Bloqueig: Insert the key into the cylinder and turn it to extend the deadbolt. Turn the key fully until the deadbolt is extended into the strike plate on the door frame. Remove the key.
• Desbloqueig: Insert the key into the cylinder and turn it in the opposite direction to retract the deadbolt. Turn the key fully until the deadbolt is completely retracted. Remove the key and open the door.
• Latch Operation: The latch bolt is typically operated by the door handle or knob. Turning the handle retracts the latch, allowing the door to open.

Manteniment

Un manteniment regular garanteix la longevitat i el bon funcionament del pany de forrellat.

• Neteja: Clean the exterior surfaces of the lock and cylinder with a soft, damp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat.
• Lubricació: Periodically (e.g., once a year), apply a small amount of graphite-based lubricant or a silicone-free lock lubricant into the keyway of the cylinder. Do not use oil-based lubricants as they can attract dirt and cause clogging.
• Comproveu els cargols: Periodically check all mounting screws for tightness. Tighten any loose screws to prevent rattling or misalignment.
• Inspeccionar el desgast: Inspect the latch, deadbolt, and strike plate for signs of wear or damage. If any components are significantly worn or damaged, consider professional repair or replacement.

Resolució de problemes

If you encounter issues with your Tesa Assa Abloy 130 Mortise Lock, refer to the following common problems and solutions:

Especificacions

Garantia i Suport

For warranty information or technical support regarding your Tesa Assa Abloy 130 Mortise Lock, please refer to the official Tesa Assa Abloy weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.

Nota: Els termes i condicions específics de la garantia poden variar segons la regió i el distribuïdor.
