Introducció
This manual provides essential information for the safe and effective operation of your Gallagher i Series Fence Remote & Fault Finder. Please read this manual thoroughly before use and retain it for future reference.
The Gallagher i Series Remote Control is designed to assist in the maintenance and management of electric fence systems. It allows for accurate measurement of fence voltages and currents, facilitates fault location, and provides remote control over compatible energizers.
Què hi ha a la caixa
- Gallagher i Series Fence Remote & Fault Finder unit
- Bateria de 9 V
Image: The Gallagher i Series Remote and Fault Finder, shown in its clear retail packaging, ready for use.
Configuració
Instal·lació de la bateria
- Localitzeu la tapa del compartiment de la bateria a la part posterior de la unitat.
- Using a small Phillips head screwdriver, loosen the screw securing the battery cover.
- Traieu la tapa de la bateria.
- Inseriu la pila de 9 V subministrada, assegurant-vos de la polaritat correcta dels terminals (+ i -).
- Replace the battery cover and tighten the screw securely to maintain water resistance.

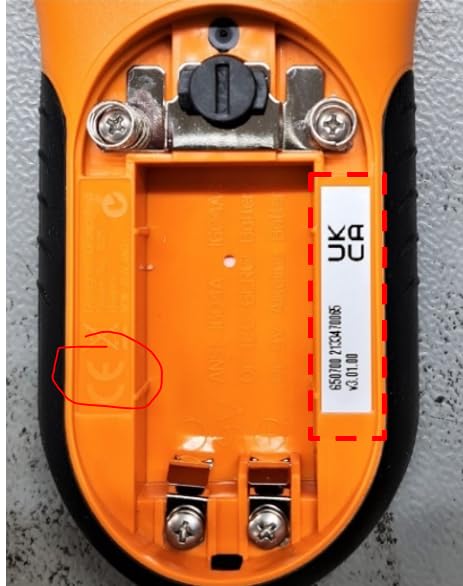

Imatge: Primer pla view of the open battery compartment of the remote, showing where the 9V battery is inserted.
Encès inicial
After battery installation, press the power button (usually marked with a circle or power symbol) to turn on the device. The display should illuminate, indicating the unit is ready for use.
Instruccions de funcionament
Measuring Fence Voltage i Actual
- Ensure the remote is powered on.
- Hold the remote with the metal contact points at the top.
- Touch the metal contact points firmly against the electric fence wire.
- The display will show the fence voltage (kV) and current (A).
Image: A hand holding the Gallagher i Series Remote, with its top contacts touching an electric fence wire, displaying a voltage lectura.
Localització d'errors
The remote's current measurement feature is crucial for fault finding. A significant drop in current along a fence line indicates a fault (e.g., a short circuit or break) between the previous measurement point and the current one. Systematically move along the fence, taking readings to pinpoint the exact location of the fault.
Remote Energizer Control
For compatible i Series and MX7500 energizers, the remote allows you to turn the energizer off or on from a distance. This feature is particularly useful for safely repairing faults without returning to the energizer's location.
- Ensure the remote is within range of the compatible energizer.
- Press the 'i' button (information/control button) to access energizer control options.
- Follow the on-screen prompts to switch the energizer off or on.
Manteniment
Neteja
Netegeu la unitat amb l'anunciamp cloth to remove dirt and debris. Do not use abrasive cleaners or immerse the unit in water. Ensure the contact points are clean for accurate readings.
Canvi de bateria
Replace the 9V battery when the low battery indicator appears on the display or if the unit fails to power on. Refer to the "Battery Installation" section for replacement steps.
Emmagatzematge
Store the remote in a cool, dry place when not in use. If storing for extended periods, it is recommended to remove the battery to prevent leakage.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Bateria morta o instal·lada incorrectament. | Comproveu la polaritat de la bateria; substituïu la bateria. |
| Vol inexactetaglectures de corrent electrònic. | Dirty contact points; poor connection to fence wire. | Clean contact points; ensure firm contact with fence wire. |
| Remote energizer control not working. | Out of range; incompatible energizer; energizer not powered. | Move closer to energizer; verify energizer compatibility; check energizer power. |
Especificacions
- Model: i Series Telecomando
- Marca: Gallagher
- Compatibilitat: Gallagher i Series Fence Energizer Systems, MX7500 Fence Energizers
- Volum màximtage Valoració: 15 kV
- Font d'alimentació: Bateria de 9 V (inclosa)
- Pes: Aproximadament 0.04 unces (1.13 grams)
- Resistència a l'aigua: Sí
- País d'origen: Nova Zelanda
Garantia i Suport
For warranty information, technical support, or service inquiries, please contact Gallagher customer service or visit the official Gallagher weblloc web. Conserveu el rebut de compra com a comprovant de compra.
Gallagher Official Weblloc: www.gallagher.com
UPC del producte: 9414701507002
