Introducció
The Flashpoint FP-S-8N Nano Light Stand is a portable and versatile support tool designed for various lighting equipment. Crafted from lightweight yet sturdy materials, this stand offers stability and ease of transport for photographers and videographers. Its reverse-folding leg design allows for a compact collapsed length, making it ideal for on-location shoots and studio use.
Informació de seguretat
- Always ensure the stand's legs are fully extended and locked before mounting any equipment.
- No supereu la capacitat de càrrega màxima de 4.1 kg. La sobrecàrrega pot causar inestabilitat i danys.
- Distribute weight evenly when mounting equipment to prevent tipping.
- Avoid placing the stand in high-traffic areas where it could be accidentally knocked over.
- Regularly inspect all locking mechanisms and connections for wear or damage.
- Use sandbags or other counterweights for added stability, especially when using heavy modifiers or in windy conditions.
- Keep hands and fingers clear of moving parts when adjusting the stand to prevent pinching.
Contingut del paquet
The Flashpoint FP-S-8N Nano Light Stand package includes:
- 1x Flashpoint FP-S-8N Reverse Legs Nano Light Stand
Configuració
1. Unfolding the Legs
Place the folded stand on a flat surface. Gently pull the legs outwards until they are fully extended and locked into position. The reverse-folding design allows for a wide, stable footprint.

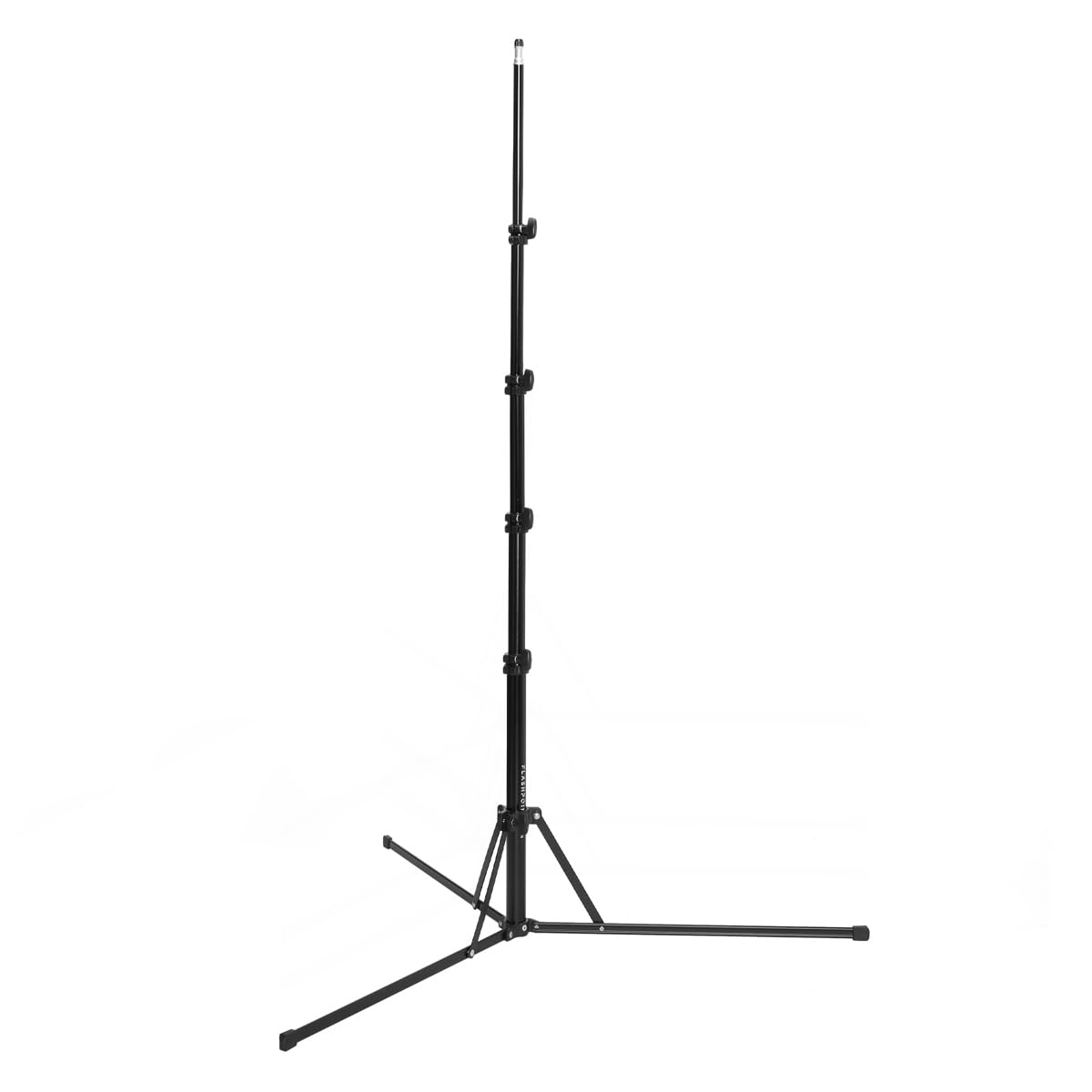

Image: The Flashpoint Nano Light Stand demonstrating its reverse-folding legs as they extend outwards from a collapsed position, providing a stable base.
2. Extending the Center Column
Loosen the large, easy-to-turn knobs on each section of the center column. Carefully extend the column sections to the desired height. Once the desired height is reached, securely tighten each knob to prevent the sections from slipping.
Image: The Flashpoint Nano Light Stand shown fully extended to its maximum height, illustrating the multi-section center column.
3. Mounting Equipment
The stand features a standard 1/4" screw on a 5/8" stud at the top. Mount your light, modifier, speedlight, or bracket onto this stud. Ensure the equipment is securely fastened before releasinagafeu la vostra adherència.
Image: The Flashpoint Nano Light Stand with its legs fully spread, showcasing the top mounting stud for attaching lighting equipment.
En funcionament
Ajust d'alçada i posició
To adjust the height, support the equipment with one hand, then loosen the appropriate locking knob. Carefully raise or lower the section to the desired position. Once adjusted, firmly tighten the knob. The variable tension feature allows for incremental adjustments.
Imatge: Un primer pla view of the large, easy-to-turn locking knobs on the Flashpoint Nano Light Stand, used for securing the extended sections.
Capacitat de càrrega
The stand is designed to safely support equipment weighing between 8.1 to 9 lbs (approximately 3.7 to 4.1 kg). Always ensure your equipment's weight is within this limit for optimal stability and safety.
Manteniment
- Neteja: Wipe down the stand with a soft, dry cloth after each use to remove dust and debris. For stubborn dirt, use a slightly damp drap i eixugueu-ho bé. Eviteu productes de neteja o dissolvents abrasius.
- Inspecció: Periodically check all screws, bolts, and locking mechanisms for tightness and signs of wear. Replace any damaged parts immediately.
- Lubricació: If the extension sections become stiff, apply a small amount of silicone-based lubricant to the inner tubes. Do not over-lubricate.
- Emmagatzematge: Collapse the stand fully and store it in a dry, clean environment. The compact folded size (22.5 inches) makes it easy to store.
Image: The Flashpoint Nano Light Stand shown in its fully folded, compact state, ready for transport or storage.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Stand sections slip or collapse | Locking knobs not tightened sufficiently; excessive load; worn locking mechanism. | Ensure all knobs are tightened firmly. Verify equipment weight is within the 9 lb limit. Inspect knobs and internal parts for damage and replace if necessary. |
| Stand feels unstable or leans | Legs not fully extended; uneven surface; unbalanced load. | Confirm legs are fully spread and locked. Place stand on a level surface. Distribute equipment weight evenly. Use sandbags for added stability. |
| Difficulty extending/retracting sections | Dirt/debris inside tubes; lack of lubrication; bent section. | Clean the stand thoroughly. Apply a small amount of silicone lubricant. If a section is bent, do not force it; contact support for replacement parts. |
Especificacions
- Número de model: FP-S-8N
- Marca: Punt d'inflamació
- Material: Alumini de qualitat aeronàutica
- Alçada màxima: 8.5 peus (2.59 metres)
- Longitud reduïda: 22.5 polzades (57.15 cm)
- Capacitat de càrrega: 8.1 - 9 lliures (3.7 - 4.1 kg)
- Pes de l'article: 3.1 lliures (1.4 kg)
- Product Dimensions (folded): 23 x 4 x 4 polzades (58.4 x 10.2 x 10.2 cm)
- Mounting Stud: Standard 1/4" screw on a 5/8" stud
Garantia i Suport
For warranty information, technical support, or service inquiries, please contact Flashpoint customer service. Details can typically be found on the official Flashpoint weblloc web o a través del vostre distribuïdor.
Flashpoint is committed to providing quality products and support to creators. For further assistance, please visit the Flashpoint Store on Amazon o el seu oficial weblloc.
