Hitachi RAU514HUD Ace Cutout Split AC User Manual

Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hitachi RAU514HUD Ace Cutout Split AC. Please read this manual thoroughly before using the appliance and retain it for future reference.

Imatge: Frontal view of the Hitachi RAU514HUD Ace Cutout Split AC indoor unit, showing the display panel and air outlet.

Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Assegureu-vos que l'aire condicionat l'hagi instal·lat un tècnic qualificat.
• No introduïu els dits ni objectes a l'entrada/sortida d'aire.
• No feu funcionar l'aire condicionat amb les mans mullades.
• Desconnecteu l'alimentació abans de la neteja o el manteniment.
• Mantenir els nens allunyats de la unitat.
• Do not attempt to repair the unit yourself. Contact authorized service personnel.

Configuració i instal·lació

Proper installation is crucial for optimal performance and safety. This section outlines general setup guidelines. For detailed installation instructions, refer to the separate installation manual provided with the product or consult a qualified technician.

Desembalatge

1. Carefully remove the indoor and outdoor units from their packaging.
2. Check for any damage during transit. Report any damage to your dealer immediately.
3. Ensure all included components are present: 1 Main unit, Warranty card.

Selecció d'ubicació

• Unitat interior: Choose a location where airflow is not obstructed and cool air can circulate evenly throughout the room. Avoid direct sunlight.
• Unitat exterior: Select a well-ventilated area, away from direct sunlight or heat sources. Ensure sufficient space around the unit for maintenance.

Connexió elèctrica

The unit requires a 230 Volts power supply. Ensure the electrical circuit is dedicated and properly grounded, meeting local electrical codes. Do not use extension cords.

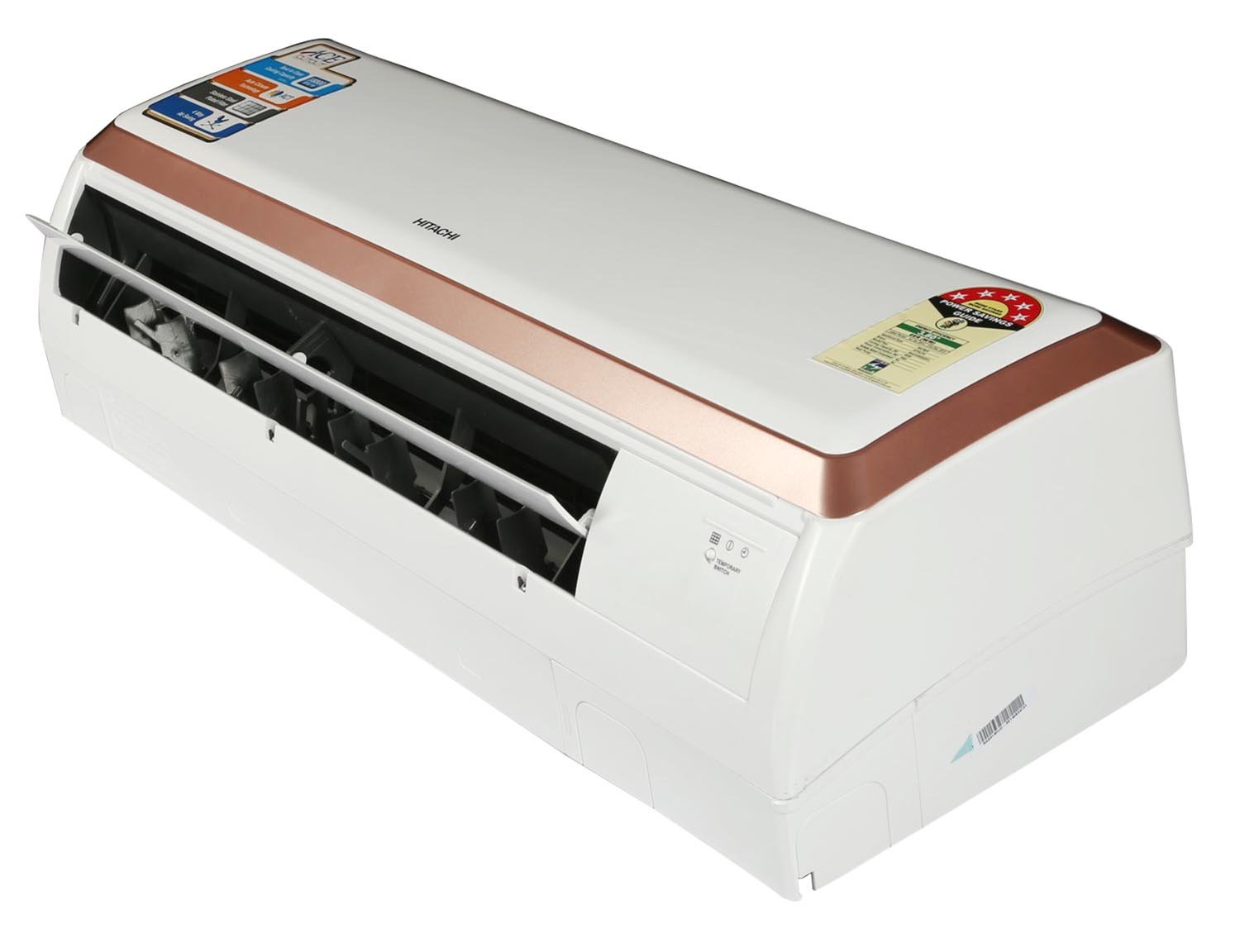

Imatge: Anglesa view of the Hitachi RAU514HUD Ace Cutout Split AC indoor unit, highlighting its compact design.

Instruccions de funcionament

Your Hitachi RAU514HUD AC is equipped with various features for comfortable and efficient cooling. All functions are controlled via the remote control.

Funcions de control remot

The remote control allows you to adjust settings such as mode, temperature, fan speed, and timer. Refer to the remote control guide for specific button functions.

Modes de funcionament

• Mode fresc: Provides cooling by lowering the room temperature. Adjust the temperature setting to your preference.
• Mode sec: Redueix la humitat de l'habitació sense refredar-la significativament.
• Auto Mode (Auto Climate Technology): The AC automatically selects the appropriate operating mode (Cool, Dry) and fan speed based on the room temperature and humidity.
• Mode de ventilador: Circula l'aire sense refrigerar ni escalfar.

Característiques especials

• Velocitat automàtica del ventilador: The fan speed adjusts automatically to maintain the desired temperature.
• Auto Humid Control: Automatically manages humidity levels for enhanced comfort.
• Auto Power Save Mode: Optimizes operation to reduce energy consumption.
• Reinici automàtic: En cas d'una potènciatage, the unit restarts automatically with the previous settings once power is restored.
• Digilock: A feature for locking the remote control settings to prevent accidental changes.
• Indicador de neteja del filtre: Illuminates to remind you when it's time to clean the air filters.
• Kaimin (Sleep Mode): Ajusta la temperatura i la velocitat del ventilador per a un son còmode i estalvi d'energia.
• El meu mode: Allows you to save and recall your preferred operating settings.
• On/Off Timer with Advanced Start-up: Program the AC to turn on or off at specific times. Advanced start-up ensures the room reaches the desired temperature by the set time.
• Mode potent: Provides rapid cooling for a short period to quickly reach the desired temperature.

Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la unitat d'aire condicionat. Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment.

Neteja dels filtres d'aire

1. Obriu el panell frontal de la unitat interior.
2. Traieu els filtres d'aire.
3. Netegeu els filtres amb un aspirador o renteu-los amb aigua tèbia i un detergent suau.
4. Esbandiu-les bé i deixeu-les assecar completament en una zona a l'ombra abans de tornar-les a instal·lar.
5. The "Filter Clean Indicator" will remind you when cleaning is due.

Cleaning the Unit Surfaces

• Wipe the indoor unit with a soft, dry cloth. For stubborn dirt, use a damp drap amb un detergent suau i després eixugueu-lo.
• No utilitzeu productes químics agressius, netejadors abrasius ni dissolvents.

Manteniment de temporada

• Abans de l'estiu: Ensure the outdoor unit's coils are free from dust and debris. Check for any obstructions around the unit.
• Before Winter (if applicable for heating models, though this is a cooling-only model): For cooling-only models, ensure the unit is clean and covered if not in use for extended periods.

Imatge: Lateral view of the Hitachi RAU514HUD Ace Cutout Split AC indoor unit, showing the air intake area.

Resolució de problemes

Abans de contactar amb el servei tècnic, torneu aview els següents problemes i solucions habituals.

If the problem persists after attempting these solutions, please contact authorized Hitachi service personnel.

Especificacions del producte

Garantia i Suport

Your Hitachi RAU514HUD Ace Cutout Split AC comes with the following warranty:

• Garantia del producte: 1 any des de la data de compra.
• Garantia del compressor: 5 anys des de la data de compra.

For warranty claims, technical support, or service requests, please refer to the contact information provided on your warranty card or visit the official Hitachi India website. Ensure you have your purchase receipt and product model number (RAU514HUD) ready when contacting support.
