1. Introducció
This manual provides instructions for the proper installation and use of the Frigidaire 316243723 LP Gas Conversion Kit. This kit is designed to convert a natural gas range, stove, or oven to operate on liquid propane (LP) gas. It is essential to follow all instructions carefully to ensure safe and efficient operation of your appliance.
2. Informació de seguretat
ADVERTÈNCIA: La instal·lació, l'ajustament, l'alteració, el servei o el manteniment inadequats poden causar danys a la propietat, lesions o la mort. Llegiu atentament les instruccions d'instal·lació, funcionament i manteniment abans d'instal·lar o donar servei a aquest equip.
CAUTION: Before proceeding with the conversion, shut off the gas supply to the appliance and disconnect electrical power. Ensure both power supplies are off before installing the conversion kit.
- Always refer to the appliance's original installation manual for specific instructions related to your model.
- This conversion should only be performed by a qualified service technician or licensed gas fitter.
- Ensure adequate ventilation during the conversion process.
- Check for gas leaks after conversion using a non-corrosive leak detection solution.
3. Contingut del paquet
The Frigidaire 316243723 LP Gas Conversion Kit typically includes the following components:
- LP Gas Orifices (various sizes for different burners)
- Wrench for orifice replacement
- Instruction sheet for conversion

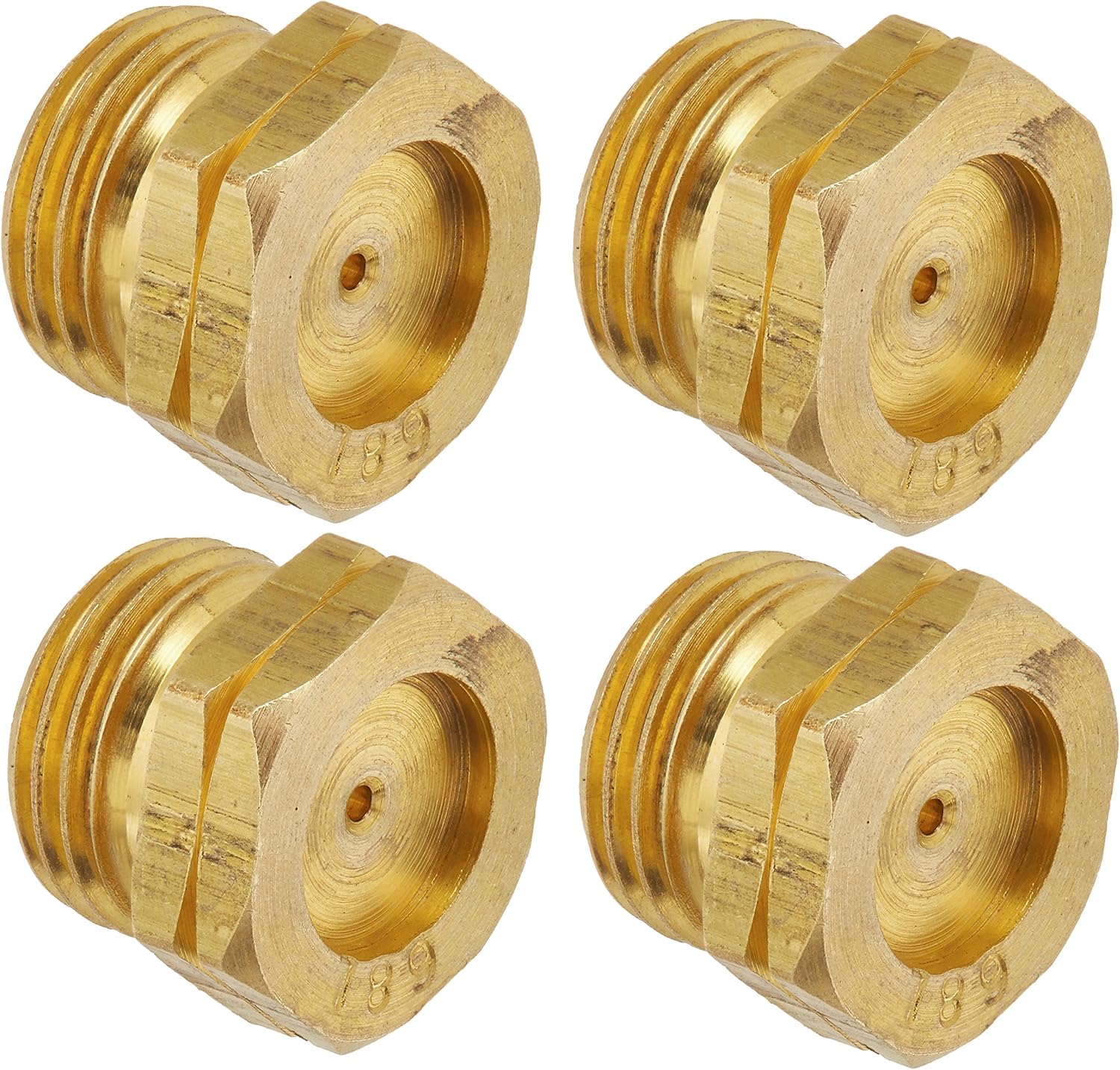

Image: Four brass LP gas orifices, essential components for converting a natural gas appliance to liquid propane.
Video: This video displays the components of a GRLP4 LP Gas Conversion Kit, including various brass orifices and a specialized wrench, laid out on an instruction sheet.
4. Configuració i instal·lació
The conversion process involves replacing the natural gas orifices with LP gas orifices and adjusting the air shutters. Always refer to your specific appliance's service manual for detailed, model-specific instructions.
4.1. Orifice Identification
LP gas orifices have smaller openings than natural gas orifices. It is crucial to use the correct orifice size for each burner to ensure proper flame characteristics and heat output. Orifices are typically marked with their size.
Video: This video demonstrates how to identify and measure different sizes of stove/oven burner jet nozzles (orifices) using a digital caliper, highlighting the importance of correct sizing for gas conversion.
4.2. Orifice Replacement
- Access Burners: Remove burner grates, burner caps, and burner heads to expose the natural gas orifices.
- Remove Natural Gas Orifices: Use the provided wrench or an appropriate tool to carefully unscrew and remove the existing natural gas orifices.
- Install LP Gas Orifices: Select the correct LP gas orifice for each burner position. Screw the new LP orifices into place, ensuring they are snug but not overtightened.
4.3. Air Shutter Adjustment
After replacing the orifices, the air shutters on each burner may need adjustment to achieve a proper blue flame with minimal yellow tipping. Consult your appliance's manual for the exact location and adjustment procedure for air shutters.
4.4. Leak Testing
After completing the conversion, turn the gas supply back on. Apply a non-corrosive leak detection solution (e.g., soapy water) to all gas connections and newly installed orifices. Bubbles indicate a leak. If a leak is detected, immediately shut off the gas supply and tighten the connection until the leak stops. Re-test until no leaks are present.
5. Instruccions de funcionament
Once the conversion is complete and leak-tested, your appliance is ready for operation with LP gas. The operation of the range, stove, or oven will remain the same as with natural gas. Observe the flame characteristics on each burner to ensure they are burning correctly.
Video: This video illustrates the process of converting an oven to LP gas, showing the replacement of orifices and the resulting blue flame, indicating proper combustion.
6. Manteniment
Regular maintenance ensures the longevity and safe operation of your converted appliance.
- Neteja dels cremadors: Periodically clean burner ports and caps to prevent blockages that can affect flame quality.
- Inspect Orifices: Ensure orifices remain free of debris.
- Comprovació de les connexions de gas: Annually inspect all gas connections for tightness and signs of wear.
7. Solució De Problemes
If you encounter issues after converting your appliance, consider the following:
| Problema | Causa possible | Solució |
|---|---|---|
| Yellow or lifting flames | Incorrect air shutter adjustment; wrong orifice size; clogged orifice. | Adjust air shutter for a blue flame. Verify correct orifice size. Clean orifice. |
| No hi ha flux de gas al cremador | Gas supply off; clogged orifice; faulty gas valve. | Ensure gas supply is on. Clean orifice. Contact a qualified technician for valve inspection. |
| Olor de gas | Fuita de gas. | Immediately shut off gas supply. Ventilate area. Do not operate appliance. Contact a qualified technician or emergency services. |
8. Especificacions
- Informació del model: 316243723
- Pes de l'article: 0.8 unces
- Dimensions del producte: 1 x 4 x 5 polzades
- Número de peça: 316243723
9. Garantia i Suport
For warranty information and technical support regarding the Frigidaire 316243723 LP Gas Conversion Kit, please refer to the documentation provided with your original appliance or contact Frigidaire customer service directly. Keep your purchase receipt for warranty claims.
