Utilitech 6-ft 6-Gauge Indoor Range Extension Cord Instruction Manual

1. Introducció

This manual provides essential information for the safe and effective use of your Utilitech 6-ft 6-Gauge Indoor Range Extension Cord. Please read these instructions carefully before installation and operation, and retain them for future reference. This product is designed for indoor use with electric ranges requiring a 50-Amp, 125/250V connection.

2. Informació de seguretat

Always adhere to the following safety guidelines to prevent electrical shock, fire, or personal injury:

• Només per a ús interior: This extension cord is designed exclusively for indoor applications. Do not use it outdoors or in wet conditions.
• Classificació adequada: Ensure the appliance connected to this cord does not exceed the cord's maximum rating of 50 Amps, 125/250 Volts, and 6250 Watts.
• Posada a terra: This cord features a 4-prong plug for proper grounding. Always connect it to a properly grounded 4-prong receptacle. Do not bypass or remove the grounding prong.
• Inspeccionar abans d'utilitzar: Before each use, inspect the cord for any signs of damage, cuts, fraying, or exposed wires. Do not use a damaged cord.
• Eviteu la sobrecàrrega: Do not plug multiple appliances into this cord using adapters, as this can lead to overloading and fire hazards.
• Keep Away from Heat and Water: Do not place the cord near heat sources, sharp objects, or in areas where it may come into contact with water or other liquids.
• Desconnecteu quan no estigui en ús: Always unplug the cord from the wall outlet before disconnecting it from the appliance, and when not in use.
• UL and CSA Certified: This product meets UL and CSA requirements, ensuring it adheres to recognized safety standards for use in the US and Canada.

3. Producte acabatview

The Utilitech 6-ft 6-Gauge Indoor Range Extension Cord is a heavy-duty electrical cord designed for connecting electric ranges. It features a 4-prong plug and robust construction to handle high current capacity.

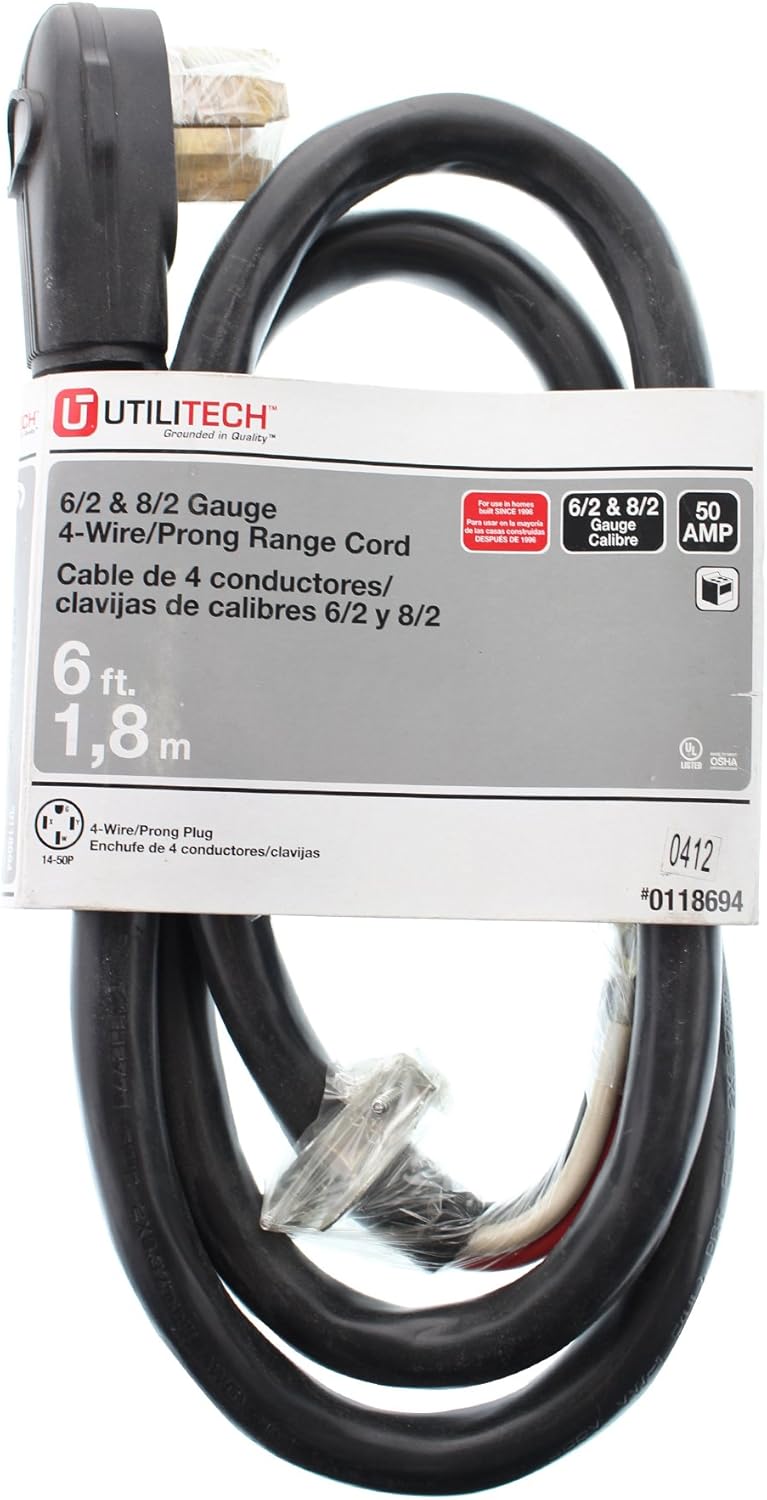

Image 1: The Utilitech 6-ft 6-Gauge Indoor Range Extension Cord, showing its coiled form, the 4-prong male plug, and the prepared wire ends with terminals for connection.

Característiques principals:

• Longitud: 6 peus (1.8 metres)
• Calibre: 6/2 & 8/2 Gauge for heavy-duty applications.
• Ampera: 50 Amps
• Voltage: 125/250 volts
• Wattage: 6250 watts
• Tipus d'endoll: 4-Prong (Type B)
• Material: Copper conductors for efficient power transmission.
• Strain Relief Kit: Includes components for secure and safe installation.

Imatge 2: Una imatge detallada view of the 4-prong male plug, designed for compatibility with standard 50-Amp range receptacles.

Image 3: A close-up showing the individual wire ends, each fitted with a ring terminal, ready for secure connection to an appliance's terminal block.

4. Configuració i instal·lació

This cord is intended for connecting an electric range to a compatible 4-prong wall receptacle. Installation should ideally be performed by a qualified electrician or a knowledgeable individual following local electrical codes.

1. Assegureu-vos que l'alimentació estigui apagada: Before beginning any electrical work, always turn off the power to the range outlet at the main circuit breaker or fuse box. Verify with a voltage provador.
2. Prepare Appliance: Access the terminal block on your electric range. This usually involves removing a rear access panel.
3. Connect Cord to Appliance: Connect the individual wires of the extension cord to the corresponding terminals on the range's terminal block. Refer to your range's instruction manual for specific wiring diagrams. Typically, the wires are color-coded (e.g., red, black, white, green/bare ground). Ensure all connections are tight and secure.
4. Install Strain Relief: Use the included strain relief kit to secure the cord to the range's chassis, preventing tension on the terminal connections.
5. Panell segur: Replace the range's rear access panel.
6. Connecteu-vos a la presa de corrent: Insert the 4-prong male plug of the extension cord firmly into a compatible 4-prong, 50-Amp receptacle de paret.
7. Restaura l'alimentació: Torneu a connectar l'alimentació a l'interruptor principal.

Important: If you are unsure about any step, consult a qualified electrician. Improper installation can lead to electrical hazards.

5. Instruccions de funcionament

Once properly installed, the Utilitech Range Extension Cord operates passively, providing power to your electric range. No specific operational steps are required for the cord itself beyond proper connection.

• Ensure the cord is not pinched, kinked, or run under carpets or through doorways where it could be damaged.
• Do not attempt to modify the cord or its plugs in any way.
• Regularly check the plug and receptacle for signs of overheating (discoloration, melting, burning smell). If detected, immediately unplug the cord and consult an electrician.

6. Manteniment

The Utilitech Range Extension Cord requires minimal maintenance. Following these guidelines will help ensure its longevity and safe operation:

• Neteja: Disconnect the cord from the power source before cleaning. Wipe the cord and plugs with a dry, clean cloth. Do not use liquid cleaners or immerse the cord in water.
• Emmagatzematge: When not in use, store the cord in a cool, dry place, away from direct sunlight and extreme temperatures. Coil it loosely to prevent kinking.
• Inspecció: Periodically inspect the entire length of the cord, including the plugs and connections, for any signs of wear, damage, or loose connections.

7. Solució De Problemes

If you encounter issues with your electric range while using this extension cord, consider the following:

• No Power to Range:
  • Check if the cord is fully plugged into both the range and the wall receptacle.
  • Verify that the circuit breaker for the range outlet has not tripped. Reset if necessary.
  • Ensure the wall receptacle is receiving power by testing it with another appliance (if safe to do so).
  • Inspect the cord for visible damage. If damaged, discontinue use and replace.
• Sobreescalfament:
  • If the cord or plugs feel excessively hot, immediately unplug the cord. This could indicate an overload or a faulty connection.
  • Ensure the appliance's power requirements do not exceed the cord's rating.
  • Consult an electrician to inspect the wiring and connections.

Nota: For issues related to the electric range itself, refer to the range's instruction manual or contact the appliance manufacturer.

8. Especificacions

Detailed technical specifications for the Utilitech 6-ft 6-Gauge Indoor Range Extension Cord:

Image 4: Product packaging displaying key specifications such as length, gauge, amperage, and model number.

9. Garantia i Suport

Specific warranty information for the Utilitech 6-ft 6-Gauge Indoor Range Extension Cord is not provided in this document. Please refer to the product packaging or contact Utilitech customer service for warranty details.

For technical support or inquiries, please contact the retailer where the product was purchased or visit the official Utilitech weblloc per obtenir informació de contacte.
