1. Introducció
Thank you for choosing the Xanlite PR20WR Rechargeable LED Projector. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read these instructions carefully before use and retain this manual for future reference.
2. Instruccions de seguretat
Observeu sempre les següents precaucions de seguretat per evitar lesions o danys al producte:
- No mireu directament a la llum LED quan estigui encesa, ja que us pot causar fatiga o danys oculars.
- Keep the projector away from flammable materials.
- Do not attempt to disassemble or modify the projector. This will void the warranty and may cause electric shock or fire.
- Ensure the charging cable and adapter are in good condition before charging.
- The projector has an IP54 rating, meaning it is protected against dust ingress and splashing water from any direction. It is not designed for immersion in water.
- Operate and charge the device within recommended temperature ranges.
- Mantenir fora de l'abast dels nens.
3. Producte acabatview
Familiarize yourself with the components of your Xanlite PR20WR LED Projector:
- Panell de llum LED: La font de llum principal.
- Suport ajustable: Allows for positioning the light at various angles.
- Mànec: Per facilitar el transport.
- Botó d'encesa: To turn the light on/off.
- Port de càrrega: Per connectar el cable de càrrega USB.
- Llums indicadores de bateria: Mostra el nivell de càrrega actual.
Imatge 3.1: General view of the Xanlite PR20WR LED Projector, showing its robust design and handle.

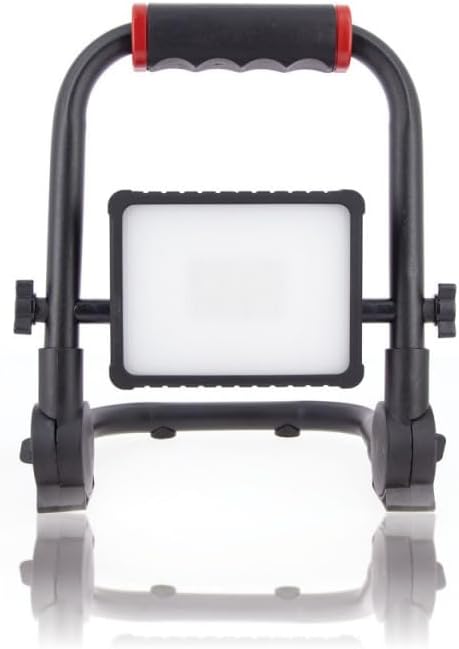

Imatge 3.2: Frontal view of the projector, highlighting the LED light panel and the sturdy frame.

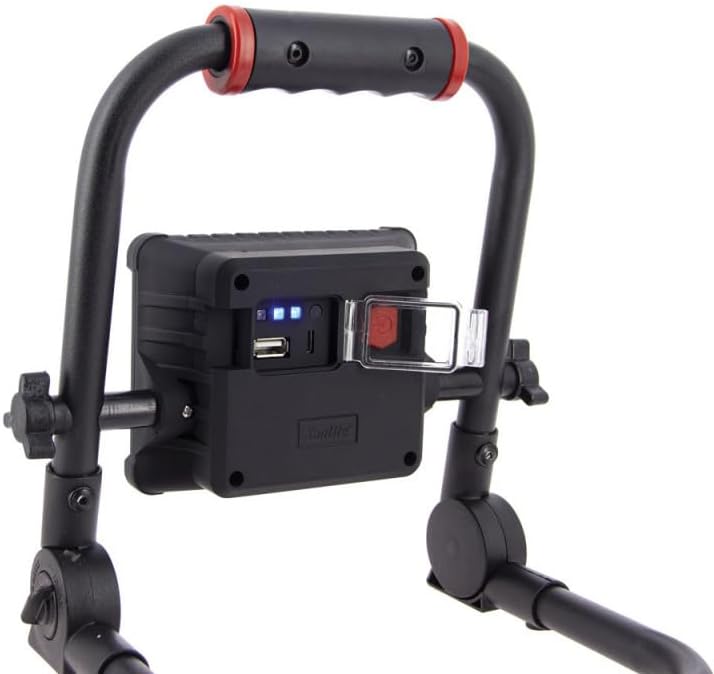

Imatge 3.3: posterior view of the projector, displaying the charging port and blue battery indicator lights.
Image 3.4: Detail of the adjustable stand mechanism, allowing for precise angle adjustments.
4. Configuració
- Desembalar: Traieu amb cura el projector i tots els accessoris de l'embalatge.
- Càrrec inicial: Before first use, fully charge the projector. Refer to Section 6 for charging instructions.
- Ajustar el suport: Loosen the knobs on the sides of the stand to adjust the angle of the light panel. Tighten the knobs once the desired angle is achieved.
5. Instruccions de funcionament
- Encès/apagat: Press the power button located on the back of the unit to turn the LED projector on or off.
- Ajust d'angle: Use the adjustable stand to direct the light beam as needed. Ensure the stand is stable on a flat surface.
6. Càrrega
The Xanlite PR20WR projector features a rechargeable battery.
- Connecta el carregador: Plug the provided USB charging cable into the charging port on the back of the projector. Connect the other end to a suitable USB power adapter (not included) or a powered USB port.
- Càrrega del monitor: The battery indicator lights on the back of the unit will illuminate to show the charging status. All lights will be solid when fully charged.
- Temps de càrrega: Charging time may vary depending on the power source. Disconnect the charger once fully charged.
7. Manteniment
- Neteja: Wipe the projector with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Emmagatzematge: Store the projector in a cool, dry place when not in use. If storing for extended periods, charge the battery every 3-6 months to maintain its lifespan.
- Cura de la bateria: Avoid completely draining the battery frequently. Recharge when the battery indicator shows low power.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El projector no s'encén. | La bateria està esgotada. | Charge the projector fully. |
| Botó d'engegada no premut correctament. | Assegureu-vos que el botó d'encesa estigui premut amb fermesa. | |
| Temps de funcionament curt després de la càrrega completa. | Degradació de la bateria amb el pas del temps. | This is normal for rechargeable batteries. Ensure full charge before use. |
| Funcionant a temperatures extremes. | Use the projector within recommended temperature ranges. | |
| Projector not charging. | Cable o adaptador de càrrega defectuós. | Prova un cable de càrrega USB i un adaptador de corrent diferents. |
| El port de càrrega està danyat. | Contacteu amb l'assistència al client per obtenir assistència. |
9. Especificacions
| Marca: | Xanlite |
| Model: | PR20WR |
| Potència: | 20 watts |
| Voltage: | 230 Volts |
| Flux lluminós: | 1300 lúmens |
| Temperatura de color: | 6000 Kelvin (blanc fred) |
| Material: | Plàstic |
| Dimensions: | 25.5 x 21.5 x 22 cm |
| Pes: | 1.24 kg |
| Classificació de protecció: | IP54 |
| Font d'alimentació: | AC/DC (Rechargeable Battery) |
| Components inclosos: | LED spotlight, USB charging cable (implied) |
10. Garantia i Suport
Xanlite products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact your retailer. For technical support or service inquiries, please contact Xanlite customer service through their official weblloc web o la informació de contacte proporcionada amb el vostre producte.
