1. Producte acabatview
The QLT By MARSHALLTOWN Notched Trowel (Model NT696) is a contractor-grade hand tool designed for the precise application of adhesives and mortars in flooring and tiling projects. Its robust construction and ergonomic design facilitate efficient and uniform material spreading.

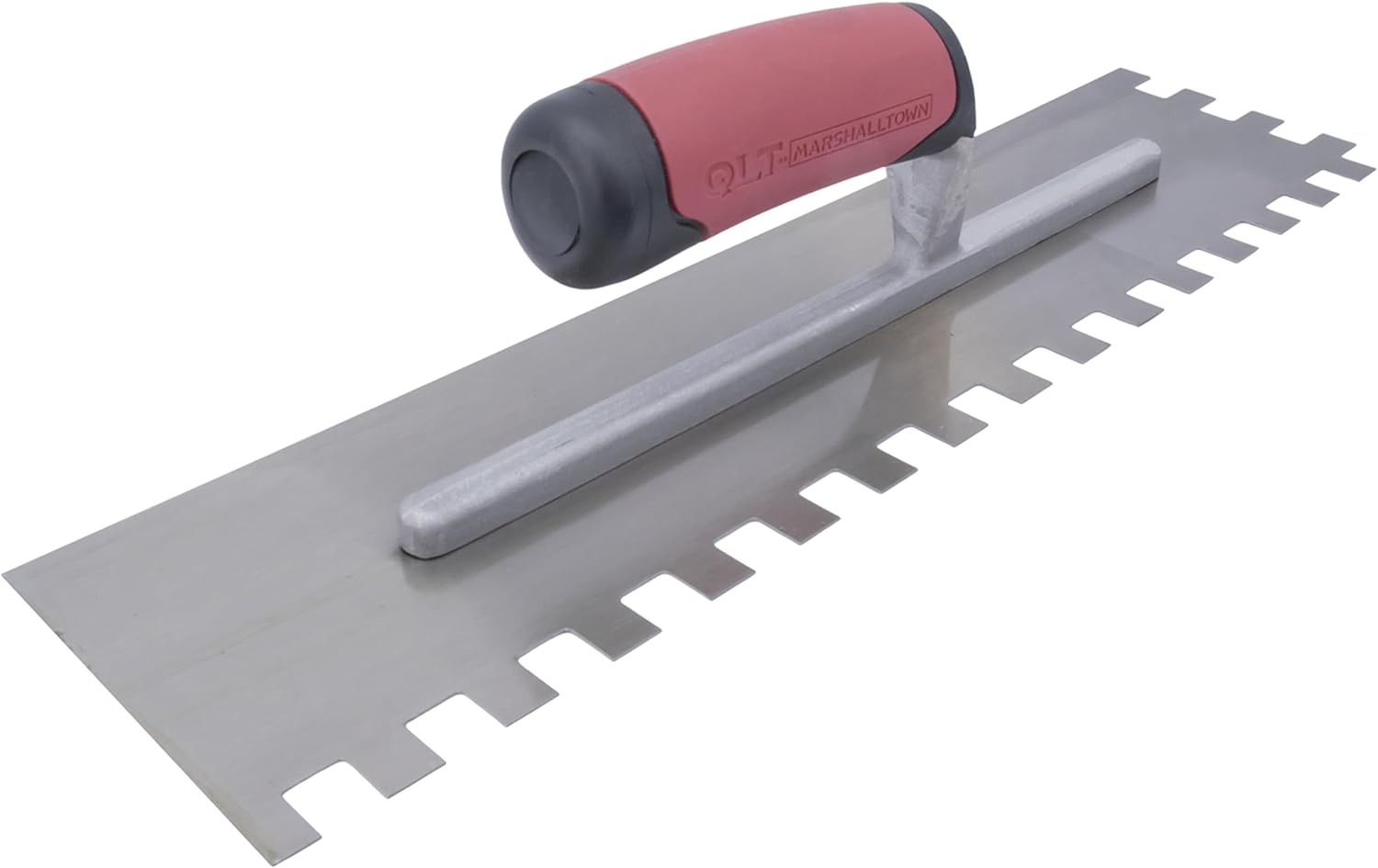

Image 1.1: The QLT By MARSHALLTOWN Notched Trowel, showcasing its blade and handle.
2. Característiques clau
- Dimensions de la fulla: 16 polzades per 4 polzades.
- Notch Dimensions: 1/2 inch width, 1/2 inch depth, 1/2 inch spacing (square notches).
- Material de la fulla: Hard tempered steel for durability and consistent performance.
- Mànec: DuraSoft® soft grip handle designed for enhanced comfort and reduced fatigue during extended use.
- Muntatge: Aluminum alloy mounting securely riveted to the blade.
Image 2.1: Detail of the trowel's 1/2 inch square notches.
3. Configuració i preparació
Before using the QLT By MARSHALLTOWN Notched Trowel, ensure your work area and materials are properly prepared.
- Preparació de la superfície: Ensure the substrate (floor or wall) is clean, dry, level, and free from dust, grease, or loose debris. Any imperfections in the surface should be addressed prior to adhesive application.
- Adhesive/Mortar Preparation: Mix your chosen adhesive or mortar according to the manufacturer's instructions. Consistency is crucial for proper bonding and spread.
- Inspecció d'eines: Inspect the trowel for any damage or wear. A clean, sharp-notched blade is essential for uniform adhesive ridges.
4. Instruccions de funcionament
Follow these steps for effective application of adhesive or mortar using your notched trowel:
- Scoop Material: Use the flat edge of the trowel to scoop a manageable amount of adhesive or mortar from your bucket onto the substrate.
- Spread Material: Hold the trowel at a consistent angle (typically 45-60 degrees) to the surface. Apply firm, even pressure as you spread the material, creating uniform ridges with the notched edge. The angle and pressure will influence the height and consistency of the ridges.
- Ridge Consistency: Ensure the ridges are consistent in height and spacing across the entire area. This is critical for proper tile bedding and adhesion.
- Àrea de cobertura: Only spread enough material that can be covered with tiles within the adhesive's open time (the period during which the adhesive remains workable and can bond effectively).
- Vores netes: Use the flat side of the trowel to clean up excess material along the edges of the applied area.
Image 4.1: Demonstrating the technique for spreading mortar with a trowel.
5. Manteniment i cura
Proper maintenance extends the life of your trowel and ensures optimal performance.
- Neteja immediata: Clean the trowel immediately after each use. Dried adhesive or mortar is difficult to remove and can damage the notches.
- Mètode de neteja: Use warm water and a stiff brush to remove all material from the blade and handle. For stubborn residue, a plastic scraper can be used carefully to avoid damaging the blade.
- Assecat: Assequeu bé la fulla metàl·lica després de netejar-la per evitar que s'oxidi.
- Emmagatzematge: Store the trowel in a dry place, away from moisture and corrosive materials. Hanging the trowel can prevent blade deformation.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Uneven adhesive ridges | Inconsistent trowel angle or pressure; worn notches; uneven substrate. | Maintain a consistent angle and pressure. Inspect notches for wear. Ensure substrate is level. |
| Adhesive drying too quickly on trowel | High ambient temperature; prolonged exposure to air. | Work in smaller sections. Keep adhesive bucket covered. Clean trowel frequently. |
| Difficulty cleaning dried material | Material left on trowel for too long. | Clean the trowel immediately after use. Soak in warm water if material has started to harden. |
7. Especificacions
| Atribut | Detall |
|---|---|
| Marca | MARSHALLTOWN |
| Número de model | NT696 |
| Material de la fulla | Tempered Steel |
| Material del mànec | DuraSoft® |
| Pes de l'article | 14.4 unces |
| Dimensions de l'article (L x A x A) | 16 x 4 x 4 polzades |
| Notch Dimensions | 1/2 inch (Width), 1/2 inch (Depth), 1/2 inch (Spacing) |
| Tipus de grip | Ergonòmic |
| UPC | 035965056960 |
8. Garantia i Suport
All MARSHALLTOWN Company tools are warranted to be free from defective materials and workmanship. Any such defective product will, at our choice, be replaced or repaired free of charge if returned to us transportation charges prepaid. We reserve the right to issue a credit memo for the full value of any such tool, based on the purchaser’s net cost, in lieu of actual replacement or repair. Our liability under all warranties, expressed or implied, shall be limited to the replacement or repair of defective products. This warranty does not cover faults arising from normal wear and tear, damage, misuse or abuse of the tool. For equipment warranty terms, please see the included warranty statement.
For further assistance or inquiries, please contact MARSHALLTOWN customer support through their official channels or visit their weblloc.
