Magefesa Dynamic Pressure Cooker 01OPDINAM08 User Manual

1. Introducció

This manual provides essential instructions for the safe and efficient use of your Magefesa Dynamic Pressure Cooker, model 01OPDINAM08. Designed for durability and performance, this 7.5-liter stainless steel pressure cooker is suitable for various cooking tasks. Please read all instructions carefully before first use to ensure proper operation and to prevent injury or damage.

Image 1.1: The Magefesa Dynamic Pressure Cooker, a 7.5-liter stainless steel unit with a black handle and green safety features.

2. Informació de seguretat

Your safety is paramount. The Magefesa Dynamic Pressure Cooker is equipped with multiple safety systems to ensure secure operation. Always adhere to the following safety guidelines:

• Never fill the pressure cooker more than two-thirds full. For foods that expand (e.g., rice, dried vegetables), do not fill more than halfway.
• Ensure the lid is correctly closed and locked before applying heat.
• Do not force the lid open. Always ensure all pressure has been released before attempting to open the lid.
• Regularly inspect the gasket, safety valve, and working valve for any signs of wear or damage. Replace components if necessary.
• Keep hands and face away from the steam vent when pressure is being released.
• No feu servir l'olla a pressió per fregir amb oli.
• Mantenir fora de l'abast dels nens.

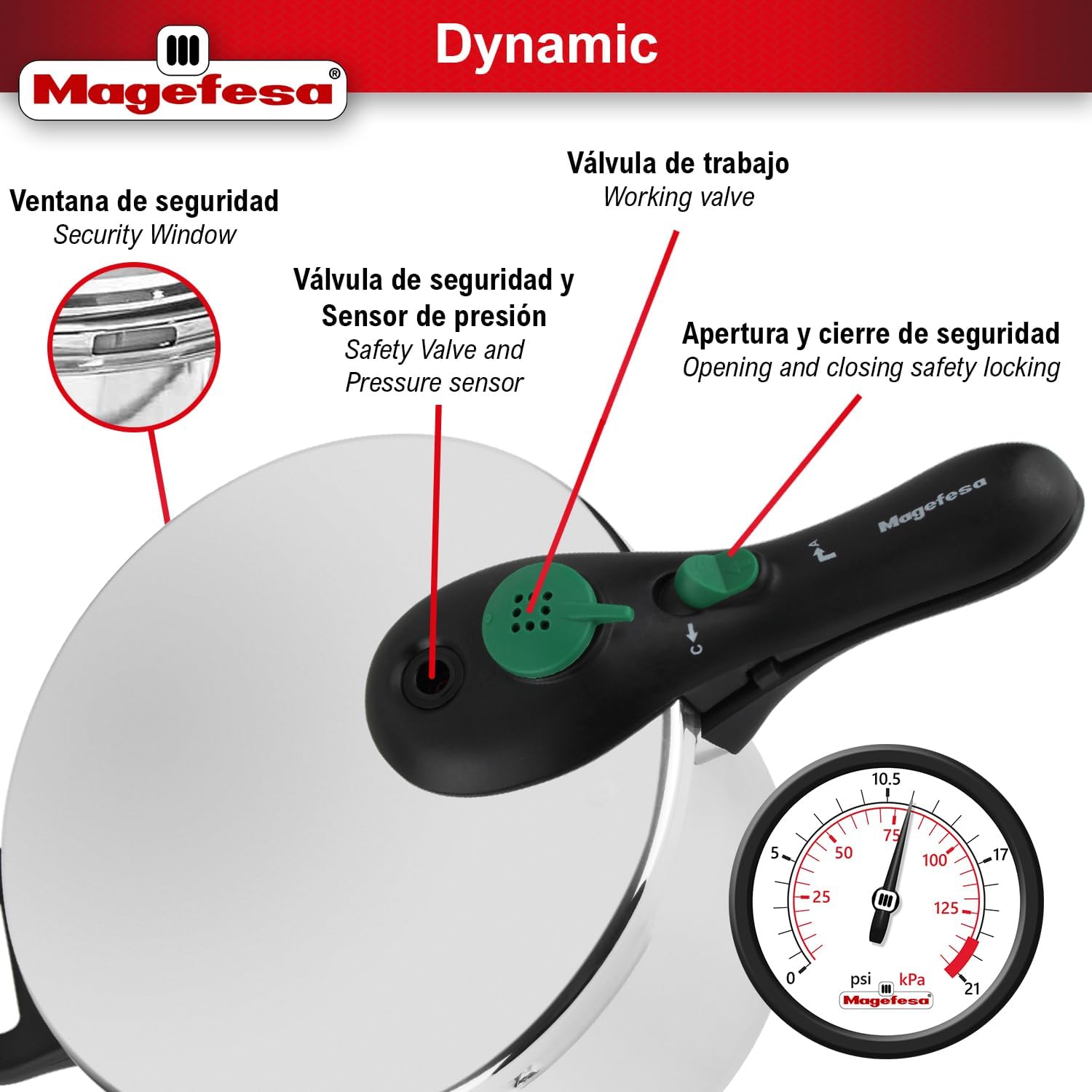

Image 2.1: Diagram illustrating the safety features of the Magefesa Dynamic Pressure Cooker, including the security window, safety valve, pressure sensor, working valve, and safety locking mechanism for opening and closing.

3. Producte acabatview

The Magefesa Dynamic Pressure Cooker is crafted from high-quality 18/10 stainless steel, ensuring durability and efficient heat distribution. It features a robust design suitable for various cooking methods and is compatible with all types of cooktops, including induction.

Característiques principals:

• Material: High-quality 18/10 Stainless Steel.
• Capacitat: 7.5 litres.
• Nanses: Heat-resistant Bakelite handles for safe handling.
• Compatibilitat: Suitable for all cooktops (electric, gas, ceramic, induction) thanks to its induction base.
• Sistemes de seguretat: Equipped with multiple safety mechanisms for secure operation.

Image 3.1: The Magefesa Dynamic Pressure Cooker shown on an induction cooktop, highlighting its compatibility with various heat sources.

Image 3.2: The Magefesa Dynamic Pressure Cooker displayed with various fresh vegetables, illustrating its use for preparing healthy meals.

Image 3.3: A graphic detailing the capacity, top diameter, base diameter, and height for various sizes of Magefesa Dynamic pressure cookers. The 7.5L model has a top diameter of 22cm (8.6in), a base of 18.5cm (7.3in), and a height of 21cm (8.3in).

4. Configuració i primer ús

1. Desembalatge: Traieu amb cura tots els materials d'embalatge i les etiquetes de l'olla a pressió.
2. Neteja inicial: Before first use, wash the pot, lid, and all removable parts (gasket, valves) with warm soapy water. Rinse thoroughly and dry completely.
3. Instal·lació de la junta: Ensure the silicone gasket is correctly seated inside the lid rim. It should fit snugly and evenly.
4. Comprovació de la vàlvula: Verify that the working valve and safety valve are clear of any obstructions and move freely.
5. Prova d'execució (opcional però recomanada): Fill the cooker with 2-3 cups of water. Close the lid securely. Place on the stove over medium-high heat. Allow pressure to build and steam to release from the working valve for a few minutes. Remove from heat, allow pressure to release naturally or using the quick release method (if applicable and safe for your model), then open the lid. This helps to clean the internal components and familiarize you with the cooker's operation.

5. Instruccions de funcionament

5.1. Preparing Food and Liquid

• Place your ingredients and the required amount of liquid into the pressure cooker.
• Do not exceed the maximum fill lines: 2/3 full for most foods, 1/2 full for foods that expand (e.g., beans, grains).
• Ensure there is always sufficient liquid to generate steam and pressure.

5.2. Tancament de la tapa

• Align the lid with the pot.
• Rotate the lid handle until it locks securely into place. Refer to the markings on the lid and pot for correct alignment and locking.
• Ensure the working valve is in the correct position for pressure cooking (usually a sealed position).

5.3. Cuinar sota pressió

• Place the pressure cooker on a suitable heat source (electric, gas, ceramic, induction).
• Poseu el foc al màxim. Començarà a créixer pressió dins de l'olla.
• Once the working valve begins to release a steady stream of steam, reduce the heat to maintain a gentle, consistent steam release. This indicates that full pressure has been reached.
• Comença a cronometrar la teva recepta a partir d'aquest punt.

Image 5.1: A chart displaying approximate cooking times for various foods in the Magefesa Dynamic Pressure Cooker: Pasta (7 minutes), Rice (7 minutes), Chickpeas (30 minutes), Potatoes (12 minutes), Stew (35 minutes), Fish (4 minutes).

5.4. ReleuasinPressió g

There are generally two methods for releasinpressió g:

• Alliberament natural: Remove the pressure cooker from the heat source and allow it to cool down naturally. The pressure indicator will drop, and steam will stop releasing. This method is ideal for foods that benefit from continued cooking, such as stews and roasts.
• Llançament ràpid: For foods that require precise cooking times or to stop cooking quickly, carefully move the working valve to the steam release position. Be cautious of the hot steam. Once all steam has escaped and the pressure indicator has dropped, the lid can be opened.

5.5. Obrir la tapa

• Ensure that all pressure has been released and the pressure indicator has dropped completely.
• Rotate the lid handle to unlock it and carefully lift the lid away from you to avoid residual steam.

6. Manteniment i Neteja

Proper maintenance ensures the longevity and safe operation of your Magefesa Dynamic Pressure Cooker.

• Després de cada ús: Wash the pot and lid with warm soapy water. For stubborn food residues, soak the pot before cleaning.
• Junta: Remove the gasket from the lid and wash it separately. Ensure it is clean and flexible. Replace the gasket if it becomes stiff, cracked, or shows signs of wear, as this can affect pressure sealing.
• Vàlvules: Periodically check the working valve and safety valve for food particles or blockages. Clean them according to the manufacturer's instructions to ensure they function correctly.
• Emmagatzematge: Guardeu l'olla a pressió amb la tapa invertida o lleugerament entreoberta per permetre la circulació de l'aire i evitar olors.

7. Solució De Problemes

If you encounter issues with your pressure cooker, refer to the following common troubleshooting tips:

• Pressió que no augmenta:
  • Ensure the lid is correctly sealed and locked.
  • Check if the gasket is properly seated and not damaged.
  • Verify that the working valve is in the sealed position.
  • Confirm sufficient liquid is inside the pot.
• Fuita de vapor per la tapa:
  • The gasket might be dirty, worn, or improperly seated. Clean or replace it.
  • The lid might not be closed correctly. Re-align and lock the lid.
• Lid Cannot Be Opened After Cooking:
  • Pressure is still inside the cooker. Do not force it. Allow more time for natural pressure release or use the quick release method until the pressure indicator drops completely.
• Food Not Cooking Properly:
  • Ensure the correct cooking time and pressure level were maintained.
  • Check if the heat source was consistent.

8. Especificacions

9. Garantia i Suport

Magefesa provides a warranty for its products. For the Magefesa Dynamic Pressure Cooker, spare parts availability is guaranteed for 2 years from the date of purchase. For warranty claims, technical support, or to purchase spare parts, please contact Magefesa customer service or visit the official Magefesa weblloc web. Conserveu el comprovant de compra per validar la garantia.

Per a més ajuda, podeu visitar el Magefesa Brand Store.
