Life Gear 2-in-1 LED Flashlight User Manual

Introducció

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your Life Gear 2-in-1 LED Flashlight. Please read this manual thoroughly before using the product and retain it for future reference.

The Life Gear 2-in-1 LED Flashlight (Model: LG03-10161-CLE) is a versatile lighting device designed for various applications, offering both a powerful spotlight and a 360-degree area light. It is built to be water and shock resistant, making it suitable for outdoor activities, emergency preparedness, and general home use. The device features 7 distinct lighting modes and operates on 4 AA batteries, which are included.

Configuració

Instal·lació de la bateria

Your Life Gear 2-in-1 LED Flashlight requires 4 AA alkaline batteries for operation. These batteries are included with your purchase.

1. Locate the battery compartment cover, typically found at the base or rear of the flashlight.
2. Twist or slide the cover to open the compartment. Refer to the diagram below for assistance.
3. Introduïu 4 piles AA, assegurant-vos de la polaritat correcta (+ i -) tal com s'indica a l'interior del compartiment.
4. Securely close the battery compartment cover to ensure water resistance.

Figura 1: Mésview of the Life Gear 2-in-1 LED Flashlight. The main body is transparent, revealing internal components, and it features a large spotlight head and a handle.

Comprovació inicial

After installing batteries, press the power button to ensure the flashlight functions correctly. Cycle through the modes to confirm all lighting options are operational.

Instruccions de funcionament

The Life Gear 2-in-1 LED Flashlight offers both a directional spotlight and a 360-degree area light, along with several specialized modes.

Encès/Apagat

Press the main power button located on the top of the handle to turn the device on or off.

Canvi de modes d'il·luminació

The flashlight features 7 distinct lighting modes. Press the power button repeatedly to cycle through the modes in the following sequence:

1. Flashlight (80 Lumens): Provides a focused beam for directional lighting.
2. Flashlight + Red Glow: Combines the focused beam with a red ambient glow from the body.
3. Red Glow: Emits a steady red light from the body, useful for preserving night vision or as a low-intensity signal.
4. Safety Flasher: Llum vermella intermitent per a la senyalització d'emergència.
5. 1 x LED AR-Tech Tube (50 Lumens): Activates one internal LED tube for a moderate area light.
6. 2 x LED AR-Tech Tube (80 Lumens): Activates both internal LED tubes for a brighter 360-degree area light.
7. Safety Flash (Automatic Water Activation): This mode automatically activates a flashing light when the device is placed in water, serving as an emergency beacon.

Figure 2: Visual representation of the various lighting modes available on the flashlight, including spotlight, red glow, and area light options.

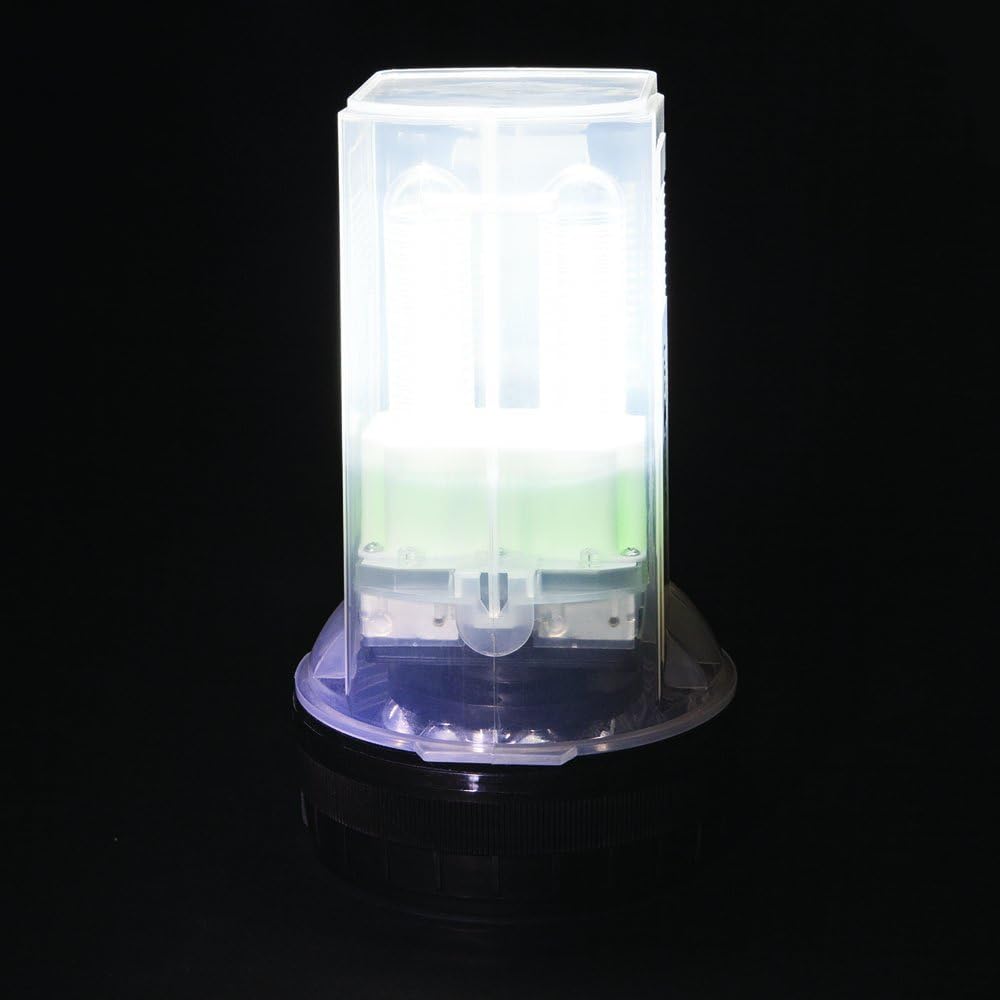

Figure 3: The flashlight in its upright position, demonstrating its capability as a 360-degree lantern or area light.

Figure 4: The flashlight displaying its red glow mode, which can be used for signaling or preserving night vision.

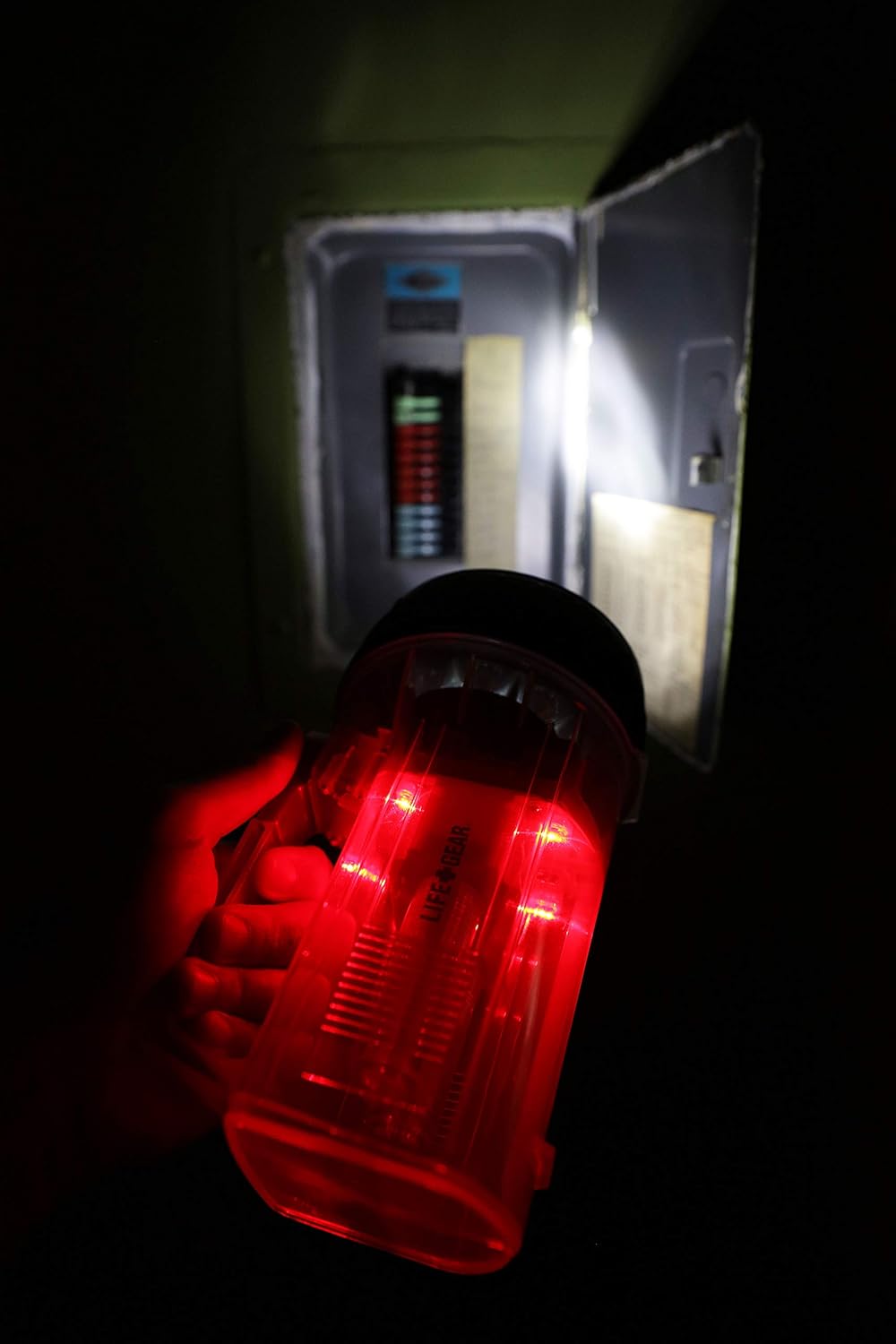

Figure 5: The flashlight in use during a power outage, demonstrating both its red glow and spotlight functionality to illuminate a circuit breaker panel.

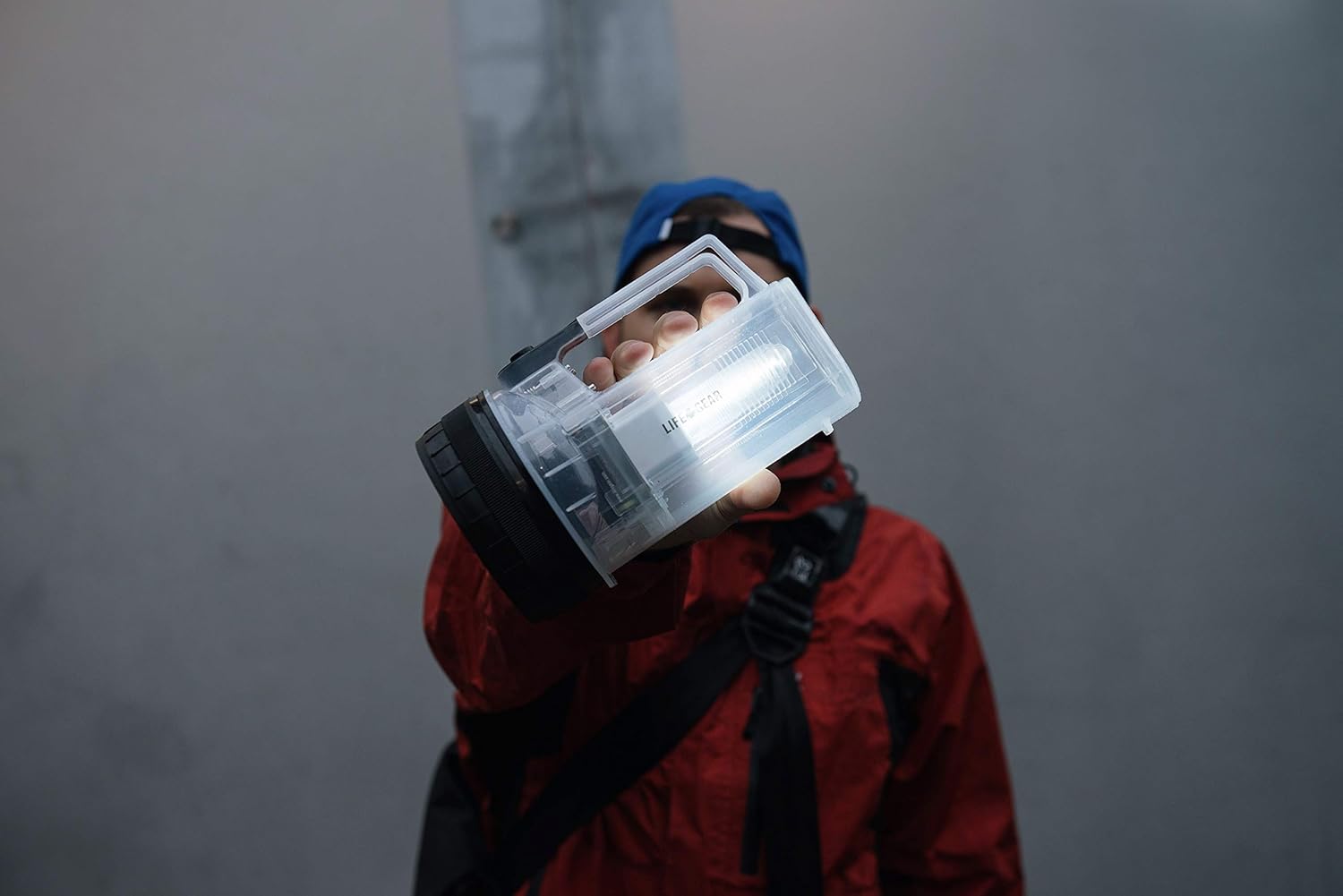

Figure 6: The flashlight being held by a person outdoors, highlighting its portable design and effective illumination for various environments.

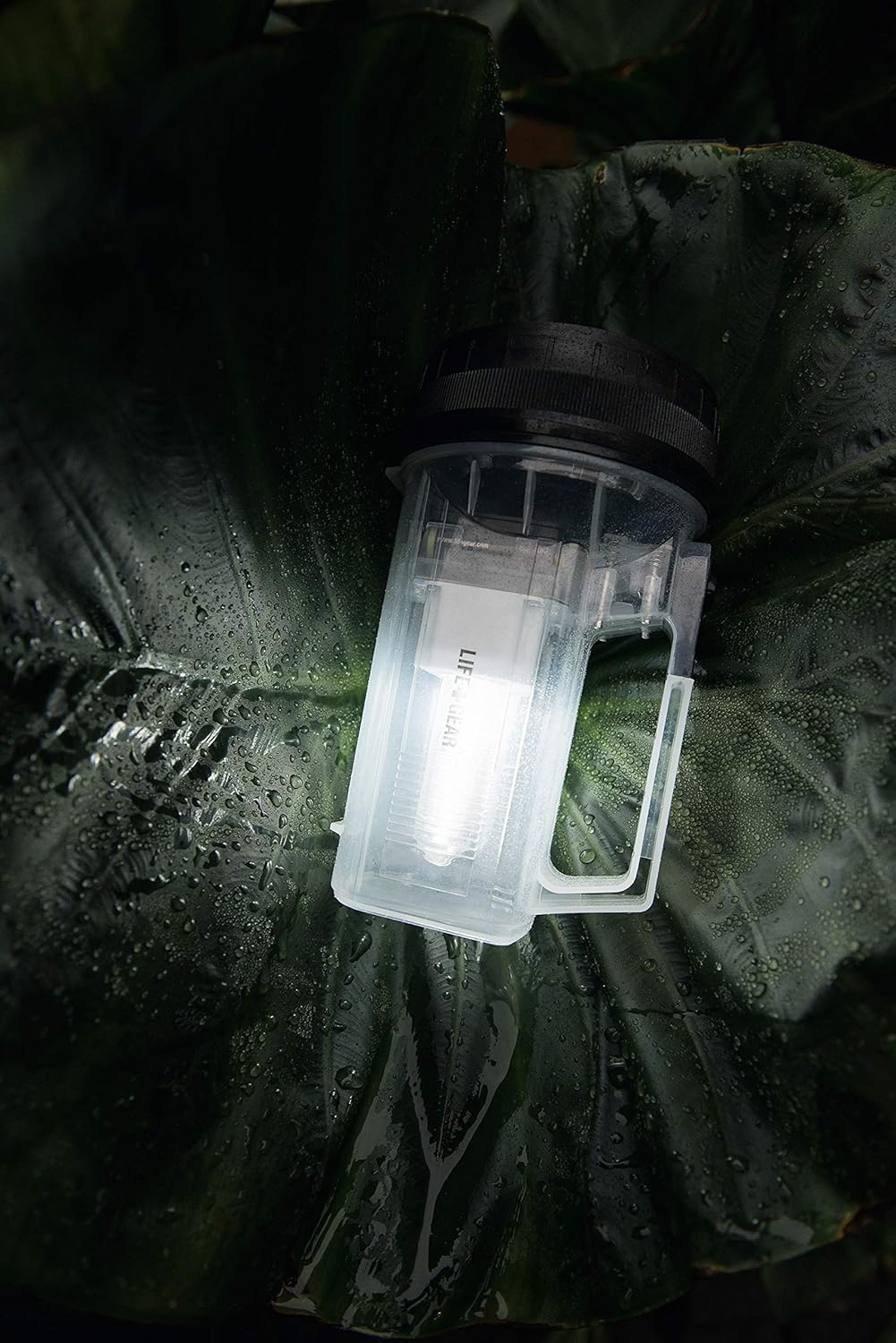

Figure 7: The flashlight resting on a water-covered leaf, illustrating its water-resistant design suitable for wet conditions.

Manteniment

Canvi de bateria

When the light output diminishes, it is time to replace the batteries. Always replace all 4 AA batteries at the same time with new, high-quality alkaline batteries. Do not mix old and new batteries or different battery types.

Neteja

Netegeu l'exterior de la llanterna amb un drap suau iamp cloth. Do not use abrasive cleaners or solvents, as these may damage the plastic housing. Ensure the battery compartment is dry before closing.

Emmagatzematge

If the flashlight will not be used for an extended period, remove the batteries to prevent leakage and corrosion. Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.

Resolució de problemes

Especificacions

Garantia i Suport

Life Gear products are designed for durability and reliability. For specific warranty information, please refer to the packaging or contact Life Gear customer support directly. Keep your purchase receipt as proof of purchase.

For technical support or inquiries, please visit the official Life Gear weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. La informació de contacte normalment es pot trobar a l'embalatge del producte o al fabricant. weblloc.
