Introducció
This manual provides essential information for the installation, operation, and maintenance of your Duravit Happy D.2 540mm white washdown rimless wall-mounted toilet. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
The Duravit Happy D.2 toilet features an elongated shape, a rimless design for enhanced hygiene, and a washdown flushing system. It is designed for wall-mounted installation, offering a modern and space-saving solution for your bathroom.
Informació de seguretat
- Instal·lació professional recomanada: Due to the nature of wall-mounted fixtures, professional installation by a qualified plumber is highly recommended to ensure correct and secure mounting, as well as proper water connections.
- Manejar amb cura: Ceramic products are fragile. Handle the toilet with care to prevent chipping or breakage during transport and installation.
- Subministrament d'aigua: Assegureu-vos que el subministrament principal d'aigua estigui tancat abans de començar qualsevol treball d'instal·lació o manteniment.
- Segellat adequat: All connections must be properly sealed to prevent leaks.
- Límit de pes: Do not stand on the toilet. It is designed for seating purposes only.
- Agents de neteja: Use only non-abrasive cleaning agents as specified in the maintenance section to avoid damaging the ceramic surface.
Contingut del paquet
Si us plau, comproveu que tots els components siguin presents i no estiguin danyats abans de continuar amb la instal·lació.
- Duravit Happy D.2 Wall-Mounted Toilet Bowl (Model: 2222090092)
- Durafix mounting hardware
- Instruccions d'instal·lació
Nota: The tank (cistern) and toilet seat cover are no inclòs and must be purchased separately. A compatible in-wall tank system is required for wall-mounted toilet installation.
Configuració i instal·lació
Installation of a wall-mounted toilet requires specific plumbing knowledge and tools. If you are not experienced with such installations, it is strongly recommended to hire a certified professional.
Required Tools and Materials (Not Included):
- In-wall tank/carrier system (compatible with wall-mounted toilets)
- Tapa i seient del vàter
- Sealant (silicone)
- Measuring tape, level, pencil
- Wrenches, screwdrivers
Passos d'instal·lació:
- Prepare the In-Wall Carrier: Install the in-wall tank/carrier system according to its manufacturer's instructions. Ensure it is securely fastened to the wall studs and leveled correctly. Connect the water supply and waste pipe to the carrier.
- Mesura i marca: Using the provided technical drawing and the carrier system's specifications, measure and mark the positions for the mounting bolts and the waste/supply connections on the wall.
- Attach Mounting Rods: Secure the threaded mounting rods from the in-wall carrier system.
- Connect Waste and Supply: Attach the waste outlet and water supply pipes from the toilet bowl to the corresponding connections on the in-wall carrier. Ensure all seals are correctly seated.
- Mount the Toilet Bowl: Carefully slide the toilet bowl onto the threaded mounting rods. The Durafix system facilitates a secure and concealed fastening. Tighten the nuts evenly until the toilet is firmly against the wall, but do not overtighten to avoid cracking the ceramic.
- Seal the Gaps: Apply a bead of silicone sealant around the perimeter where the toilet meets the finished wall. This provides a watertight seal and a clean finish. Allow the sealant to cure completely before use.
- Instal·lar el seient del vàter: Attach your chosen toilet seat and cover according to its manufacturer's instructions.
- Prova de rentat: Turn on the main water supply, allow the tank to fill, and perform several test flushes to check for leaks and proper operation.
Descripció de la imatge: A technical line drawing showing the top-down view of the Duravit Happy D.2 toilet bowl. Key dimensions are indicated in both millimeters (mm) and inches ("). For example, the width is shown as 180mm (7 1/8") and the depth from the wall to the front edge is 350mm (13 3/4"). This diagram is crucial for precise installation planning.

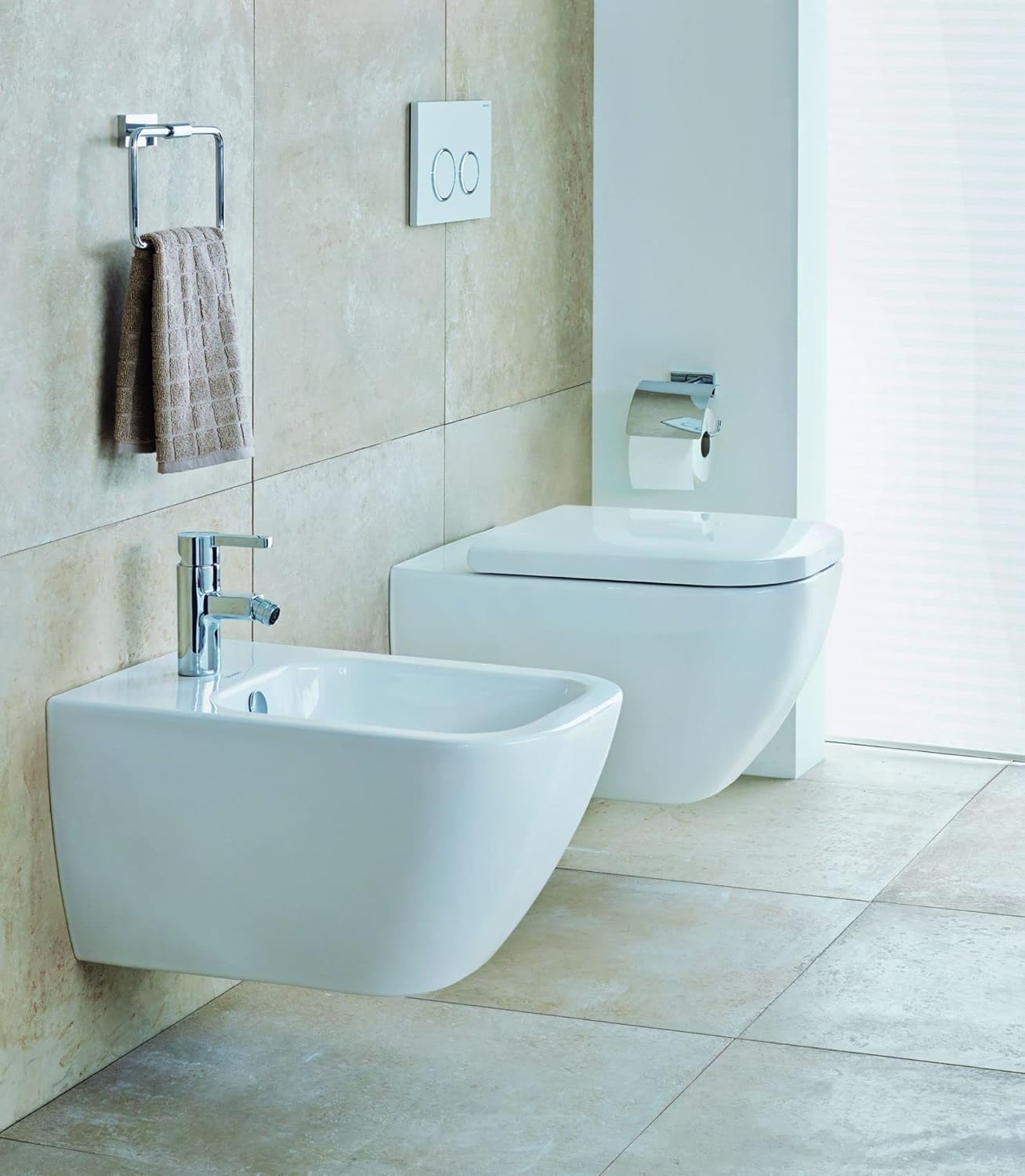

Descripció de la imatge: This image displays the Duravit Happy D.2 wall-mounted toilet installed in a contemporary bathroom setting. The toilet is white and has a sleek, minimalist design. It is positioned next to a matching wall-mounted bidet, showcasing a cohesive bathroom aesthetic. The wall behind is tiled in a neutral tone, and a chrome towel ring is visible above the bidet.
Instruccions de funcionament
The Duravit Happy D.2 toilet utilizes a washdown flushing system, designed for efficient waste removal.
- Rentat: To flush the toilet, activate the flush plate or button associated with your in-wall tank system. This model supports a dual flush mechanism, allowing you to choose between a full flush for solid waste and a partial flush for liquid waste, conserving water.
- Rimless Design: The rimless design ensures water is distributed evenly around the bowl for a thorough rinse, while also making cleaning easier.
Manteniment
Regular cleaning and proper care will maintain the appearance and functionality of your Duravit toilet.
Cleaning the Toilet Bowl:
- Use a soft cloth or sponge with a mild, non-abrasive bathroom cleaner.
- Avoid harsh chemicals, abrasive pads, or cleaners containing strong acids, alkalis, or bleach, as these can damage the ceramic glaze.
- For stubborn stains, allow the cleaner to sit for a short period before scrubbing gently.
- Esbandiu bé amb aigua neta després de la neteja.
Atenció general:
- Periodically check all connections for leaks. Tighten if necessary, but do not overtighten.
- Ensure the toilet seat is properly aligned and secured.
Resolució de problemes
Below are common issues and potential solutions. For complex problems, consult a professional plumber.
| Problema | Causa possible | Solució |
|---|---|---|
| Flux feble | Low water level in tank, partially closed water supply valve, clogged rim jets (unlikely with rimless design but check for blockages). | Adjust water level in the in-wall tank, fully open the water supply valve, inspect for blockages. |
| Toilet Leaks | Loose connections, faulty seals, cracked ceramic. | Check and tighten all water connections. Inspect seals and replace if worn. If ceramic is cracked, the unit may need replacement. |
| Toilet Clogs Easily | Excessive waste, non-flushable items, partial blockage in drain pipe. | Use a plunger. Avoid flushing non-biodegradable items. If persistent, a plumber may need to clear the drain line. |
| Toilet Rocks/Moves | Loose mounting bolts, improper installation of in-wall carrier. | Ensure mounting bolts are securely tightened. If the in-wall carrier is unstable, professional re-installation may be required. |
Especificacions
Descripció de la imatge: A clear, isolated image of the Duravit Happy D.2 wall-mounted toilet. The toilet is white, with a sleek, rectangular bowl and a matching closed seat. The design is modern and minimalist, highlighting its wall-mounted nature without visible plumbing.
- Model: 2222090092
- Marca: Duravit
- Color: Blanc
- Material: Ceràmica
- Forma: Allargat / Ovalat
- Tipus d'instal·lació: Muntat a la paret
- Dimensions del producte (P x A x A): 13.25" x 14.38" x 13.25" (approximate, refer to technical drawing for precise measurements)
- Pes de l'article: 59.1 lliures (aproximadament)
- Tipus de ras: Dual Flush Washdown
- Consum d'aigua: 1.6 galons per descàrrega (GPF)
- Característiques especials: Rimless, Durafix included, Eco Friendly
- Tank and Seat Cover: No inclòs
Informació de la garantia
This Duravit product is covered by a Garantia limitada de per vida. This warranty typically covers manufacturing defects in materials and workmanship under normal use and service. For specific terms, conditions, and claim procedures, please refer to the official warranty documentation provided with your purchase or contact Duravit customer service.
Suport
For further assistance, technical support, or inquiries regarding your Duravit Happy D.2 toilet, please contact Duravit customer service. Contact information can typically be found on the official Duravit weblloc web o a la documentació de la compra.
