D-Link DCS-6501LH/E Compact Full HD Pan & Tilt Wi-Fi Camera User Manual

Introducció

This manual provides comprehensive instructions for the setup, operation, and maintenance of your D-Link DCS-6501LH/E Compact Full HD Pan & Tilt Wi-Fi Camera. This camera is designed to monitor large areas of your home or small office with its Full HD resolution and versatile pan and tilt functionality. It features integrated night vision for monitoring in low light, two-way audio for communication, and motion/sound detection for security alerts. The camera supports local recording to an SD card and cloud storage, and can be controlled via the mydlink app or voice commands with Amazon Alexa and Google Assistant.

Contingut del paquet

• D-Link DCS-6501LH/E Compact Full HD Pan & Tilt Wi-Fi Camera
• Guia d'inici ràpid
• Cargols de muntatge
• Adaptador d'alimentació micro USB
• Tripod/Mounting Base

Configuració

1. Càmera acabadaview

Davant view of the D-Link DCS-6501LH/E camera, showing the lens, status LED, and D-Link logo.

Enrere view of the D-Link DCS-6501LH/E camera, showing the speaker grille, micro USB power port, and reset button.

2. Encendre la càmera

Connect the micro USB power adapter to the camera's power port and plug it into a wall outlet. The camera's status LED will illuminate, indicating it is powering on.

3. Installing the mydlink App

Download the official mydlink app from the Apple App Store or Google Play Store on your smartphone or tablet. Create a mydlink account or log in if you already have one.

4. Adding the Camera to mydlink

1. Open the mydlink app and tap the "Add a Device" icon.
2. Escaneja el codi QR que es troba a la càmera o al seu embalatge.
3. Follow the on-screen instructions to connect the camera to your Wi-Fi network. Ensure your Wi-Fi network is 2.4 GHz for optimal compatibility.
4. Once connected, the camera's status LED will turn solid green.

5. Muntatge de la càmera

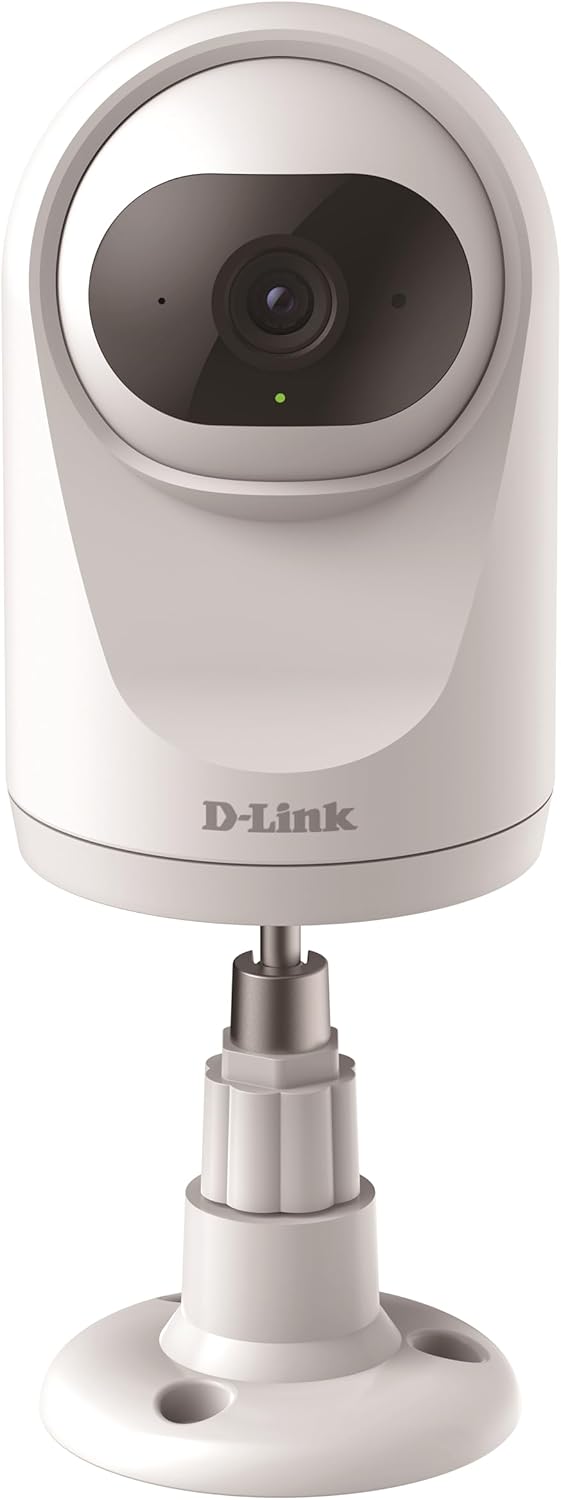

The camera can be placed on a flat surface using its integrated base or mounted to a wall or ceiling using the provided mounting screws and tripod/mounting base. Ensure the camera is positioned to cover the desired monitoring area.

The camera can be placed on a flat surface using its included stand, providing stability and a clear view.

The camera can also be securely mounted to a wall or ceiling using the provided hardware for a fixed installation.

Funcionament de la càmera

Funcionalitat de panoràmica i inclinació

The DCS-6501LH/E features motorized pan (340°) and tilt (90°) capabilities, allowing you to remotely adjust the camera's viewing angle through the mydlink app. This enables comprehensive coverage of large areas.

The camera offers a wide 340-degree horizontal pan and 90-degree vertical tilt range for extensive area coverage.

Automatic Motion Tracking

When enabled, the camera can automatically detect and track moving objects within its field of view, ensuring that important events are captured. This feature utilizes the pan and tilt motors to follow the subject.

The camera's automatic motion tracking feature follows moving subjects, keeping them in frame.

Visió nocturna

The integrated night vision allows the camera to capture clear video footage even in complete darkness, up to a range of 5 meters. This ensures 24/7 monitoring capabilities.

Detecció de moviment i so

The camera is equipped with advanced motion and sound detection. When motion or sound is detected, the camera can automatically send push notifications to your mydlink app and begin recording video.

Àudio bidireccional

Utilize the built-in microphone and speaker for two-way communication. You can listen to what's happening in the camera's vicinity and speak through the camera from your smartphone.

The camera supports two-way audio, allowing users to listen and speak through the device.

Video Recording and Storage

The camera supports recording video locally to a microSD card (not included) or to the mydlink cloud. A 1-year free mydlink cloud subscription is included, allowing remote storage, playback, and download of recorded videos.

Mode de privadesa

For enhanced privacy, the camera features a physical privacy mode that rotates the lens to completely cover it, ensuring no video is captured when privacy is desired.

The camera's privacy mode physically covers the lens, ensuring complete privacy when needed.

Manteniment

• Neteja: Netegeu suaument la lent i el cos de la càmera amb un drap suau i sec. No utilitzeu netejadors líquids ni materials abrasius.
• Actualitzacions de firmware: Regularly check for and install firmware updates through the mydlink app to ensure optimal performance, security, and access to new features.
• Targeta MicroSD: If using a microSD card, periodically check its status and format it if necessary to maintain recording performance.

Resolució de problemes

La càmera no es connecta a la Wi-Fi

• Assegureu-vos que la vostra xarxa Wi-Fi sigui de 2.4 GHz. La càmera no admet xarxes de 5 GHz.
• Verifiqueu que la contrasenya del Wi-Fi sigui correcta.
• Apropa la càmera al router Wi-Fi per millorar la intensitat del senyal.
• Restart both the camera and your Wi-Fi router.
• Perform a factory reset on the camera (refer to the Quick Start Guide for instructions) and try the setup process again.

Poca qualitat de vídeo

• Comprova la velocitat de la teva connexió a Internet. Cal una connexió estable i ràpida per a una transmissió òptima.
• Assegureu-vos que la lent de la càmera estigui neta i sense pols ni taques.
• Adjust the camera's position to avoid direct glare or strong backlighting.

Motion/Sound Detection Not Working

• Verify that motion and sound detection settings are enabled in the mydlink app.
• Adjust the sensitivity levels for detection in the app.
• Assegureu-vos que no hi hagi obstacles que bloquegin la càmera view.

Especificacions

Garantia i Suport

For warranty information and technical support, please refer to the D-Link official website or contact D-Link customer service. Keep your purchase receipt for warranty claims.

D-Link Official Weblloc: www.dlink.com
