1. Informació important de seguretat
Please read this entire manual before operating the Matrix R1X Recumbent Bike. Keep this manual for future reference. Failure to follow these instructions could result in injury or damage to the equipment.
- Consulteu el vostre metge abans de començar qualsevol programa d'exercici.
- Aquest equip està dissenyat només per a ús en interiors.
- Ensure the bike is placed on a stable, level surface with adequate clearance around it.
- The maximum user weight for this bike is 182 kg (400 lbs). Do not exceed this limit.
- Mantingueu els nens i les mascotes lluny de l'equip durant el funcionament.
- Porteu roba i calçat adequats per fer exercici.
- Do not use the equipment if it is damaged or malfunctioning.
- Always warm up before and cool down after your workout.
2. Producte acabatview
The Matrix R1X Recumbent Bike is a high-quality exercise machine designed for comfortable and effective indoor workouts. It features a robust design and an intuitive display for tracking your progress.

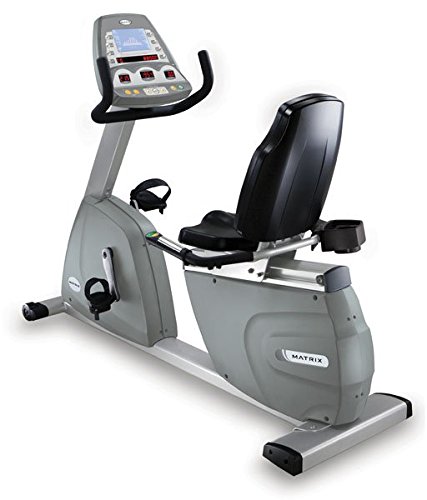

Figura 2.1: Frontal view of the Matrix R1X Recumbent Bike, showing the console, seat, pedals, and frame.
Característiques principals:
- 7-inch LCD Display for comprehensive workout feedback.
- Magnetic Resistance Mechanism with 1-20 resistance levels.
- Comfortable recumbent seat with ergonomic handlebars.
- Pedal-powered (non-electric) operation.
- Belt drive system for smooth and quiet operation.
3. Muntatge i muntatge
The Matrix R1X Recumbent Bike requires some assembly. Please follow the instructions provided in the separate assembly guide that came with your product. Ensure all components are securely fastened before use.
Col·locació:
- Choose a flat, stable surface for the bike.
- Allow at least 0.6 meters (2 feet) of clear space around the equipment for safe operation and access.
- Do not place the bike in direct sunlight or in areas of extreme temperature or humidity.
Dimensions:
Assembled Dimensions: 167 cm (65.7 in) L x 68 cm (26.6 in) W x 129 cm (50.7 in) H.
4. Instruccions de funcionament
S'ha acabat la consolaview:
The 7-inch LCD display provides real-time feedback on your workout. Familiarize yourself with the buttons and display areas.
- Retroalimentació de la pantalla: Time, Distance, Calories, Speed Levels, Watts, METs, Heart Rate, Profile.
- Ajust de resistència: Use the console controls to adjust the magnetic resistance from level 1 to 20.
Programes d'entrenament:
The R1X offers a variety of pre-programmed workouts to suit different fitness goals:
- manual: Control your workout manually.
- Interval Plus: Includes Hill Interval and Random Interval programs.
- Goal Plus: Set goals for Time, Distance, or Calories.
- Multi FX Plus: Features Constant Watts and Random programs.
- Heart Rate Plus: Target HR and Weight Loss programs.
- Prova d'ajust: Assess your fitness level.
- Warm Up/Cool Down: Guided warm-up and cool-down phases.
Començar un entrenament:
- Sit comfortably on the seat and place your feet on the pedals, securing them with the straps.
- Select your desired workout program or start a manual workout.
- Begin pedaling. The console will activate and display your workout data.
- Adjust resistance as needed during your workout.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your Matrix R1X Recumbent Bike.
- Neteja: Wipe down the bike after each use with a damp drap per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspecció: Periodically check all nuts, bolts, and moving parts for tightness and wear. Tighten any loose fasteners.
- Lubricació: The belt drive system is generally maintenance-free. Do not lubricate the belt or flywheel.
- Emmagatzematge: Store the bike in a cool, dry place away from direct sunlight and moisture.
6. Solució De Problemes
If you encounter issues with your Matrix R1X Recumbent Bike, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| La consola no mostra les dades. | No activity or loose connection. | Begin pedaling to activate. Check all cable connections to the console. |
| La resistència no canvia. | Console malfunction or internal mechanism issue. | Ensure you are using the correct buttons. If issue persists, contact customer support. |
| Sorolls inusuals durant el funcionament. | Loose parts or worn components. | Inspect all bolts and nuts for tightness. If noise continues, discontinue use and contact support. |
For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact Matrix customer support.
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Matriu |
| Nom del model | R1X |
| Tipus de visualització | LCD de 7 polzades |
| Mostra els comentaris | Time, Distance, Calories, Speed, Watts, METs, Heart Rate, Profile |
| Mecanisme de resistència | Magnètic |
| Interval de resistència | 1-20 nivells |
| Sistema d'accionament | Cinturó |
| Pes màxim de l'usuari | 182 kg (400 lliures) |
| Dimensions muntades (L x A x A) | 167 cm x 68 cm x 129 cm (65.7 polzades x 26.6 polzades x 50.7 polzades) |
| Pes de l'article | 85 kg |
| Font d'alimentació | Pedal-powered (non-electric) |
| Ús recomanat | Interior |
| Característica especial | Monitor de distància recorreguda |
8. Garantia i Suport
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Matrix Fitness website. For technical support, spare parts, or service inquiries, please contact Matrix customer service through their official channels.
You may find contact information on the manufacturer's weblloc web o a la documentació de la compra.
