TPI 100 Digital Handheld Multimeter User Manual

1. Introducció

The TPI 100 Digital Handheld Multimeter is a compact and easy-to-use instrument designed for basic electrical measurements. It features automatic selection between AC voltage, DC voltage, and resistance measurements, simplifying operation by eliminating the need for manual range switching. This manual provides essential information for the safe and effective use of your TPI 100 multimeter.

Característiques principals:

• Automatic Function and Range Selection: The meter automatically detects and switches between ACV, DCV, and Ohms (resistance), and selects the appropriate range.
• Funcionament d'un sol botó: A single ON/OFF button controls the device, making it straightforward to use.
• Ampli rang de mesura: Capable of measuring 0 to 600 volts AC and DC.
• High Internal Impedance: Features 10 MΩ internal impedance to prevent inaccurate readings caused by circuit loading.
• Apagat automàtic: Automatically conserves battery life by powering down when not in use.

2. Informació de seguretat

To ensure safe operation and service of the TPI 100 Multimeter, follow these safety precautions:

• Inspeccioneu sempre el mesurador i els cables de prova per detectar danys abans d'utilitzar-los. No els utilitzeu si estan danyats.
• No apliqueu més del volum nominaltage, as marked on the meter, between terminals or between any terminal and ground. The TPI 100 is rated for CAT III 600V.
• Tingueu precaució quan treballeu amb voltagper sobre de 30 V CA RMS, 42 V pic o 60 V CC. Aquests voltagsuposen un risc de xoc.
• Mantingueu els dits darrere dels protectors de dits de les sondes de prova durant les mesures.
• Substituïu la bateria immediatament quan aparegui l'indicador de bateria baixa per garantir lectures precises.
• No feu funcionar el mesurador en entorns amb gasos, vapors o pols explosius.
• Demaneu tot el servei a personal qualificat.

3. Producte acabatview

The TPI 100 is designed for straightforward electrical testing. Familiarize yourself with its components:

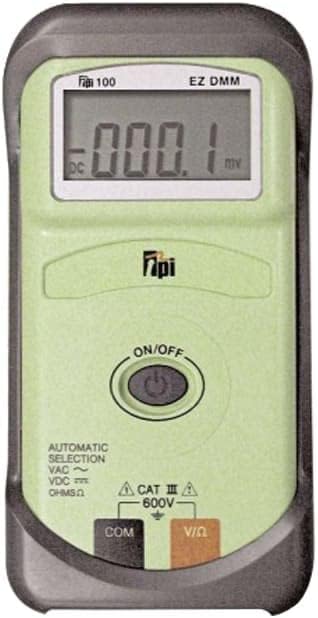

Figura 1: Davant view of the TPI 100 Digital Handheld Multimeter. It features a large LCD screen at the top, an 'ON/OFF' button in the center, and two input jacks labeled 'COM' (Common) and 'V/Ω' (Voltage/Ohms) at the bottom. The device is green with a dark gray protective casing. The display shows '000.1 mV DC'.

Components:

• Pantalla LCD: Shows measurement readings, units (VAC, VDC, Ω), and other indicators like low battery.
• Botó ON/OFF: Powers the multimeter on or off.
• Presa d'entrada COM: Entrada comuna (negativa) per als cables de prova.
• V/Ω Input Jack: Entrada positiva per al volumtage i mesures de resistència.
• Automatic Selection Indicator: Labels on the device indicate automatic selection for VAC, VDC, and OHMSΩ.

4. Configuració

4.1 Instal·lació de la bateria

The TPI 100 Multimeter requires a 9V battery (not included) for operation. To install or replace the battery:

1. Ensure the multimeter is powered off and test leads are disconnected from any circuit.
2. Localitzeu la tapa del compartiment de la bateria a la part posterior de la unitat.
3. Feu servir un tornavís per treure el cargol que fixa la tapa de la bateria.
4. Traieu la coberta amb cura.
5. Connect a new 9V battery to the battery clips, observing correct polarity.
6. Col·loqueu la bateria al compartiment.
7. Substituïu la tapa de la bateria i fixeu-la amb el cargol.

When the low battery indicator appears on the display, replace the battery promptly to maintain measurement accuracy.

5. Instruccions de funcionament

The TPI 100 simplifies measurements with its automatic function and range selection. Simply connect the test leads, and the meter will detect the type of measurement (ACV, DCV, or Resistance) and display the reading.

5.1 Engegada/apagada

• Premeu el botó ON/OFF button to power on the multimeter. The display will illuminate.
• Premeu el botó ON/OFF button again to power off the multimeter.
• The meter will automatically power off after a period of inactivity to conserve battery life.

5.2 Connexió dels cables de prova

Always connect the test leads correctly for accurate and safe measurements:

• Inseriu el cable de prova negre a la COM Presa d'entrada (comuna).
• Inseriu el cable de prova vermell a la V/Ω presa d'entrada per a volumtage i mesures de resistència.

5.3 Mesurar AC/DC Voltage

The TPI 100 automatically detects AC or DC voltage.

1. Connecteu els cables de prova tal com es descriu a la secció 5.2.
2. Assegureu-vos que el multímetre estigui engegat.
3. Carefully touch the red test probe to the positive side of the circuit and the black test probe to the negative side or ground.
4. Llegeix el voltage value displayed on the LCD screen. The meter will indicate whether it is ACV or DCV.

5.4 Measuring Resistance (Ohms)

The TPI 100 automatically detects resistance.

1. Ensure the circuit or component to be measured is completely de-energized before measuring resistance. Disconnect power to avoid damage to the meter or inaccurate readings.
2. Connecteu els cables de prova tal com es descriu a la secció 5.2.
3. Assegureu-vos que el multímetre estigui engegat.
4. Touch the red and black test probes across the component or circuit where resistance is to be measured.
5. Read the resistance value displayed on the LCD screen, indicated by the Ω symbol.

6. Manteniment

6.1 Neteja

To clean the multimeter:

• Netegeu el cas amb l'anunciamp drap i detergent suau. No utilitzeu abrasius ni dissolvents.
• Ensure the meter is completely dry before use.

6.2 Substitució de la bateria

Refer to Section 4.1 for detailed instructions on battery replacement. Always replace the battery when the low battery indicator appears to ensure accurate measurements and proper operation.

6.3 Emmagatzematge

When not in use for extended periods, remove the battery to prevent leakage and store the multimeter in a cool, dry place away from direct sunlight and extreme temperatures.

7. Solució De Problemes

If you encounter issues with your TPI 100 Multimeter, refer to the following common problems and solutions:

8. Especificacions

9. Garantia i Suport

For warranty information and technical support, please refer to the documentation provided with your purchase or contact TPI customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

For further assistance, visit the official TPI weblloc web o poseu-vos en contacte amb els seus centres de servei autoritzats.
