1. Producte acabatview
The ABUS 24IB/70 RK M1 is a high-security stainless steel padlock designed for robust protection. Featuring the original Diskus® design, it offers 360° protection against various forms of attack. This padlock is constructed with non-corrosive materials, making it suitable for outdoor and harsh environments. It comes with a 4-pin cylinder and utilizes Diskus® Deep-Welding Technology for maximum strength.
This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your ABUS 24IB/70 RK M1 padlock.
Figure 1: ABUS 24IB/70 RK M1 Stainless Steel Padlock (Front View)
2. Característiques clau
- Original Diskus® Design: Provides 360° protection against manipulation and attack.
- Construcció d'acer inoxidable: Shackle and inner components are made of non-corrosive materials for enhanced durability and weather resistance.
- 4-Pin Cylinder: Offers reliable security.
- Diskus® Deep-Welding Technology: Ensures maximum strength and resistance to forced entry.
- Placa antitalls: Additional protection against cutting tools.
- Precision Pin Tumbler: Extra-plated for improved corrosion resistance and smooth operation.
- Rekeyable Master M1 Keyway: Allows for rekeying to match existing key systems (professional service recommended).
- Fabricat a Alemanya: Guarantees high-quality manufacturing standards.
3. Configuració i ús inicial
Your ABUS 24IB/70 RK M1 padlock is ready for use directly out of the packaging. No complex assembly is required.
- Inspeccioneu el cadenat: Before first use, visually inspect the padlock for any signs of damage or manufacturing defects. Ensure the shackle moves freely when unlocked.
- Identificar les claus: Each padlock comes with its unique keys. Keep spare keys in a secure, separate location.
- Prova de funcionament: Insert a key into the keyway and turn it clockwise to unlock the padlock. The shackle should spring open. Turn the key counter-clockwise to lock it. Remove the key.
- Aplicació segura: Place the padlock through the hasp or chain you intend to secure. Ensure the shackle is fully closed and the key is removed after locking.

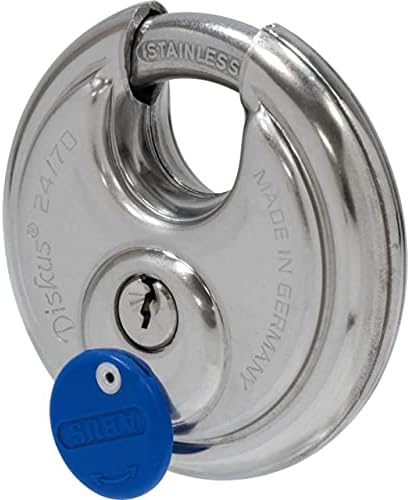

Figure 2: Padlock with Key Inserted
4. Funcionament del cadenat
4.1 Bloqueig del cadenat
- Assegureu-vos que el grillet estigui en posició oberta.
- Position the padlock so the shackle passes through the items to be secured (e.g., hasp, chain links).
- Introduïu fermament el grilló dins del cos del cadenat fins que encaixi al seu lloc.
- Turn the key counter-clockwise to secure the shackle. Remove the key.
- Estireu suaument el grillet per confirmar que estigui ben bloquejat.
4.2 Desbloqueig del cadenat
- Insert the correct key fully into the keyway.
- Turn the key clockwise. The shackle will spring open.
- Remove the padlock from the secured items.
- Treu la clau del cadenat.
5. Manteniment
Regular maintenance ensures the longevity and smooth operation of your ABUS padlock.
- Lubricació: Periodically apply a small amount of non-greasy, non-silicone-based lubricant (e.g., graphite-based lubricant or specialized lock spray) into the keyway. This is especially important for padlocks exposed to outdoor elements. Avoid using oil-based lubricants as they can attract dirt and dust.
- Neteja: Netegeu el cos del cadenat amb un drap net, damp cloth to remove dirt and grime. For stainless steel, a mild detergent can be used. Ensure the padlock is dry before storage or use.
- Atenció clau: Do not force the key if it feels stiff. Ensure the key is fully inserted before turning. Avoid using bent or damaged keys, as this can damage the lock cylinder.
- Exposició ambiental: While designed for outdoor use, extreme conditions (e.g., prolonged saltwater exposure) may require more frequent maintenance.
Figure 3: Padlock in Weather-Exposed Application
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Key will not turn or is stiff. | Brutícia/restes a la clauera, manca de lubricació, clauera doblegada. | Apply lock lubricant into the keyway. Ensure key is fully inserted. Try a different key if available. Do not force the key. |
| Shackle is stuck or difficult to close/open. | Corrosion, dirt, or damage to the shackle mechanism. | Clean the shackle and shackle holes. Apply lock lubricant to the shackle and mechanism. If damaged, consider replacement. |
| El cadenat sembla fluix o insegur. | Improper locking, internal mechanism wear. | Ensure the shackle is fully engaged and the key is turned to the locked position. If the issue persists, the padlock may be worn or damaged and should be replaced. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | ABUS |
| Número de model | 24IB/70 RK M1 |
| Tipus de bloqueig | Bloqueig de clau |
| Material | Acer inoxidable |
| Tipus de controlador | Control manual |
| UPC | 078217249451 |
| Tipus de cilindre | 4 Pin Tumbler |
| Claveta | Rekeyable Master M1 |
| Origen | Fabricat a Alemanya |
8. Garantia i Suport
ABUS products are manufactured to high-quality standards and undergo strict quality control. For specific warranty information, please refer to the warranty card included with your purchase or visit the official ABUS weblloc.
For technical support, spare parts, or further inquiries, please contact ABUS customer service or visit their official brand store:
Visit the ABUS Store on Amazon
When contacting support, please have your product model number (24IB/70 RK M1) and purchase details readily available.
