XTERRA Fitness TR600 Folding Treadmill User Manual

1. Introducció

This manual provides essential information for the safe and effective use of your XTERRA Fitness TR600 Folding Treadmill. Please read this manual thoroughly before assembly or operation and retain it for future reference.

The XTERRA TR600 Treadmill is designed to combine quality, performance, and aesthetic appeal with the practical flexibility of a machine that can be easily folded and stored, making it suitable for home environments.

Figure 1.1: The XTERRA Fitness TR600 Folding Treadmill in its operational state.

2. Informació important de seguretat

AVÍS: Per reduir el risc de lesions greus, llegiu totes les precaucions i instruccions importants d'aquest manual abans d'utilitzar la cinta de córrer.

• Always attach the safety tether clip to your clothing before beginning a workout. The treadmill will stop if the clip is pulled off the console.
• Keep children and pets away from the treadmill at all times. The treadmill is not intended for use by children.
• Place the treadmill on a level surface with at least 6 feet of clear space behind it and 2 feet on each side.
• No feu servir la cinta de córrer si té el cable d'alimentació o l'endoll danyats o si no funciona correctament.
• Porteu roba esportiva i calçat esportiu adequats. No porteu roba ampla que es pugui enganxar a la cinta de córrer.
• Consulteu un metge abans de començar qualsevol programa d'exercici.
• The maximum user weight recommendation for this treadmill is 325 pounds.

3. Muntatge i muntatge

The XTERRA TR600 Treadmill requires assembly. It is designed for straightforward setup, typically involving the installation of approximately 16 bolts. It is recommended to have assistance during assembly due to the product's weight (approximately 218.3 pounds).

3.1 Desembalatge i col·locació

• Carefully remove all components from the packaging. Retain packaging materials until assembly is complete.
• Place the treadmill in a suitable location, ensuring adequate clearance around the unit for safe operation and maintenance.

3.2 Passos de muntatge

Follow the detailed assembly instructions provided in the separate assembly guide. Key steps include:

1. Fixeu els muntants al marc base.
2. Connect the console assembly to the uprights, ensuring all electrical connections are secure.
3. Secure all remaining components as per the assembly guide.

3.3 Plegament i transport

The TR600 features a lift-assist folding design, making it easier to raise and lower the running deck. When folded, the treadmill can be transported using its integrated 4-wheel carriage system.

Figure 3.1: The TR600 Treadmill in its folded, space-saving configuration.

4. Instruccions de funcionament

The XTERRA TR600 Treadmill offers a range of features for an effective workout. Familiarize yourself with the console and controls before starting your exercise routine.

4.1 Consola completaview

The large 6.5-inch blue backlit LCD display provides clear readings of program profile, time, speed, pace, distance, calories, incline, and pulse. Quick access buttons allow for easy adjustment of speed and incline.

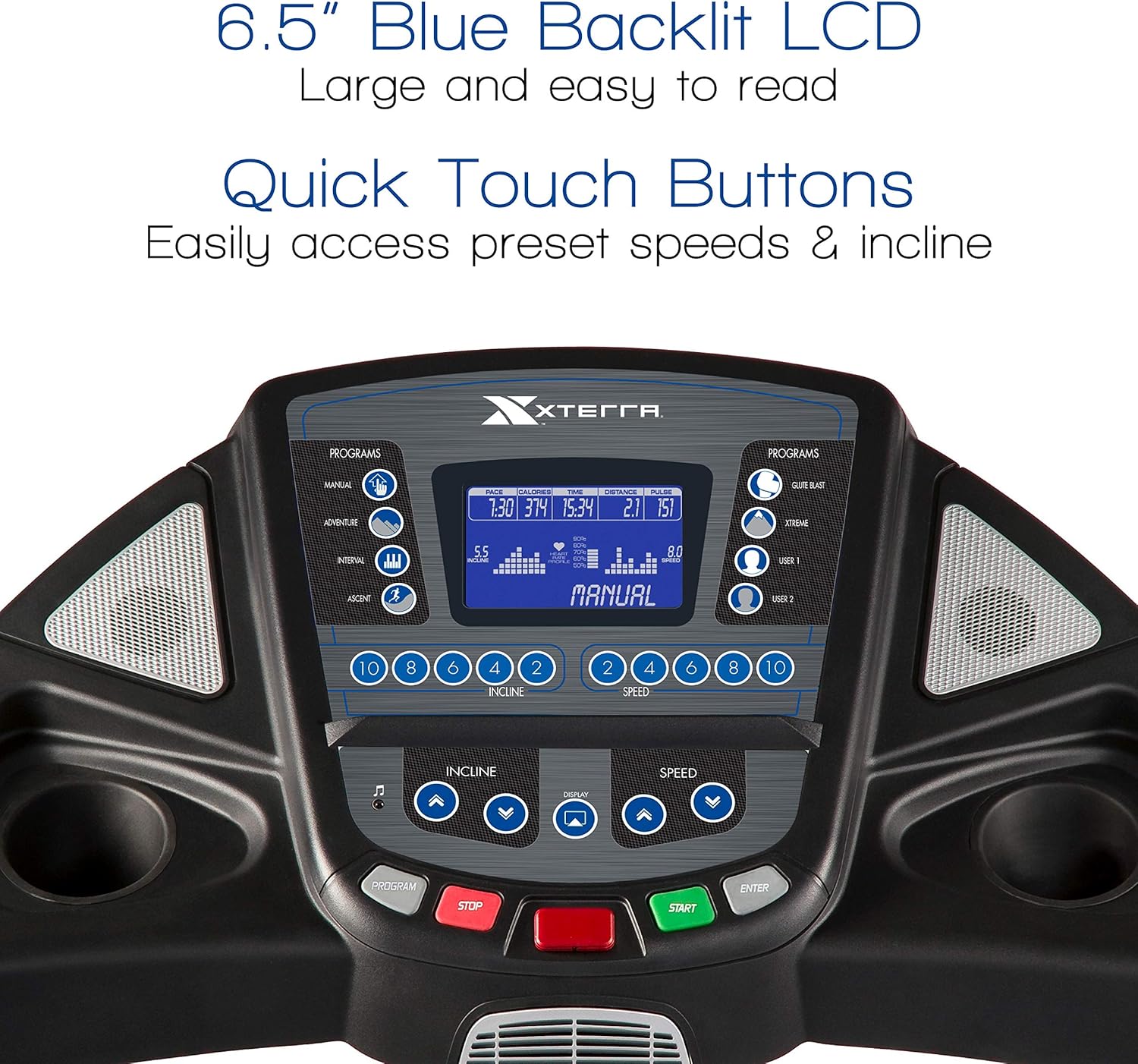

Figura 4.1: Detallada view of the TR600 console, showing the LCD display and quick touch buttons for speed and incline.

4.2 Començar un entrenament

1. Ensure the safety tether clip is properly attached to the console and your clothing.
2. Puja a la cinta de la cinta de córrer.
3. Premeu el botó COMENÇA button to begin. The treadmill will typically start at a low speed.
4. Adjust speed using the speed control buttons on the console or the handlebar-mounted controls. The treadmill supports speeds up to 12 mph.
5. Adjust incline using the incline control buttons on the console or the handlebar-mounted controls. The incline range is 0-12%.

Figure 4.2: Handlebar-mounted controls for convenient speed and incline adjustments during your workout.

4.3 Programes d'entrenament

The TR600 includes 6 pre-set programs, 2 user-defined programs, and a manual mode. Refer to the console guide for detailed instructions on selecting and customizing programs.

4.4 Característiques clau

• Superfície d'execució: The treadmill features a large 20" x 60" belt, providing ampespai per a passes còmodes.


  Figure 4.3: The spacious 20" x 60" running deck accommodates various stride lengths.
• Motor: Powered by a smooth and quiet 2.75 HP motor.
• Monitorització de la freqüència cardíaca: Heart rate pulse grips are conveniently located on the handlebars to monitor your pulse during exercise.
• Connectivitat d'àudio: An audio jack with built-in speakers allows you to connect your MP3 player or smartphone for entertainment during your workout.


  Figure 4.4: Connect your device to the integrated audio jack for music playback.

• XTRAsoft Cushioned Deck: This technology provides multiple points of cushioning for maximum impact absorption, enhancing comfort and reducing strain.


  Figure 4.5: The XTRAsoft Cushioned Deck system for enhanced comfort.

Figure 4.6: The TR600 treadmill in use, demonstrating its ergonomic design for running.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your XTERRA TR600 Treadmill. Always unplug the treadmill before performing any maintenance.

5.1 Neteja

• Netegeu la consola i altres superfícies amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Periodically vacuum underneath the treadmill to prevent dust and debris from accumulating.

5.2 Lubricació de la corretja

The running belt requires periodic lubrication to reduce friction and extend the life of the motor and belt. Refer to your separate lubrication guide or contact customer support for recommended lubrication intervals and procedures.

5.3 Tensió i alineació de la corretja

Check the running belt tension and alignment regularly. If the belt slips or drifts to one side, adjust it according to the instructions in the assembly guide or contact customer support.

6. Solució De Problemes

This section addresses common issues you might encounter with your TR600 Treadmill. For problems not listed here, or if solutions do not resolve the issue, please contact XTERRA Fitness customer support.

7. Especificacions del producte

8. Garantia i Suport

8.1 Informació de la garantia

The XTERRA Fitness TR600 Treadmill comes with a manufacturer-provided warranty. This typically includes:

• Vida útil: Frame and Motor
• 3 anys: coberta
• 1 any: Parts and In-Home Labor

Please retain your proof of purchase for warranty claims. Warranty terms may vary; refer to the official warranty document included with your product or contact XTERRA Fitness directly for the most current information.

8.2 Atenció al client

For technical assistance, parts, or warranty inquiries, please contact XTERRA Fitness customer support. Visit the official XTERRA weblloc web o consulteu l'embalatge del producte per obtenir les dades de contacte.

També podeu visitar el XTERRA Store on Amazon per obtenir informació addicional sobre el producte i recursos d'assistència.
