Introducció
This manual provides essential information for the safe and effective use, maintenance, and care of your TRUPER TB-19 7 1/2" Tubular Handle "Classic" Hedge Shears. Please read these instructions thoroughly before operating the tool to ensure proper handling and to maximize its lifespan.
Instruccions de seguretat
Always prioritize safety when using any gardening tool. Failure to follow these instructions may result in injury or damage to the tool.
- Utilitzeu equip de protecció: Always wear appropriate safety glasses or goggles and sturdy gardening gloves to protect your eyes and hands from debris and sharp blades.
- Inspeccionar abans d'utilitzar: Before each use, inspect the shears for any damage, loose parts, or dull blades. Do not use if the tool is damaged.
- Mantenir clar: Ensure hands, feet, and other body parts are kept clear of the blades during operation.
- Base estable: Maintain stable footing and balance while operating the shears. Avoid overreaching.
- Emmagatzematge adequat: Store the shears in a dry, secure place, out of reach of children and pets. Always close the blades when not in use.
- Ús previst: These shears are designed for trimming hedges and light branches. Do not use for purposes other than their intended use.
Producte acabatview
The TRUPER TB-19 Hedge Shears feature durable metal blades and comfortable tubular handles designed for efficient hedge trimming. Key components include:
- Fulles: Straight-edge, anvil-type metal blades for clean cuts.
- Branch Notch: A specialized notch near the pivot point designed for cutting thicker branches that are too large for the main blade area.
- Tubular Handles: Ergonomically designed metal handles with a comfortable grip to prevent slipping and reduce fatigue.

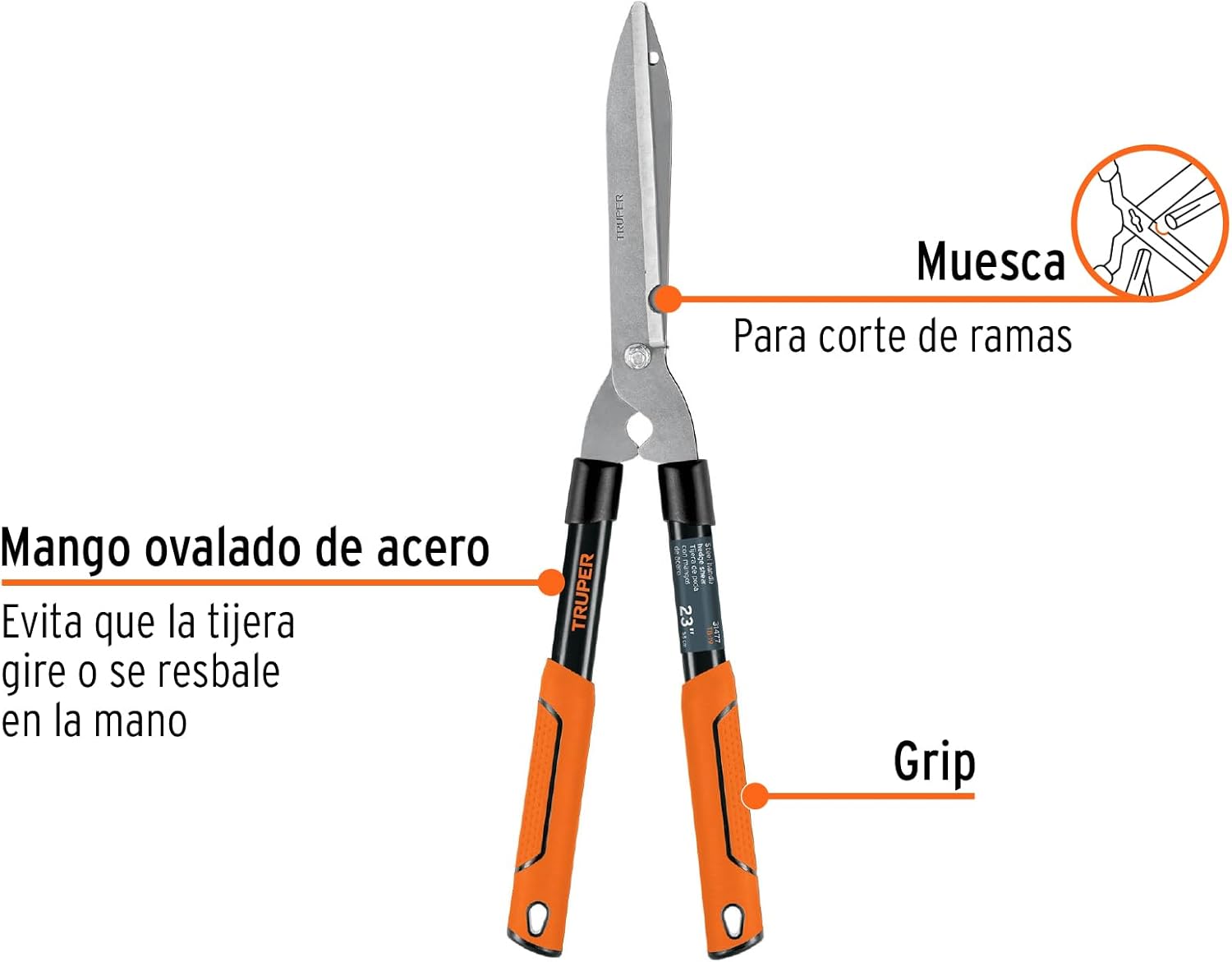

Imatge 1: TRUPER TB-19 Hedge Shears highlighting the branch notch and ergonomic handle grip. The oval steel handle design helps prevent the shears from rotating or slipping in the hand.
Configuració
The TRUPER TB-19 Hedge Shears require minimal setup. Before first use and prior to each subsequent use:
- Desembalar: Carefully remove the shears from their packaging.
- Inspeccionar: Check the blades for any protective coatings or covers and remove them. Ensure the blades are clean, sharp, and free from damage. Verify that the handles are securely attached.
- Lubricar (opcional): A small amount of lubricant on the pivot point can ensure smooth operation, especially if the shears have been stored for a long time.
Instruccions de funcionament
Follow these steps for effective and safe hedge trimming:
- Agarre: Hold the shears firmly with both hands, ensuring a secure grip on the tubular handles.
- Posicionament: Position the blades around the branch or foliage you wish to cut. For general trimming, use the full length of the blades.
- Cutting Motion: Apply steady, even pressure to close the handles, allowing the blades to cut through the material. Use smooth, controlled movements rather than forceful jerks.
- Using the Branch Notch: For thicker stems or small branches that are too wide for the main blade, position the branch into the specialized notch near the pivot point. This provides increased leverage for a cleaner cut.
- Formació: For shaping hedges, work systematically, maintaining a consistent angle and depth of cut.
Manteniment
Regular maintenance will extend the life of your TRUPER TB-19 Hedge Shears and ensure optimal performance.
- Neteja de fulles: After each use, clean the blades thoroughly to remove sap, dirt, and plant debris. A stiff brush and warm soapy water can be used, followed by drying.
- Prevenció de l'òxid: After cleaning and drying, wipe the metal blades with an oily cloth (e.g., a cloth with a few drops of machine oil or two-stroke oil) to prevent rust and corrosion.
- Afilat: Keep the blades sharp for efficient cutting. Use a sharpening stone or file designed for garden tools, following the original blade angle. Sharpening should be done carefully to avoid injury.
- Lubricació: Periodically apply a few drops of light machine oil to the pivot point and along the blade surfaces to ensure smooth operation and reduce friction.
- Emmagatzematge: Store the shears in a dry, covered area to protect them from moisture and the elements.
Resolució de problemes
Aquí teniu solucions a problemes comuns que podeu trobar:
| Problema | Causa possible | Solució |
|---|---|---|
| Blades feel dull or cut poorly | Blades are not sharp enough or have sap/debris buildup. | Clean blades thoroughly. Sharpen blades using a suitable sharpening tool. |
| Shears are stiff or hard to open/close | Pivot point is dry, dirty, or rusted. | Clean the pivot area. Apply light machine oil to the pivot point and work the handles to distribute the lubricant. |
Especificacions
Detailed specifications for the TRUPER TB-19 Hedge Shears:

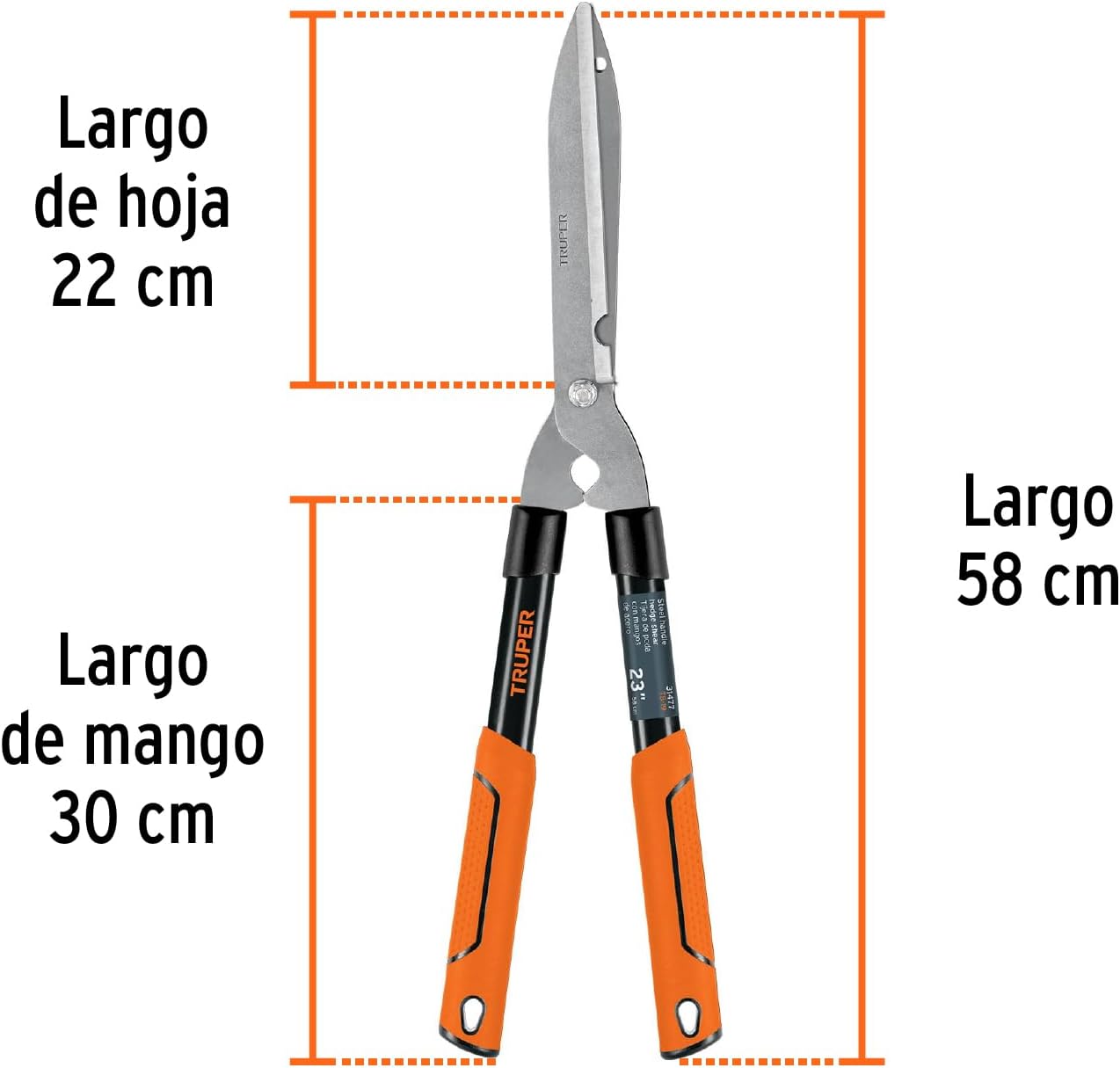

Imatge 2: TRUPER TB-19 Hedge Shears illustrating key dimensions including blade length, handle length, and overall length.
| Característica | Detall |
|---|---|
| Marca | Truper |
| Número de model | TB-19 |
| Estil | Clàssic |
| Material de la fulla | Metall |
| Material del mànec | Metal (Tubular) |
| Bord de la fulla | Recte |
| Tipus de fulla | Enclusa |
| Orientació de la mà | Ambidextre |
| Pes de l'article | 1.08 quilograms (2.38 lliures) |
| Dimensions del producte | 23.4 x 4 x 8.6 polzades |
| Longitud de la fulla | 22 cm (aproximadament 8.66 polzades) |
| Longitud del mànec | 30 cm (aproximadament 11.81 polzades) |
| Longitud total | 58 cm (aproximadament 22.83 polzades) |
Informació de la garantia
For specific warranty details regarding your TRUPER TB-19 Hedge Shears, please refer to the documentation included with your purchase or contact Truper directly through their official website or customer service channels. Warranty terms typically cover manufacturing defects and material flaws under normal use.
Suport
If you have any questions, require assistance, or need to report an issue with your TRUPER TB-19 Hedge Shears, please contact Truper customer support. Contact information can usually be found on the product packaging or the official Truper weblloc.
