HOBO U20L-04 Water Level Data Logger User Manual

Introducció

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of the Onset HOBO U20L-04 Water Level Data Logger. This device is designed for accurate and reliable measurement of water level in various environments.

The HOBO U20L-04 is a self-contained, submersible data logger capable of recording water level and temperature. It is ideal for monitoring water levels in wells, streams, lakes, wetlands, and tidal areas.

Producte acabatview

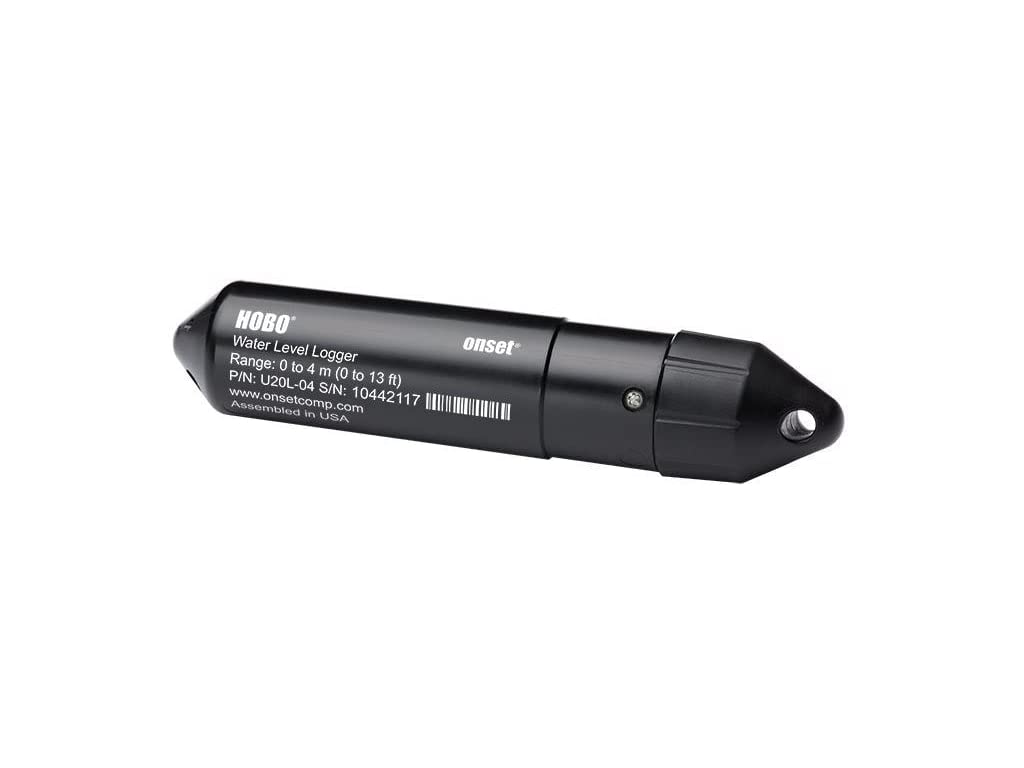

Figura 1: The HOBO U20L-04 Water Level Data Logger. This image shows the compact, cylindrical design of the logger, with the "HOBO Water Level Logger" and "Onset" branding visible, along with its part number (U20L-04) and serial number. The logger is black and designed for submersible use.

The HOBO U20L-04 is a robust, non-vented water level data logger. It measures water level (pressure) and temperature. The logger's range is 0 to 4 meters (0 to 13 feet) of water depth. It is constructed for durability in various aquatic environments.

Configuració

1. Equipament necessari

HOBO U20L-04 Water Level Data Logger
HOBOware software (available from www.onsetcomp.com)
HOBO U-DTW-1 Water Level Logger Shuttle or HOBO Base Station (U-DT-1)
Ordinador amb port USB

2. Instal·lació de programari

Download the latest version of HOBOware software from the Onset weblloc.
Follow the on-screen instructions to install HOBOware on your computer.
Connect the HOBO Base Station or Shuttle to your computer's USB port.

3. Logger Preparation

Ensure the logger's O-rings are clean and free of debris.
Apply a thin layer of silicone grease to the O-rings if necessary.
Carefully screw the logger cap back on, ensuring a tight seal.

Instruccions de funcionament

1. Launching the Logger

Connect the HOBO U20L-04 logger to the HOBO Base Station or Shuttle.
Open HOBOware software.
From the HOBOware menu, select Dispositiu > Llançament.
Configure the logging parameters, including:
- Logging Interval (e.g., 1 minute, 1 hour)
- Start Time (e.g., now, specific date/time)
- Stop Time (e.g., never, specific duration, specific date/time)
- Logging Mode (e.g., fixed interval, burst)
Feu clic Comença to launch the logger. The logger will begin recording data according to the configured settings.

2. Desplegament

Once launched, the logger is ready for deployment. Ensure the logger is securely fastened at the desired depth using a sturdy cable or rope attached to the eyelet at the top of the logger. Avoid deploying the logger in areas with strong currents or potential for physical damage.

For accurate water level measurements, it is crucial to also deploy a HOBO U20L-04 Barometric Pressure Data Logger (U20L-04-B) above the water surface to compensate for atmospheric pressure changes. This allows for true water level calculation.

3. Offloading Data

Retrieve the logger from its deployment location.
Connect the logger to the HOBO Base Station or Shuttle.
Open HOBOware software.
From the HOBOware menu, select Dispositiu > Lectura.
Guarda les dades file to your computer. The data can then be viewed, graphed, and exported within HOBOware.

Manteniment

1. Neteja

Regularly clean the logger body and sensor area with fresh water to remove any biofouling, sediment, or debris.
Avoid using abrasive materials or harsh chemicals that could damage the logger's housing or sensor.
Pay particular attention to the pressure sensor opening to ensure it remains clear.

2. O-Ring Inspection and Lubrication

Before each deployment, inspect the O-rings for any signs of cracks, nicks, or wear. Replace damaged O-rings immediately.
Apply a thin, even coat of silicone-based O-ring grease to the O-rings to maintain a watertight seal.

3. Substitució de la bateria

The HOBO U20L-04 uses a non-replaceable internal battery designed for long-term use. If the battery life is depleted, the logger may need to be returned to Onset for service or replacement. Refer to the Onset website for battery life specifications and service options.

Resolució de problemes

Problema	Causa possible	Solució
Logger not recognized by HOBOware	Base station/shuttle not connected properly Problemes de conductor Logger not seated correctly in base station/shuttle	Ensure USB connection is secure. Reinstall HOBOware and drivers. Reseat the logger firmly in the base station/shuttle.
Inaccurate water level readings	No barometric compensation Sensor fouled or blocked Logger not at correct depth	Deploy a barometric logger (U20L-04-B) and use HOBOware for compensation. Netegeu la zona del sensor. Verify logger depth and stability.
Logger not launching	Bateria baixa Error de programari	Check battery status in HOBOware (if visible). Contact Onset for service if battery is depleted. Restart HOBOware and try again.

Especificacions

Paràmetre	Valor
Model	U20L-04
Marca	Inici
Water Level Range	De 0 a 4 m (0 a 13 peus)
Material	Plàstic
Color	Negre
Pes de l'article	6.4 unces (181.4 grams)
Entorn de funcionament	Freshwater and Saltwater
Memòria	Approximately 42,000 measurements (water level and temperature)
Durada de la bateria	Typically 5 years (non-replaceable)
Lloc de muntatge	Muntat als EUA

Informació de la garantia

Onset provides a limited warranty for the HOBO U20L-04 Water Level Data Logger. For detailed warranty terms and conditions, please refer to the official Onset website or the documentation included with your purchase. Typically, the warranty covers defects in materials and workmanship under normal use.

Nota: Les reparacions o modificacions no autoritzades poden anul·lar la garantia del producte.

Atenció al client

For technical assistance, product inquiries, or service requests, please contact Onset Customer Support:

Weblloc: www.onsetcomp.com
Correu electrònic: Refer to the "Contact Us" section on the Onset weblloc.
Telèfon: Refer to the "Contact Us" section on the Onset weblloc web per a números de telèfon regionals.

When contacting support, please have your logger's model number (U20L-04) and serial number (if available) ready for faster assistance.
