1. Informació de seguretat
Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions provided in the complete manual before use. Failure to follow these warnings may result in electric shock, fire, and/or serious injury.
- Equips de protecció individual (EPI): Always wear appropriate safety gear, including safety goggles, gloves, and sturdy footwear, to protect against flying debris and potential hazards.
- Seguretat de l'àrea de treball: Ensure the work area is clear of obstructions, well-lit, and free from children or bystanders. Avoid operating the chainsaw in wet or damp condicions.
- Seguretat elèctrica: Inspect the power cord and extension cord for damage before each use. Do not use damaged cords. Ensure the extension cord is rated for outdoor use and appropriate for the tool's power requirements.
- Prevenció de contracops: Understand and practice proper cutting techniques to minimize the risk of kickback. Always maintain a firm grip with both hands on the saw handles.
Advertència de la proposta 65:
Aquest producte us pot exposar a substàncies químiques, com ara el plom, que l'estat de Califòrnia sap que causa càncer i defectes de naixement o altres danys reproductius. Per a més informació aneu a www.P65Warnings.ca.gov.
2. Producte acabatview
The Makita UC3551A 14-inch Electric Chain Saw is designed for efficient cutting tasks, offering ease of operation and maintenance. Its robust construction ensures durability and performance for various outdoor power tool needs.
Característiques principals:
- "Tool-less" blade and chain adjustments for convenient operation and easy maintenance.
- Large trigger switch with soft start for smooth start-ups.
- Rubberized soft grip handle provides increased comfort on the job.
- Built-in current limiter helps protect motor from burnout by reducing power to motor when saw is overloaded.
- Large oil reservoir with view window allows operator to check bar oil level.
- Power Source Type: Corded-Electric.
Especificacions:
| Especificació | Valor |
|---|---|
| Marca | Makita |
| Font d'alimentació | Elèctric amb cable |
| Cavalls de força | 3.2 cavalls de potència |
| Pes de l'article | 12.1 lliures |
| Dimensions del producte | 24.2 cm de llargada x 10 cm d'amplada x 10.5 cm d'alçada |
| Longitud de la cadena | 14 polzades |
| Velocitat de la cadena | 2,900 FPM |
| UPC | 088381660785 |
| Número de model | UC3551A |
3. Muntatge i muntatge
Follow these steps to assemble your Makita UC3551A Electric Chain Saw. Ensure the tool is unplugged from the power source before beginning assembly.
- Unboxing: Traieu amb cura tots els components de l'embalatge. Verifiqueu que hi hagi totes les peces que figuren a la llista d'embalatge.
- Remove Sprocket Cover:
Imatge: Lateral view of the Makita UC3551A Electric Chain Saw with the sprocket cover removed, revealing the internal mechanism.
Press the small button on the sprocket cover and turn it counter-clockwise until it releases. Lift the cover off to expose the drive sprocket and guide bar mounting studs. - Instal·leu la barra guia i la cadena:
Image: Close-up of the Makita-branded guide bar with the chain correctly installed around it.
Wearing protective gloves, carefully place the chain around the guide bar, ensuring the cutting edges face the correct direction. Position the guide bar onto the mounting studs, ensuring the chain engages with the drive sprocket. Leave some slack in the chain for easier re-installation of the sprocket cover. - Re-install Sprocket Cover: Align the sprocket cover with the mounting studs and press it into place. Turn the cover clockwise while pressing the button until it locks securely.
- Ajustar la tensió de la cadena:

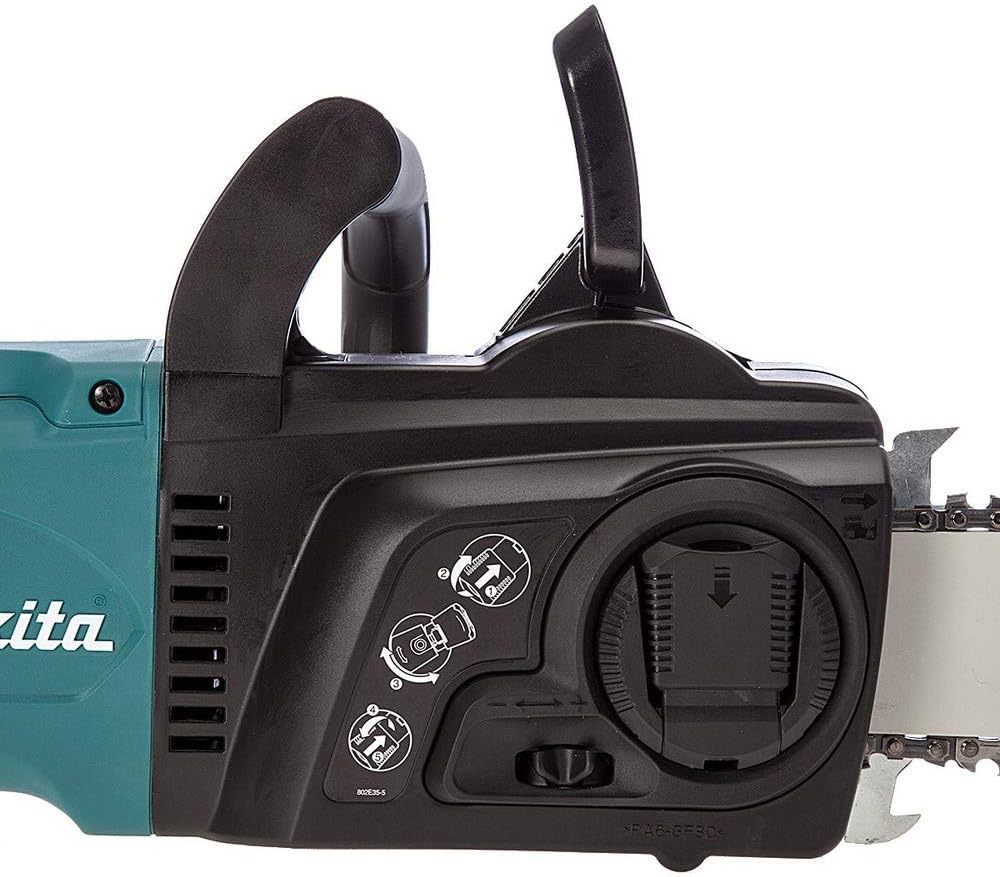

Imatge: De dalt a baix view of the Makita UC3551A Electric Chain Saw, highlighting the chain tension adjustment dial on the side.
Loosen the sprocket cover slightly. While holding the guide bar up, turn the adjusting dial (located on the side of the saw) towards the '+' symbol to increase chain tension. The chain should be snug against the guide bar but still allow for manual movement. Once tension is correct, tighten the sprocket cover fully.
4. Funcionament
Before operating the chainsaw, ensure you have read and understood all safety instructions and are wearing appropriate PPE.
Engegar la motoserra:
- Connect the chainsaw to a suitable power outlet using a heavy-duty outdoor-rated extension cord. Note that the chainsaw does not come with a long integrated cord, so an extension cord is essential for most tasks.
- To start the saw, press the release button (usually located on the handle) with your thumb, then pull the trigger switch with your fingers. The saw will begin to operate with a soft start.
- Per aturar la serra, deixeu anar l'interruptor del disparador.
Tècniques de tall:
- Enganxament: For cutting logs or branches that are supported, use the spike bumper (if present) to pivot the saw into the wood. This helps maintain control and reduces kickback.
- Limbing: When removing branches from a fallen tree, work from the base towards the top. Be aware of branches under tension that may spring back when cut.
- Talla: Felling trees requires specialized training and should only be performed by trained professionals. Always plan an escape path and ensure no one is in the falling area.
5. Manteniment
Regular maintenance ensures the longevity and safe operation of your Makita chain saw.
- Lubricació de la cadena: The saw features a large oil reservoir with a view window. Regularly check the bar oil level and refill with appropriate chain oil as needed. Proper lubrication is crucial for chain and bar life.
- Cleaning the Saw Chain: After each use, clean the saw chain to remove sawdust, sap, and debris. A clean chain operates more efficiently and reduces wear.
- Sharpening the Saw Chain: A sharp chain is essential for effective and safe cutting. Sharpen the saw chain regularly or have it professionally sharpened when it becomes dull. Refer to the full manual for detailed sharpening instructions, including correct angles and file mides.
- Neteja general: Keep the motor housing and ventilation slots clean and free from debris to prevent overheating.
6. Solució De Problemes
If you encounter issues with your Makita UC3551A chain saw, refer to the following general advice. For detailed troubleshooting steps, consult the comprehensive user manual.
- La serra no arrenca: Check if the power cord is securely plugged in and if the outlet is functional. Ensure the release button and trigger are pressed correctly. Verify the chain brake is disengaged.
- Chain Not Moving: Ensure the chain tension is not too tight or too loose. Check for any obstructions in the guide bar or sprocket area.
- Rendiment de tall baix: A dull chain is the most common cause of poor cutting. Sharpen or replace the chain. Ensure the chain is properly lubricated.
- Sobreescalfament: Clean any debris from the motor's ventilation slots. Avoid continuous heavy use; allow the saw to cool down periodically.
7. Garantia i Suport
Makita products are manufactured under strict quality control standards. For information regarding warranty coverage, service, and parts, please refer to the official Makita warranty statement included with your product or visit the Botiga Makita.
- Servei i reparació: For authorized service and genuine replacement parts, contact Makita customer support or an authorized service center.
- Registre de productes: Register your product online to receive updates and facilitate warranty claims.
