Introducció
Welcome to the user manual for the TROTEC HyStream 2000 Heat Gun. This document provides essential information for the safe and effective operation, maintenance, and troubleshooting of your heat gun. Please read these instructions carefully before initial use and keep them for future reference. The HyStream 2000 is a versatile tool designed for a wide range of applications, from paint removal to plastic welding and heat shrinking.
Instruccions de seguretat
Always observe all safety warnings and instructions provided in this manual to prevent electric shock, fire, and serious injury.
Advertències generals de seguretat
- Read all instructions: Familiarize yourself with the controls and proper use of the heat gun.
- Wear appropriate personal protective equipment (PPE): This includes safety glasses, gloves, and a respirator if working with materials that produce fumes.
- Keep the work area clean and well-lit: Cluttered or dark areas invite accidents.
- Do not operate power tools in explosive atmospheres: Do not use the heat gun near flammable liquids, gases, or dust.
- Ensure adequate ventilation: Hot air guns produce high temperatures and can generate fumes. Work in a well-ventilated area.
- Do not touch the nozzle or accessories during or immediately after use: These parts become extremely hot and can cause severe burns. Allow the tool to cool down completely.
- Unplug the heat gun when not in use, before changing accessories, or before performing any maintenance.
- Guardeu les eines inactius fora de l'abast dels nens i d'altres persones sense formació.
- Do not abuse the cord: Never carry the tool by the cord or yank it to disconnect from an outlet.
- Do not use the heat gun as a hair dryer or for heating food.
- Be aware of hidden hazards: Heat can ignite flammable materials behind walls or surfaces.
Producte acabatview
The TROTEC HyStream 2000 Heat Gun is designed for ease of use and versatility. Below are the main components and controls.
Components principals
- Unitat principal: The body of the heat gun housing the motor and heating element.
- Mànec: Ergonomically designed for comfortable grip and extended use.
- Air Outlet Nozzle: Where the hot air is expelled.
- Pantalla LCD: Shows current temperature and airflow settings.
- Botons de control: Used to adjust temperature and airflow.
- Interruptor d'alimentació: For turning the device on and off, and selecting initial settings.
- Cable d'alimentació: Connects the tool to the electrical supply.
- Accessoris de broquet: Various shapes for different applications.

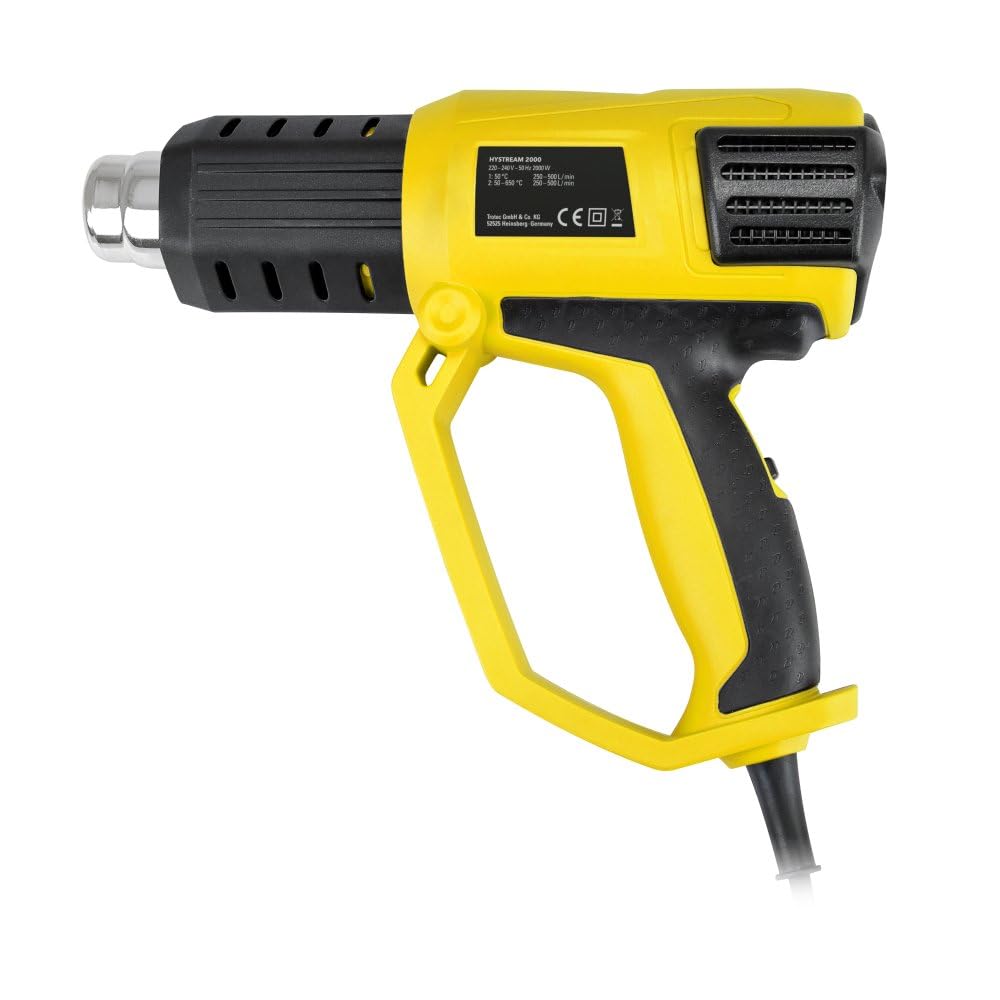

Figure 1: The TROTEC HyStream 2000 Heat Gun, showing its ergonomic design and main body.
Figure 2: Close-up of the LCD display and control buttons for temperature and airflow adjustment.
Figure 3: Various nozzle attachments included with the heat gun for specialized tasks.
Configuració
Desembalatge
Carefully remove the heat gun and all accessories from the packaging. Inspect the device for any signs of damage. Do not use a damaged device.
Col·locació de broquets
Select the appropriate nozzle for your task. Ensure the heat gun is unplugged and cool before attaching or removing any nozzle. Slide the desired nozzle onto the air outlet until it is securely in place. Do not force the nozzle.
Connexió d'alimentació
Connecteu el cable d'alimentació a una presa de corrent adequada. Assegureu-vos que el volumtage matches the specifications of the heat gun.
Instruccions de funcionament
The HyStream 2000 offers precise control over temperature and airflow for optimal results.
Encès/Apagat
Locate the main power switch, typically on the handle. This switch may have multiple positions (e.g., 0 for off, 1 for low heat/airflow, 2 for high heat/airflow). Select the desired initial setting. The LCD display will illuminate.
Ajust de la temperatura
Once powered on, use the temperature control buttons (usually marked '+' and '-') near the LCD display to set the desired temperature. The HyStream 2000 allows for 60 adjustable temperature levels within a range of 50°C to 650°C. The selected temperature will be shown on the LCD.
Ajust del flux d'aire
Use the airflow control buttons (also typically '+' and '-') to select one of the five available airflow levels. The current airflow level will be indicated on the LCD display.
Operació mans lliures
The heat gun features a specially balanced weight distribution, allowing it to be placed in a stable, stationary position for hands-free operation. Ensure the surface is stable and non-flammable when operating in this mode.
Aplicacions
The TROTEC HyStream 2000 is a versatile tool suitable for numerous tasks:
- Eliminació de pintura i vernís: Soften old paint or varnish for easy scraping.
- Plastic Welding and Forming: Heat and shape plastic materials or weld plastic components.
- Heat Shrinking Cables: Apply heat to shrink tubing around electrical connections for insulation and protection.
- Removing Adhesives and Residues: Soften stubborn adhesives, stickers, or residues for easier removal.
- Drying Processes: Accelerate the drying of glues, paints, or other materials.
- Descongelació: Thaw frozen pipes (use caution to avoid damage).
Manteniment i Neteja
Un manteniment regular garanteix la longevitat i el funcionament segur de la pistola de calor.
Neteja general
- Desconnecteu sempre el dispositiu abans de netejar-lo.
- Allow the heat gun to cool down completely.
- Netegeu l'exterior de l'eina amb un drap suau iamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
- Ensure the air intake and outlet vents are free from dust and debris to maintain proper airflow and prevent overheating. Use a soft brush or compressed air if necessary.
Emmagatzematge
Store the heat gun in a dry, secure place, out of reach of children. Protect it from moisture and direct sunlight. Ensure the power cord is neatly coiled and not kinked.
Resolució de problemes
If you encounter issues with your HyStream 2000, refer to the table below for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| La pistola de calor no s'encén. | No power supply; Faulty power cord/plug; Main switch in 'Off' position. | Check power outlet and connection; Inspect cord for damage; Ensure main switch is in 'On' position. |
| No hot air, only cold air. | Heating element failure; Incorrect temperature setting. | Contact customer support; Increase temperature setting via LCD controls. |
| Protecció contra sobreescalfament activada. | Blocked air vents; Prolonged use at high temperature. | Unplug and allow to cool; Clean air vents; Reduce operating time or temperature. |
| Temperature/airflow not adjusting. | Control buttons malfunction; Internal electronic issue. | Ensure buttons are pressed correctly; Contact customer support if issue persists. |
Especificacions tècniques
Key technical data for the TROTEC HyStream 2000 Heat Gun.
| Característica | Especificació |
|---|---|
| Marca | TROTEC |
| Nom del model | HyStream 2000 |
| Número de model | 6100000057 |
| Poder | 2000 W |
| Interval de temperatura | 50 °C to 650 °C (60 adjustable levels) |
| Control del flux d'aire | 5-step regulation |
| Mostra | LCD |
| Protecció contra el sobreescalfament | Sí |
| Dimensions del producte | 25.5 x 3 x 13 cm |
| Pes | 1.31 kg |
| ASIN | B00YXHX440 |
Garantia i Suport
Informació de la garantia
This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official TROTEC weblloc web per conèixer els termes i condicions detallats. Conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client
For technical assistance, spare parts, or any questions regarding your TROTEC HyStream 2000 Heat Gun, please contact TROTEC customer support. Contact details can typically be found on the official TROTEC weblloc web o a l'embalatge del producte.
