Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Modern Forms Vogue 20in LED Bathroom Vanity or Wall Light. The Vogue luminaire is designed for various applications, featuring a brushed nickel finish and a 3000K LED light source. It is crafted with aluminum hardware and a mouth-blown etched opal glass diffuser, offering powerful lumen output and excellent color rendering.
Si us plau, llegiu atentament totes les instruccions abans de començar la instal·lació i conserveu aquest manual per a futures consultes.

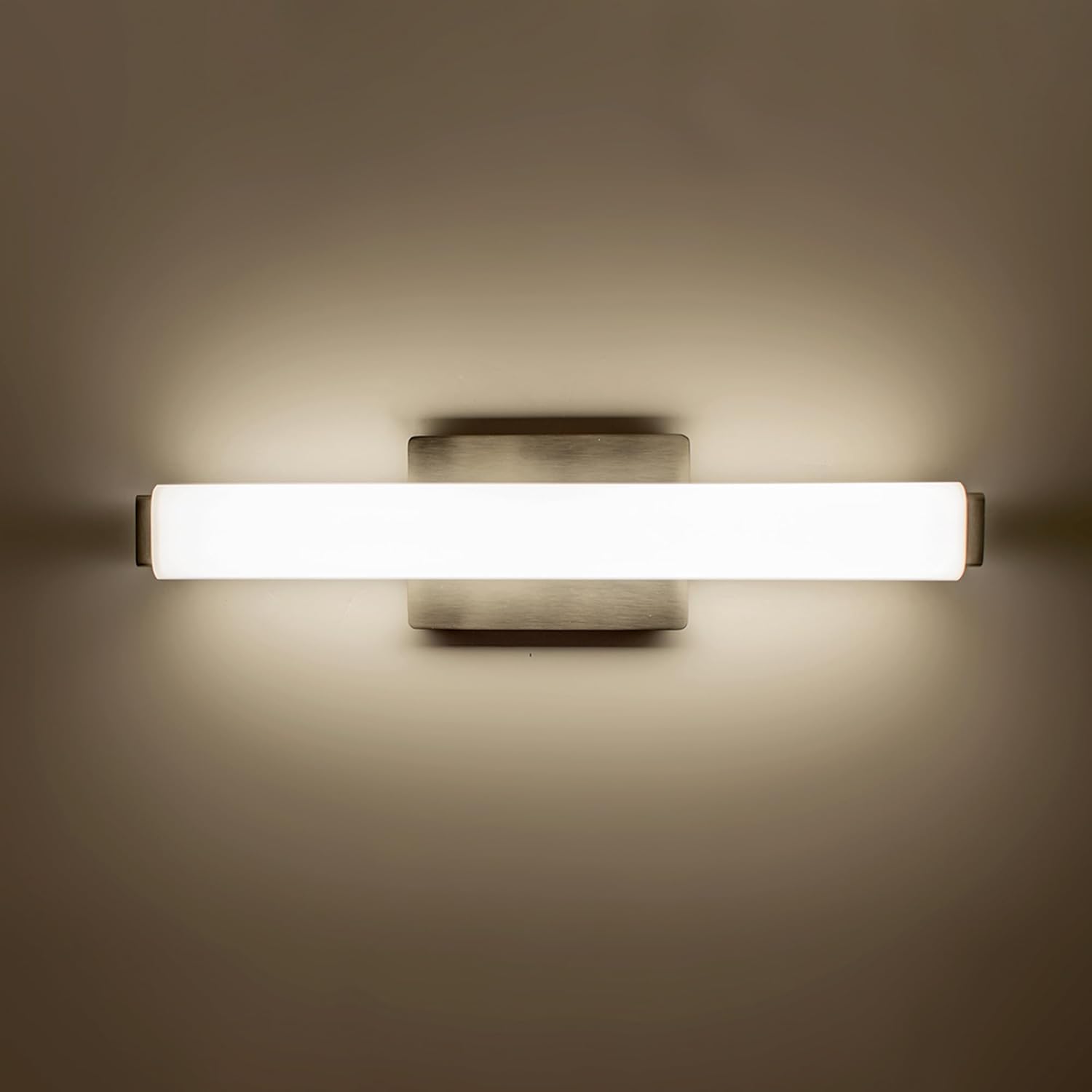

Image: Modern Forms Vogue 20in LED Vanity Light shown installed horizontally, emitting a warm, even light.
Configuració i instal·lació
Informació important de seguretat: Installation should be performed by a qualified electrician. Ensure power is turned off at the circuit breaker before installation. All wiring must be in accordance with national and local electrical codes.
Contingut del paquet:
- Complete Light Fixture
- Integrated LED Light Module
- Maquinari de muntatge
- Manual d'instruccions
Passos d'instal·lació:
- Preparació per a la instal·lació: Turn off power at the main circuit breaker. Clear the installation area.
- Lloc de muntatge: This fixture can be mounted vertically or horizontally. It is designed to fit easily on a standard pancake junction box.
- Col·loqueu la placa de muntatge: Secure the mounting plate to the junction box using the provided hardware.
- Connexions elèctriques: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground). The fixture uses AC LED technology, so no external driver or transformer is required.
- Fixació segura: Carefully align the fixture with the mounting plate and secure it using the provided screws. Ensure all connections are tucked safely into the junction box.
- Funcionalitat de prova: Restableix l'alimentació a l'interruptor i prova la làmpada.

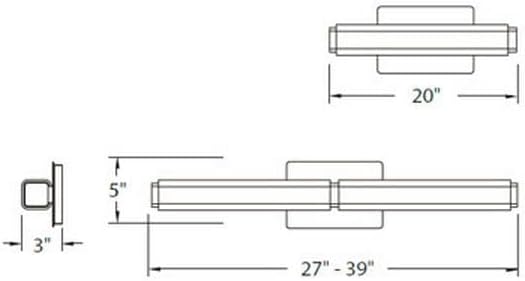

Image: Technical drawing illustrating the dimensions of the Modern Forms Vogue light fixture, including length (20 inches), width (3 inches), and height (5 inches).
Image: Modern Forms Vogue 20in LED Vanity Light shown installed vertically, highlighting its adaptability for different orientations.
Instruccions de funcionament
The Modern Forms Vogue LED light fixture is designed for simple operation once installed.
Activació/desactivació:
Operate the light using a standard wall switch connected to the fixture's circuit. The fixture will illuminate instantly when power is supplied.
Funcionalitat d'atenuació:
This fixture supports smooth and continuous dimming when connected to a compatible electronic low voltage (ELV) dimmer switch. Ensure your dimmer switch is rated for LED loads to prevent flickering or damage.
While the product specifications mention "Touch" control, the primary dimming functionality is achieved via an ELV dimmer. If your specific installation includes a touch-sensitive switch, refer to that switch's instructions for operation.
Imatge: Primer pla view of the illuminated mouth-blown etched opal glass diffuser, showcasing the even light distribution.
Manteniment
The Modern Forms Vogue LED light fixture requires minimal maintenance due to its durable construction and long-lasting LED components.
Neteja:
- Fixture Exterior: To clean the brushed nickel finish and aluminum hardware, wipe gently with a soft, dry, or slightly damp cloth. Avoid abrasive cleaners, solvents, or polishes as these can damage the finish.
- Glass Diffuser: The mouth-blown etched opal glass diffuser can be cleaned with a soft, damp tela. No utilitzeu productes químics durs.
- Abans de la neteja: Always ensure the power to the fixture is turned off at the circuit breaker before cleaning.
Mòdul LED:
The integrated LED module is designed for a long operational life of approximately 80,000 hours. It is a high-powered replaceable module. If replacement becomes necessary, contact Modern Forms customer support or a qualified electrician.
Resolució de problemes
If you encounter issues with your Modern Forms Vogue light fixture, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No hi ha energia a l’aparell. Connexió de cablejat solta. Interruptor defectuós. | Comproveu l'interruptor. Assegureu-vos que totes les connexions dels cables estiguin ben connectades (consulteu un electricista). Test the switch with another device. |
| La llum parpelleja o s'atenua de manera incorrecta. | Interruptor regulador d'intensitat incompatible. Cablejat solt. | Ensure an ELV dimmer rated for LED loads is used. Check wiring connections (consult an electrician). |
| La sortida de llum és feble o inconsistent. | Voltage fluctuacions. Damaged LED module. | Consulteu un electricista per comprovar el voltatge de la llartage. Contact Modern Forms customer support for LED module replacement. |
If these steps do not resolve the issue, please contact Modern Forms customer support or a qualified electrician.
Especificacions
| Marca | Formes Modernes |
| Nom del model | Vogue |
| Número de model | WS-3120-BN |
| Color | Níquel raspallat |
| Mida | 20 polzades |
| Dimensions del producte | 20 cm de llargada x 3 cm d'amplada x 5 cm d'alçada |
| Material | Aluminum, Mouth-blown etched opal glass |
| Tipus de font de llum | LED |
| Temperatura de color | 3000 Kelvin (Blanc càlid) |
| Brillantor | 1875 lúmens |
| Wattage | 30 watts |
| Voltage | 120 Volts |
| CRI (índex de reproducció del color) | 95 |
| Vida Mitjana | 80,000 hores |
| Regulable | Yes, with ELV dimmer |
| Ús interior/exterior | Interior (D)amp locations listed) |
| Certificacions | ETL & cETL UL 1598 listed for damp locations, CEC Title 24, ADA Compliant |
| Tipus de muntatge | Single Circuit (Can be mounted vertically or horizontally) |
Informació de la garantia
Modern Forms provides the following warranty for the Vogue LED Bathroom Vanity or Wall Light (Model WS-3120-BN):
- Acabat: Garantia limitada de 2 anys
- Components LED: Garantia limitada de 5 anys
This warranty covers defects in materials and workmanship under normal use. For full warranty terms and conditions, please refer to the official Modern Forms warranty documentation or contact customer support.
Suport i Contacte
For technical assistance, warranty claims, or further information regarding your Modern Forms Vogue LED light fixture, please contact Modern Forms customer support.
It is recommended to have your model number (WS-3120-BN) and purchase date available when contacting support.
Weblloc: www.modernforms.com
For electrical work, always consult a qualified and licensed electrician.
