deleyCON CAT 6a Universal Network Socket

1. Introducció

This manual provides comprehensive instructions for the installation, wiring, and operation of the deleyCON CAT 6a Universal Network Socket. Designed for optimal organization of network cables, this socket ensures reliable connectivity for computers and other network devices. It supports high-speed data transmission up to 10 Gigabit Ethernet and is suitable for both surface and flush mounting applications.

2. Producte acabatview i Característiques

The deleyCON CAT 6a Universal Network Socket is engineered for robust network performance and ease of installation. Key features include:

• Dual RJ45 Ports: Equipped with two fully shielded RJ45 8P8C ports for multiple connections.
• Alt rendiment: Supports frequencies up to 500MHz and 10 Gigabit Ethernet (10/100/1000/10000 Mbit/s).
• Full Shielding: Integrated die-cast metal casing provides comprehensive shielding for RJ45 female sockets and LSA strips, minimizing interference.
• Instal·lació flexible: Can be configured for either surface-mounted or flush-mounted applications.
• Wiring Standard: Color coding for wiring according to EIA/TIA 568B standards.
• Entrada de cable: Designed for horizontal cable entry (left/right).
• Disseny fàcil d'utilitzar: Característiques a viewing window and inscription label for clear identification, and an integrated dust cover on the central plate.
• Compatibilitat: Compatible with standard switch programs.
• Dimensions: Cover: 80mm x 80mm; Central plate: 50mm x 50mm (DIN 49075 compliant).

Figura 1: Frontal view of the deleyCON CAT 6a Universal Network Socket with dust covers open.

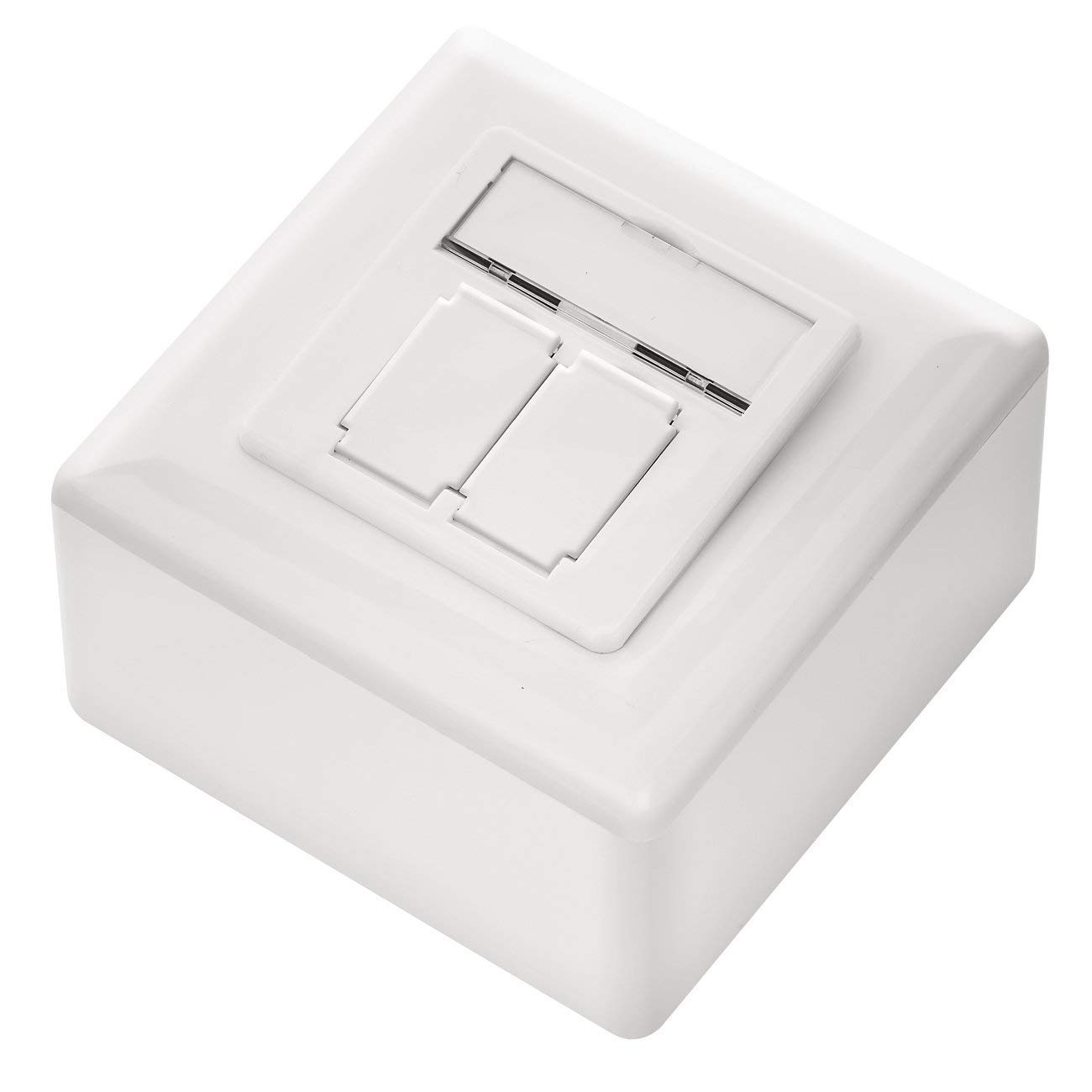

Figura 2: Angle view of the deleyCON CAT 6a Universal Network Socket with dust covers closed.

Figura 3: posterior view of the network socket module, highlighting the metal shielding.

3. Configuració i instal·lació

The deleyCON CAT 6a Universal Network Socket can be installed as either a surface-mounted or flush-mounted unit. Mounting accessories are included.

3.1. Component Overview

Figura 4: Explotat view of the network socket components.

3.2. Opcions de muntatge

The socket is versatile and can be adapted for different installation environments:

• Muntatge en superfície: For installations where the socket is mounted directly onto a wall surface.
• Muntatge a ras: For installations where the socket is recessed into the wall, providing a cleaner aesthetic.

Figura 5: Examples of surface-mounted and flush-mounted installations.

3.3. Passos generals d'instal·lació

1. Prepareu la ubicació de muntatge: Ensure the chosen location is clean and has appropriate space for either surface or flush mounting.
2. Fixeu el marc de muntatge: Attach the metal mounting frame to the wall or flush-mount box using the provided screws.
3. Wire the Network Module: Refer to Section 4 for detailed wiring instructions.
4. Insert the Wired Module: Carefully place the wired network module into the mounting frame.
5. Attach the Central Plate: Secure the central plate, ensuring the dust covers are correctly aligned.
6. Install the Outer Cover: Fasten the outer cover to complete the installation.

4. Wiring Instructions (EIA/TIA 568B)

The deleyCON CAT 6a Network Socket uses LSA (LSA-Plus) strips for cable termination. It supports the EIA/TIA 568B wiring standard, which is commonly used for network installations. The module features clear color coding to guide the wiring process.

4.1. Esquema de cablejat

Figure 6: LSA wiring terminals with EIA/TIA 568B color coding.

4.2. Wiring Procedure

1. Prepareu el cable: Carefully strip the outer jacket of your CAT 6a network cable, exposing the twisted pairs. Do not strip too much, as this can compromise shielding.
2. Untwist Pairs: Gently untwist the wire pairs and align them according to the EIA/TIA 568B color code indicated on the LSA strips (refer to Figure 6).
3. Termina els cables: Using an LSA punch-down tool, press each wire firmly into its corresponding slot on the LSA strip. The tool will cut off any excess wire automatically.
4. Assegureu-vos un contacte adequat: Verify that each wire is securely seated and makes proper electrical contact. Improper contact can lead to connectivity issues.
5. Cable segur: Use any integrated cable retention mechanisms to secure the cable and prevent strain on the LSA connections.

5. Funcionament

Once the deleyCON CAT 6a Network Socket is installed and wired, operation is straightforward:

• Connecteu els cables de xarxa: Open the dust covers on the RJ45 ports and insert standard RJ45 network cables from your devices (e.g., computer, router, switch) into the ports.
• Verifica la connexió: Ensure the network cables are fully inserted and click into place. Most network devices will indicate a successful connection with an LED light.
• Cobertes de pols: When not in use, close the integrated dust covers to protect the RJ45 ports from dust and debris.

6. Manteniment

The deleyCON CAT 6a Network Socket requires minimal maintenance to ensure long-term performance:

• Neteja: Periodically wipe the exterior of the socket with a soft, dry cloth to remove dust. Avoid using abrasive cleaners or solvents.
• Cobertes de pols: Keep the dust covers closed when ports are not in use to prevent dust accumulation inside the RJ45 jacks.
• Integritat del cable: Regularly inspect connected network cables for any signs of damage or wear. Replace damaged cables promptly.

7. Solució De Problemes

If you experience issues with your network connection through the deleyCON CAT 6a Network Socket, consider the following troubleshooting steps:

• Sense connectivitat de xarxa:
  • Ensure network cables are securely plugged into both the socket and the connected device.
  • Verify that the network cable itself is functional by testing it with another device or port.
  • Check the network status on your connected device (e.g., computer) to see if it detects a network connection.
• Velocitat de xarxa lenta:
  • Confirm that all components in your network chain (router, switch, cables) are rated for CAT 6a or higher to support 10 Gigabit Ethernet speeds.
  • Ensure the network cable is not excessively long or routed near sources of strong electromagnetic interference.
• Intermittent Connection / Shielding Issues:
  • Improper contact on the LSA strips can lead to shielding issues or poor connectivity. Re-punch the wires if necessary, ensuring firm and complete termination.
  • Verify that the cable's shielding is properly terminated and makes contact with the socket's metal casing, if applicable.
• No Power/Link Lights:
  • This socket is passive and does not require external power. If a connected device shows no link light, the issue is likely with the cable, the device, or the upstream network equipment.

8. Especificacions

Figure 7: Dimensional drawing of the network socket.
