TW Steel Men's TW938 Analog Display Quartz Black Watch User Manual

1. Introducció

This manual provides comprehensive instructions for the operation, maintenance, and care of your TW Steel Men's TW938 Analog Display Quartz Black Watch. Please read this manual thoroughly before using your watch to ensure proper function and longevity.

2. Producte acabatview

The TW Steel TW938 is a robust analog display quartz watch designed for men, featuring a chronograph and tachymeter. Key features include:

• Chronograph watch featuring a tachymeter and date display within stainless steel case.
• Hardened mineral crystal protects watch from scratches.
• Quartz Movement ensures accurate timekeeping.
• Case Diameter: 45mm, providing a prominent presence on the wrist.
• Water Resistant To 165 Feet (5 ATM), suitable for short periods of recreational swimming, but not diving or snorkeling.

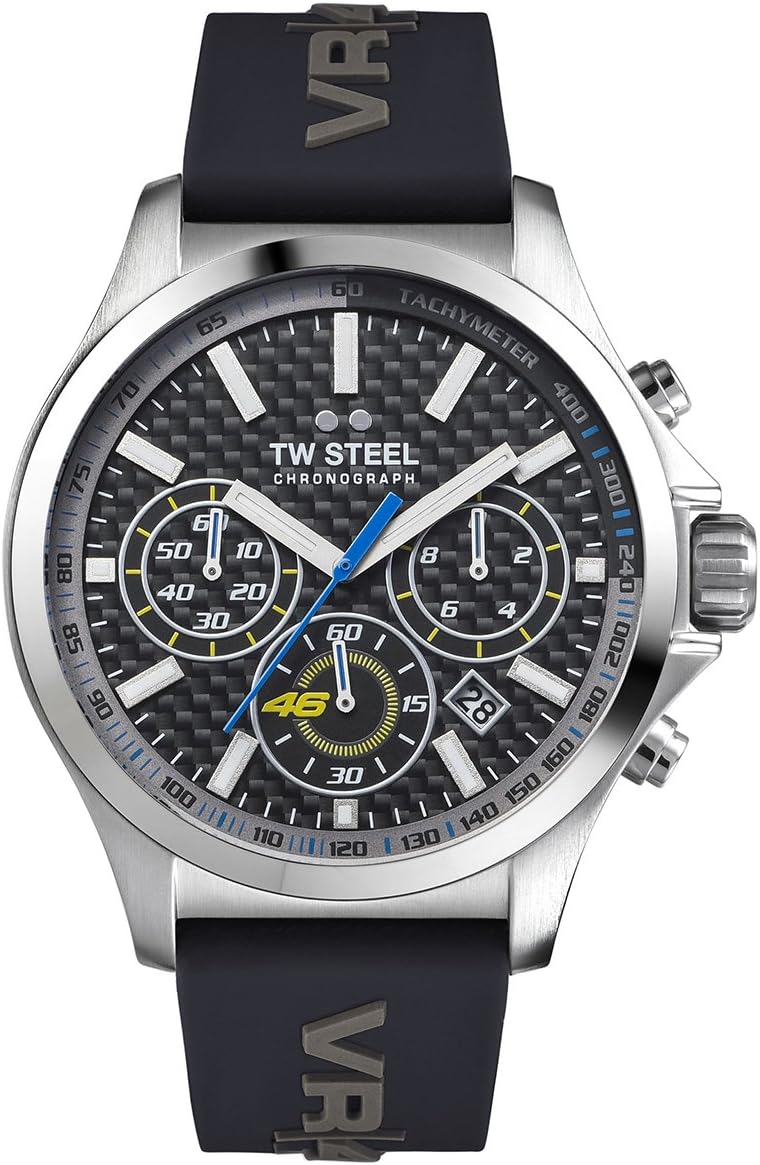

Figura 2.1: Davant view of the TW Steel TW938 watch. This image displays the watch face, including the chronograph sub-dials, date window, and tachymeter scale around the bezel. The black dial has a carbon fiber texture, and the hands are silver with blue accents on the chronograph second hand.

Figura 2.2: En angle view of the TW Steel TW938 watch. This perspective shows the watch from a slight angle, emphasizing the thickness of the case and the texture of the black silicone strap, which features the "VR46" logo.

Figura 2.3: The TW Steel TW938 watch on a male wrist. This image provides a real-world perspective of the watch's size and how it appears when worn.

3. Configuració

3.1 Configuració de l'hora

1. Pull the crown (middle knob on the right side) out to position 2 (the furthest position). The second hand will stop.
2. Gireu la corona en sentit horari o antihorari per ajustar les agulles de les hores i els minuts a l'hora desitjada.
3. Empenyeu la corona de nou a la posició 0 (posició de funcionament normal). La maneta dels segons reprendrà el moviment.

3.2 Configuració de la data

1. Estireu la corona fins a la posició 1 (el primer clic).
2. Turn the crown clockwise to adjust the date. If the date changes during the day, it means the watch is set for PM. Advance the time by 12 hours.
3. Torneu a empènyer la corona a la posició 0.

Note: Avoid setting the date between 9 PM and 3 AM, as this may interfere with the date change mechanism.

4. Instruccions de funcionament

4.1 Ús del cronògraf

The chronograph function allows you to measure elapsed time. The watch features three sub-dials for chronograph measurements: a 60-second counter, a 60-minute counter, and a 24-hour indicator (or small seconds, depending on the specific movement). The large blue second hand is the chronograph second hand.

1. Inici: Press the upper pusher (button A) to start the chronograph. The large second hand will begin to move.
2. Atura: Press the upper pusher (button A) again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
3. Restablir: After stopping, press the lower pusher (button B) to reset all chronograph hands to their zero positions.

4.2 Using the Tachymeter

The tachymeter scale on the bezel can be used to measure speed over a known distance (e.g., 1 kilometer or 1 mile) or to measure production units per hour.

1. Start the chronograph at the beginning of the measured event (e.g., when a car passes the starting line).
2. Stop the chronograph when the event is completed (e.g., after the car has traveled 1 unit of distance).
3. Read the number on the tachymeter scale indicated by the chronograph second hand. This number represents the speed in units per hour (e.g., km/h or mph).

5. Manteniment

5.1 Neteja del rellotge

• Netegeu la caixa i el vidre del rellotge regularment amb un drap suau i sec per eliminar la pols i les empremtes dactilars.
• For the silicone strap, you can use a damp cloth with mild soap and water, then rinse thoroughly and dry completely.
• Eviteu utilitzar productes químics agressius, dissolvents o netejadors abrasius, ja que poden danyar l'acabat o les juntes del rellotge.

5.2 Resistència a l'aigua

Your TW Steel TW938 watch is water resistant to 165 feet (5 ATM). This means it is suitable for everyday use and can withstand splashes, rain, and short periods of recreational swimming. It is no suitable for diving, snorkeling, or high-impact water sports.

• Assegureu-vos que la corona estigui completament empenta abans de qualsevol contacte amb l'aigua.
• No feu funcionar la corona ni els polsadors quan el rellotge estigui mullat o submergit.
• Avoid exposing the watch to extreme temperature changes (e.g., hot showers followed by cold water), as this can compromise the water resistance seals.

5.3 Substitució de la bateria

The watch is powered by a quartz movement, which requires a battery. When the second hand begins to jump in 2-second intervals, it indicates that the battery is low and needs replacement. Battery replacement should be performed by a qualified watchmaker or authorized service center to ensure proper sealing and water resistance.

6. Solució De Problemes

7. Especificacions

Figura 7.1: lateral view of the TW Steel TW938 watch. This image focuses on the right side of the watch case, clearly showing the textured crown with the 'TW' logo and the two chronograph pushers above and below it.

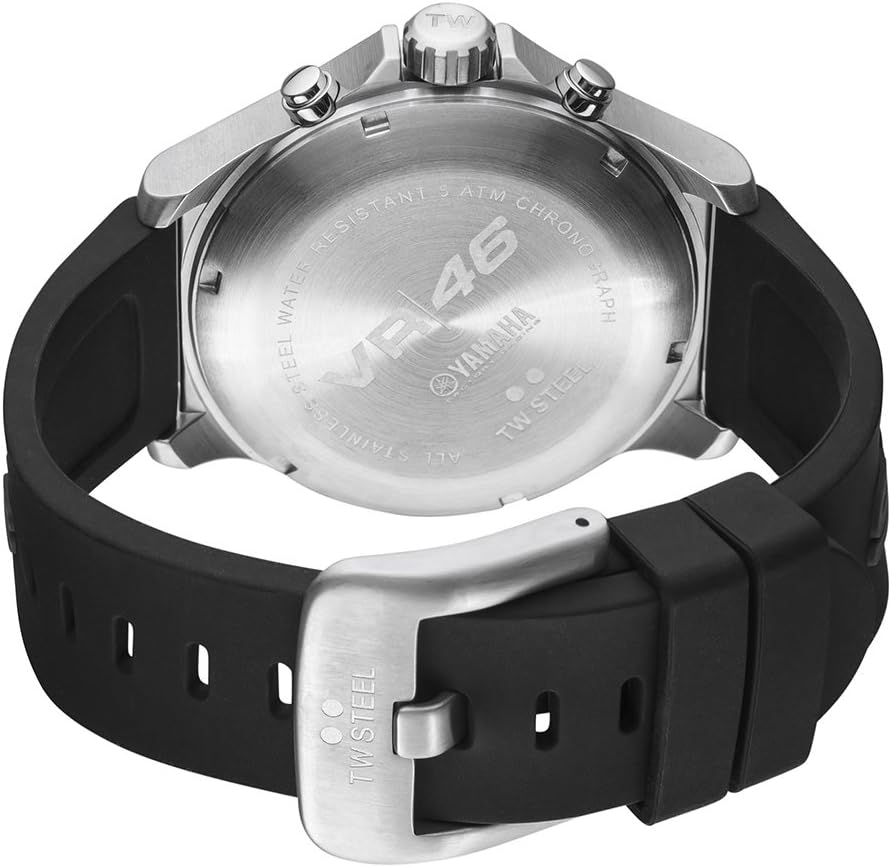

Figura 7.2: Enrere view of the TW Steel TW938 watch. This image displays the stainless steel case back, which is engraved with details such as "VR46", "YAMAHA", "TW STEEL", "WATER RESISTANT 5 ATM", and "ALL STAINLESS STEEL CHRONOGRAPH". The black silicone strap is also visible.

8. Garantia i Suport

For warranty information, service, or support, please refer to the official TW Steel weblloc web o poseu-vos en contacte amb el servei d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

Fabricant: TW Steel Watches MFG

Data de primera disponibilitat: 28 de novembre de 2015

ASIN: B012N2M7Z8
