Telwin Drive 13000 Lithium Multifunction Jump Starter User Manual

1. Producte acabatview

The Telwin Drive 13000 is an ultra-compact, 12V multifunction emergency portable jump starter designed for a wide range of vehicles including motorcycles, cars, campers, and marine engines. Its small size makes it convenient for storage in a car's glove compartment.

This device utilizes high-efficiency LiPo lithium polymer cells, ensuring fast and complete recharging, with charge status monitored by LED indicators. Beyond jump starting, it functions as a versatile power bank and features integrated LED emergency lighting.

Image 1.1: Telwin Drive 13000 unit with jumper clamps.

Característiques principals:

• Arrencador de salts: Provides 1500A peak current for emergency vehicle starting.
• Banc d'energia: Two USB outputs (1A, 2.1A) for charging smartphones, tablets, MP3 players, and cameras. Two 12V/19V outputs for laptops and other devices.
• Il·luminació LED: Two high-intensity LED emergency lights with multiple modes (torch, blinking, SOS).
• Disseny compacte: Easily portable and storable.
• Tecnologia avançada de la bateria: High-efficiency LiPo lithium polymer cells.

2. Instruccions de seguretat

Llegiu tots els avisos i instruccions de seguretat abans d'utilitzar aquest producte. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• Always wear eye protection and protective gloves when jump starting a vehicle.
• No permeteu el cl positiu i negatiuamps tocar-se.
• No engegueu una bateria congelada.
• Assegureu-vos que el contacte del vehicle estigui apagat abans de connectar l'arrencador de bateria.
• Connecteu el cl vermell (positiu).amp to the positive (+) terminal of the vehicle battery first, then the black (negative) clamp to a metal part of the engine block (not directly to the negative battery terminal unless specified by vehicle manufacturer).
• Desconnecteu el clamps in reverse order: first the black (negative), then the red (positive).
• No exposeu la unitat a la pluja o a condicions humides.
• No desmunteu la unitat. Encarregueu tot el manteniment a personal qualificat.
• Mantenir fora de l'abast dels nens.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Telwin Drive 13000 Jump Starter Unit
• Jump Starter Cables with Clamps (Vermell/Negre)
• Various Mobile Device Connectors
• Endoll per encenedor
• AC Adapter (Wall Charger)
• Estoig d'emmagatzematge

Image 3.1: Included accessories for the Telwin Drive 13000.

4. Configuració i càrrega inicial

4.1 Càrrec inicial

Before first use, fully charge the Telwin Drive 13000.

1. Connect the AC adapter to the 12V input port on the jump starter unit.
2. Connecteu l'adaptador de CA a una presa de corrent estàndard.
3. The LED indicators on the unit will illuminate, showing the charging progress. All LEDs will be solid when fully charged.
4. Charging typically takes several hours. Disconnect the charger once fully charged.

4.2 Comprensió dels indicadors LED

The unit features a series of LED lights that indicate the current charge level of the internal battery.

• Un LED: 0-25% de càrrega
• Dos LED: 25-50% de càrrega
• Tres LED: 50-75% de càrrega
• Quatre LED: 75-100% de càrrega

It is recommended to keep the unit charged above 50% for optimal performance, especially for jump starting.

Image 4.1: Diagram illustrating the ports, charge level indicators, and on/off button.

5. Instruccions de funcionament

5.1 Arrencada amb salt d'un vehicle

Use the Telwin Drive 13000 to start vehicles with a 12V battery system. Ensure the unit is sufficiently charged (at least 3-4 LEDs).

1. Assegureu-vos que el vehicle estigui apagat i que tots els accessoris (llums, ràdio, aire condicionat) estiguin apagats.
2. Connect the jump starter cables to the Telwin Drive 13000 unit.
3. Connecteu el red (positive) clamp al terminal positiu (+) de la bateria del vehicle.
4. Connecteu el black (negative) clamp to a clean, unpainted metal part of the vehicle's engine block or chassis, away from the battery and fuel lines. Do not connect directly to the negative battery terminal unless specifically instructed by your vehicle manufacturer.
5. Turn on the Telwin Drive 13000 unit by pressing the power button. All LEDs should light up, then some may turn off, indicating a system check.
6. Attempt to start the vehicle. Crank the engine for no more than 3 seconds.
7. If the vehicle does not start, wait approximately 2 minutes before attempting again. Do not persist in cranking for extended periods.
8. Un cop arrencat el vehicle, desconnecteu immediatament black (negative) clamp primer, després el red (positive) clamp.
9. Disconnect the jump starter cables from the Telwin Drive 13000 unit.

Imatge 5.1: Connexió correcta de l'arrencador a la bateria d'un vehicle.

Image 5.2: The Telwin Drive 13000 is suitable for jump starting cars, motorcycles, and marine engines.

5.2 Ús com a bateria externa

The Telwin Drive 13000 can charge various electronic devices.

• USB Outputs (5V): Connect your smartphone, tablet, MP3 player, or camera using the appropriate USB cable to either the 1A or 2.1A USB output ports.
• 12V/19V Outputs: Use the provided connectors to power or charge laptops and other compatible devices requiring 12V or 19V. Ensure the correct voltage is selected if applicable, or use the appropriate adapter.

Image 5.3: The Telwin Drive 13000 functioning as a power bank for various devices.

5.3 Ús de la llum LED

The integrated LED lights provide illumination for emergency situations.

1. Press and hold the power button for a few seconds to turn on the LED light (torch mode).
2. Press the power button again to cycle through the light modes (torch, blinking, SOS).
3. Press and hold the power button again to turn off the LED light.

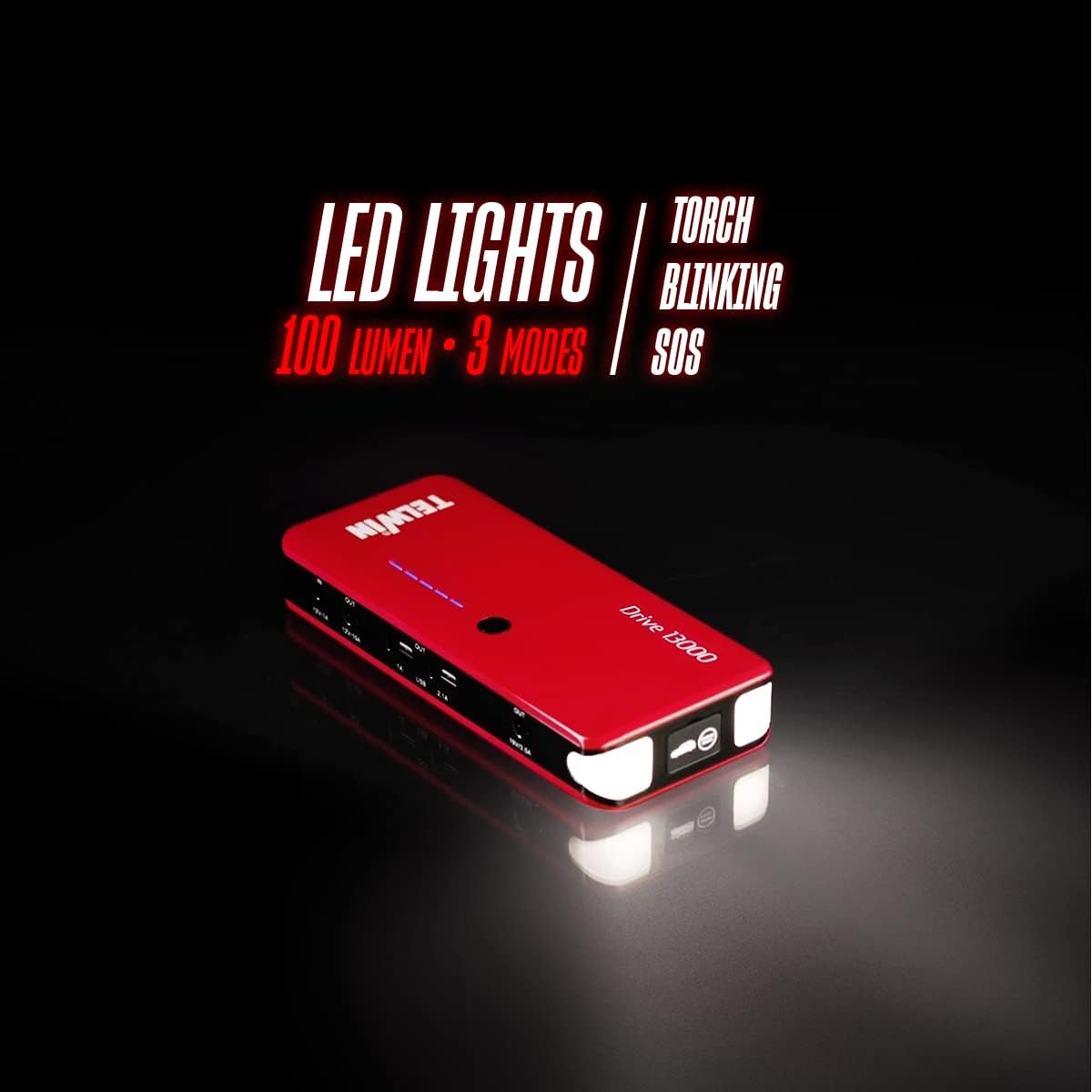

Image 5.4: The Telwin Drive 13000 with its LED emergency lights active.

6. Manteniment

6.1 Recàrrega

To ensure the longevity and readiness of your Telwin Drive 13000, regular recharging is essential.

• Recharge the unit after every use, especially after jump starting a vehicle.
• If not used frequently, recharge the unit every 3-6 months to maintain battery health.
• Always use the provided AC adapter or cigarette lighter plug for charging.

6.2 Emmagatzematge

Proper storage helps preserve the unit's performance.

• Guardeu la unitat en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Keep the unit and its accessories in the provided storage case to prevent damage.
• Avoid storing the unit in a completely discharged state.

6.3 Neteja

Clean the unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.

7. Solució De Problemes

8. Especificacions tècniques

9. Garantia i Suport

Telwin products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Telwin weblloc.

For technical support, troubleshooting assistance, or spare parts, please contact Telwin customer service through their official channels.

• Assistència en línia: Visit the official Telwin website for FAQs, product documentation, and contact forms.
• Atenció al client: Refer to your product packaging or the Telwin weblloc web amb informació de contacte regional.
