The Locinox Mammoth 180° Self-Closing Gate Hinge is an elegant and robust solution designed for efficient gate closure. This hinge is engineered to handle gates weighing up to 150 kg, offering adjustable closing force, speed, and end strike for precise control. Featuring patented hydraulic damping, it ensures consistent closing speed and has been tested for 500,000 movements. Its weatherproof aluminum housing and stainless steel components make it suitable for exterior use.
Característiques clau
- 180° self-closing double bearing hinge with adjustable closing speed and final snap
- Robust yet stylish design with high quality components
- Weatherproof aluminum housing designed for exterior use
- Consistent closing speed thanks to patented hydraulic damping
- ADA compliant (< 5 lbs; max 32 Nm) from gate widths of 4.4ft. or more
- Vandal and tampa prova de er
- For left and right handed gates
- Fast and easy installation with Quick-Fix
Guia d'instal·lació
The Mammoth hinge is designed for fast and easy installation using the Quick-Fix system. It is compatible with both left and right-handed gates.
Abans de començar
- Ensure the gate frame and post are structurally sound and capable of supporting the hinge and gate weight (up to 150 kg).
- Gather necessary tools: measuring tape, drill, appropriate fasteners (not included, specific to gate material), level, wrench.
Mounting the Hinges
The Mammoth hinge includes an upper hinge and a lower hinge (Dino).

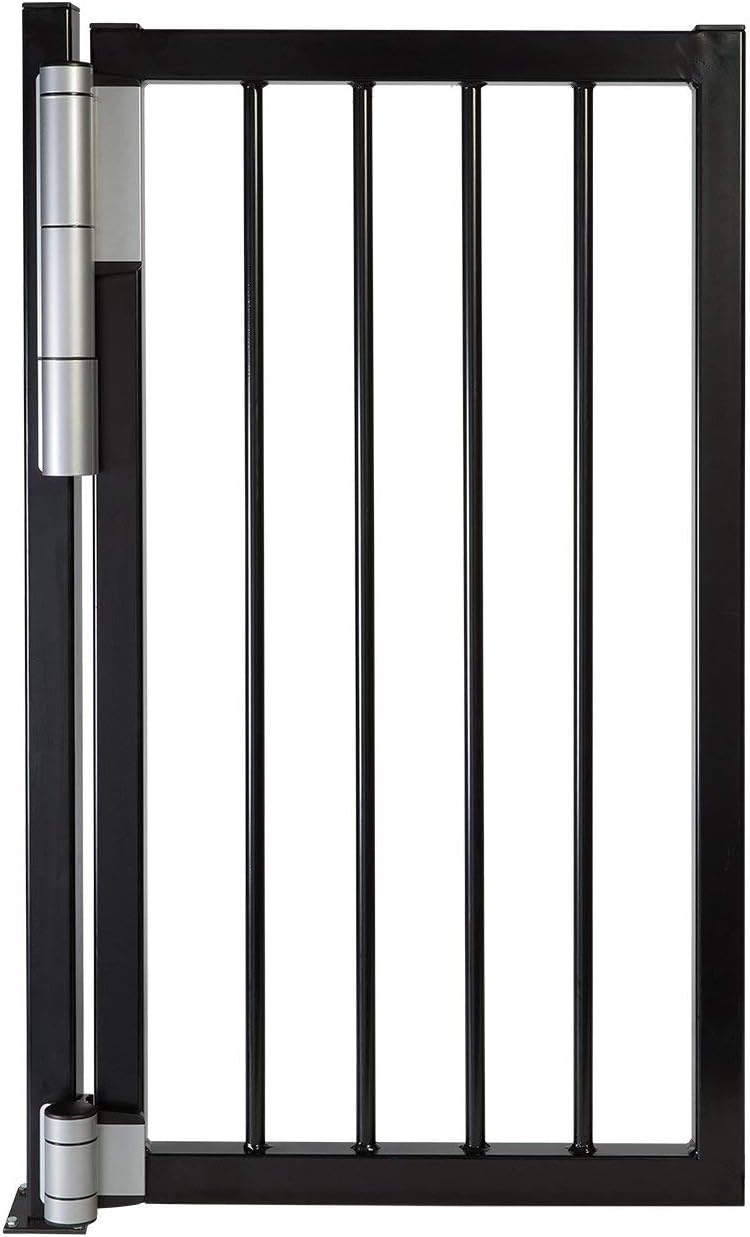

Imatge: Una imatge detallada view of the silver Locinox Mammoth hinge components attached to a black gate frame, showing the upper and lower hinge sections.
- Position the upper and lower hinge components accurately on the gate frame and post. The hinge allows for 2-way adjustment (2 x 20 mm) to ensure perfect alignment.
- Mark the drilling points for the Quick-Fix system.
- Drill pilot holes as required by your gate material.
- Securely attach the hinge components using the Quick-Fix fasteners. Ensure all connections are tight and the hinge is level.
- Attach the gate to the installed hinges.

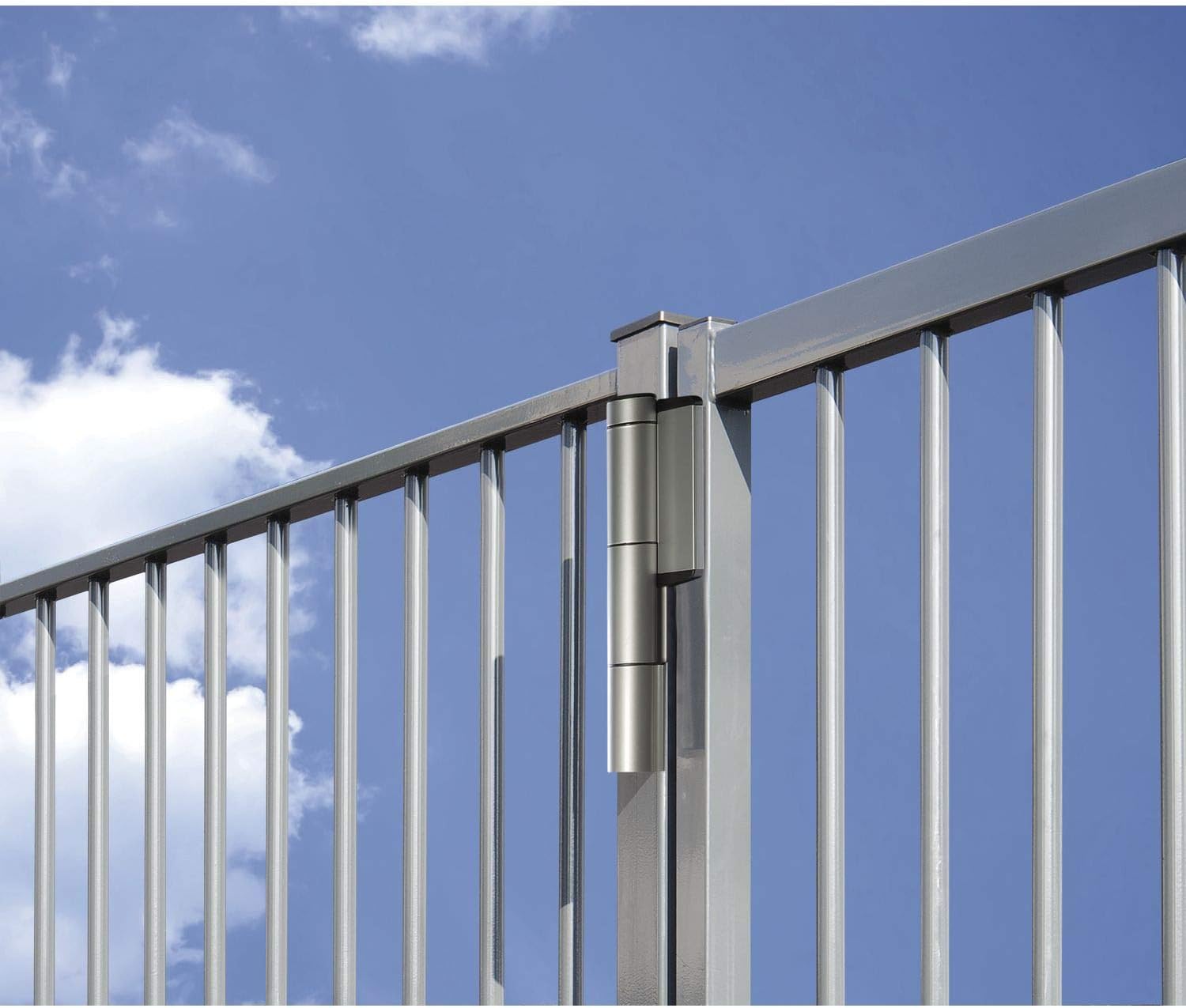

Image: The silver Locinox Mammoth gate hinge installed on a silver metal gate, with a clear blue sky in the background, demonstrating its integration into a gate structure.
Ajustos inicials
After installation, perform initial adjustments for closing speed and force. Refer to the "Operation" section for detailed adjustment procedures.
Funcionament
The Mammoth hinge provides a 180° opening angle and features a self-closing mechanism with adjustable parameters.
Adjusting Closing Speed
The closing speed can be adjusted to suit your preference and gate weight. Locate the adjustment screw (refer to the product diagram if available) and turn it clockwise to decrease speed or counter-clockwise to increase speed. Make small adjustments and test the gate's closing action.
Adjusting Closing Force and End Strike
The hinge allows for adjustment of the closing force and the final snap (end strike) to ensure the gate latches securely without slamming. Use the designated adjustment points to fine-tune these settings.
Compliment de l'ADA
This hinge is ADA compliant (< 5 lbs; max 32 Nm) for gate widths of 4.4ft or more, ensuring accessibility.
Image: A person walking through a large industrial gate, which is fitted with the Locinox Mammoth hinge, illustrating its use in a practical setting.
Manteniment
The Locinox Mammoth hinge is designed for durability and minimal maintenance.
- Inspecció periòdica: Periodically check all mounting screws and fasteners to ensure they remain tight.
- Neteja: Clean the hinge components with a soft cloth and mild detergent as needed to remove dirt and debris. Avoid abrasive cleaners.
- Lubricació: The double storage made of stainless steel and hydraulic damping system are designed for long-term, maintenance-free operation. No regular lubrication is typically required for the internal mechanisms.
- Protecció del medi ambient: The weatherproof aluminum housing protects internal components from environmental elements.
If any issues arise, refer to the Troubleshooting section or contact Locinox support.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Gate does not close fully | Closing speed/force too low; Obstruction; Misalignment | Increase closing speed/force; Remove obstruction; Check gate and hinge alignment. |
| Gate closes too fast/slams | Closing speed/force too high | Decrease closing speed/force using the adjustment screws. |
| Hinge makes unusual noises | Loose fasteners; Debris in mechanism | Tighten all fasteners; Clean around the hinge area. If noise persists, contact support. |
| Gate sags or is misaligned | Improper installation; Gate/post issues | Re-check hinge installation and alignment (2-way adjustable); Inspect gate and post for structural integrity. |
For issues not listed or if problems persist, contact Locinox customer support.
Especificacions tècniques
| Característica | Especificació |
|---|---|
| Model | MAMMOTH (180° & INCL. DINO) |
| Material | Aluminium, Silver |
| Tipus d'acabat | Acer inoxidable |
| Tipus de muntatge | Muntatge de la porta |
| Límit de pes | 150 quilos |
| Angle d'obertura | 180° |
| Dimensions del producte | 70.87" de llargada x 5.91" d'amplada |
| Pes de l'article | 10.56 lliures |
| Ajustabilitat | 2-way adjustable (2 x 20 mm) |
| Prova de durabilitat | Tested for 500,000 movements |
| Compliment de l'ADA | < 5 lbs; max 32 Nm (for gate widths of 4.4ft or more) |
| Components inclosos | Door closer (upper hinge and lower hinge Dino) |
Garantia i Suport
For warranty information, technical assistance, or replacement parts, please contact Locinox directly through their official website or authorized distributors. Keep your purchase receipt and model number handy when contacting support.
Visit the official Locinox weblloc per a més informació: Locinox Store
