1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Pentair SF/WF 0.75 HP Motor, Model 355008S. This motor is designed for use in pool and spa pump applications. Please read all instructions carefully before proceeding with installation or operation.
2. Informació de seguretat
ADVERTIMENT: Electrical shock hazard. Always disconnect power at the circuit breaker before attempting any service or installation. Failure to do so can result in serious injury or death.
- La instal·lació i el manteniment han de ser realitzats per un professional qualificat d'acord amb totes les normes elèctriques locals i nacionals.
- Assegureu-vos que el motor estigui correctament connectat a terra per evitar descàrregues elèctriques.
- Do not operate the motor if it is damaged or if any electrical components are exposed.
- Mantingueu les mans, els cabells i la roba solta lluny de les peces mòbils.
- Refer to the warning label on the motor for specific safety instructions and electrical specifications.
Figure 2.1: Motor Specification Label with Safety Warnings and Wiring Diagram
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats en desembalar-lo.
- Pentair SF/WF 0.75 HP Motor (Model 355008S)

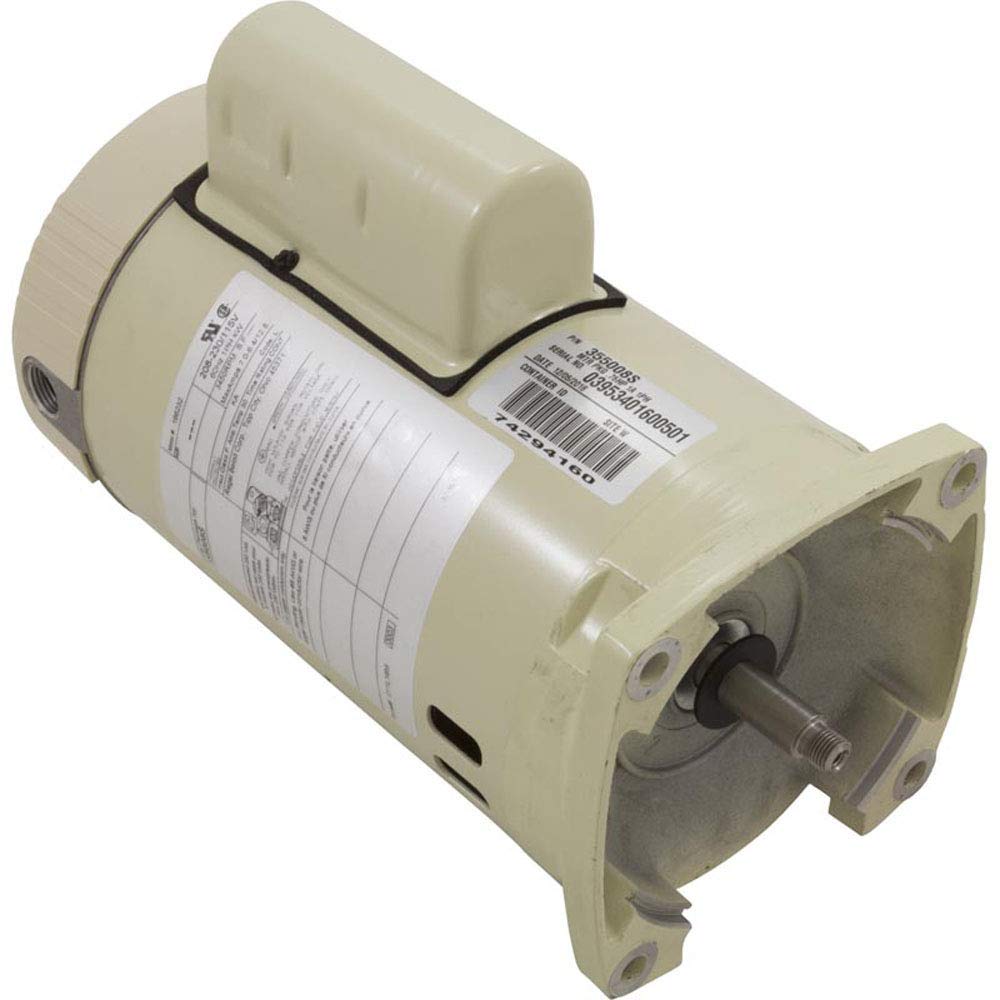

Figure 3.1: Pentair SF/WF 0.75 HP Motor (Model 355008S)
4. Configuració i instal·lació
4.1 Comprovacions prèvies a la instal·lació
- Comproveu que el volum de subministramenttage matches the motor's voltage requirements (115V or 208-230V).
- Confirm the motor's horsepower (0.75 HP) is appropriate for your pump application.
- Ensure the mounting surface is stable and level.
4.2 Muntatge del motor
Mount the motor securely to the pump housing using appropriate fasteners. Ensure the motor shaft aligns correctly with the pump impeller. Refer to the pump manufacturer's instructions for specific mounting procedures.

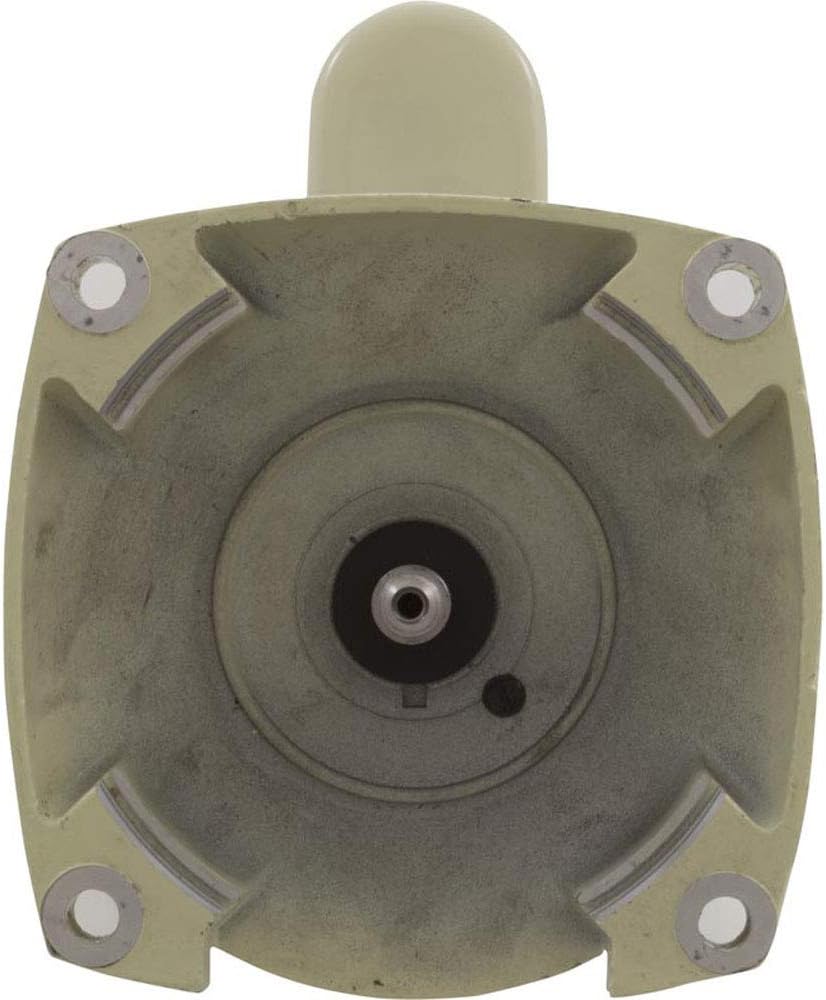

Figure 4.1: Motor Shaft End for Pump Connection
4.3 Connexions elèctriques
IMPORTANT: Tot el cablejat ha de complir amb les normes elèctriques locals i nacionals. Consulteu un electricista qualificat si teniu dubtes sobre algun procediment de cablejat.
- Desconnecteu l'alimentació: Ensure all power to the pump circuit is OFF at the main breaker.
- Compartiment de cablejat d'accés: Remove the motor's wiring compartment cover.
- Voltage Selecció: The motor is pre-wired for 230V. If 115V operation is required, refer to the wiring diagram on the motor label (Figure 2.1) and adjust the internal connections accordingly.
- Connecteu els cables d'alimentació: Connect the incoming power supply wires to the appropriate terminals (L1, L2) within the motor's wiring compartment.
- Posada a terra: Connect the ground wire to the designated ground terminal. Ensure a solid, secure ground connection.
- Vinculació: For bonding, use #8 AWG or larger copper conductor wire as specified on the motor label.
- Connexions segures: Assegureu-vos que totes les connexions elèctriques estiguin ben ajustades i segures.
- Substituïu la coberta: Reinstall the wiring compartment cover securely.
Figure 4.2: Motor Wiring Compartment

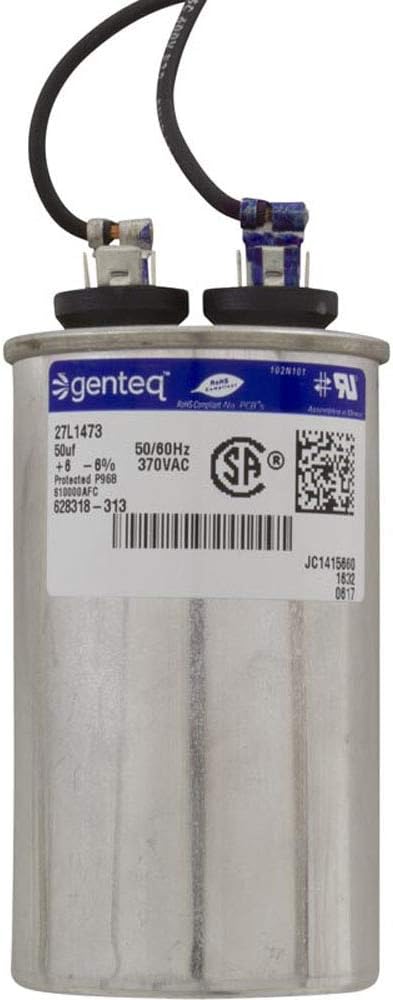

Figure 4.3: Motor Capacitor (if applicable to your specific motor configuration)
5. Instruccions de funcionament
Once the motor is properly installed and wired, it will operate as part of your pool or spa pump system. Refer to your pump's instruction manual for specific operating procedures, priming, and system startup.
- Ensure the pump is filled with water before starting the motor to prevent dry running.
- Listen for unusual noises during startup and operation, which may indicate a problem.
- Monitor the motor for excessive heat.
6. Manteniment
Regular maintenance helps ensure the longevity and efficient operation of your motor.
- Mantingueu les ventilacions clares: Periodically inspect and clean the motor's ventilation openings to ensure proper airflow and prevent overheating.
- Inspeccioneu el cablejat: Annually, or as needed, inspect all electrical connections for tightness and signs of corrosion or damage. Ensure power is disconnected before inspection.
- Protecció del medi ambient: Protect the motor from excessive moisture, direct sunlight, and extreme temperatures.
- Servei professional: If the motor exhibits unusual noise, vibration, or performance issues, consult a qualified service technician.
7. Solució De Problemes
This section provides basic troubleshooting steps for common motor issues. For complex problems, contact a qualified professional.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | No power, tripped breaker, incorrect wiring, faulty capacitor | Check power supply, reset breaker, verify wiring, inspect/replace capacitor (by professional) |
| El motor es sobreescalfa | Blocked ventilation, low voltage, excessive load, worn bearings | Clear vents, verify voltage, reduce load, professional inspection for bearings |
| El motor fa un soroll inusual | Worn bearings, foreign object, pump cavitation | Inspect for obstructions, check pump for proper water flow, professional inspection for bearings |
| Motor trips breaker | Short circuit, motor overload, faulty wiring | Inspect wiring for damage, check for motor overload, professional diagnosis |
8. Especificacions
| Especificació | Valor |
|---|---|
| Número de model | 355008S |
| Potència (HP) | 0.75 CV |
| Voltage | 115/208-230V |
| Velocitat | 1-Speed (1-SPD) |
| Tipus de marc | SQFL (Square Flange) |
| Dimensions del producte | 10.75 x 18.75 x 10.85 polzades |
| Pes de l'article | 29.6 lliures |
| Fabricant | Pentair Pool Products |
9. Garantia i Suport
For warranty information, please refer to the documentation provided with your purchase or visit the official Pentair website. For technical support or service inquiries, contact Pentair customer service or an authorized Pentair dealer.
Pentair Oficial Weblloc: www.pentair.com
