1. Informació important de seguretat
Please read all instructions carefully before using the STIM-PRO Comfort TENS Unit. Failure to follow these instructions could result in injury or device malfunction.
- Do not use if you have a pacemaker, implanted defibrillator, or other implanted metallic or electronic device.
- Do not use on open wounds, rashes, swollen, red, infected, or inflamed skin areas.
- Consult your physician before use if you have epilepsy, heart disease, or are pregnant.
- Mantenir fora de l'abast dels nens.
- Les declaracions sobre suplements dietètics no han estat avaluades per la FDA i no tenen la intenció de diagnosticar, tractar, curar o prevenir cap malaltia o afecció de salut.
2. Producte acabatview
The axion STIM-PRO Comfort is a 2-channel Transcutaneous Electrical Nerve Stimulation (TENS) device designed for drug-free pain relief. It features 8 pre-installed programs and adjustable intensity for personalized treatment.
Característiques principals:
- 2-Channel Device: Allows for the use of up to 4 electrodes simultaneously.
- 8 programes preinstal·lats: Designed for various pain types, offering simple and intuitive operation.
- Intensitat ajustable: Continuous intensity adjustment up to 80mA for comfortable and effective treatment.
- Funció de temporitzador: Selectable treatment durations of 15, 30, 60 minutes, or continuous operation.
- Disseny portàtil: Compact and lightweight with a belt clip for use at home, work, or on the go.
3. Configuració

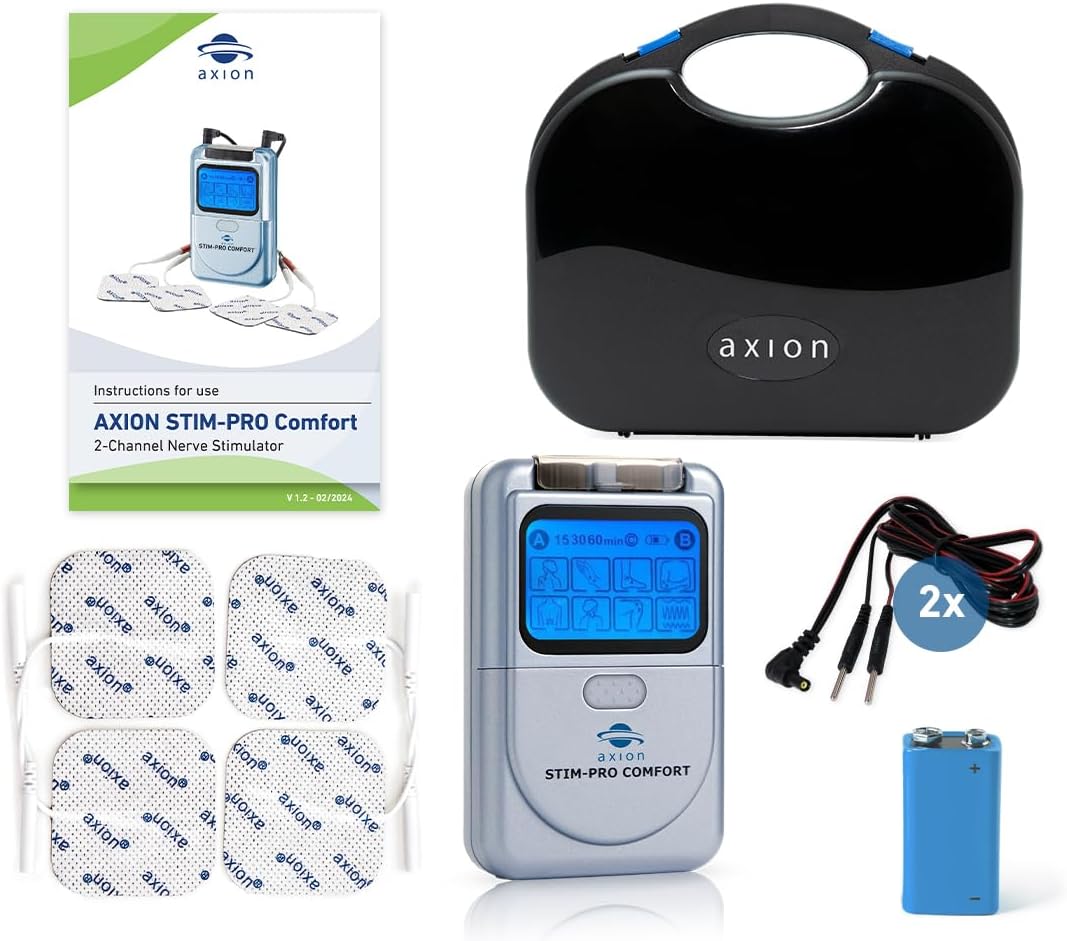

Contingut del paquet:
- Instal·la la bateria: Open the battery compartment on the back of the device. Insert the included 9V battery, ensuring correct polarity. Close the compartment securely.
- Connectar els cables: Plug the connection cables into the output jacks (A and B) on the top of the TENS unit.
- Connecteu els elèctrodes: Connect the electrode pads to the pin connectors on the end of the cables. Ensure a secure connection.
4. Instruccions de funcionament
Controls acabatsview:
- Preparar la pell: Ensure the skin where electrodes will be placed is clean, dry, and free of oils or lotions.
- Col·locació d'elèctrodes: Apply the electrode pads firmly to the desired treatment area. Refer to the diagram below for common placement suggestions. Ensure electrodes are not touching each other.
Electrode placement for various body areas for drug-free and targeted pain relief. - Engegar el dispositiu: Rotate the intensity control knob (1) clockwise to turn on the device.
- Seleccioneu el programa: Press the 'PROGRAM' button (3) to cycle through the 8 pre-installed programs. The selected program will be indicated on the display (2).
- Estableix el temporitzador: Press the 'TIMER' button (4) to select the desired treatment duration: 15 minutes, 30 minutes, 60 minutes, or continuous ('C').
- Ajustar la intensitat: Slowly rotate the intensity control knob (1) clockwise to increase the intensity to a comfortable level. You should feel a strong, but comfortable, tingling sensation. Do not increase intensity to a painful level.
- Tractament final: Once the treatment time is complete, the device will automatically turn off. To manually stop treatment, rotate the intensity control knob (1) counter-clockwise until the device turns off. Carefully remove the electrodes from your skin.
5. Manteniment
Cura del dispositiu:
- Netegeu el dispositiu amb un suau, damp tela. No utilitzeu netejadors abrasius ni submergiu el dispositiu en aigua.
- Store the device and accessories in the provided case when not in use.
Cura dels elèctrodes:
Proper care extends the life of your electrode pads.

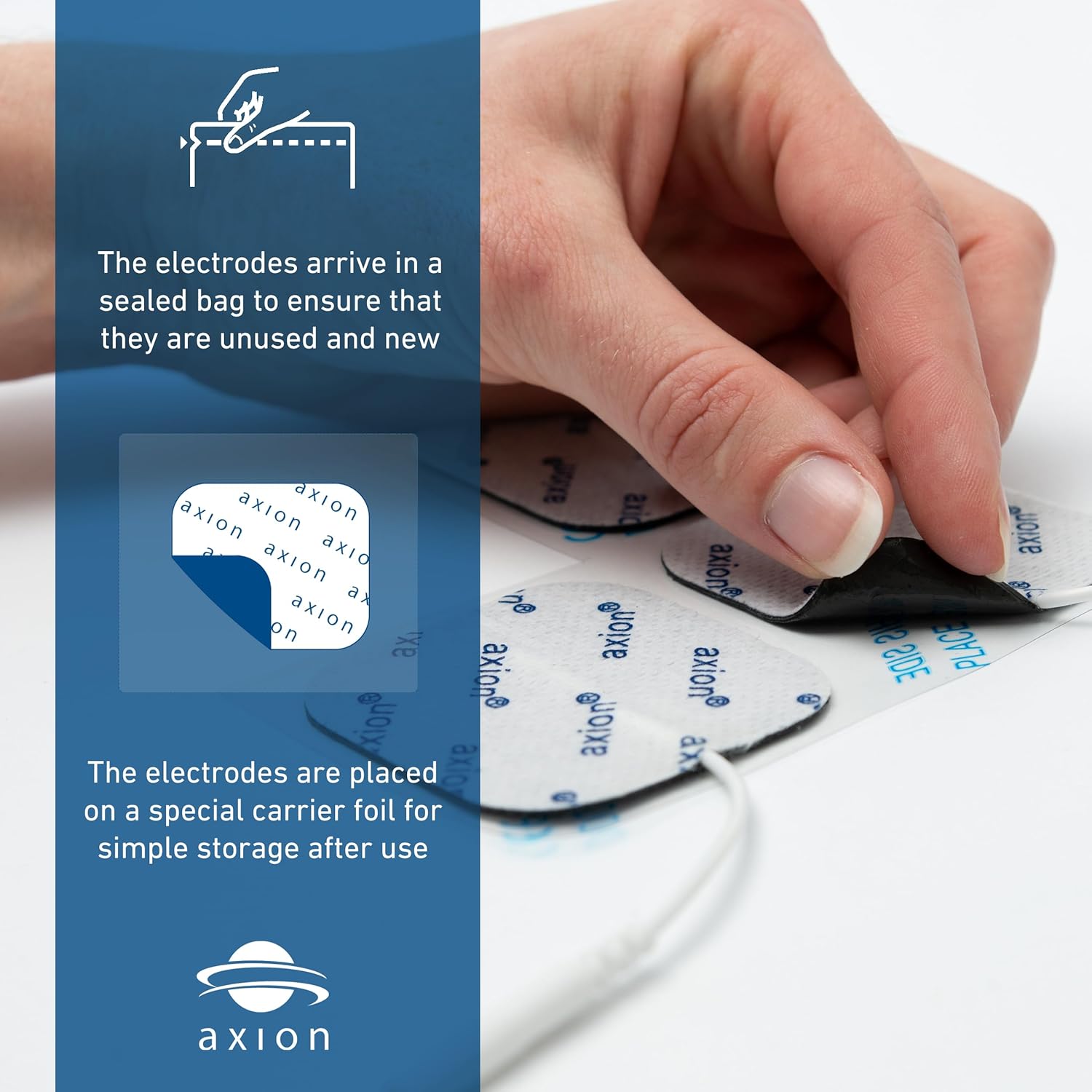

- After each use, place the electrodes back onto the clear plastic film or carrier foil they came with.
- If electrodes lose their stickiness, gently wipe the adhesive side with a damp cloth (water only) and let them air dry. Do not rub vigorously.
- Replace electrodes when they no longer adhere well to the skin or if they cause discomfort.
Substitució de la bateria:
When the display dims or the device does not power on, it's time to replace the 9V battery. Follow the steps in Section 3. Setup to replace the battery.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s’encén. | La bateria està morta o mal instal·lada. | Replace the 9V battery or check its polarity. |
| Sense sensibilitat o sensació feble. | Electrodes not properly attached, electrodes are worn out, or intensity is too low. | Ensure electrodes are firmly attached to clean skin. Replace electrodes if worn. Slowly increase intensity. |
| La sensació és incòmoda o dolorosa. | La intensitat és massa alta. | Slowly decrease intensity until comfortable. |
| Electrodes do not stick. | Skin is oily/dirty, or electrodes are worn out. | Clean and dry skin thoroughly before application. Replace electrodes if they have lost adhesion. |
7. Especificacions
- Número de model: 1023
- Dimensions del producte: 8.98 x 2.13 x 7.64 polzades; 1.06 lliures
- Font d'alimentació: 1 bateria de 9 V (inclosa)
- Canals: 2 canals independents
- Programes: 8 pre-installed TENS programs
- Intensitat: Continuously adjustable, 0 - 80 mA
- Temporitzador: 15, 30, 60 minutes, and continuous operation
- Fabricant: Axion USA LLC
8. Garantia i Suport
For warranty information, please refer to the documentation included with your purchase or visit the official axion website. For technical support or further assistance, please contact axion customer service directly.
Informació de contacte: Please refer to the contact details provided on the product packaging or the official axion weblloc web per obtenir la informació d'assistència més actualitzada.
