Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your Hobbypower 1/10 Alloy & Carbon RWD Drift Racing Car Frame Body Kit. Please read this manual thoroughly before beginning assembly or operation to ensure proper function and longevity of your product.
The Hobbypower F124A is a Rear-Wheel Drive (RWD) 1:10 scale drift kit designed for beginners. Its weight is centered at the rear, and it features an ultra-wide-angle steering system, making it easier to handle and enjoy the drifting experience.
Producte acabatview
The Hobbypower F124A kit includes a robust frame and essential components for building a high-performance RWD drift car chassis. Key features include:
- Main Chassis, Upper Deck, Front and Rear Shock Towers
- 1-Belt Drive System
- KIT-D4RWD Internal Gear Ratio: 2.06
- Ultra Wide Angle Universal Driveshafts (65 degree)
- Height Adjustable Dampers & Full Bearing
- Wide Double-Wishbone Suspension
- 10 Degrees Front Caster Angle
- Adjustable Y Shaped Front Upper Suspension Arms
Figure 1: Assembled Hobbypower F124A chassis, highlighting the main structure and components.

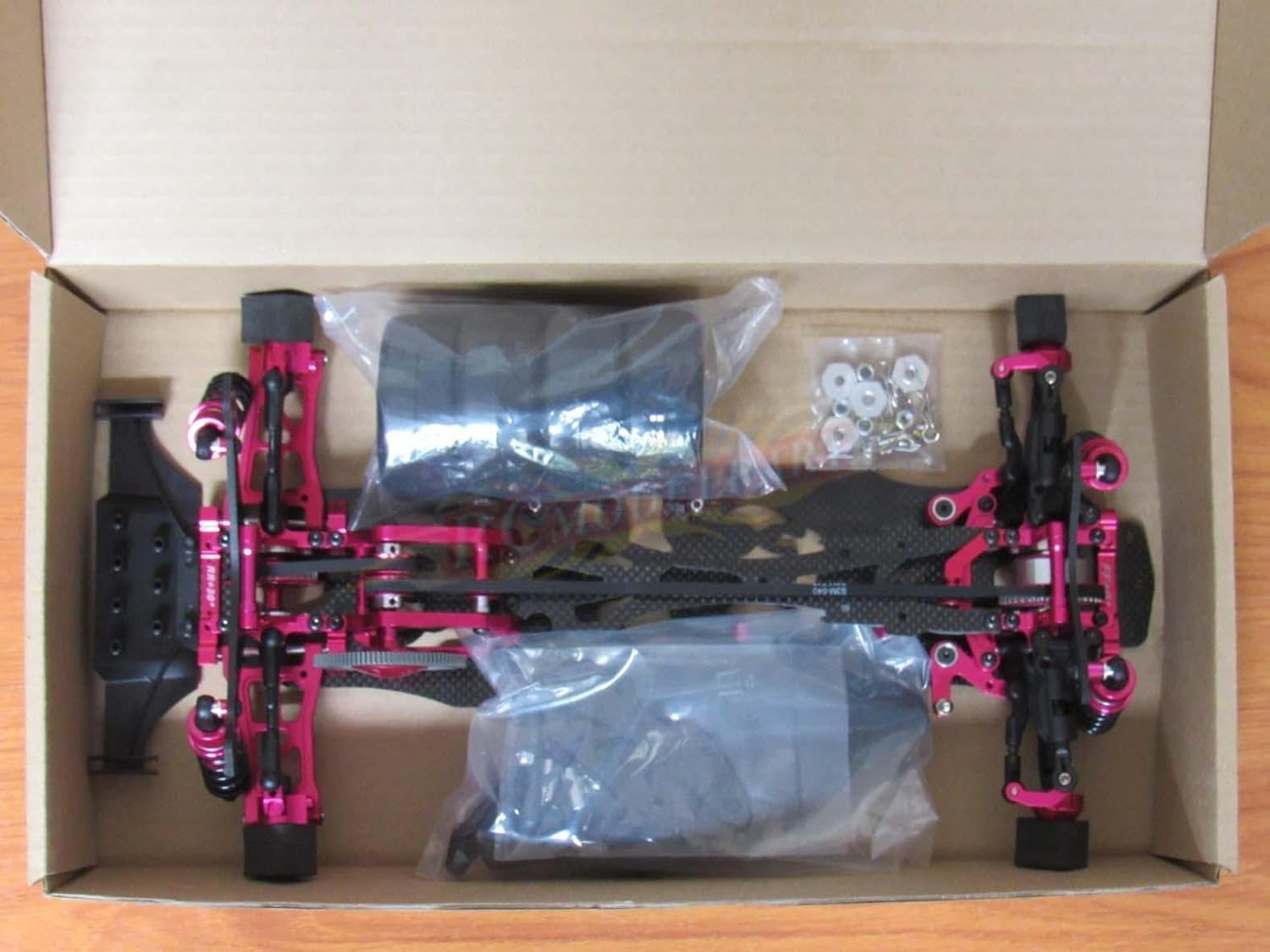

Figure 2: Unpacked components of the Hobbypower F124A kit, ready for assembly.
Muntatge i muntatge
The Hobbypower F124A is a kit that requires assembly. Follow the instructions carefully to ensure all components are correctly installed. While specific step-by-step instructions are not provided in this manual, the following videos demonstrate general assembly processes for similar RC chassis kits, which can serve as a helpful visual guide.
Assemblea acabadaview Vídeos:
Vídeo 1: Acabatview of a 1/10 Alloy & Carbon AWD 4WD Drift Racing Car Frame Body Kit assembly. This video provides a general visual guide for assembling an RC drift car chassis.
Video 2: Assembly demonstration for an Alloy & Carbon RC Chassis Frame Kit. Useful for understanding component placement and fastening.
Video 3: Assembly process for a MORLORDY 1/10 Sakura D5 MR Chassis Frame Kit. This video shows the detailed steps for putting together a similar drift chassis.
Video 4: Assembly of a MOHERO 1/10 RC Chassis Frame Kit for TT01 TT01E. Provides further visual guidance on chassis construction.
Ensure all screws are tightened appropriately, but avoid over-tightening to prevent stripping. Refer to the product's original packaging or manufacturer's website for specific torque recommendations if available.
Instruccions de funcionament
Once assembled and equipped with necessary electronics (motor, ESC, servo, receiver, battery, and body shell, which are sold separately), your Hobbypower F124A RWD drift car is ready for operation. This chassis is specifically designed for drifting, offering precise control and a responsive driving experience.
Tècniques de deriva:
- Direcció: The ultra-wide-angle steering system allows for significant steering lock, crucial for maintaining drift angles. Practice smooth and controlled steering inputs.
- Control de l'accelerador: RWD drifting heavily relies on precise throttle modulation to initiate and sustain slides. Experiment with feathering the throttle to control rear wheel spin.
- Weight Transfer: Utilize braking and acceleration to shift the car's weight, helping to break traction at the rear wheels and initiate a drift.
Video 5: Demonstration of an RC drift car in action, showcasing typical drifting maneuvers. This video illustrates the intended use and performance of a drift chassis.
Always operate your RC vehicle in a safe and open environment, away from pedestrians, animals, and obstacles. Ensure your battery is fully charged and your radio system is properly bound and calibrated before each use.
Manteniment
Regular maintenance is essential to keep your Hobbypower F124A in optimal condition and extend its lifespan.
Comprovacions rutinàries:
- Inspeccioneu els cargols: Regularly check all screws for tightness. Vibrations during operation can cause screws to loosen.
- Clean Chassis: After each use, clean the chassis to remove dirt, dust, and debris. Use a soft brush or compressed air.
- Check Bearings: Ensure all bearings spin freely. Replace any rough or seized bearings.
- Dampers: Inspect dampers for leaks and ensure smooth operation. Refill or replace damper oil as needed.
- Transmissió per corretja: Check the drive belt for tension and wear. Adjust tension if too loose or replace if damaged.
- Sistema de direcció: Verify that the steering links and knuckles move freely without excessive play.
Guardeu el kit en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.
Resolució de problemes
If you encounter issues with your Hobbypower F124A, consult the following common troubleshooting tips:
| Problema | Causa possible | Solució |
|---|---|---|
| Poor drifting performance | Incorrect setup, loose components, worn tires, improper electronics tuning. | Review assembly steps, tighten all screws, ensure tires are suitable for drifting, adjust electronic settings (e.g., gyro sensitivity, throttle curves). |
| Excessive play in steering | Loose steering linkages, worn ball joints, damaged servo. | Inspect and tighten steering components, replace worn parts, check servo function. |
| Sorolls inusuals durant el funcionament | Debris in drivetrain, worn gears, loose motor mount. | Clean drivetrain, inspect gears for damage and replace if necessary, ensure motor is securely mounted. |
| El cotxe tira cap a un costat | Uneven suspension setup, bent steering components, misaligned wheels. | Marqueu damper settings, inspect for bent parts, adjust wheel alignment (toe-in/toe-out). |
For persistent issues, consult online RC drifting communities or contact Hobbypower customer support.
Especificacions
- Dimensions del producte: 15.7 x 8 x 2.8 polzades
- Pes de l'article: 1.65 lliures
- Número de model de l'article: F124A
- Edat recomanada pel fabricant: 14 anys i més
- Sistema d'accionament: 1-Belt Drive
- Internal Gear Ratio: 2.06
- Eixos de transmissió: Ultra Wide Angle Universal (65 degree)
- Front Caster Angle: 10 graus
Garantia i Suport
This product is typically covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty information provided with your purchase or visit the Hobbypower official weblloc web per obtenir més informació sobre els termes i condicions de la garantia.
For technical support, replacement parts, or further assistance, please contact Hobbypower customer service through their official channels. Keep your purchase receipt and product model number (F124A) handy when seeking support.
