Telwin BRENNER MT15 MIG-MAG Welding Torch

1. Introducció

This manual provides essential information for the safe and effective use of your Telwin BRENNER MT15 MIG-MAG welding torch. Please read these instructions carefully before installation, operation, or maintenance. Proper understanding and adherence to these guidelines will ensure optimal performance and extend the lifespan of your equipment.

The Telwin MT15 is a professional MIG-MAG welding torch designed for various welding applications. It features a Euro connection and an air cooling system, making it compatible with a range of Telwin welding machines and other brands.

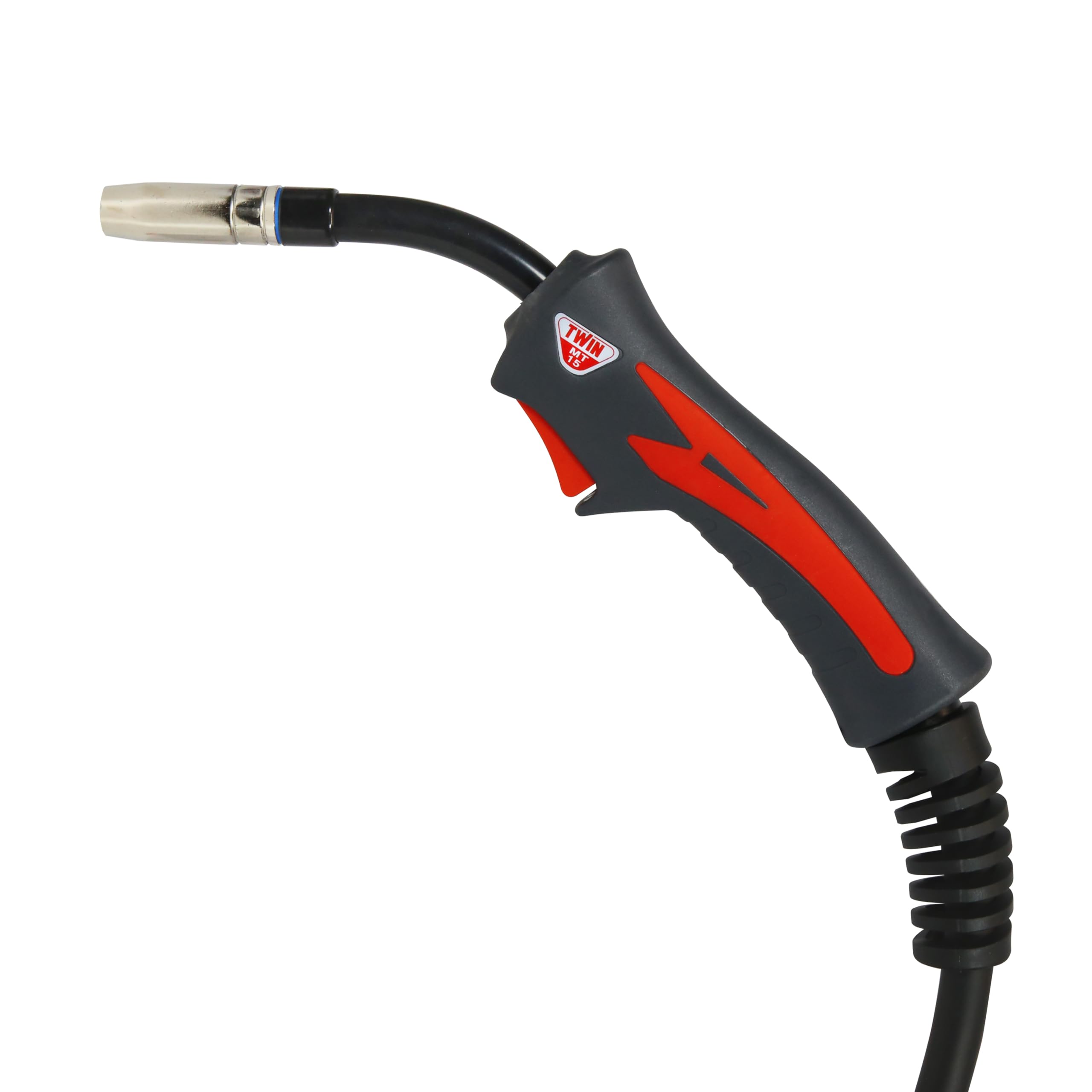

Image 1: The Telwin BRENNER MT15 MIG-MAG welding torch, showing the handle, trigger, and nozzle.

2. Informació de seguretat

WARNING: Welding operations can be dangerous and may cause injury or death. Always follow safety precautions to prevent electric shock, fire, explosions, burns, and other hazards.

• Descàrrega elèctrica: Ensure the welding machine is properly grounded. Do not touch live electrical parts. Wear dry welding gloves and protective clothing.
• Fums i gasos: Keep your head out of the fumes. Use adequate ventilation or exhaust at the arc to keep fumes and gases away from the breathing zone.
• Raigs d'arc: Wear a welding helmet with a proper shade filter to protect your eyes and face from arc rays. Wear protective clothing to protect skin.
• Incendi i explosió: Traieu tots els materials inflamables de la zona de soldadura. Tingueu a mà un extintor. No soldeu en recipients que hagin contingut combustibles.
• Cremades: Hot metal and electrodes can cause severe burns. Wear protective gloves and clothing.
• Manteniment: Disconnect power from the welding machine before performing any maintenance or changing parts on the torch.

3. Components del producte

The Telwin BRENNER MT15 welding torch consists of several key components:

• Torch Body/Handle: Ergonomically designed for comfortable grip and control during welding.
• Activador: Activates the welding process (wire feed and gas flow).
• Gooseneck/Neck: Connects the torch body to the nozzle assembly.
• Broquet: Directs the shielding gas to the weld pool.
• Consell de contacte: Electrically connects to the welding wire and transfers current to it. Must match wire diameter.
• Gas Diffuser: Distributes shielding gas evenly around the contact tip.
• Cable de soldadura: Carries welding current, shielding gas, and control signals from the welding machine to the torch.
• Euro Connection: Standardized connector for quick and secure attachment to compatible welding machines.

Imatge 2: acabatview of the Telwin BRENNER MT15 welding torch, highlighting its main parts.

4. Configuració i instal·lació

Follow these steps to properly set up your Telwin BRENNER MT15 welding torch:

1. Desconnecteu l'alimentació: Ensure the welding machine is turned off and disconnected from the power supply before connecting the torch.
2. Connect Torch to Welding Machine: The MT15 torch features a Euro connection. Align the Euro connector of the torch with the corresponding receptacle on your MIG-MAG welding machine. Push firmly and twist the locking nut clockwise until it is securely tightened.

Imatge 3: Primer pla view of the Euro connector on the Telwin BRENNER MT15 welding torch, showing the gas inlet and electrical pins.

3. Install Consumables:
   • Consell de contacte: Select a contact tip that matches the diameter of your welding wire (e.g., 0.6mm, 0.8mm, 1.0mm). Screw it firmly into the gas diffuser.
   • Gas Diffuser: Ensure the gas diffuser is clean and securely seated.
   • Broquet: Slide the nozzle over the gas diffuser and twist or push to secure it, depending on the nozzle type.
4. Càrrega de filferro de soldadura: Follow your welding machine's instructions for loading the welding wire through the wire feeder and into the torch liner. Ensure the wire diameter matches the drive rollers and contact tip.
5. Connect Shielding Gas: Connect the gas hose from your welding machine to the gas regulator on your shielding gas cylinder. Ensure all connections are tight to prevent leaks.
6. Encès: Once all connections are secure, you may connect the welding machine to the power supply and turn it on.

The Telwin MT15 torch is compatible with Telwin Telmig 195/2, 200/2, 203/2, 250/2 TURBO, Maxima 200, Maxima 230, Technomig 180 Euro, Technomig 210 Synergic, Mastermig 220/2, Technomig 215 Dual Synergic, Electromig 220 Synergic, Technomig 223 Treo, and Technomig 243 Wave machines. It can also be used with other welding machine brands that feature a Euro connection.

5. Instruccions de funcionament

Before operating, ensure all safety precautions are observed and the welding machine settings (voltage, wire speed, gas flow) are appropriate for your material and wire type.

1. Preparació de la peça de treball: Netegeu a fons la peça de treball per eliminar l'òxid, la pintura, l'oli o altres contaminants.
2. Terra Clamp: Enganxa el terra clamp fixat de manera segura a la peça o a la taula de soldadura, garantint un bon contacte elèctric.
3. Position Torch: Hold the torch comfortably with the nozzle positioned at the starting point of your weld. Maintain the correct stick-out (distance from contact tip to workpiece).
4. Iniciar l'arc: Press the trigger on the torch handle. This will initiate gas flow and wire feed, striking an arc.
5. Soldar: Move the torch steadily along the joint, maintaining a consistent travel speed and arc length. Observe the weld pool and adjust your technique as needed.
6. Finalitzar la soldadura: Release the trigger to stop the wire feed and gas flow. Allow the weld to cool before handling.

Image 4: The Telwin BRENNER MT15 welding torch, illustrating the full assembly including the Euro connector.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your welding torch. Always disconnect power from the welding machine before performing maintenance.

• Neteja el broquet: Periodically clean spatter from inside and outside the nozzle. Replace if it becomes excessively worn or damaged.
• Inspeccioneu la punta de contacte: Check the contact tip for wear, enlargement of the bore, or spatter build-up. Replace if worn, as this can lead to poor arc stability and wire feeding issues.
• Clean Gas Diffuser: Ensure the gas diffuser is free of spatter and debris to maintain proper gas flow.
• Comprova el folre: If wire feeding problems occur, the wire liner may be clogged or kinked. Consult your welding machine manual for liner inspection and replacement procedures.
• Inspeccionar el cable: Regularly check the welding cable for cuts, abrasions, or damage to the insulation. Damaged cables can pose an electrical hazard and affect performance.
• Euro Connection: Ensure the Euro connection remains clean and free of debris to maintain good electrical contact and gas flow.

7. Solució De Problemes

This section addresses common issues you might encounter with your welding torch.

8. Especificacions tècniques

• Model: Telwin BRENNER MT15
• Tipus de connexió: Connexió a l'euro
• Sistema de refrigeració: Refrigerat per aire
• Wire Diameter Compatibility: 0.6 - 1.0 mm
• Longitud del cable: 3 metres
• Compatibilitat: Telwin Telmig 195/2, 200/2, 203/2, 250/2 TURBO, Maxima 200, Maxima 230, Technomig 180 Euro, Technomig 210 Synergic, Mastermig 220/2, Technomig 215 Dual Synergic, Electromig 220 Synergic, Technomig 223 Treo, Technomig 243 Wave, and other compatible welding machines.

9. Garantia i Suport

For warranty information and technical support, please refer to the documentation provided with your welding machine or contact Telwin customer service directly. Keep your purchase receipt as proof of purchase.
