BESTEK 6-Outlet Surge Protector Power Strip

Introducció

This manual provides essential information for the safe and effective use of your BESTEK 6-Outlet Surge Protector Power Strip, Model BJ6005-FBA. Please read these instructions carefully before use and retain them for future reference. This power strip is designed to provide additional power outlets and basic surge protection for your electronic devices.

Instruccions importants de seguretat

Per reduir el risc de descàrrega elèctrica, incendi o lesions, seguiu sempre aquestes precaucions de seguretat bàsiques:

• Do not exceed the electrical ratings of 15A, 1875W, and 125V.
• No utilitzeu en ambients humits ni a prop de l'aigua.
• No utilitzar amb aquaris ni altres productes relacionats amb l'aigua.
• Do not use with extension cords that are not grounded.
• No desmunteu ni modifiqueu la unitat.
• Assegureu-vos que el reglet d'endolls estigui connectat a una presa de corrent amb connexió a terra.
• Keep children away from the power strip and connected devices.
• Unplug the power strip from the wall outlet when not in use or before cleaning.

Característiques del producte

The BESTEK 6-Outlet Surge Protector Power Strip offers the following features:

• 6 preses de corrent alterna: Provides power for multiple electronic devices.
• Protecció contra sobretensions de 200 ​​joules: Offers basic protection against power surges for small appliances, phones, and lamps.
• Integrat 15-Amp Tallacircuits: Protects against overload, overheating, and short circuits.
• Lighted Power Switch: Indicates when the power strip is active and allows for easy control.
• 6-Foot 14 AWG Power Cord: Durable and long enough for flexible placement.
• Right-Angle Flat Plug: Designed to fit in tight spaces and keep cords close to the wall.
• Keyhole Mounting Tabs: For secure installation on walls or under desks.
• Disseny prim: Reduces clutter and fits easily in various environments.
• Detachable Velcro Cord Management: Helps keep the power cord organized.
• Llistat per ETL: Certificat per estàndards de seguretat i qualitat.

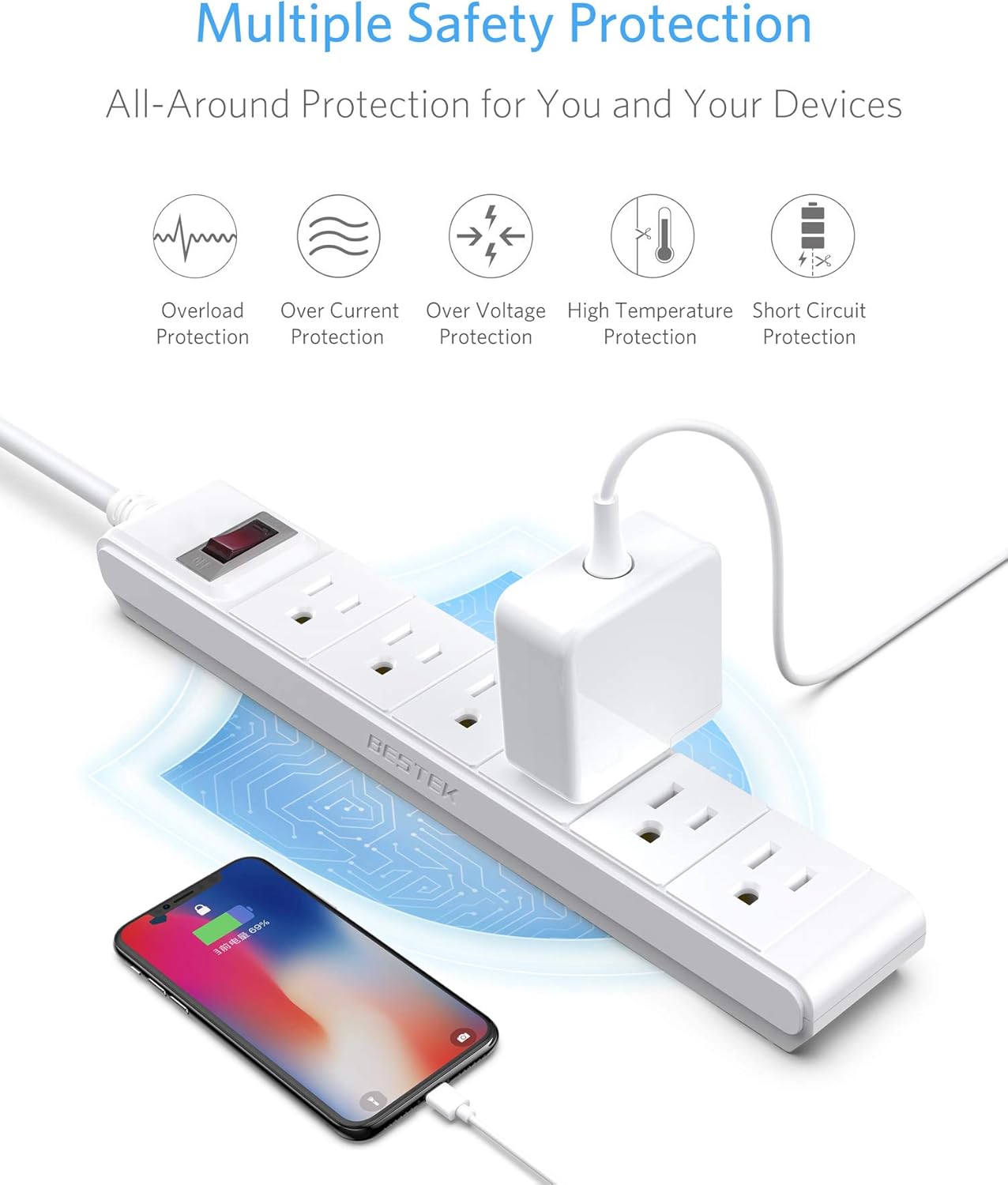

Image: The power strip illustrating its multiple safety protections including overload, over current, over voltage, high temperature, and short circuit protection. A phone is shown charging from one of the outlets.

Image: The power strip with its dimensions (10.83 inches long, 1.76 inches wide, 1.18 inches thick), highlighting its slim and sleek design.

Imatge: Una explosió view of the power strip, revealing its internal structure with phosphor bronze conductors, a 15A overload protection switch, and UL94V-0 flame-retardant alloy plastic casing.

Image: A close-up of the power cord, emphasizing the UL Certified SJT 3x14AWG strong copper wire, designed for efficient electricity conduction with low loss and heat.

Configuració

1. Desembalar: Traieu amb cura el reglet d'endolls del seu embalatge.
2. Col·locació: Position the power strip in a dry indoor location, away from heat sources and direct sunlight. Ensure the 6-foot cord can reach a wall outlet without being stretched or obstructed.
3. Muntatge (opcional): If desired, use the keyhole mounting tabs on the back of the power strip to secure it to a wall or desk surface using appropriate screws (not included).
4. Connectar: Insert the power strip's right-angle flat plug into a standard 3-prong, 125V AC grounded wall outlet.
5. Connexió de dispositius: Plug your electronic devices into the 6 AC outlets on the power strip. Ensure the total power consumption of all connected devices does not exceed 1875W.

Image: The power strip positioned on a wooden table, with a phone charging and a small plant, demonstrating a typical setup.

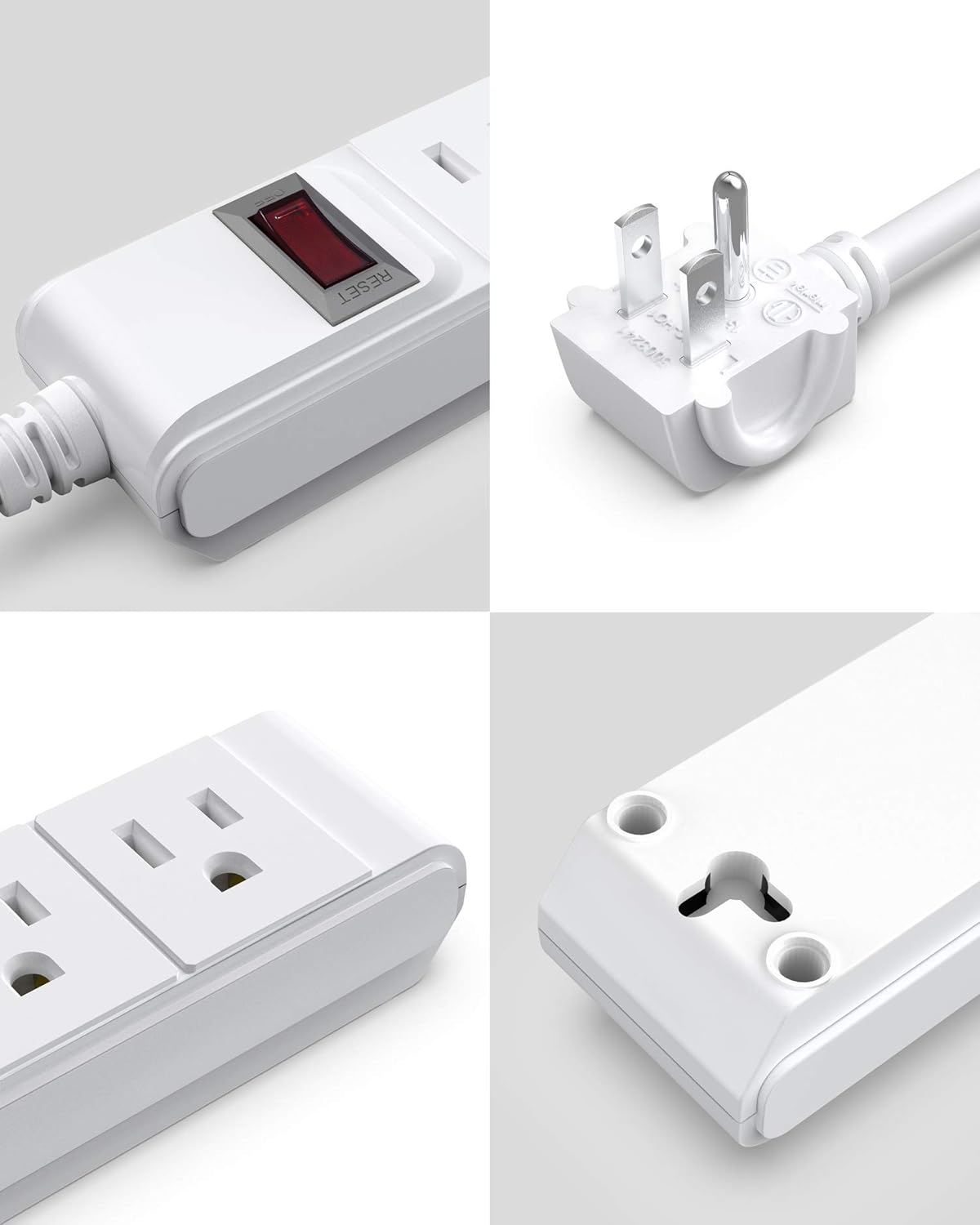

Image: A collage of close-up views showing the lighted power switch with reset button, the right-angle flat plug, the wide-spaced AC outlets, and the keyhole mounting tabs on the back of the unit.

Instruccions de funcionament

1. Encès/apagat: Press the red lighted power switch to turn the power strip on or off. When the switch is illuminated, power is supplied to the outlets.
2. Protecció contra sobretensions: The power strip provides basic surge protection. In the event of a power surge, the internal components are designed to absorb excess voltage to protect connected devices.
3. Protecció de sobrecàrrega: The integrated 15-Amp circuit breaker will automatically trip (turn off) if the total current draw from connected devices exceeds 15 Amps (1875 Watts). This prevents overheating and potential damage.

Manteniment

• Neteja: Desconnecteu el reglet de la presa de corrent abans de netejar-lo. Feu servir un drap sec i suau per netejar l'exterior. No utilitzeu netejadors líquids ni aerosols.
• Gestió de cordons: Use the included detachable Velcro strap to keep the power cord neatly organized when not in full extension.
• Inspecció: Periodically inspect the power strip and its cord for any signs of damage, such as frayed wires or cracked casing. Si es detecten danys, interrompeu l'ús immediatament.

Resolució de problemes

• Sense corrent a les preses de corrent:
  • Check if the power strip's lighted switch is ON.
  • Assegureu-vos que la regleta està ben connectada a una presa de corrent que funcioni.
  • If the switch is OFF and won't turn ON, the integrated 15-Amp circuit breaker may have tripped due to an overload. Unplug some devices, then press the switch to reset it.
  • Check your home's circuit breaker panel to ensure the wall outlet's circuit has not tripped.
• Device Not Charging/Working:
  • Ensure the device is properly plugged into the power strip.
  • Proveu el dispositiu connectant-lo directament a una presa de corrent que se sàpiga que funciona.
  • Verify the device's power cord is not damaged.

Especificacions

Image: The underside of the power strip, displaying the ETL Listed certification mark and keyhole mounting tabs.

Garantia i Suport

BESTEK provides an 18-month warranty for this product. For warranty claims, technical assistance, or customer service inquiries, please contact BESTEK customer support through their official website or the retailer where the product was purchased. Please have your model number (BJ6005-FBA) and purchase information ready when contacting support.
