Introducció
This manual provides comprehensive instructions for the operation and maintenance of your ONN X5 HiFi Music Player. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your listening experience. The ONN X5 is designed to deliver high-fidelity audio playback in a compact and user-friendly format.
Producte acabatview
The ONN X5 is a portable HiFi music player featuring a 2.0-inch TFT screen and an aluminum alloy shell. It supports a wide range of audio formats, including lossless files, and offers expandable storage via a MicroSD card.
Característiques principals:
- Àudio d'alta fidelitat: Supports WAV, FLAC, ALAC, APE, OGG lossless formats, and high-definition music up to 24Bit/192 KHz.
- Visualització: 2.0-inch TFT screen (176x220 pixels) for clear navigation and information display.
- Emmagatzematge: 8GB internal memory, expandable up to 32GB with a MicroSD/TF card.
- Disseny durador: Lightweight aluminum alloy body (60g) for enhanced durability and reduced external interference noise.
- Interfície d'usuari: Intuitive key-based operation.
- Característiques addicionals: FM Radio support.
- Bateria: High-capacity rechargeable lithium polymer battery.
- Suport multi-idioma: English, Russian, Korean, German, Japanese, Polish, Indonesian, Chinese.
Disseny del dispositiu:

Imatge: Frontal view of the ONN X5 HiFi Music Player, showing its display and control buttons. The screen displays track information, audio quality (e.g., 24BIT, 88HHZ), and playback status.

Imatge: Lateral view of the ONN X5 HiFi Music Player, illustrating the location of the MicroSD card slot on the right side of the device.

Imatge: Anvers i revers view of the ONN X5 HiFi Music Player. The back panel shows the model number "X5" and branding information.
Configuració
1. Càrrega del dispositiu:
- Connect the ONN X5 to a power source using the provided USB cable.
- L'indicador de bateria a la pantalla mostrarà l'estat de càrrega.
- A full charge is recommended before first use. The device uses a high-capacity rechargeable lithium polymer battery.
2. Inserting a MicroSD/TF Card:
- Locate the MicroSD/TF card slot on the side of the player.
- Gently insert a compatible MicroSD/TF card (up to 32GB) into the slot until it clicks into place.
- Ensure the card is inserted correctly to avoid damage.

Image: Contents of the ONN X5 package, showing the player, USB charging cable, and other accessories. This illustrates the components available for setup.
3. Transferència de música Files:
- Connect the ONN X5 to your computer using the USB cable.
- The device will appear as a removable storage drive.
- Arrossega i deixa anar l'àudio que vulguis files (MP3, WMA, APE, FLAC, WAV, ALAC, OGG) into the player's internal storage or the MicroSD card.
- Expulseu el dispositiu de l'ordinador de manera segura abans de desconnectar el cable USB.
Instruccions de funcionament
Encès/apagat:
- To power on, press and hold the power button (usually marked with a universal power symbol) until the screen illuminates.
- Per apagar, manteniu premut el botó d'engegada fins que el dispositiu s'apaga.
Navegació:
The ONN X5 uses physical buttons for navigation. Refer to the device layout for button identification.
- VOL: Ajusta el volum.
- M (Menú): Accedeix als menús i confirma les seleccions.
- Arrow Buttons (< / >): Navigate through menus, select tracks, or fast forward/rewind during playback.
- Botó d'encesa: Also functions as a play/pause button during music playback.

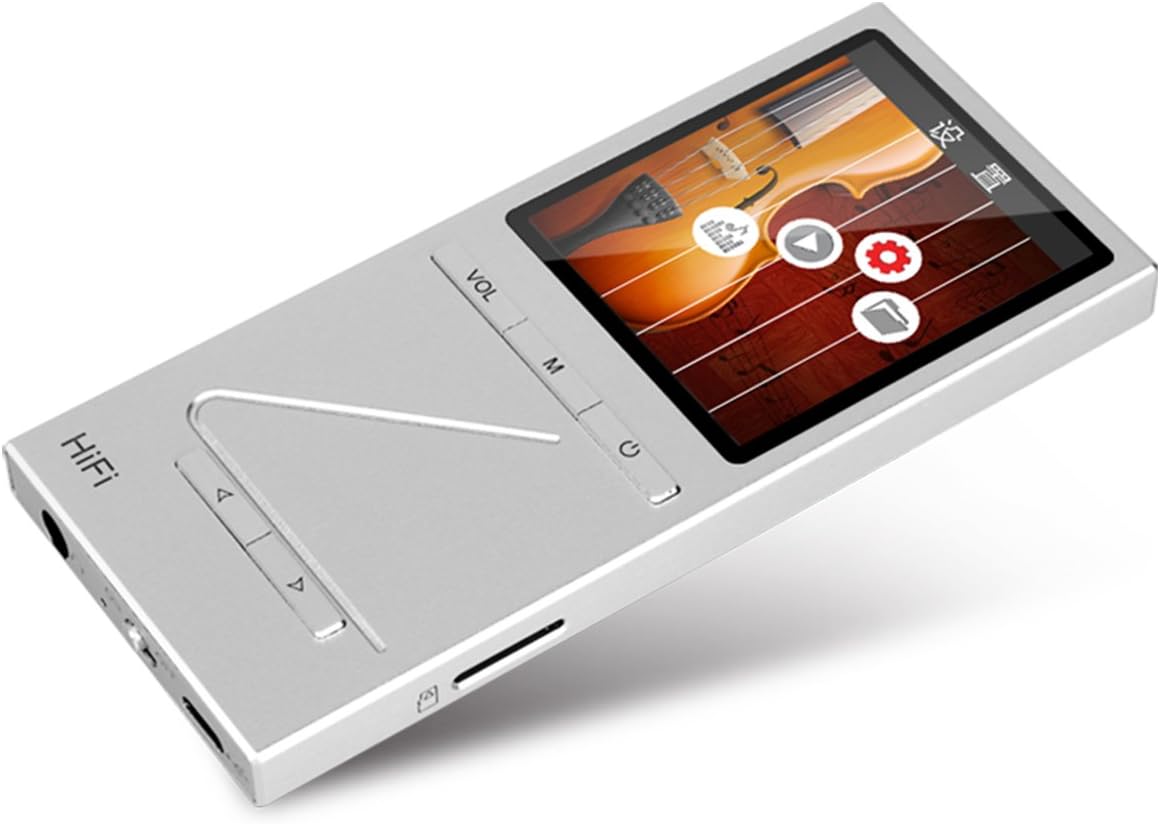

Imatge: Anglesa view of the ONN X5 HiFi Music Player, showing the screen with various menu icons, indicating the user interface for navigation.
Reproducció de música:
- From the main menu, navigate to "Music" or "Files".
- Browse through your folders and select a track to play.
- Press the Power/Play button to start or pause playback.
- Use the arrow buttons to skip tracks or fast forward/rewind.
- Adjust volume using the VOL button.
Ràdio FM:
- Navigate to the "FM Radio" option from the main menu.
- Feu servir els botons de navegació per cercar emissores o sintonitzar manualment una freqüència.
- Ensure headphones are connected as they often act as the antenna for FM radio.
Configuració d'idioma:
El dispositiu admet diversos idiomes. Per canviar l'idioma:
- Go to "Settings" from the main menu.
- Select "Language" and choose your preferred language from the list (English, Russian, Korean, German, Japanese, Polish, Indonesian, Chinese).
Manteniment
- Neteja: Feu servir un drap suau i sec per netejar el dispositiu. Eviteu netejadors líquids o materials abrasius.
- Emmagatzematge: Guardeu el reproductor en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu durant períodes prolongats.
- Evitar l'impacte: The aluminum alloy shell provides durability, but avoid dropping the device or subjecting it to strong impacts.
- Exposició a l'aigua: Aquest dispositiu no és impermeable. Eviteu l'exposició a l'aigua o a una humitat elevada.
Resolució de problemes
Device Will Not Power On:
- Ensure the battery is charged. Connect the device to a power source and allow it to charge for at least 30 minutes before attempting to power on again.
- Try performing a hard reset (if applicable, refer to manufacturer's specific instructions for hard reset, usually involves holding power button for an extended period).
Sense so:
- Comproveu el nivell de volum i assegureu-vos que no estigui silenciat.
- Verify that headphones or external speakers are properly connected.
- Test with different headphones or audio output devices.
- Assegureu-vos l'àudio file no està malmès ni en un format no compatible.
Cannot Transfer Files:
- Assegureu-vos que el cable USB estigui connectat correctament tant al reproductor com a l'ordinador.
- Prova un port USB diferent de l'ordinador o un cable USB diferent.
- Verify that the device is recognized by your computer as a removable drive.
- Check if the MicroSD card is properly inserted and not full.
Screen Not Responding / Frozen:
- Press and hold the power button for approximately 10-15 seconds to force a restart.
- If the issue persists, ensure the battery is charged.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | X5 |
| Marca | ONN |
| Mida de la pantalla | 2.0 Inches TFT (176x220 PIXEL) |
| Memòria interna | 8 GB |
| Emmagatzematge ampliable | MicroSD/TF card up to 32 GB |
| Formats d'àudio compatibles | APE, FLAC, ALAC, WAV, WMA, OGG, MP3 (up to 24Bit/192 KHz) |
| Tecnologia de connectivitat | Auxiliar, USB |
| Característica especial | Ràdio FM |
| Bateria | 1 Lithium Ion battery required (High-capacity rechargeable lithium polymer) |
| Pes de l'article | 7 unces (aprox. 0.2 quilograms) |
| Dimensions del paquet | 6.21 x 4.7 x 1.2 polzades |
| Fabricant | SZTZWY |
Garantia i Suport
For detailed warranty information, please refer to the warranty card included with your purchase or visit the official ONN product support website. For technical assistance or further inquiries, please contact ONN customer support through their official channels.
