GEFU TRANSFORMA Meat Mincer Instruction Manual

Introducció

Thank you for choosing the GEFU TRANSFORMA Meat Mincer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read these instructions thoroughly before first use and keep them for future reference.

Instruccions importants de seguretat

• Always ensure the mincer is securely attached to a stable, flat surface before operation.
• Keep fingers and utensils away from moving parts during operation. Use the provided food pusher.
• Do not attempt to mince bones, frozen meat, or other hard materials as this can damage the appliance.
• Disassemble and clean all parts thoroughly after each use to prevent bacterial growth.
• Mantenir fora de l'abast dels nens.
• Handle sharp blades and cutting discs with extreme care.

Parts acabadesview

Familiarize yourself with the components of your GEFU TRANSFORMA Meat Mincer.

Imatge: Acabatview of the GEFU TRANSFORMA Meat Mincer components, including the main body, crank handle, feeding tray, and various attachments. The food pusher also functions as a key for changing attachments.

• Main Housing with Suction Base
• Maneta de manovella
• Feeding Tray
• Food Pusher (also functions as a key for changing attachments)
• Mincing Screw (Auger)
• Fulla
• Cutting Discs (various sizes)
• Anell de bloqueig
• Sausage Stuffer Attachment (if included)
• Cookie/Pastry Attachment (if included)

Muntatge i muntatge

1. Components nets: Before first use, wash all parts that will come into contact with food in warm soapy water. Rinse thoroughly and dry completely.
2. Assegureu la base: Place the mincer on a clean, smooth, and dry countertop. Press down firmly on the main housing to engage the suction base. For added stability, use the integrated counter clamp if your surface allows.
3. Assemble the Mincer Head:
   • Insert the mincing screw (auger) into the main housing.
   • Place the blade onto the end of the mincing screw, ensuring the sharp edge faces outwards towards the cutting disc.
   • Select the desired cutting disc and place it over the blade.
   • Screw on the locking ring firmly to secure the blade and cutting disc. The food pusher can be used as a key to tighten or loosen the locking ring.
4. Attach the Crank Handle: Slide the crank handle onto the shaft at the rear of the mincer and secure it.
5. Col·locar la safata d'alimentació: Position the feeding tray on top of the main housing.

Imatge: The GEFU TRANSFORMA Meat Mincer assembled and ready for use, with meat cubes in the feeding tray, demonstrating its multifunctional capability.

Instruccions de funcionament

Mincing Meat or Vegetables:

1. Prepare your ingredients by cutting them into pieces that fit easily into the feeding tray opening. For best results with meat, ensure it is chilled but not frozen.
2. Place a bowl or container under the mincer outlet to collect the minced product.
3. Feed the ingredients into the feeding tray. Use the food pusher to gently guide the ingredients down into the mincing screw. No utilitzeu mai els dits ni altres estris.
4. Turn the crank handle clockwise at a steady pace. The ingredients will be processed and exit through the cutting disc.
5. Continue until all ingredients are minced.

Imatge: The GEFU TRANSFORMA Meat Mincer actively mincing meat, demonstrating its high-quality construction and efficient operation.

Making Cookies/Pastries:

1. Disassemble the mincer head. Remove the blade and cutting disc.
2. Attach the cookie/pastry attachment to the mincer head, ensuring it is securely fastened with the locking ring.
3. Prepare your cookie dough according to your recipe. The dough should be firm enough to hold its shape but pliable enough to pass through the mincer.
4. Feed the dough into the feeding tray.
5. Turn the crank handle. The dough will be extruded in the desired shape. Cut to length as it emerges.

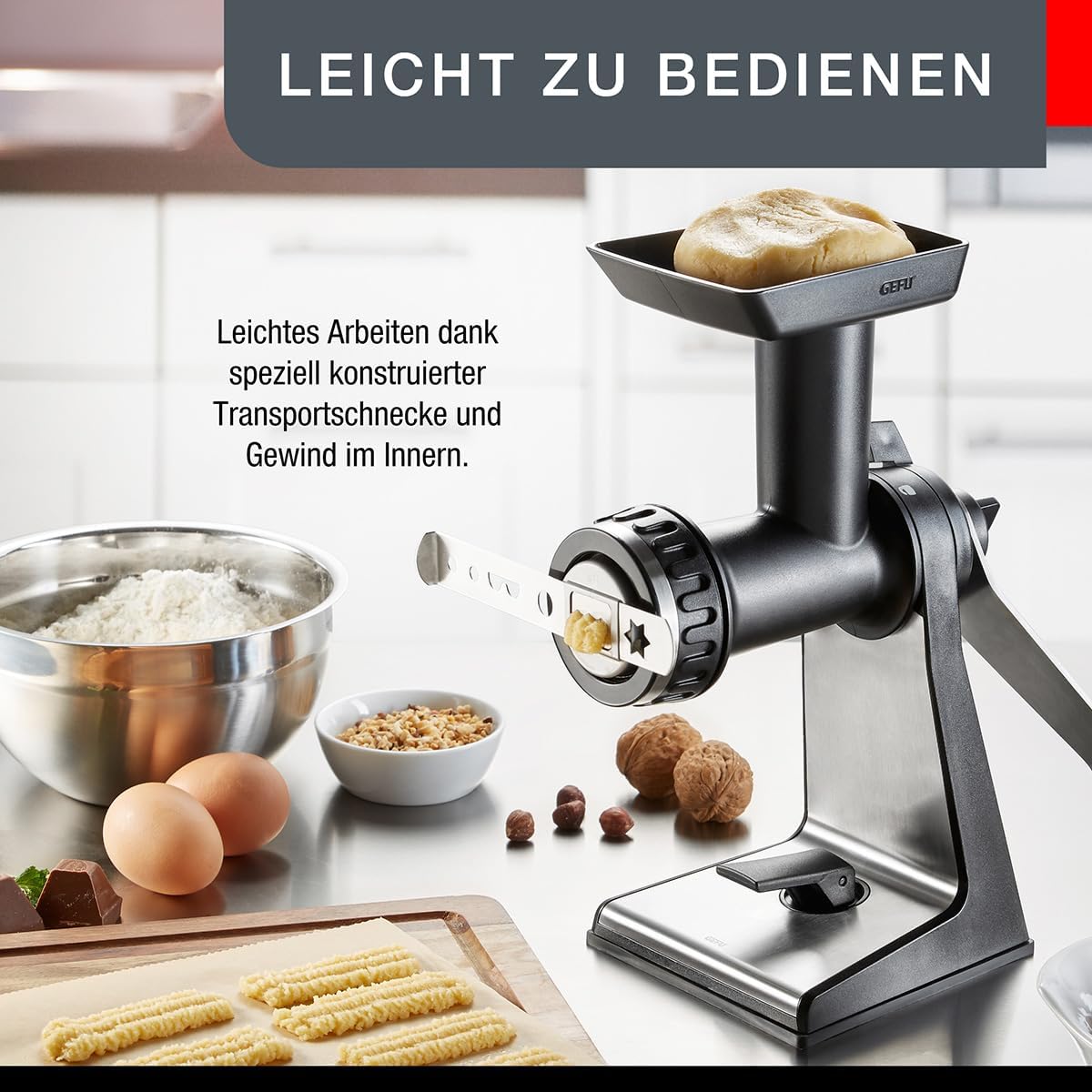

Imatge: The GEFU TRANSFORMA Meat Mincer extruding cookie dough, highlighting its ease of use and versatility for baking.

Making Sausages:

1. After mincing your meat, remove the cutting disc and blade.
2. Attach the sausage stuffer attachment to the mincer head, securing it with the locking ring.
3. Feu lliscar una salsitxa preparada casing onto the stuffer nozzle.
4. Feed the minced meat into the feeding tray.
5. Turn the crank handle slowly and steadily, guiding the meat into the casing. Support the casing as it fills to prevent bursting.

Cura i Manteniment

• Desmuntatge: After each use, completely disassemble the mincer by unscrewing the locking ring (using the food pusher as a key), removing the cutting disc, blade, and mincing screw.
• Neteja: Wash all removable parts immediately after use in warm, soapy water. Use a brush to remove any food residue from the cutting disc and blade. Rinse thoroughly.
• Apte per a rentavaixelles: Most parts of the GEFU TRANSFORMA Meat Mincer are dishwasher safe, with the exception of the main housing with the suction base. Refer to the product packaging for specific dishwasher compatibility.
• Assecat: Dry all components completely before reassembly or storage to prevent rust on metal parts and ensure hygiene.
• Emmagatzematge: Store the clean, dry mincer and its attachments in a safe place.

Resolució de problemes

Especificacions

• Model: GF19090
• Marca: GEFU
• Material: Acer inoxidable, plàstic
• Color: Negre
• Dimensions (L x A x A): Aproximadament 14.96 x 5.31 x 15.94 polzades (38 x 13.5 x 40.5 cm)
• Pes de l'article: Aproximadament 2.75 lliures (1.25 kg)
• Funcions: Meat Mincer, Sausage Maker, Cookie Maker

Imatge: The GEFU TRANSFORMA Meat Mincer displaying its compact design and key dimensions for storage and placement.

Informació de la garantia

The GEFU TRANSFORMA Meat Mincer is backed by a Garantia del fabricant de 5 anys. This warranty covers defects in materials and workmanship under normal household use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official GEFU weblloc o contacteu amb el servei d'atenció al client.

Atenció al client

For assistance, spare parts, or further information regarding your GEFU TRANSFORMA Meat Mincer, please visit the official GEFU weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.

GEFU Official Weblloc: www.gefu.com

(Please note: Specific contact details may vary by region. Refer to the weblloc web per obtenir informació d'assistència local.)
