1. Introducció
Thank you for choosing CHANZON 5mm Green LED Diode Lights. This manual provides essential information for the safe and effective use of your new electronic components. These high-brightness LEDs are ideal for a wide range of applications, from DIY PCB circuits and Arduino projects to science experiments and indicator lights.
Si us plau, llegiu aquest manual detingudament abans d'utilitzar-lo i conservi'l per a futures consultes.
2. Informació de seguretat
Always observe the following safety precautions when working with electronic components:
- Ensure power is disconnected before handling or installing LEDs.
- Do not exceed the specified forward voltage (DC 3V - 3.2V) or current (20mA) to prevent damage to the LED.
- Observe correct polarity: the longer leg is the Anode (+) and the shorter leg is the Cathode (-). Incorrect polarity will prevent the LED from lighting and may cause damage.
- Avoid direct eye exposure to the illuminated LED, as the bright light can be intense.
- Keep LEDs and other small electronic components out of reach of children.
- Handle components with care to avoid bending or breaking the leads.
3. Producte acabatview
The CHANZON 5mm Green LED Diode Lights are clear, round, transparent light-emitting diodes designed for various electronic applications. Each package contains 100 pieces of these high-quality LEDs.

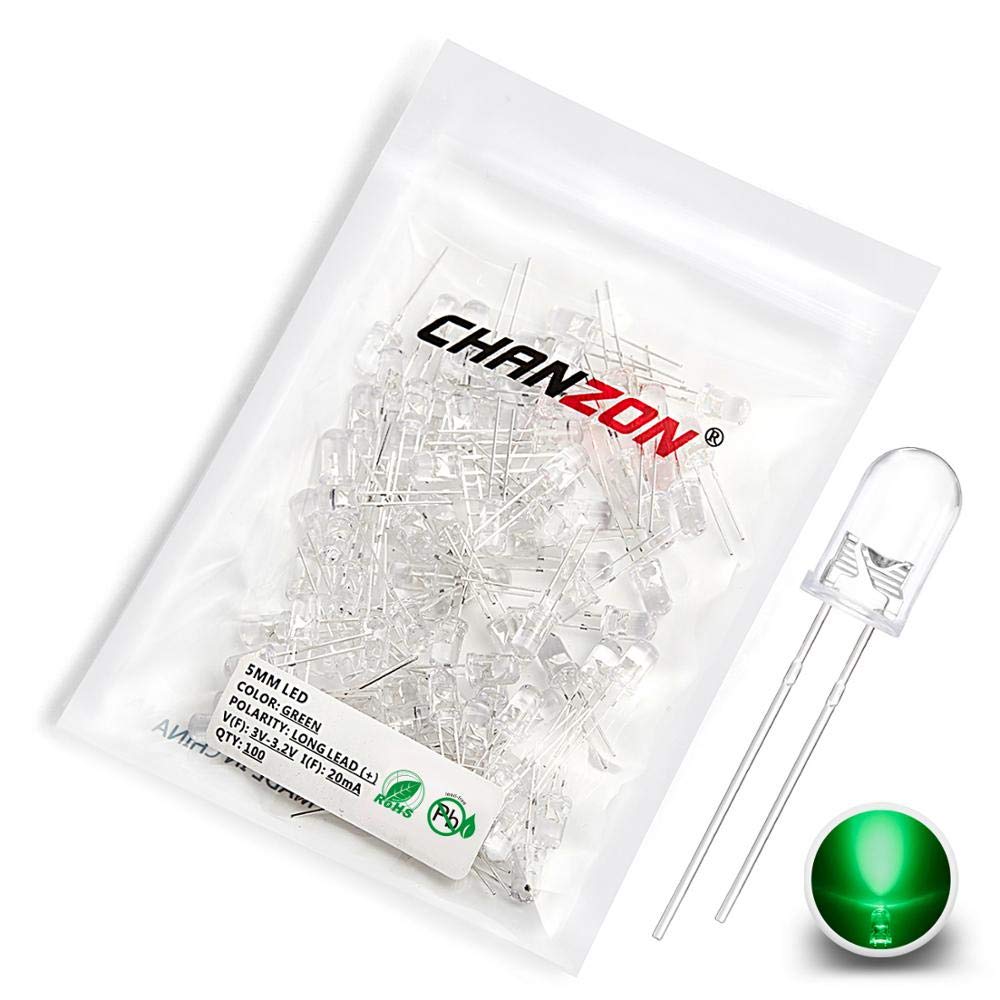

Image: Packaging of CHANZON 5mm Green LED Diode Lights, showing a bag of 100 LEDs, a single unlit LED, and a glowing green LED.
Image: A detailed close-up of a single 5mm clear round transparent LED diode, highlighting its two leads.
Image: A single 5mm green LED diode illuminated, showcasing its bright green light output.
Image: A pile of multiple CHANZON 5mm green LED diodes, demonstrating the quantity included in the package.
These LEDs are characterized by their high luminous intensity and low power consumption, making them suitable for various electronic projects.
Característiques del producte:
- Color: Verd
- Longitud d'ona: 515-520 nm
- Intensitat lluminosa: 1500-1800 mcd (High Brightness)
- Viewangle: 30 graus
- Tipus de lent: Clear Transparent Round
- Conductors: Through Hole DIP 2-pins
Visual Demonstration:
Video: This video demonstrates various CHANZON LED diode lights, including 3mm and 5mm sizes, and both clear transparent and diffused round lens types, showcasing their appearance and how they look when illuminated on a breadboard.
4. Especificacions
Detailed technical specifications for the CHANZON 5mm Green LED Diode Lights:
| Paràmetre | Valor |
|---|---|
| Color | Verd |
| Longitud d'ona | 515-520 nm |
| Intensitat lluminosa | mcd-1500 1800 |
| Endavant Voltage (Vf) | CC 3V - 3.2V |
| Forward Current (If) | 20 mA |
| Viewangle ing | 30 graus |
| Tipus de lent | Clear Round Transparent |
| Tipus de plom | Through Hole DIP 2-pins |
| Diàmetre | 5 mm (F5) |
| Temperatura de funcionament | -25°C to +80°C (Typical) |
| Temperatura d'emmagatzematge | -40°C to +100°C (Typical) |
| Dimensions del producte | 6.3 x 5.51 x 0.71 polzades (paquet) |
| Pes de l'article | 0.63 ounces (package) |
Image: A table detailing specifications for 5mm clear lens LEDs across different colors, including wavelength, luminous intensity, forward voltage, i viewangle de ing.
Image: A technical drawing illustrating the precise dimensions of a 5mm LED diode, including lens diameter, lead length, and spacing.
5. Configuració i instal·lació
Proper setup is crucial for the functionality and longevity of your LEDs. Follow these steps for installation:
- Identify Polarity: LEDs are diodes and are polarity-sensitive. The longer lead is the Anode (+) and the shorter lead is the Cathode (-).
- Current Limiting Resistor: Always use a current-limiting resistor in series with the LED to prevent overcurrent and damage. The resistor value depends on your power supply voltage and the LED's forward voltage/current. A common calculation is R = (Vs - Vf) / If, where Vs is supply voltage, Vf is LED forward voltage (approx. 3.2V for green), and If is LED forward current (0.02A).
- Connexió: Connect the Anode (+) of the LED to the positive terminal of your power supply (or through the resistor to the positive supply). Connect the Cathode (-) of the LED to the negative (ground) terminal of your power supply.
- Muntatge: Insert the LED leads into a breadboard, PCB, or other suitable mounting solution. Ensure leads are not short-circuited.
Image: An illustration of LEDs integrated into an Arduino project and experiment, demonstrating their application in circuit building.
6. Instruccions de funcionament
Once properly installed with a current-limiting resistor, apply power to your circuit. The LED should illuminate brightly. If it does not, refer to the Troubleshooting section.
Aplicacions típiques:
- DIY PCB Circuits
- Arduino and Raspberry Pi Projects
- Electrònica d'afició
- Science Experiments
- Indicator Lights for Electronic Devices
- Educational Kits
Image: A collage illustrating diverse applications of LEDs, including science experiments, industrial uses, and decorative lighting, highlighting their versatility.
7. Manteniment
CHANZON LEDs are designed for long working life and require minimal maintenance. Follow these guidelines:
- Neteja: If necessary, gently wipe the LED lens with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Emmagatzematge: Store unused LEDs in their original packaging or in an anti-static bag in a cool, dry place to protect them from moisture and physical damage.
- Manipulació: Always handle LEDs by their body, not by the leads, to prevent bending or breaking.
8. Solució De Problemes
If your LED is not functioning as expected, consider the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El LED no s'encén | Polaritat incorrecta | Reverse the LED. Ensure the longer leg (Anode +) is connected to the positive supply and the shorter leg (Cathode -) to ground. |
| El LED no s'encén | No power or insufficient voltage | Comproveu les connexions de la font d'alimentació i assegureu-vos del volumtage es troba dins del rang especificat (3 V-3.2 V). |
| El LED no s'encén | Missing or incorrect current-limiting resistor | Ensure a suitable current-limiting resistor is in series with the LED. Calculate the correct value based on your supply voltage. |
| El LED és tènue | Insuficient corrent o voltage | Verify your power supply and resistor calculation. The LED requires 20mA for optimal brightness. |
| LED burns out quickly | Overcurrent (no resistor or too low resistance) | Always use a current-limiting resistor. Ensure its value is correctly calculated to limit current to 20mA. |
| Physical damage to leads | Manipulació brusca | Handle LEDs carefully by the body. Avoid excessive bending or stress on the leads. |
9. Què hi ha a la caixa
Your package of CHANZON 5mm Green LED Diode Lights includes:
- 100 x 5mm Green LED Diodes (Clear Round Transparent)
10. Garantia i Suport
CHANZON products are manufactured to high-quality standards. For any questions, technical assistance, or support regarding your CHANZON 5mm Green LED Diode Lights, please contact CHANZON customer service through the retailer's platform where you made your purchase. Please provide your order details and a clear description of the issue for prompt assistance.
For more information about CHANZON products, visit the official CHANZON Store on Amazon.
