Introducció
This manual provides essential information for the safe and effective use of your Chanzon 5mm Blue LED Diode Lights. These are clear round transparent light-emitting diodes designed for various electronics projects and lighting applications. Each pack contains 100 pieces, offering super bright blue illumination at DC 3V 20mA.
Configuració
Before connecting the LEDs, ensure your power source matches the specified voltage and current requirements to prevent damage. These LEDs are designed for DC 3 Volt operation with a typical current of 20 mA.
Polaritat
LEDs are polarized components, meaning they must be connected in the correct orientation. Incorrect polarity will prevent the LED from lighting up and could potentially damage it if excessive voltage s'aplica.
- Anode (+): The longer lead of the LED. This connects to the positive terminal of your power supply.
- Cathode (-): The shorter lead of the LED. This connects to the negative (ground) terminal of your power supply.
Instruccions de funcionament
These 5mm blue LEDs operate optimally at a forward voltage of 3 Volts and a forward current of 20 mA. It is recommended to use a current-limiting resistor in series with the LED to protect it from excessive current, especially when using a power supply higher than 3V. Consult an LED resistor calculator for appropriate resistor values based on your power supply voltage.
Aplicacions típiques
- DIY PCB Circuits
- Arduino Projects and Experiments
- Llums indicadores
- Hobby Projects
- Educational Electronics

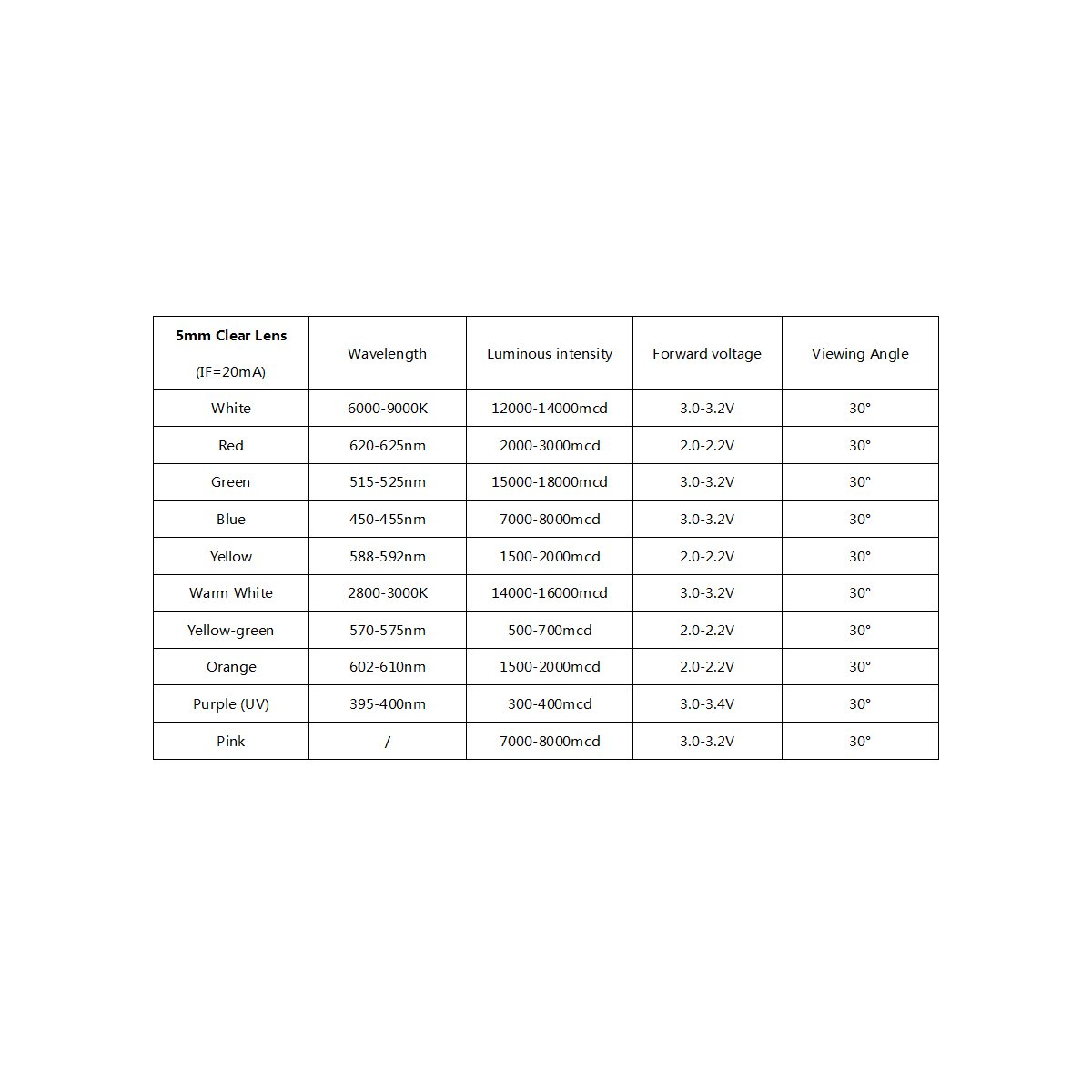

Especificacions
Detailed technical specifications for the Chanzon 5mm Blue LED Diode Lights:
| Atribut | Valor |
|---|---|
| Tipus de producte | LED Diode Lights |
| Mida | 5mm Round Top |
| Color | Blue (450nm-455nm) |
| Tipus de lent | Transparent clar |
| Endavant Voltage (Vf) | DC 3 Volt (3.0-3.2V) |
| Forward Current (If) | 20 mA |
| Viewangle ing | 30 graus |
| Intensitat lluminosa | 7000-8000 mcd |
| Configuració del pin | Through Hole DIP 2-pins |
| Polaritat | Anode (Longer Part) | Cathode (Shorter Part) |
| Material | coure |
| Dimensions del producte | 6.3 x 5.51 x 0.71 polzades (embalatge) |
| Número de model de l'article | 100F5T-YT-WH-BL |
Manteniment
Chanzon LED diodes are designed for long-term reliability with minimal maintenance. Keep them stored in a dry, cool environment away from direct sunlight and extreme temperatures when not in use. Avoid bending the leads repeatedly or with excessive force, as this can cause internal damage. Ensure proper heat dissipation in high-density applications to maintain optimal performance and lifespan.
Resolució de problemes
- El LED no s'il·lumina:
- Check polarity: Ensure the longer lead (anode) is connected to positive and the shorter lead (cathode) to negative.
- Verify power supply: Confirm the power supply is providing the correct voltage (DC 3V) and sufficient current.
- Check connections: Ensure all connections are secure and there are no loose wires or cold solder joints.
- Resistor value: If using a resistor, ensure its value is correct for your power supply voltage and the LED's current requirements. An incorrect resistor can prevent the LED from lighting or cause it to burn out.
- Damaged LED: Test the LED with a known good power source and resistor. If it still doesn't light, the LED may be damaged.
- LED is Dim:
- Insufficient current: The LED may not be receiving enough current. Check your power supply and resistor value.
- Voltage drop: Ensure there isn't excessive voltage drop across other components in your circuit.
- LED Burns Out Quickly:
- Excessive current/voltage: The LED is likely receiving too much current or voltage. Always use a current-limiting resistor.
- Incorrect polarity: While usually preventing light, prolonged incorrect polarity with high voltage can damage the LED.
Garantia i Suport
For any questions, technical assistance, or support regarding your Chanzon 5mm Blue LED Diode Lights, please refer to the official Chanzon store or contact their customer service directly. While specific warranty details are not provided in this manual, Chanzon is committed to providing quality products and support to its customers.
Visita el CHANZON Store per a més informació i ofertes de productes.
