Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and parts identification for your DREMEL 1671 16-inch Scroll Saw. Please read all instructions carefully before operating the tool to ensure proper use and to prevent injury or damage.

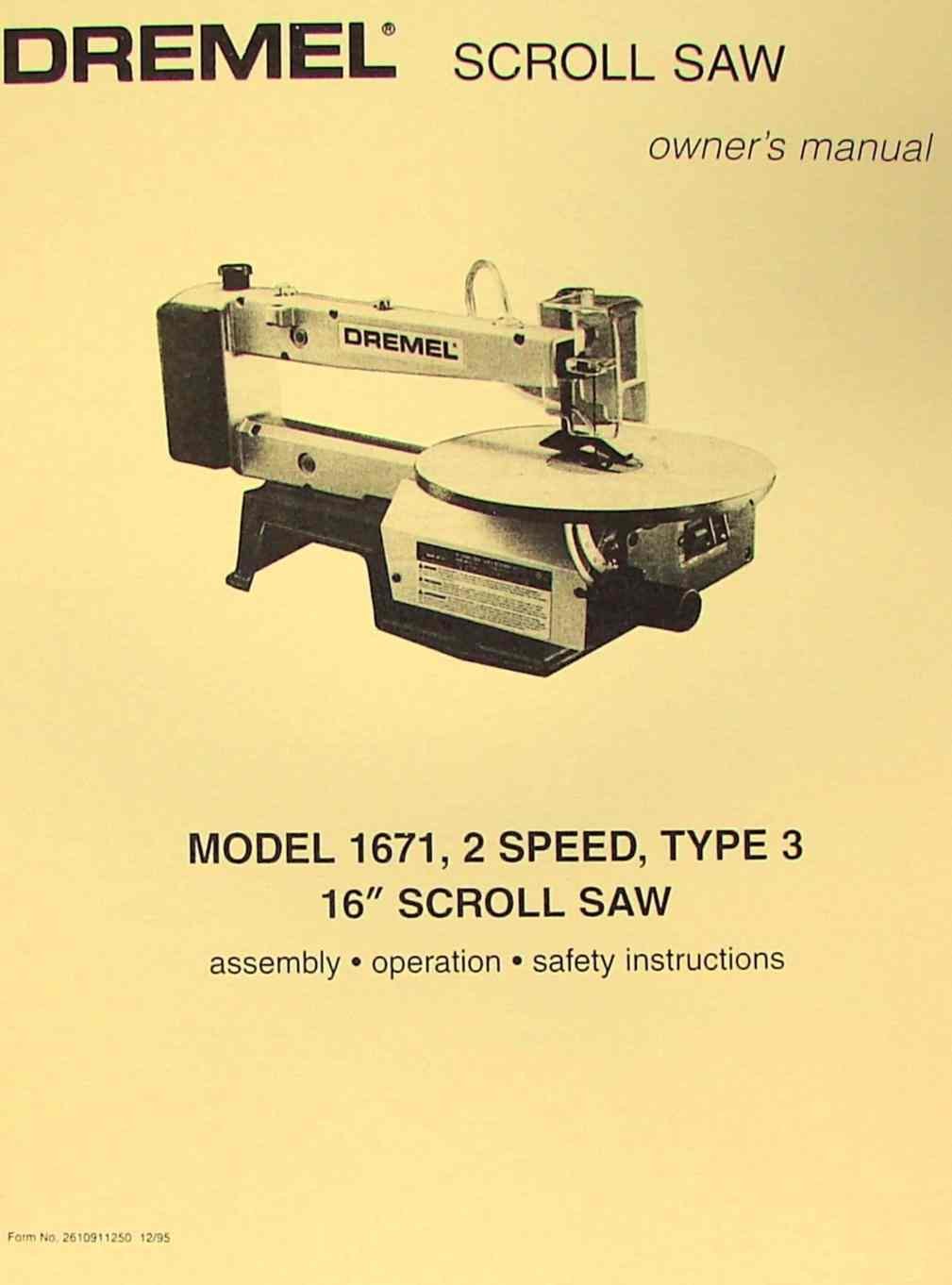

Figure 1: DREMEL 1671 16-inch Scroll Saw overview.
Normes generals de seguretat
Seguiu sempre les precaucions de seguretat bàsiques per reduir el risc d'incendi, descàrrega elèctrica i lesions personals. Mantingueu la vostra zona de treball neta i ben il·luminada. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables. Mantingueu els nens i els vianants allunyats mentre feu servir una eina elèctrica.
- Wear appropriate personal protective equipment (PPE), including eye protection.
- Ensure the tool is properly grounded.
- Disconnect power before making adjustments or changing accessories.
- No us excediu; mantingueu un bon equilibri i una postura adequada en tot moment.
Normes de seguretat addicionals
Specific safety guidelines for scroll saw operation:
- Never place hands in the blade area while the saw is running.
- Always use the hold-down foot to secure the workpiece.
- Ensure the blade is correctly tensioned before starting.
- Do not force the workpiece; allow the blade to cut at its own pace.
- Clear sawdust regularly to maintain visibility and prevent fire hazards.
Especificacions del motor i requisits elèctrics
The DREMEL 1671 Scroll Saw operates on standard household current. Refer to the motor label for specific voltage, amperage, and frequency requirements. Ensure your power supply matches these specifications. Use only extension cords rated for outdoor use if operating outdoors, and ensure they are of adequate gauge for the distance.
Connexió a una font d'alimentació
Before connecting the saw to a power source, ensure the power switch is in the OFF position. Plug the power cord into a grounded 3-prong outlet. Do not bypass the grounding feature. If an extension cord is necessary, use a 3-wire grounding type extension cord with a 3-prong grounding plug and 3-pole receptacle that accepts the tool's plug.
Desembalatge i comprovació del contingut
Carefully remove all components from the packaging. Inspect for any shipping damage. Retain packaging materials for future transport or storage. Verify that all parts listed in the 'Table of Loose Parts' section are present.
Taula de peces soltes
The following items should be included with your DREMEL 1671 Scroll Saw:
- DREMEL 1671 Scroll Saw Unit
- Blade Adapters (2 sets)
- Claus hexagonals (diverses mides)
- Hold-down Foot Assembly
- Manual de l'operador
- Manual de peces
Figure 2: Illustration of loose parts for the DREMEL 1671 Scroll Saw.
Glossari de termes
Understanding the terminology used in this manual is crucial for proper operation:
- Scroll Saw: A power tool used to cut intricate curves and joints in wood, plastic, and other materials.
- Pin-End Blade: A scroll saw blade with small pins at each end for quick installation.
- Plain-End Blade: A scroll saw blade without pins, requiring adapters for installation.
- Hold-down Foot: A component that secures the workpiece against the table during cutting.
- Tall de bisell: A cut made at an angle other than 90 degrees to the surface of the workpiece.
Getting to Know Your Scroll Saw
Familiarize yourself with the various parts and controls of your DREMEL 1671 Scroll Saw. Refer to the diagram below for component identification.
Figure 3: Labeled diagram of the DREMEL 1671 Scroll Saw.
- Interruptor d'encesa/apagada
- Pom de control de velocitat
- Palanca de tensió de la fulla
- Table Tilt Knob
- Hold-down Foot
- Guàrdia de la fulla
Ajustaments de funcionament
Before beginning any cutting operation, ensure the saw is properly adjusted for the material and desired cut.
Setting the Table for Horizontal or Bevel Cutting
- Loosen the table tilt knob located beneath the table.
- Adjust the table to the desired angle using the degree scale.
- Tighten the table tilt knob securely.
Aligning the Degree Scale Pointer
To ensure accurate angle cuts, periodically check and adjust the degree scale pointer. With the table set at 0 degrees (perpendicular to the blade), the pointer should align precisely with the '0' mark. If not, loosen the pointer screw and reposition it.
Basic Scroll Saw Operations
This section covers fundamental cutting techniques and blade installation procedures.
Removing and Installing Pin-End Blades
- Disconnect power to the saw.
- Release blade tension using the tension lever.
- Remove the old blade by unhooking the pins from the upper and lower blade holders.
- Insert the new pin-end blade, ensuring the pins are securely seated in both holders.
- Reapply blade tension.
Figure 4: Step-by-step guide for pin-end blade installation.
Attaching Blade Adapters to Plain-End Blades (Straight Cutting)
For plain-end blades, adapters are required. Slide an adapter onto each end of the plain-end blade, ensuring the blade is centered and the adapter screws are tightened securely. The adapters should be oriented for straight cutting.
Attaching Blade Adapters to Plain-End Blades (Side Cutting)
When performing side cutting, orient the blade adapters so that the blade teeth face the desired cutting direction. Ensure the adapters are firmly secured to the blade ends.
Removing and Installing Plain-End Blades
Follow the same steps as for pin-end blades, but ensure the blade adapters are correctly attached to the plain-end blade before inserting them into the blade holders.
Making Interior Scroll Cuts Pin-End Blades and Plain-End Blades
To make an interior cut, drill a pilot hole in the workpiece. Disconnect power, release blade tension, and unhook the upper blade. Thread the blade through the pilot hole, reattach the upper blade, and reapply tension. Proceed with cutting, ensuring the workpiece is held firmly against the table.
Mounting the Scroll Saw
Proper mounting ensures stability and safe operation.
Mounting the Scroll Saw to a Bench
Secure the scroll saw to a sturdy workbench using bolts, washers, and nuts through the designated mounting holes in the saw's base. Ensure the bench is stable and can support the weight and vibration of the saw.
Mounting the Scroll Saw to Plywood
For portability, the saw can be mounted to a piece of 3/4-inch plywood. Use bolts to secure the saw to the plywood, then clamp the plywood to a workbench when in use.
Attaching Scroll Saw to Leg Set
If using an optional DREMEL leg set, follow the instructions provided with the leg set to securely attach the scroll saw. Ensure all fasteners are tightened.
Attaching the Magnifier Lamp to Your Scroll Saw
If your model includes a magnifier lamp, attach it to the designated mounting point on the saw. Ensure it is positioned to provide optimal lighting and magnification for your work area without obstructing movement.
Maintaining Your Scroll Saw
Regular maintenance extends the life of your tool and ensures safe operation.
Lubricació
Periodically lubricate moving parts as indicated in the parts diagram. Use a light machine oil. Do not over-lubricate, as excess oil can attract dust and debris.
Neteja
Keep the saw clean from sawdust and debris. Use compressed air or a brush to clear dust from the motor vents and blade area. Ensure the power is disconnected before cleaning.
Accessoris recomanats
Enhance your scroll saw experience with these recommended accessories:
- Assorted Scroll Saw Blade Packs (various tooth counts and widths)
- Sistema de recollida de pols
- Llum de treball
- Safety Push Stick
Resolució de problemes
Consulteu aquesta secció per conèixer els problemes comuns i les seves solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| La serra no arrenca | Sense corrent, interruptor defectuós, interruptor automàtic saltat | Check power connection, inspect switch, reset breaker |
| La fulla es trenca amb freqüència | Incorrect blade tension, wrong blade for material, forcing cut | Adjust tension, use appropriate blade, reduce feed pressure |
| Talls imprecisos | Loose blade, misaligned table, worn blade | Check blade tension, realign table, replace blade |
Especificacions
Key technical specifications for the DREMEL 1671 16-inch Scroll Saw:
- Model: 1671
- Longitud de la fulla: 5 inches (pin-end and plain-end)
- Profunditat de la gola: 16 polzades
- Inclinació de la taula: 0 to 45 degrees (left and right)
- Motor: Universal, AC only
- Pes: Approximately 8 ounces (manual weight, actual tool weight varies)
Informació de la garantia
DREMEL products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in material and workmanship. For specific warranty terms, duration, and claim procedures, please refer to the warranty card included with your purchase or visit the official DREMEL weblloc web. Conserveu el comprovant de compra per validar la garantia.
Atenció al client
For technical assistance, parts inquiries, or service, please contact DREMEL customer support. Have your model number and serial number ready when contacting support.
Weblloc: www.dremel.com
Telèfon: Refer to the DREMEL weblloc per als números de contacte regionals.
