Introducció
This manual provides instructions for the proper installation and care of your Clarion OEM Genuine Mounting Sleeve. This sleeve is designed to securely house compatible Clarion car stereo receivers within your vehicle's dashboard, ensuring a stable and professional installation.
Guia d'instal·lació
The Clarion OEM Genuine Mounting Sleeve is designed for single-DIN car stereo units. Proper installation ensures a secure fit and optimal performance of your car stereo.
Eines necessàries
- Joc de tornavisos (Phillips i de punta plana)
- Wire strippers/crimpers (if wiring is involved with the stereo)
- Panel removal tools (plastic pry tools recommended to avoid damage)
- Measuring tape (optional, for verifying opening size)
Passos d'instal·lació
- Prepare the Dashboard Opening: Carefully remove the existing car stereo or blanking plate from your vehicle's dashboard. Use panel removal tools to avoid damaging the surrounding trim. Ensure the opening is clean and free of debris.
- Insert the Mounting Sleeve: Slide the Clarion mounting sleeve into the dashboard opening. Ensure the front edge of the sleeve is flush with the dashboard trim.
- Secure the Sleeve: Locate the metal tabs on the top, bottom, and sides of the mounting sleeve. Using a flathead screwdriver or similar tool, bend these tabs outwards to firmly grip the inside of the dashboard opening. Bend enough tabs to ensure the sleeve is held securely and does not move.
- Verifica l'ajust: Gently tug on the sleeve to confirm it is firmly seated. It should not wobble or slide.
- Install the Stereo: Once the sleeve is secure, you can proceed with installing your compatible Clarion car stereo receiver into the sleeve. Ensure all wiring connections are made correctly before sliding the stereo fully into place. The stereo will click into the sleeve's locking mechanism.

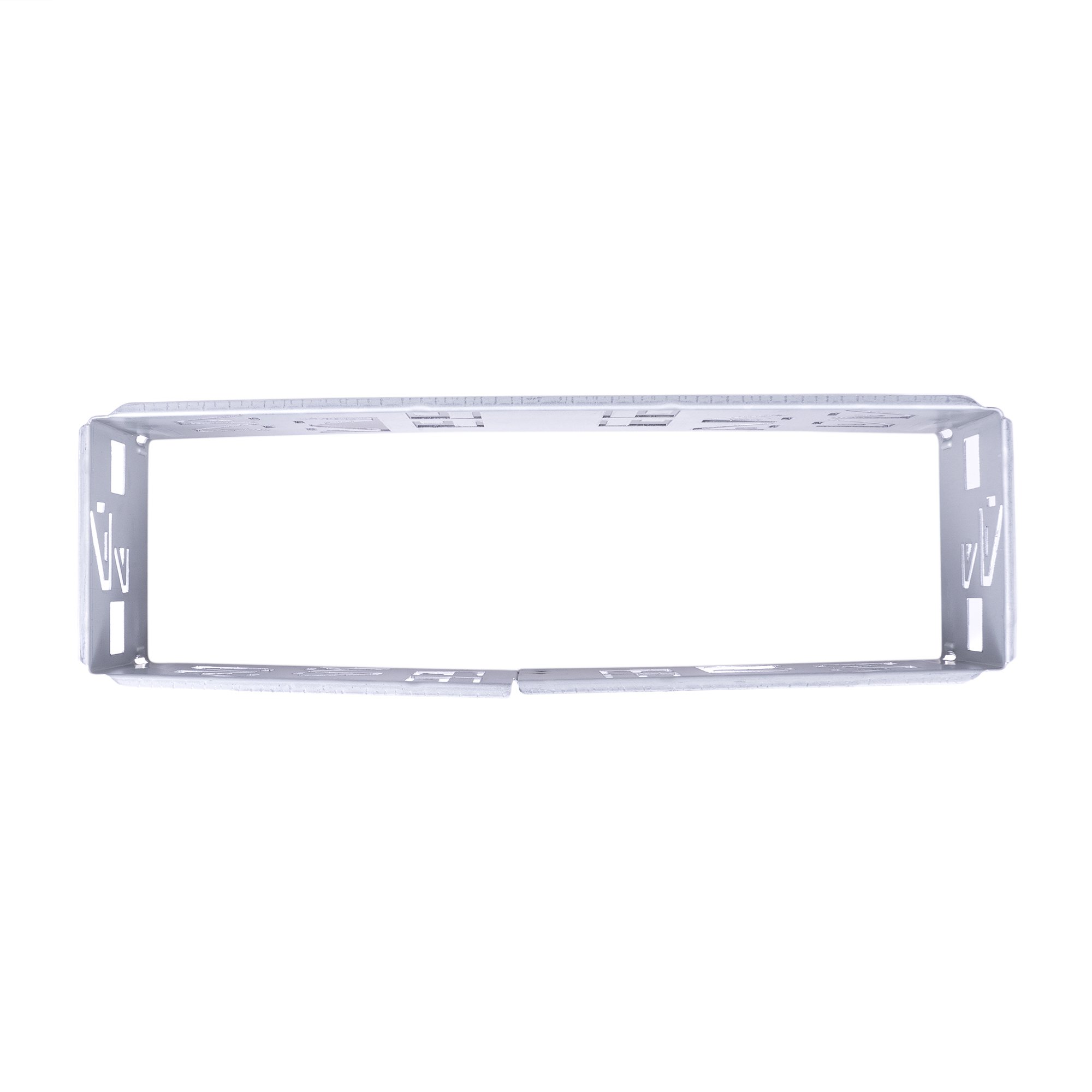

Un de dalt a baix view of the silver-colored Clarion OEM Genuine Mounting Sleeve, showing its rectangular shape and the internal tabs designed for securing a car stereo.
Compatibilitat
This mounting sleeve is compatible with a wide range of Clarion car stereo models, including but not limited to:
- Clarion 6540, 6770, 7580
- Clarion ARX series: ARX3470, ARX5170, ARX5370, ARX5371, ARX6370, ARX6470, ARX7170, ARX7270, ARX7370, ARX7470, ARX8170, ARX9170, ARX9270
- Clarion DRB series: DRB2475, DRB3276, DRB3375, DRB3475, DRB4275, DRB4375, DRB4475, DRB5155, DRB5176, DRB5177, DRB5475
- Clarion DRX series: DRX5275, DRX5375, DRX6175, DRX6375, DRX6475, DRX7375, DRX7475, DRX8175, DRX8275, DRX9175L, DRX9255, DRX9275L, DRX9375R, DRX9575RZ, DRX9675Z
- Clarion DRZ9255, DVS9755, JOYRIDE
Always verify compatibility with your specific car stereo model before installation.
Ús
The mounting sleeve functions as a secure housing for your car stereo. Once installed, it requires no further operation. The car stereo itself will have its own operating instructions for its various functions.
Cura i Manteniment
The Clarion mounting sleeve is constructed from durable metal and requires minimal maintenance.
- Neteja: If necessary, wipe the sleeve with a soft, dry cloth to remove dust or debris before installing the stereo. Avoid abrasive cleaners.
- Inspecció: Periodically check that the sleeve remains securely fastened within the dashboard. If it becomes loose, gently re-bend the securing tabs to tighten its fit.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sleeve does not fit into dashboard opening | Incorrect dashboard opening size or incompatible vehicle. | Verify your vehicle's dashboard opening size against standard single-DIN dimensions. This sleeve is designed for standard single-DIN openings. |
| Sleeve is loose after installation | Securing tabs not bent sufficiently. | Remove the stereo and carefully bend the metal tabs further outwards to create a tighter grip within the dashboard opening. |
| Stereo does not slide into sleeve | Obstruction or misaligned sleeve. | Ensure no wires are obstructing the stereo's path. Check that the sleeve is not bent or deformed. |
If issues persist, consult a professional car audio installer.
Especificacions del producte
- Tipus: OEM Genuine Mounting Sleeve
- Material: Metall
- Compatibilitat: Single-DIN car stereo receivers (refer to compatibility list above)
- Approximate Parcel Dimensions: 20.32 x 6.6 x 5.84 cm (8.0 x 2.6 x 2.3 polzades)
- Approximate Parcel Weight: 81.64 g (0.18 lliures)
- Marca: Clarion
- Fabricant: CLARION
Garantia i assistència al client
For specific warranty information regarding your Clarion OEM Genuine Mounting Sleeve, please refer to the documentation provided with your original Clarion car stereo unit or contact Clarion customer support directly.
Clarion Customer Support: For technical assistance or inquiries, please visit the official Clarion weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
