1. Informació important de seguretat
This component is safety-critical. All procedures related to its installation, assembly, maintenance, commissioning, repairs, and other inspections must be performed exclusively by authorized specialized craftsmen or authorized professionals, such as contractual installation companies.
Failure to comply with these safety instructions can result in serious injury, property damage, or improper operation of the heating system. Always ensure that the power supply to the appliance is disconnected before commencing any work.
2. Producte acabatview
The Wolf 213795099 Gas Fan D118 is a replacement component designed for gas heating systems. It is engineered to ensure efficient and safe operation of the boiler by facilitating proper gas combustion and exhaust.

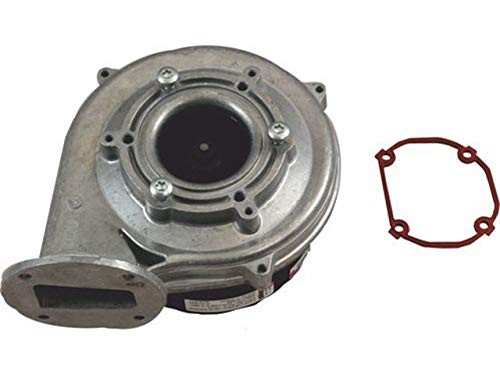

Image: The Wolf 213795099 Gas Fan D118, a metallic centrifugal fan unit, shown alongside a red rubber gasket. The fan features a circular intake opening with screw fastenings and a rectangular exhaust port.
3. Configuració i instal·lació
Installation of the Wolf 213795099 Gas Fan D118 must only be carried out by qualified and authorized personnel. Refer to the specific boiler manufacturer's instructions for detailed installation procedures, wiring diagrams, and safety checks.
- Ensure the power supply to the boiler is completely disconnected before beginning installation.
- Verify that the replacement fan matches the specifications of the original component.
- Connect the fan using the appropriate 2-pin power connector.
- Securely fasten the fan in its designated position, ensuring all seals and gaskets (such as the provided red gasket) are correctly seated to prevent leaks.
- After installation, perform all necessary system checks and commissioning procedures as per boiler manufacturer guidelines.
4. Instruccions de funcionament
The gas fan operates as an integral part of the boiler's combustion system. Its operation is controlled by the boiler's main control unit. Once installed and the boiler is powered on, the fan will activate automatically as required to facilitate the combustion process and ensure proper exhaust of flue gases.
No direct user interaction is required for the fan's operation. Any adjustments or operational checks should only be performed by authorized service technicians.
5. Manteniment
Regular maintenance of the gas fan and the entire boiler system is crucial for safety and efficiency. Maintenance should only be performed by authorized professionals.
- Es recomana una inspecció anual per part d'un tècnic qualificat.
- Checks should include verifying fan operation, inspecting for wear and tear, and ensuring proper sealing.
- The fan utilizes an air cooling method, so ensure that its ventilation pathways are clear and unobstructed.
- Do not attempt to clean or repair the fan yourself if you are not an authorized professional.
6. Solució De Problemes
If you experience any issues with your boiler system, including suspected fan malfunction, do not attempt to diagnose or repair the problem yourself. Immediately contact an authorized service technician.
Common indicators of a potential fan issue might include unusual noises from the boiler, error codes displayed on the boiler control panel, or the boiler failing to ignite or operate correctly. These symptoms require professional assessment.
7. Especificacions
- Marca: Llop
- Fabricant: WOLF KLIMATECHNIK
- Número de model: 213795099
- ASIN: B01BYA3M40
- Mètode de refrigeració: Aire
- Tipus de connector d'alimentació: 2 pins
- Bateries necessàries: No
- Bateries incloses: No
8. Garantia i Suport
For information regarding the warranty period and terms for the Wolf 213795099 Gas Fan D118, please refer to the documentation provided with your purchase or contact your authorized Wolf dealer or the seller directly.
For technical support, service, or to locate an authorized service provider, please visit the official Wolf website or contact their customer service department. Always provide the model number (213795099) when seeking support.
